Behringer EUROCOM MA4000M

MA4000M Energy-Efficient, 9-Input Commercial Rack Mixer Featuring Multiple Input Connectivity and Diverse Signal Routing
  • Multi-function mixer designed for continuous operation in distributed music, paging and AV applications
  • State-of-the-art, energy-saving Switch-Mode Power technology drastically reduces energy cost
  • 8 Mic/Line inputs on Euroblock, XLR/TRS and RCA connectors, each with switchable Mic/ Line and Phantom Power, individual Trim control and post-trim input level LED
  • Inputs 1-8 individually assignable to Zone 2/MOH output; Aux inputs 5-8 individually assignable to Main Mix
  • Dedicated page input accepts telephone or paging microphone and features priority muting across all inputs
  • Wired Remote volume, power and mute control connector
  • Individual front panel input Level plus Lo and Hi Main EQ controls
  • Auto-dimming control illumination, dual channel VU meter, Power switch, and dual- function indicator ring surrounding Master volume control
  • Main Mix 1 & 2 outputs on balanced Euroblock connectors
  • Recording output and Zone 2/MOH assignable output with independent gain control
  • Detachable rack ears, screw covers, blank knob caps for control lock-out, IEC-type AC power cord and all mating Euroblock connectors included
  • Independent DC and thermal overload protection plus automatic limiters for each amplifier prevent overload, clipping and distortion without shutting down audio
  • Ultra-light, ultra-low noise and ultra-efficient switch-mode power supply for noise-free audio, superior transient response and low power consumption
  • High-quality components and exceptionally rugged construction ensure long life
Description

Product Overview

The Behringer EUROCOM MA4000M professional mixer offers extraordinary flexibility and ease-of-use in a rack-mountable system that is ideal for commercial installation applications such as restaurants, bars, stores, sports clubs, spas, and houses of worship. Designed for easy operation by non-technical personnel, the Behringer EUROCOM MA4000M combines a clear, intuitive front panel with back panel controls that allow the installer tremendous flexibility in customizing the mixer to the needs of each individual installation.

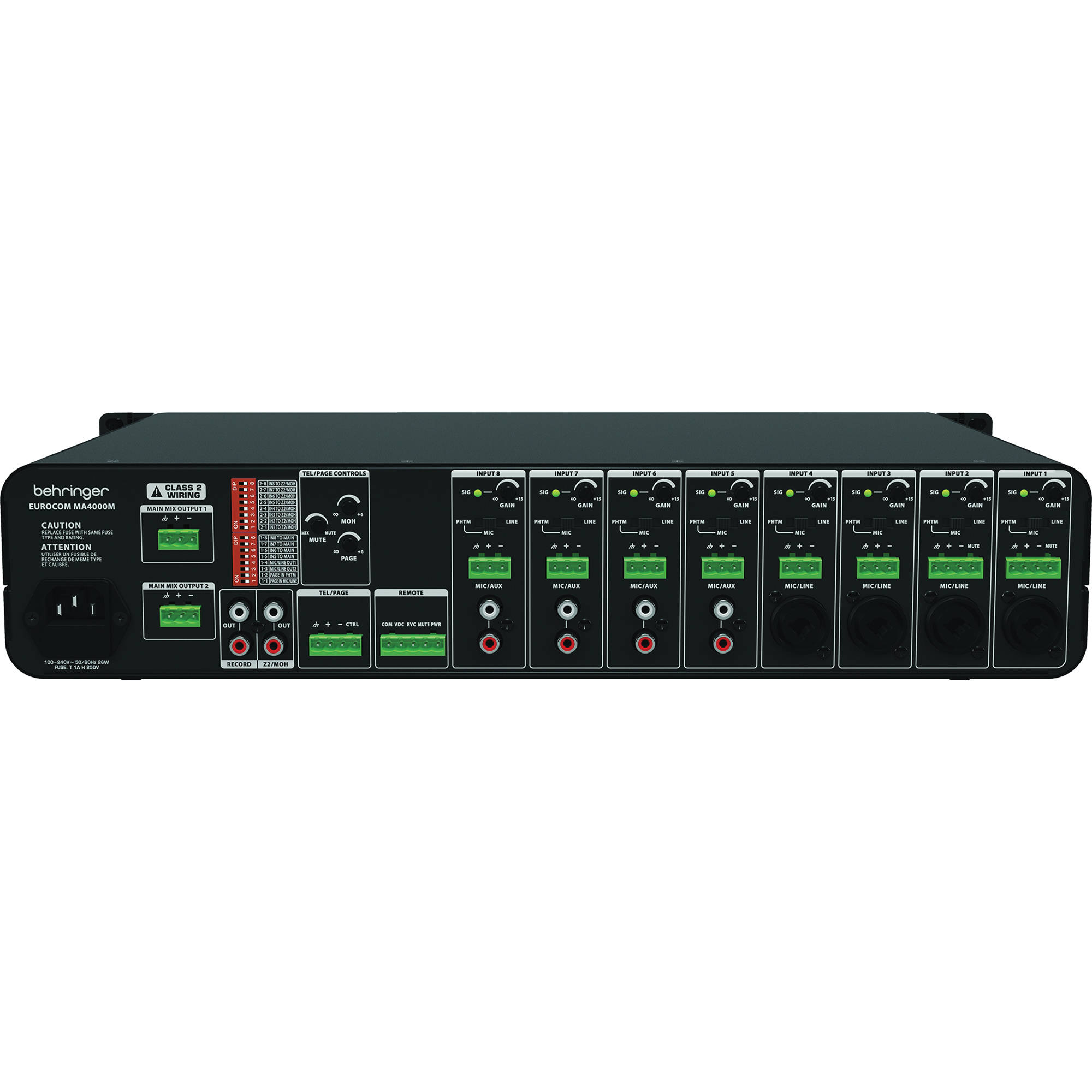

The Behringer EUROCOM MA4000M includes eight source-switchable channels for balanced or unbalanced input from line-level sources or microphones, either standard or phantom powered. All channels accept input via Euroblock connectors (six 3-pin and two 4-pin with mute terminals) and have both a signal LED and a level trim. Inputs 1-4 also have XLR/TRS (¼-inch) combination jacks, while inputs 5-8 each have a pair of RCA jacks, summed internally to mono, for sources such as CD/MP3 players, cable boxes, and radio/TV tuners. A 4-pin Euroblock connector provides an additional input for telephone paging, and a 5-pin Euroblock allows connection of a remote control.

Outputs, all mono, include two main mix outs on 3-pin Euroblocks and two feeds that are each split to a pair of RCA jacks, one a recording feed (pre-master main mix) and one a Zone 2/Music on Hold mix that may be used to feed a supplemental sound reinforcement system. The Z2/MOH mix includes only input channels assigned via back-panel Z2/MOH DIP switches. DIP switches also determine whether the main mix outs are line or mic level, enable inputs 5-8 in the main mix, and select the paging input. Trim pots are provided to adjust the Zone 2/MOH output level, the paging input level, and mute depth, which determines the degree of attenuation during automatic ducking of background audio.

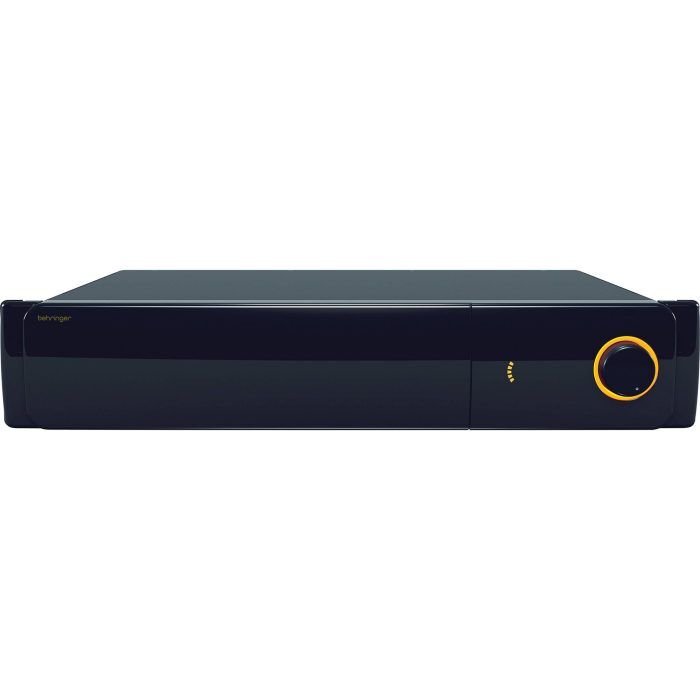

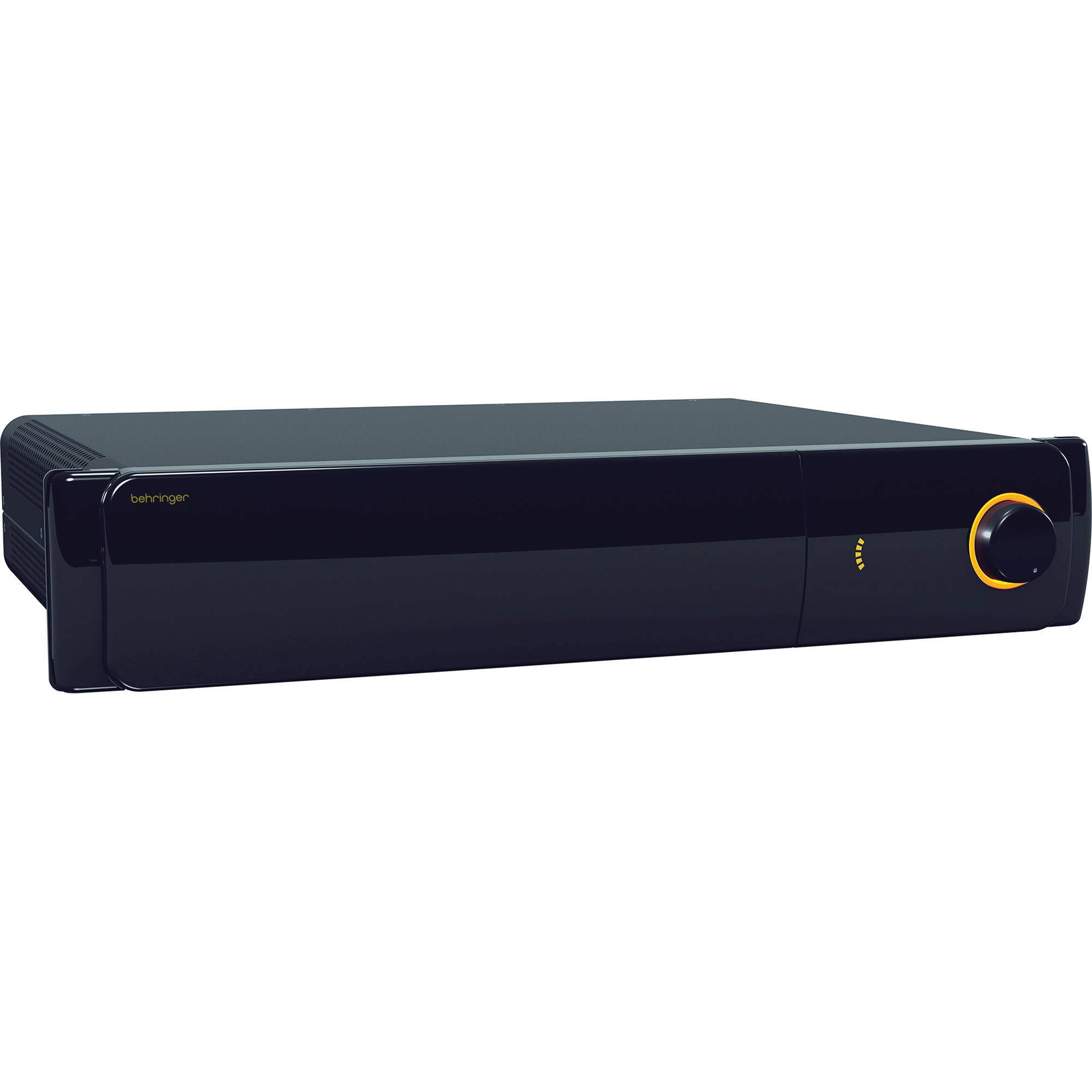

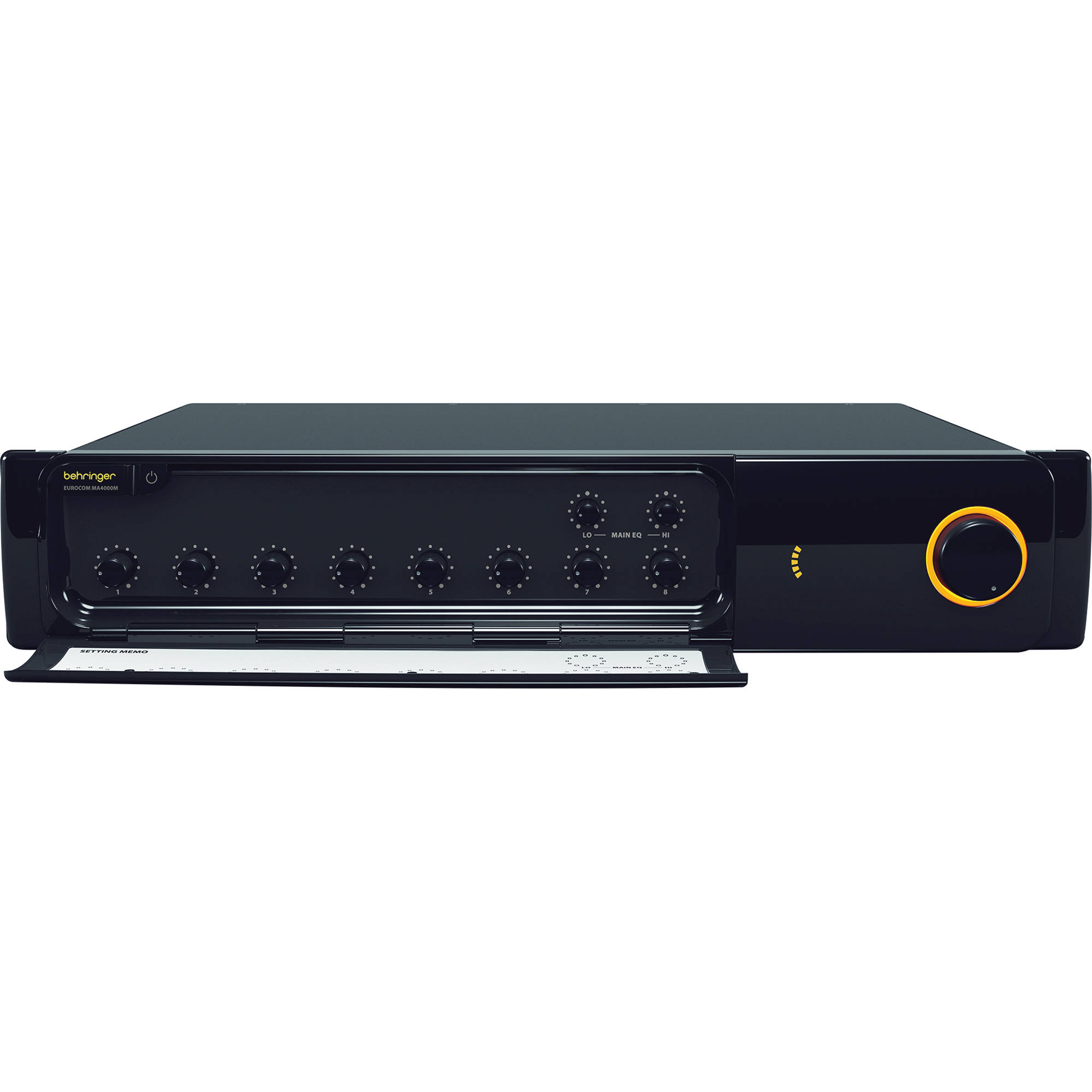

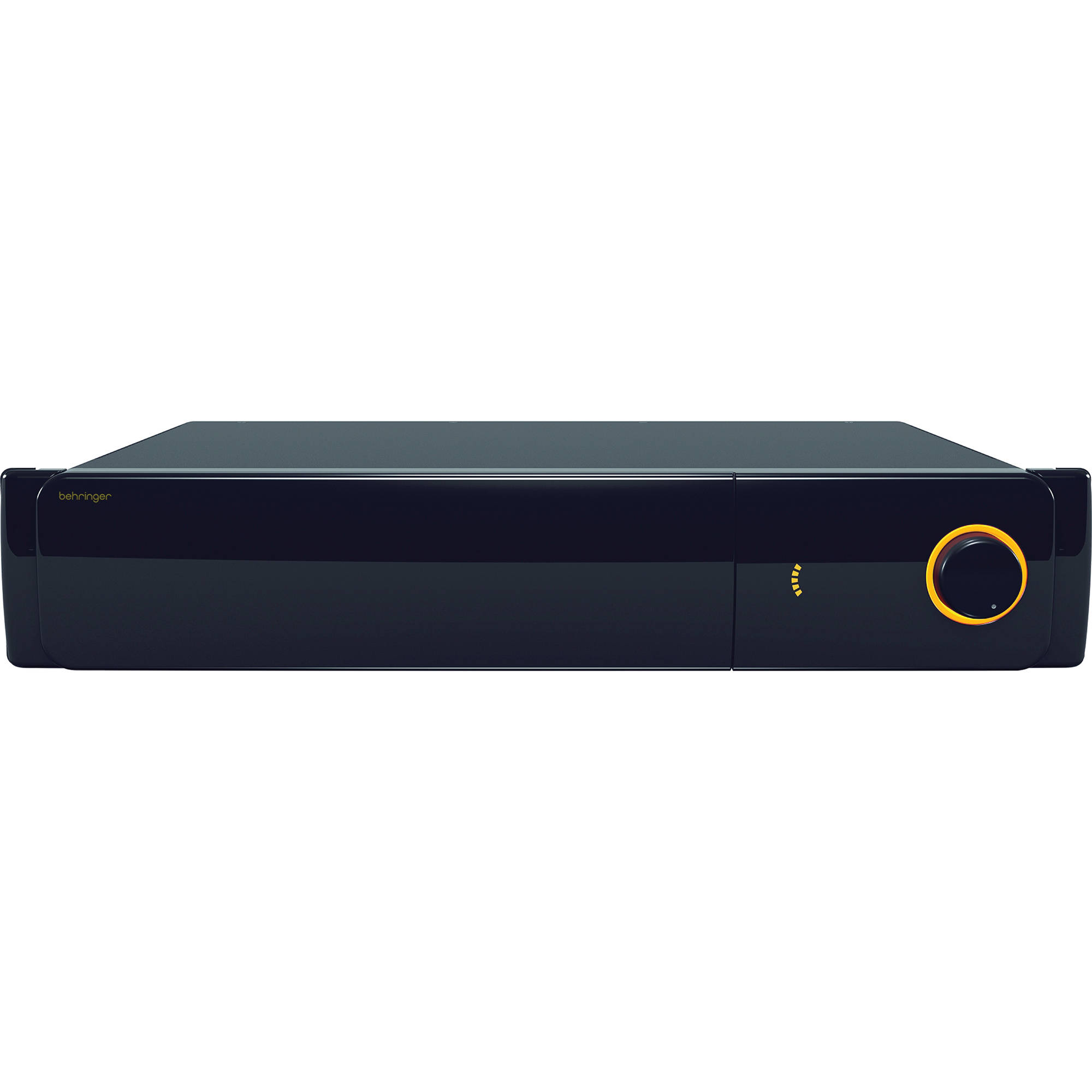

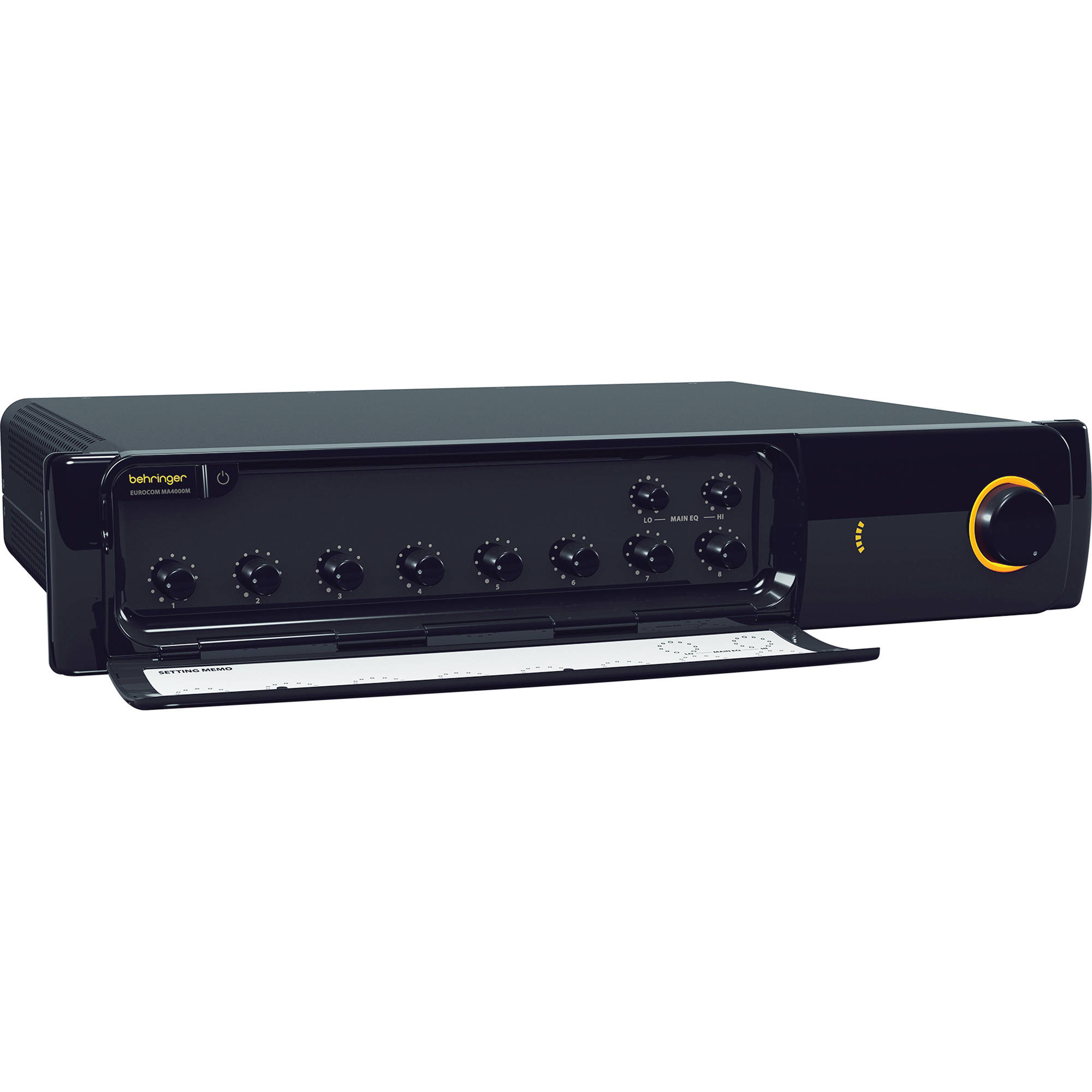

Front-panel controls include rotary faders for input levels as well as high and low EQ to optimize the sound for any environment. The front-panel master volume knob is surrounded by an indicator ring that glows yellow when the unit is powered and flashes red at the onset of clipping. A VU meter is provided to indicate output signal level.

Combining exceptionally flexible signal routing with all key functions for rack-mounted mixing and paging, the Behringer EUROCOM MA4000M is at once remarkably versatile and easy to use, making it an outstanding value for a wide variety of commercial installations in hospitality, retail, leisure, and business settings.



Applications:

Retail / Hospitality – For deployments where music sets the mood for shopping or dining with foreground or background music, messaging or paging, the Behringer EUROCOM MA4000M exceeds expectations for functionality and ease of use

Warehouse Paging – The Behringer EUROCOM MA4000M is perfect for commercial installations where reliability and paging clarity is crucial for safety and efficiency

Offices – Guarantee the optimum office environment by using the Behringer EUROCOM MA4000M for office paging and sound masking applications



Specifications:

Inputs
Mic/Line Inputs 1 and 2:
2x Combo XLR/TRS jacks
2x 4-pin Euroblock connectors (in parallel)

Mic/Line Inputs 3 and 4:
2x Combo XLR/TRS jacks
2x 3-pin Euroblock connectors (in parallel)

Inputs 5 to 8:
4x 3-pin Euroblock connectors (electronically balanced)

Auxiliary Inputs:
4x Stereo RCA jacks (summed)

Telephone/Page Input:
1x 4-pin Euroblock connector

Outputs
Main Mix 1 and 2:
2x 3-pin male Euroblock connectors (mic/line switchable)

Z2 and MOH:
2x RCA jacks

Record:
2x RCA jacks

Input Impedance
Inputs 1 to 4:
Mic: -50 to 0 dBV @ 600 Ω (electronically balanced)
Line: -27 to 0 dBV @ 600 Ω (electronically balanced)

Inputs 5 to 8:
Mic: -50 to 0 dBV @ 600 Ω
Line: -27 to 0 dBV @ 600 Ω

Auxiliary:
Line: -10 dBV @ 10 kΩ (unbalanced)

Telephone/Page Input:
Mic: -50 to 0 dBV @ 600 Ω
Line: -27 to 0 dBV @ 600 Ω

Output Impedance
Main Mix 1 and 2:
Mic: -40 dBV @ 1 kΩ
Line: 0 dBV @ 600 Ω

Z2 and MOH
0 dBV @ 600 Ω (unbalanced)

Record:
0 dBV @ 600 Ω (unbalanced)

Phantom Power
24 VDC (switchable, Inputs 1 to 8 and Telephone/Page)
Dynamic Range
Mic: 65 dB
Line: 80 dB
Total Harmonic Distortion/Noise
0.5% @ 1 kHz (rated output)
Frequency Response
50 Hz to 18 kHz (+/- 2 dB)
Tone Controls
Low: +/- 12 dB @ 100 Hz
High: +/- 12 dB @ 10 kHz
Connections
Remote: 5-pin Euroblock connector
Volume: 10 kΩ linear-taper potentiometer
Power: 5 VDC voltage make contact input (no open voltage)
Mute: No-voltage make contact input (open voltage 5 VDC, short-circuit < 10 mA)
DC Power: 5 VDC, 100 mA Current limited (short-circuit protected)
Telephone/Page Mute: No-voltage make contact input (open voltage 24 VDC, short circuit < 10 mA)
Inputs 1 & 2 Mute: No-voltage make contact input (open voltage 24 VDC short circuit < 10 mA)
Indicators
Power: Yellow LED ring illumination
Overload/Protection: Red LED ring illumination
Output Level: Yellow LED VU meter (red when clipping)
Power Supply
Mains Voltage: 100 to 240 VAC, 60/50 Hz
Fuse: T 1 AH 250 V
Power Consumption: 26 W
Mains Connector: Standard IEC receptacle
Dimensions
3.5 x 17.0 x 16.0″ (8.8 x 43.2 x 40.6 cm)
Weight
10.2 lb (4.6 kg)
