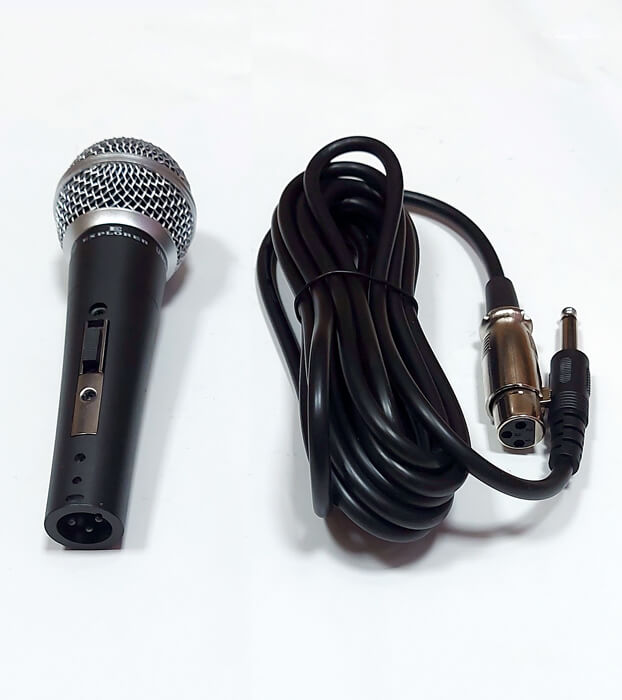

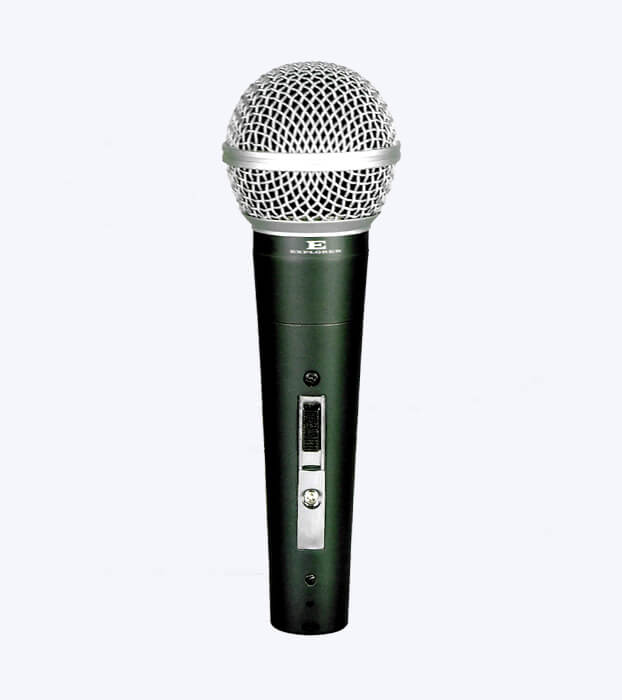

Explorer EXM 088 Cardioid Microphone

Explorer Corded EXM 088 Mic

The Microphone can be used for Karaoke, in sound reinforcement of recording to pick up voices or instruments, indoors or outdoors.

Features

• Tailored frequency response provides vocal intelligibility and crispness
• Neodymium magnate for high signal-to-noise ratio
• Shock mount reduces handling noise
• Cardioid (unidirectional) pickup pattern suppresses feedback
• Locking On/ Off switch

Accessories

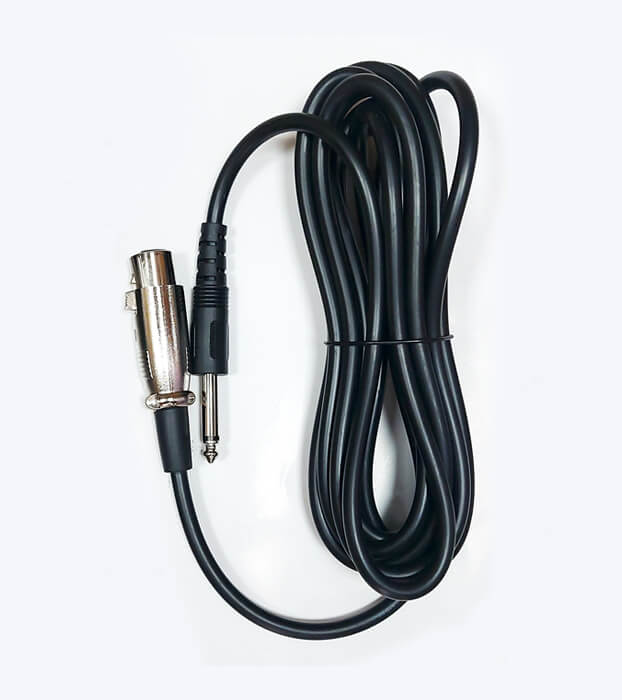

• 3 m (10ft.) Cable (XLR-1-4 in.) 15Hz

Optional Accessories

• 6 m (20ft.) Cable (XLR-1-4 in.)…………………………..C 20Hz
• 6 m (25ft.) Cable (XLR-XLR.)…………………………..C 25J
• Windscreen (7 colour available ……………………..A 58 WS Series

Impedance(z)

Low, rated 150hms (actual 180hms)

Output level (at 1 KHz), Open Circuit Voltage

76.0db (0.15mV)* *0db=1V/bar

Polarity

Positive pressure on diaphragm positive voltage on 2 pin with respect to in 3

Connector

Three-pin professional audio connector (male XLR)

Switch

Built-in-locking On/Off switch, with lockplate. To lock the switch On, loosen the screw, push the lockplate forward, then tighten the screw.

Weight

255g

Basic Rules For Microphone

• Aim a directional microphone toward the desired sound sourced (for instance, talkers singer, musical instrument).
• Do not pick up the same sound source with more than one microphone. Keep the distance between multiple microphones at least three times the distance from each source to its intended microphone.
• When the extra bass response is desirable, a word is close to the microphone. This phenomenon is known as the ‘‘proximity effect’’.
• Locate the microphone as far as possible from acoustically reflective (hard, smooth) surfaces.
• To preserve directional characteristics, do not obstruct the grille with your hand.
