Numark C2 DJ Mixer

THE FULL-FUNCTION MIXER FOR ANY DJ.

Our simplest, most easy-to-understand design, C2 is a powerful rack DJ mixer. There’s no finer mixer value in terms of performance, features, or quality.

Five-band EQ lets you tailor system response to the room with precision. The sophisticated microphone section includes great tools such as auto-ducking, which automatically drops the level of whatever’s going on when announcements need to be made and auto-muting with sensitivity adjustment so feedback will be nothing but a distant memory.

In a world of mixers with overly-complex designs and unnecessarily complicated operations, C2 delivers a new way of mixing with great value and ease of use.

FEATURES

• Four-channel rack DJ mixer
• Inputs: three phono (RCA), eight line (RCA), two mic (1/4″)

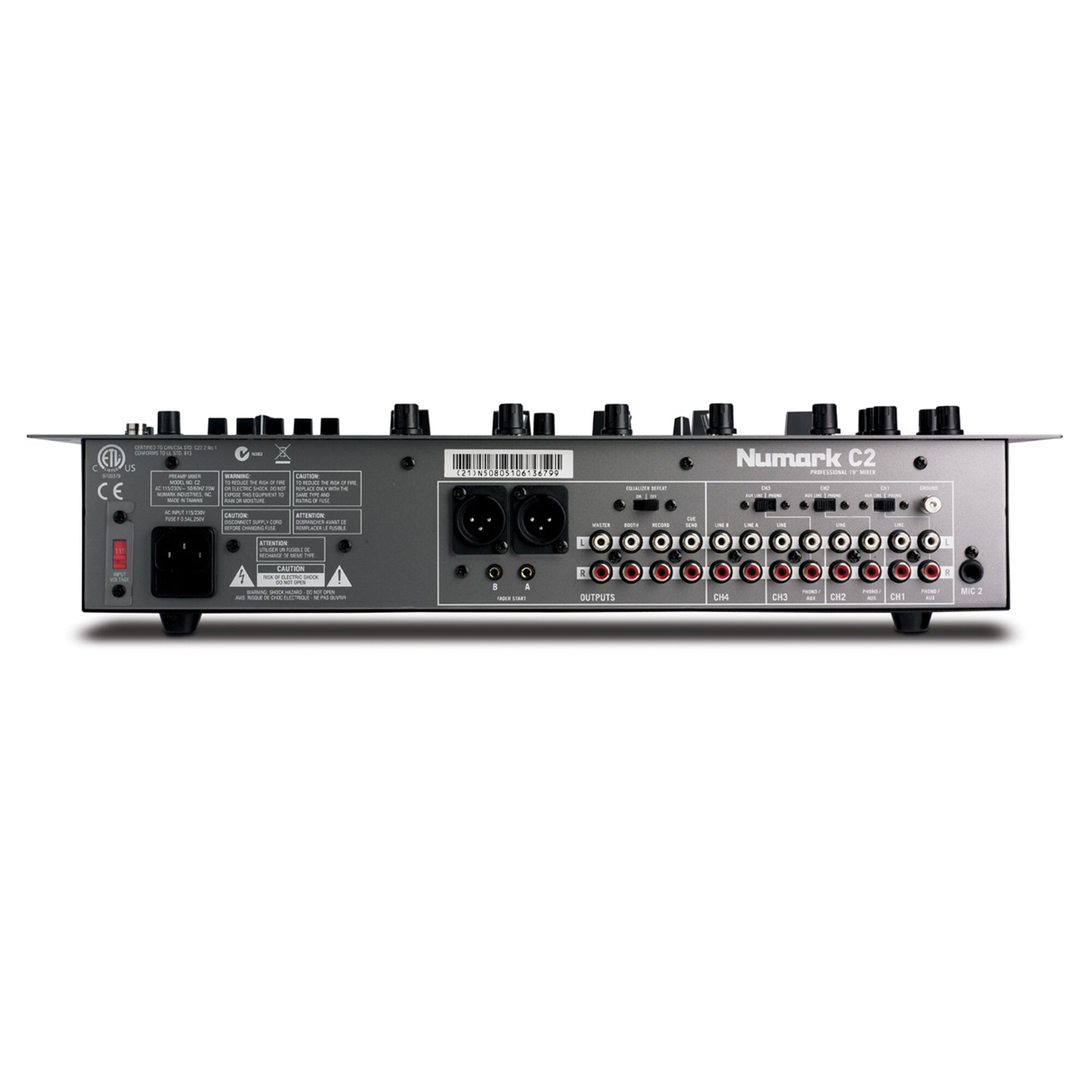

• Outputs: Balanced (XLR), Master (RCA), Record (RCA), Zone (RCA), Headphone (1/4″ stereo)
• Five-band EQ, rear-panel defeatable
• Sensitivity-adjustable, defeatable auto-ducking and muting when mic signal is present
• Split or blend-cueing
• PFL gain-adjust with meter
• Fader-start and panning on master fader

SPECIFICATIONS

INPUTS:

Line: 10k? input impedance; 85mV rms sensitivity (for 1.22V output)

Mic: 10k? input impedance unbalanced; 2 mV rms sensitivity (for 1.22V output); 60mV rms max input

Phono:47k? input impedance; 1.5mV rms sensitivity @ 1 KHz (for 1.22V output)

OUTPUTS:

Line: 9V rms max

Headphone Amp: 0.5 watt int47?

Distortion less than 0.01%

SIGNAL TO NOISE RATIOS(vs. maximum output):

Line: Better than 96 dB

Mic: Better than 78 dB

Phono:Better than 87 dB

*JIS – weighted

FREQUENCY RESPONSE:

Line: 20 Hz- 22k Hz

Line: 20 Hz- 20k Hz

Phono:

POWER CONSUMPTION:

10 Watt typical

17 watt with full headphone output

DIMENSIONS (W x H x D):

480mm x 175mm x 95mm

19

WEIGHT: 3.2 kgs, 8.7 lbs
