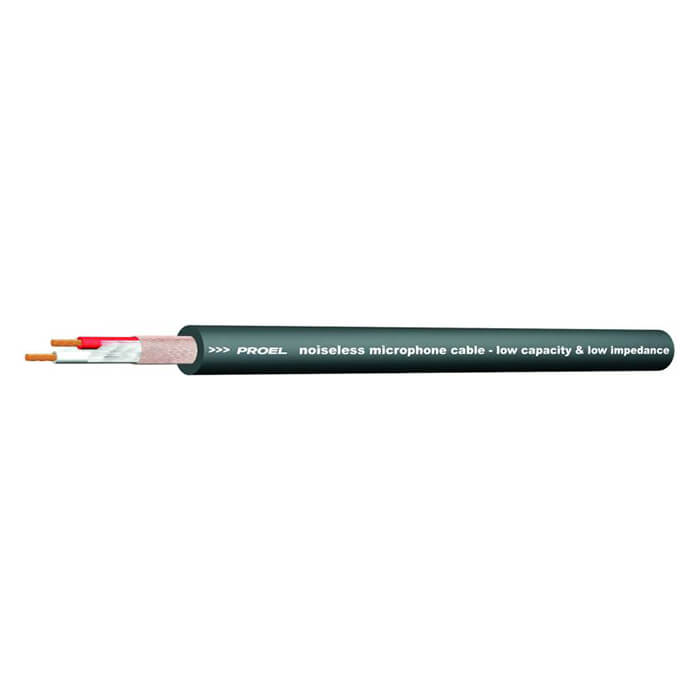

Proel HPC210 Microphone Cable Roll
Professional balanced microphone cable (2 x 0,22 mm2) with flexible overall jacket – Dense spiral red copper shield – O.F.C. (Oxygen Free Copper). Available colors: Black, Blue, Bronze, Green, Purple, Red, White, Yellow.
Description
- Application fields: Recording studios / Microphone connections
- Conductors: Bare copper 24 AWG = 30 x 0.10 mm (0.22 mm2)
- Insulation: PE (Compact polyethylene) Ø 1.60 mm – RED/WHITE
- Shield: Spiral copper 16x5x0.10 mm > 90%
- Jacket: Flexible PVC 60 shore Ø 6.50 mm
- Color: Black
- Electrical resistance:
- 93 Ohm/Km (conductor) @ 20°C
- 20 Ohm/Km (shield) @ 20°C
- Electrical capacitance:
- 46 pF/m (conductor/conductor) @ 1 KHz
- 90 pF/m (conductor/shield) @ 1 KHz
- Velocity of propagation: 80 %
- Operating temperature: -20°C / +70°C
- Working tension:
- < 50 V AC
- < 75 V DC
- Weight: 46 Kg/Km
- Minumum bending radius: 20 x cable section radius
- Packaging:

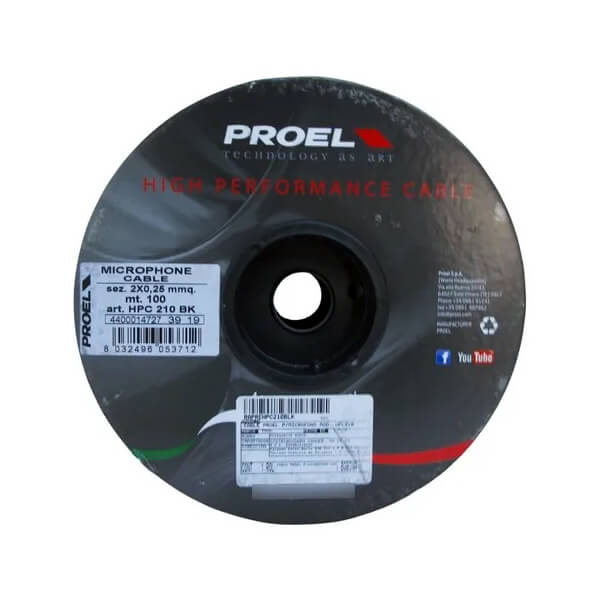

- 100 m carton reel
- 300 m wooden reel (HPC210BKR300)
- 500 m wooden reel (HPC210BKR500)
