Key Features:

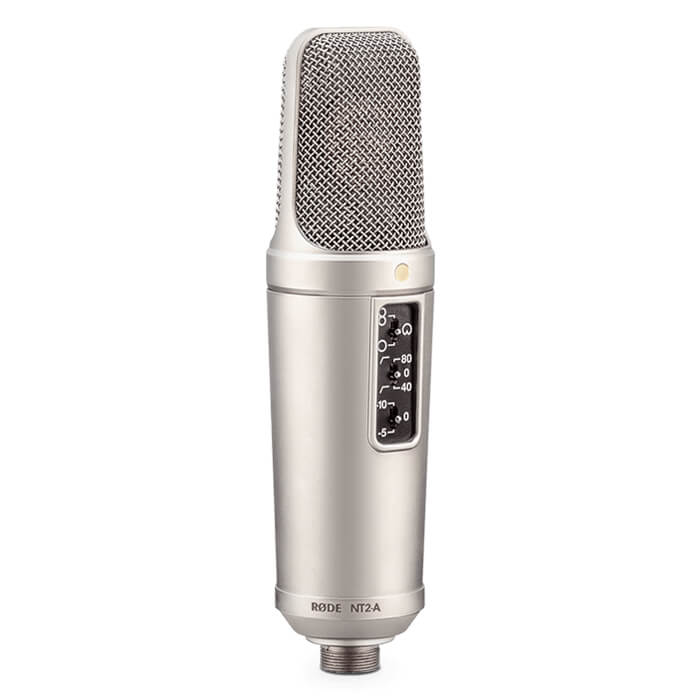

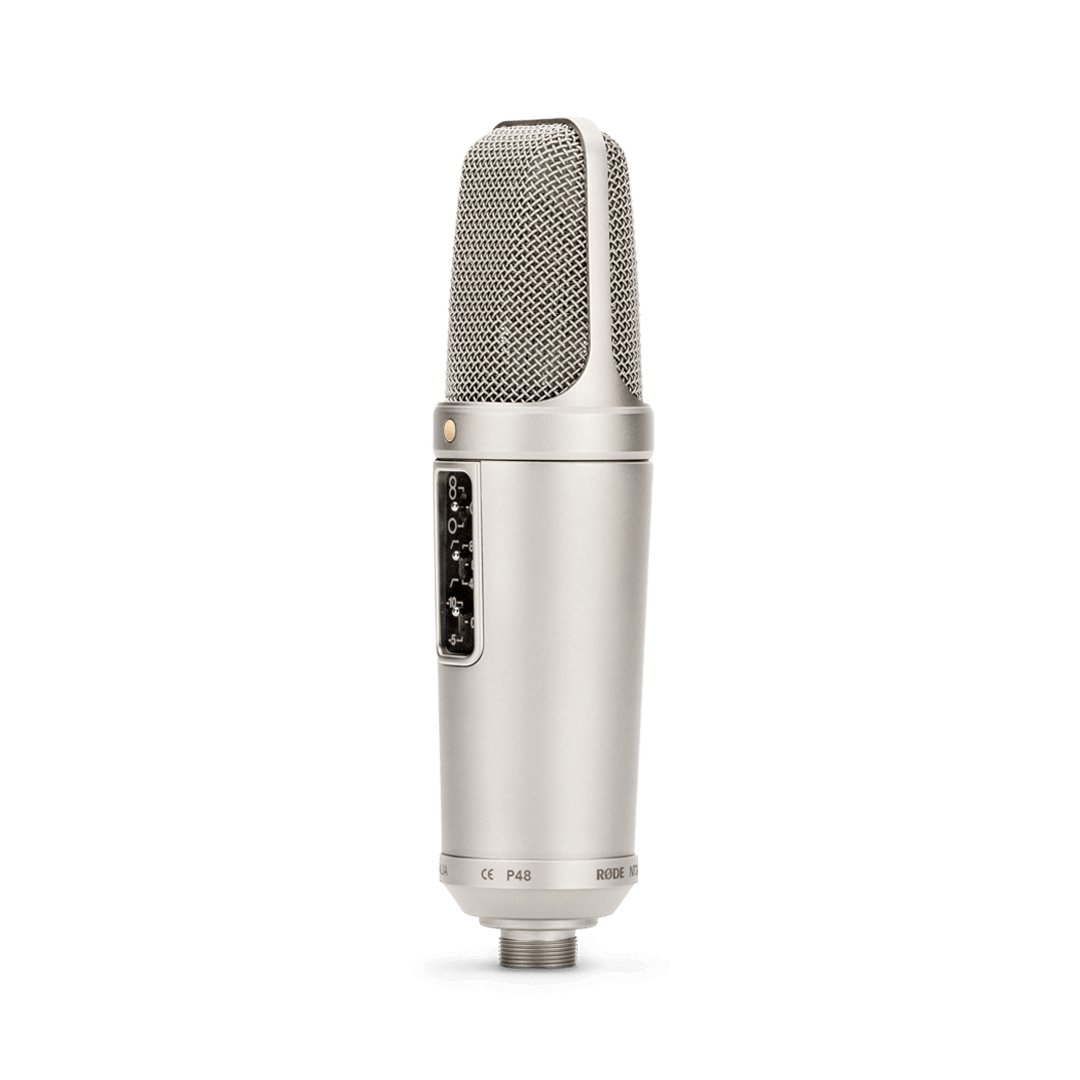

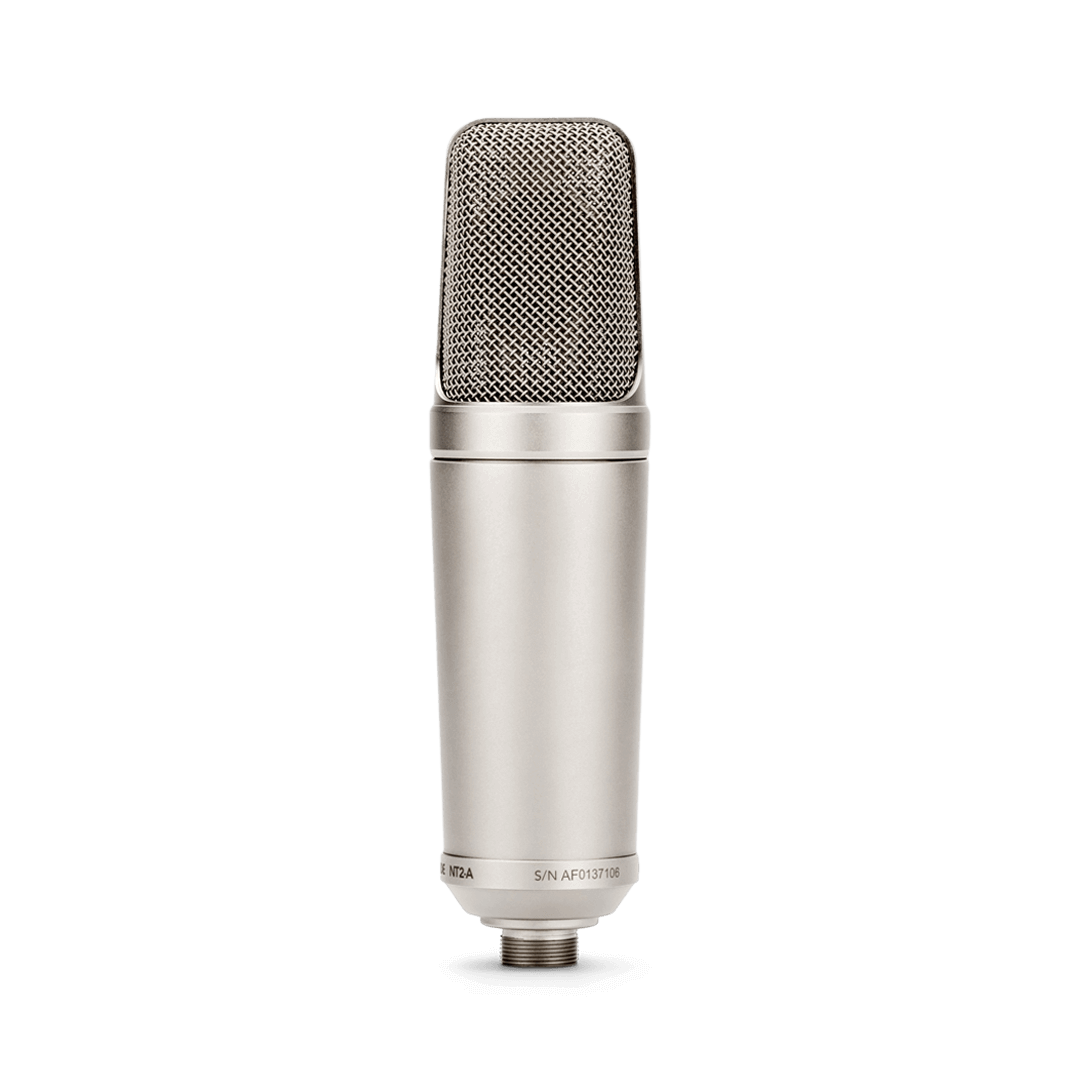

- Multi-pattern large-diaphragm studio condenser microphone
- Three-position pad, high-pass filter and polar pattern controls
- Ultra-low self-noise and full frequency response
- Internal capsule shock mounting
Specifications
Acoustic & Electrical Specifications
Acoustic Principle
Pressure Gradient
Active Electronics
JFET impedance converter with bipolar output buffer
Capsule
1.00″
Polar Pattern
Cardioid, Figure 8, Omnidirectional
Address Type
Side
Frequency Range
20Hz – 20kHz
Output Impedance
200Ω
Maximum SPL
147dB SPL
Maximum Output Level
16.0mV (@ 1kHz, 1% THD into 1KΩ load)
Sensitivity
-36.0dB re 1 Volt/Pascal (16.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz
Equivalent Noise Level (A-Weighted)
7dBA
Power Requirements
P24 and P48
Output Connection
XLR
Mechanical Specifications
Weight (g)
860
Dimensions (mm)
209 (H) x 55 (W) x 55 (D)
Box Contains
1 x NT2-A
1 x SM6
