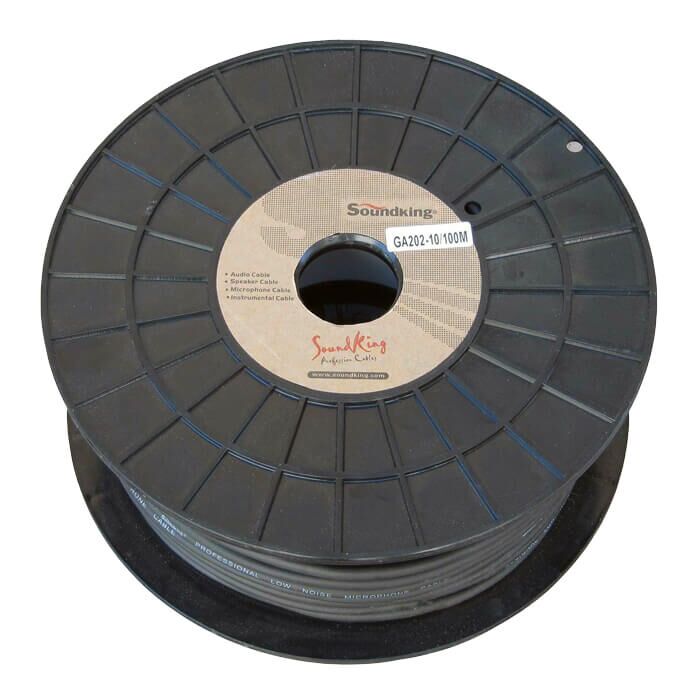

Soundking GA202 Microphone Cable Roll

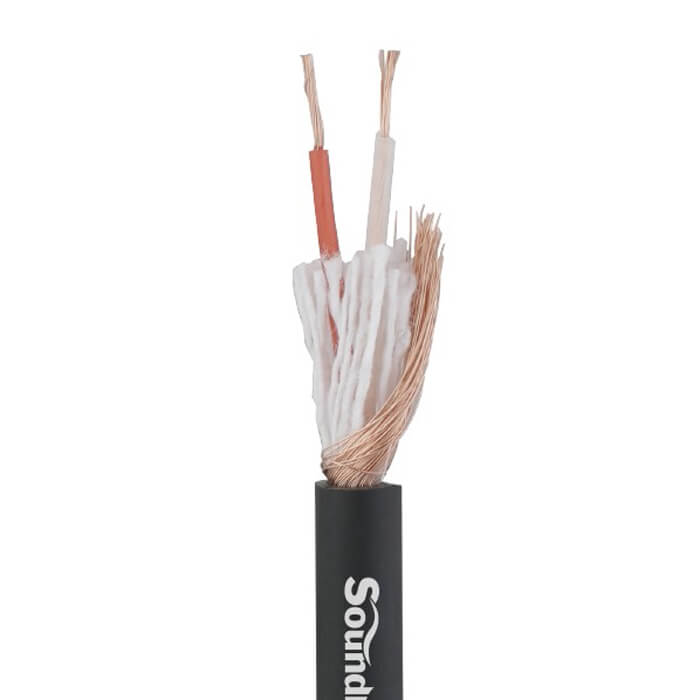

• Fine stranded wire for high-quality signal transmission

• Very robust,with thick soft PVC jacket

• Wonderful shielding 90% provided by dense copper spiral shielding and semiconductor shieling

• High flexible,well-suited for use with cable drums

[contact-form-7 id="1938" html_class="wd-style-with-bg"]
Description
Cable model
GA202
Inner conductor Φ0.12BC*20
Inner conductor section 0.23 mm²
conductor Isolation HDPE Φ1.4
Isolation colour Red/White
conductor twisting Yes
Shielding Φ0.12Cu*64 spiral
Outer jacket Flexible PVC
Outer jacket colour 10 colors are optional
Outer dimensions Φ6.0 mm
Temperature range min. -20℃
Temperature range max. 70℃
Packaging 100 m roll
Lead resistance – 100 meter ≤9.1 Ω
Cable crosstalk – 100 meter Min 73.3dB
