Wharfedale Pro CPD1000

Key Features

8 Ohms x 2: 230W RMS
4 Ohms x 2: 350W RMS
8 Ohms Bridged: 700W RMS
4 Ohms Bridged: 1000W RMS
Class AB Technology
Status and clip LEDs
Thermal, overcurrent, DC and output short protect circuitry

2 x Speakon outputs
2 x XLR outputs to link other audio equipment
2 x XLR inputs
Peak and protect LEDs
Built-in switchable limiter
Continuously variable speed fan
Suitable for small to medium sized venues

The CPD1000 is part of Wharfedale Pro’s latest line of professional power amplifiers driving earth shaking audio from the front of your venue, all the way to the back.

For using in stereo the amplifier delivers 250W RMS at 8 Ohms and 350W RMS at 4 Ohms; a suitable power for small to medium sized complete PA systems. In bridged mode at 4 Ohms the amplifier generates 1000W RMS, perfect for powering a subwoofer integrated into a larger PA system.

Maximum headroom audio fidelity and durability are of course vital, whilst additionally we pride ourselves on unbeatable value. The CPD series is manufactured under our strict quality assurance as are all Wharfedale Pro products, making an amp you can trust from price to performance.

TECHNOLOGY

Working in stereo, parallel and bridged modes CPD1000 is built for a multitude of sound system formations. Brand new class H topology has resulted in a dynamic, high headroom amp made for propelling your loudspeakers through thick and thin with complete clarity.

PRECISION CONTROL

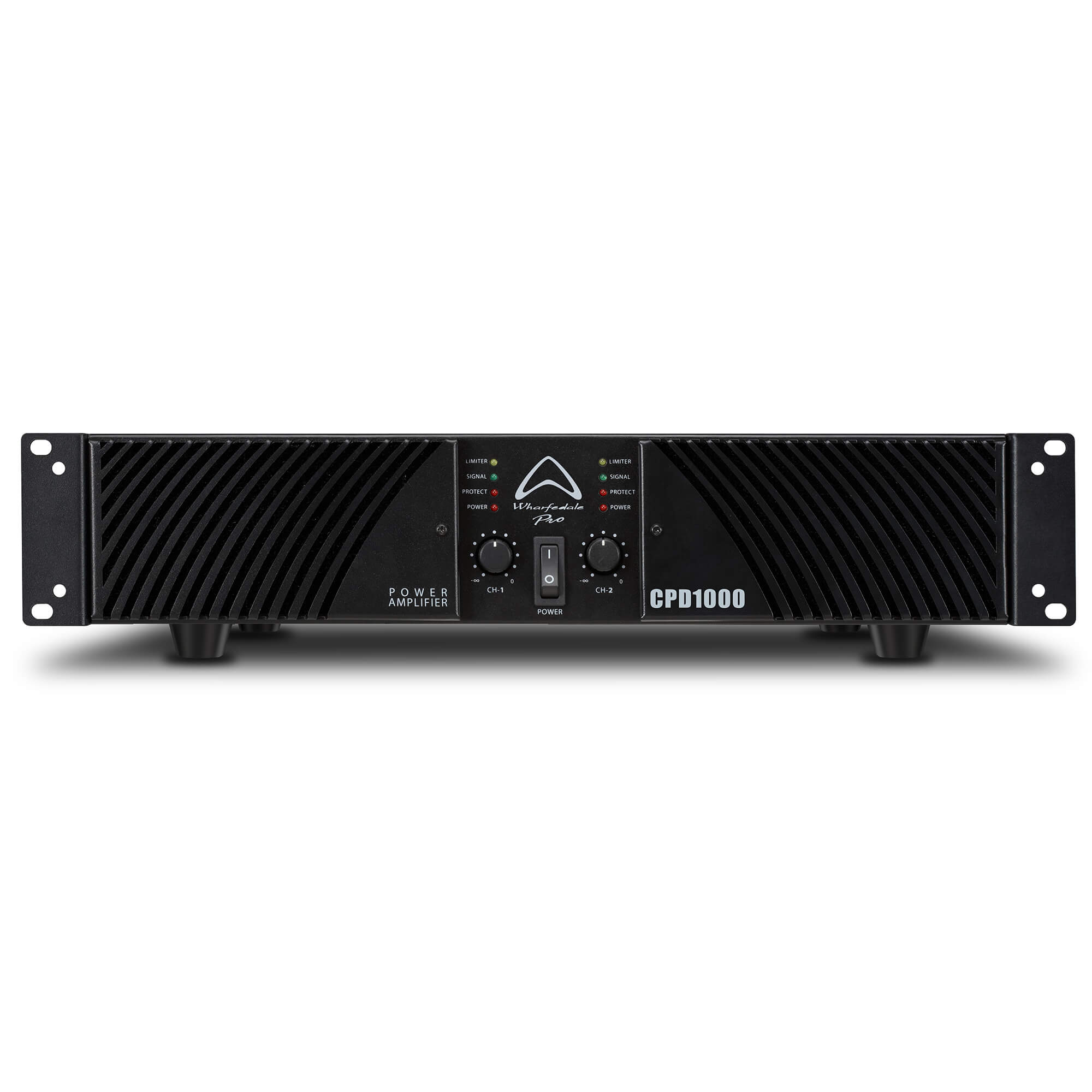

Large rotary dials accurately adjust gain levels, and you will know when to do so from the clear and simple front panel. A 4 segment led formation displays shows vital power status, level, limit and protect information, keeping the sound engineer in the know.

PROTECTION & DURABILITY

The CPD1000 is rife with technology that offers complete protection for your peace of mind. A built-in switchable limiter allows over 8Vrms signal through without distortion. Additionally it is equipped with thermal, overcurrent, DC and output short protect features. Professional audio equipment is an investment. That is why the adept components of the amplifier are housed within a 2U steel chassis which is universally rack mountable. This hard wearing all-steel casing also features a removable air filter in the front bracket which can be cleaned or replaced easily.

MASSIVE TRANSFORMERS

CPD series are built around a massive heavy-duty toroidal transformer.

This delivers smooth and consistent power into the amplifier electronic circuits, resulting in stable and reliable output power, even in environments where AC may fluctuate.

EASY CLEANING

Amplifiers often work in hot and dusty environments and, over time, the fans of an amplifier can easily suck this in. Dirty cooling fans reduce efficiency and can lead to overheating.

Its for this reason that we made the CPD series easy to clean. Simply unscrew the front grille, bush off the air filters, and put the grille back on.

This easy maintenance means that a CPD amplifier can survive in the most hostile of working environments. That’s cool!

SPECIFICATIONS

MODEL NAME	CPD1000
Stereo Power Output : RMS
8 Ω x 2	230 w
4 Ω x 2	350 w
Bridged Mono Power Output : RMS
8 Ω	700 w
Frequency Response	20 Hz – 30 KHz
Topology	Class AB
Inputs	2 x XLR
Outputs	2 x NL4 2 x XLR
Input Sensitivity & impedance
Sensitivity	0 dBu (0.775 Vrms)
Balanced XLR input	20 KΩ
Maximum Input Level	22 dBu (9.7 Vrms)
Voltage Gain	35 dB
Slew Rate	>40 V / us
Crosstalk	<-70 dB
S/N	>100 dB
Distortion (1 W)	<0.02%
Damping Factor	>300
Controls
Front panel	AC Switch, CH 1 and CH 2 Gain Knobs

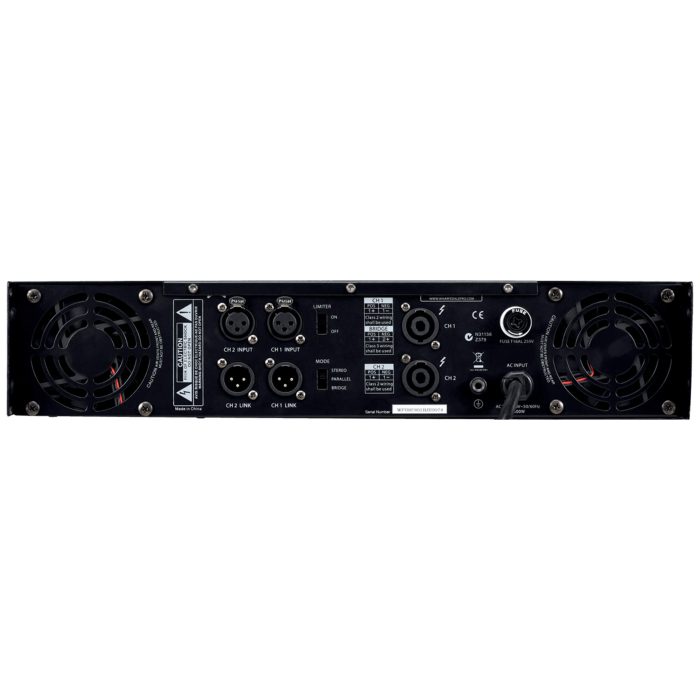

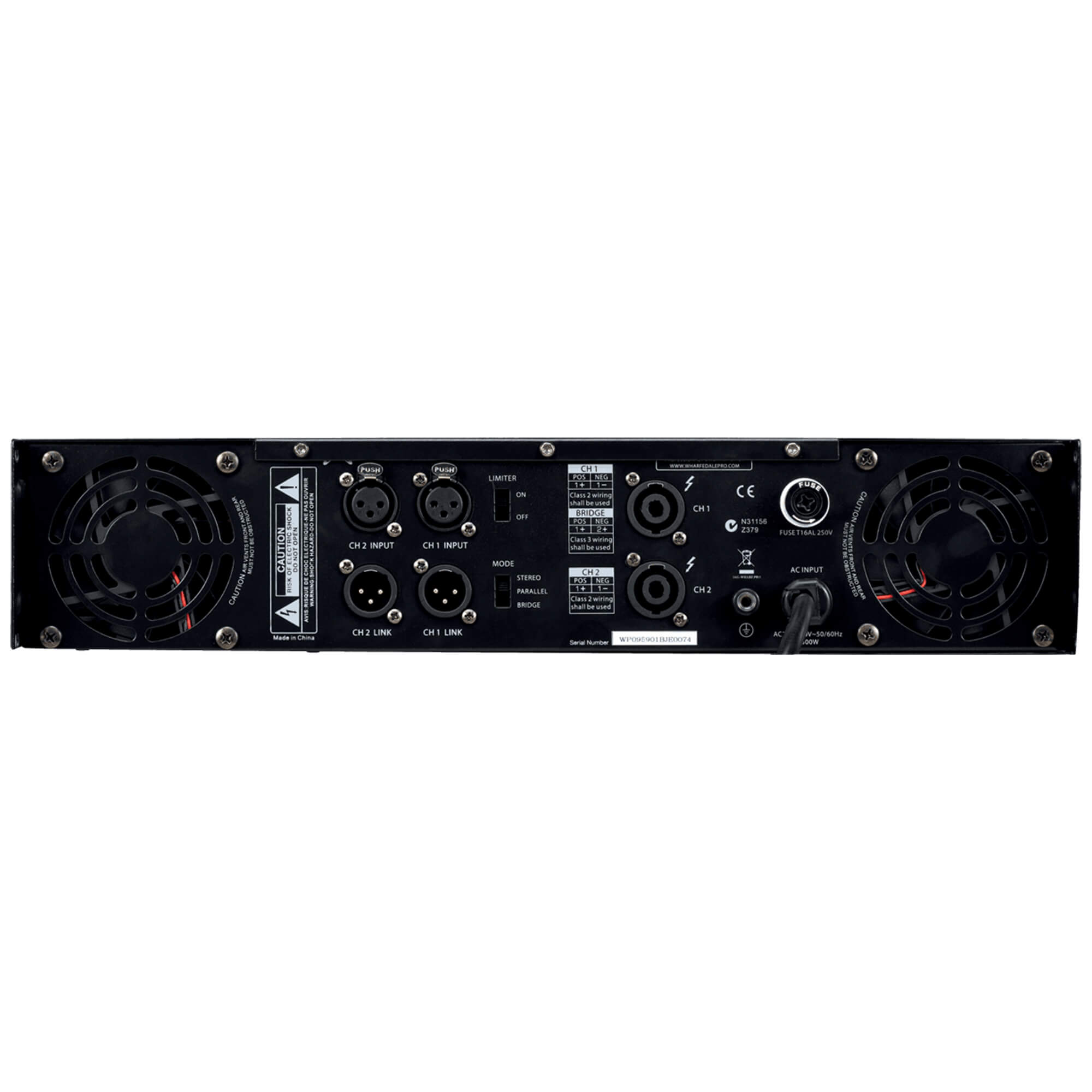

Rear panel	Parallel, Stereo & Bridge Mode Switch; Limiter Switch
Protections	Thermal protect, Over-current protect, Output DC protect, Output short protect, Power on/off mute
Indicators	Power, Protect, Signal, Peak
Cooling	Variable Speed Fan
Dimensions	88 x 483 x 330 mm
Net Weight	11 kg / 24.25 lbs
Gross Weight	12.5 kg / 27.55 lbs

Click to enlarge

Order on WhatsApp

Call 0740418548

Add to wishlist

Categories: Amplifiers, PA Equipment, Power Amplifiers

Description

MODEL NAME	CPD1000
Stereo Power Output : RMS
8 Ω x 2	230 w
4 Ω x 2	350 w
Bridged Mono Power Output : RMS
8 Ω	700 w
Frequency Response	20 Hz – 30 KHz
Topology	Class AB
Inputs	2 x XLR
Outputs	2 x NL4 2 x XLR
Input Sensitivity & impedance
Sensitivity	0 dBu (0.775 Vrms)
Balanced XLR input	20 KΩ
Maximum Input Level	22 dBu (9.7 Vrms)
Voltage Gain	35 dB
Slew Rate	>40 V / us
Crosstalk	<-70 dB
S/N	>100 dB
Distortion (1 W)	<0.02%
Damping Factor	>300
Controls
Front panel	AC Switch, CH 1 and CH 2 Gain Knobs
Rear panel	Parallel, Stereo & Bridge Mode Switch; Limiter Switch
Protections	Thermal protect, Over-current protect, Output DC protect, Output short protect, Power on/off mute
Indicators	Power, Protect, Signal, Peak
Cooling	Variable Speed Fan
Dimensions	88 x 483 x 330 mm
Net Weight	11 kg / 24.25 lbs
Gross Weight	12.5 kg / 27.55 lbs
