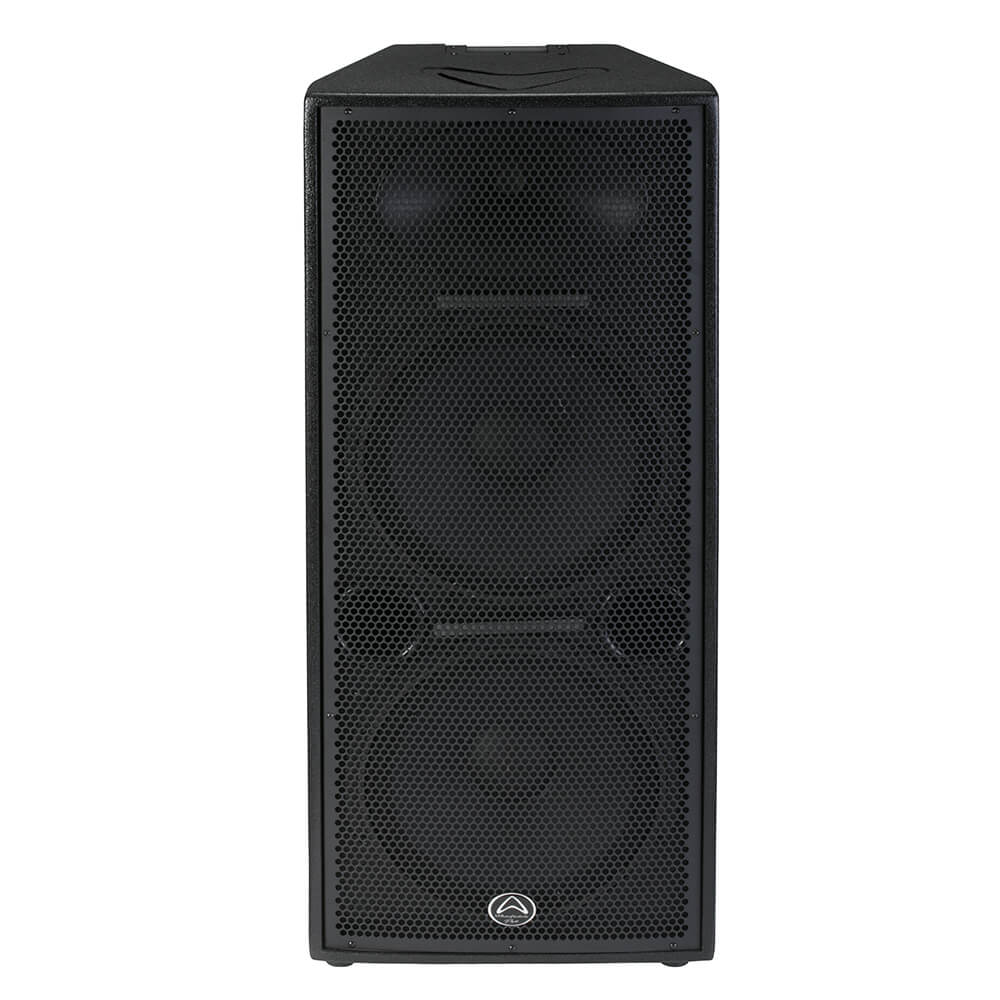

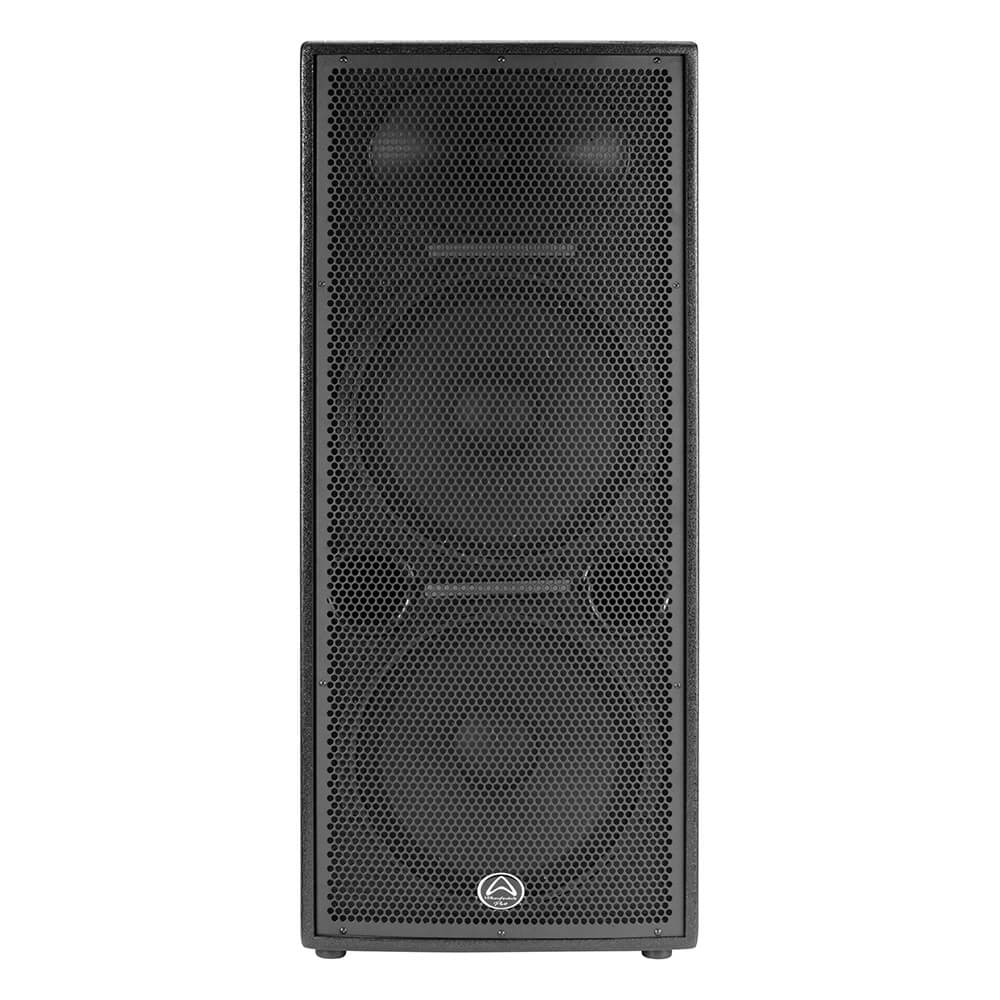

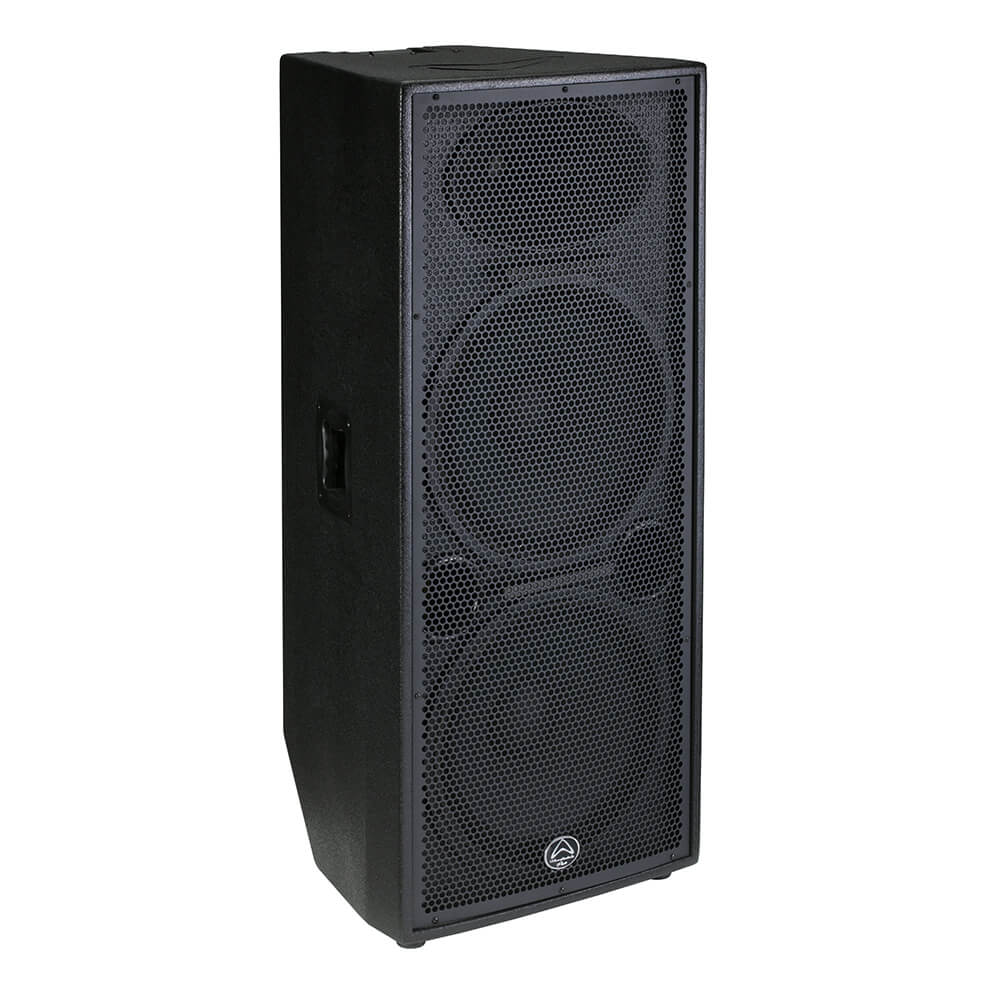

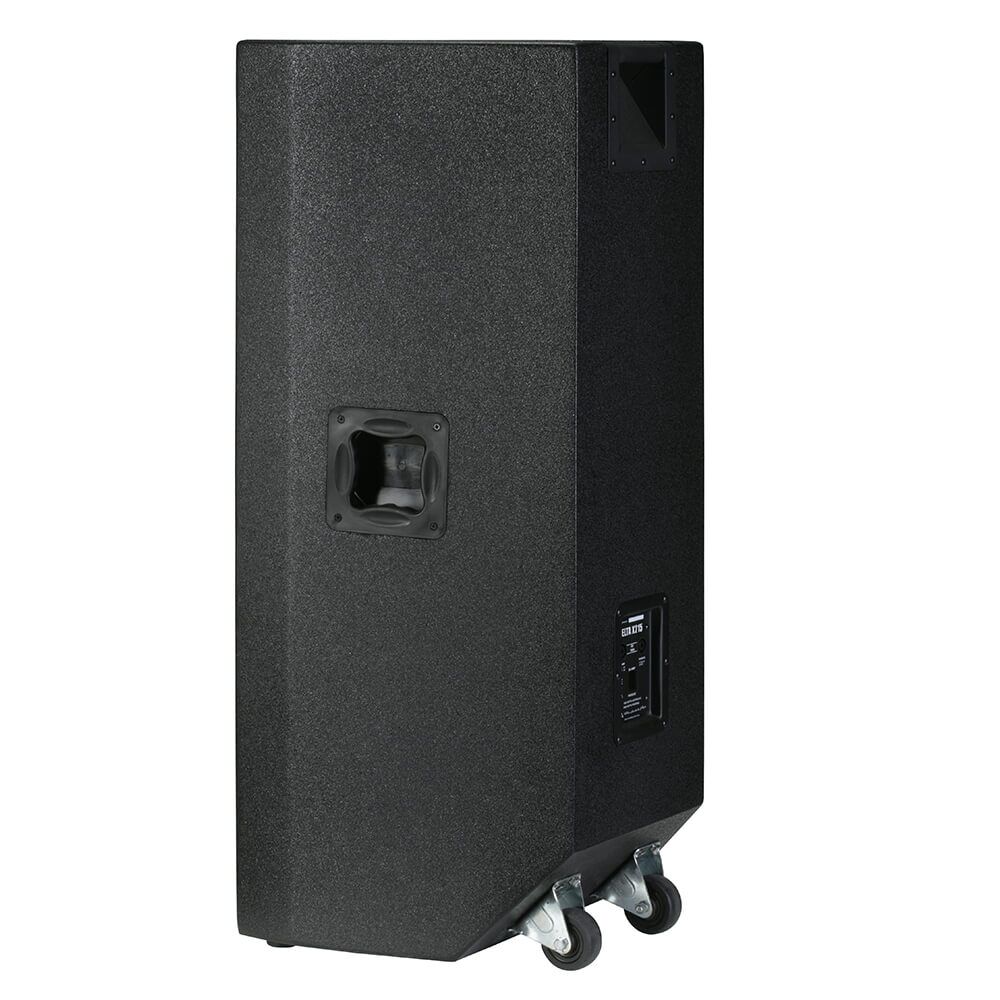

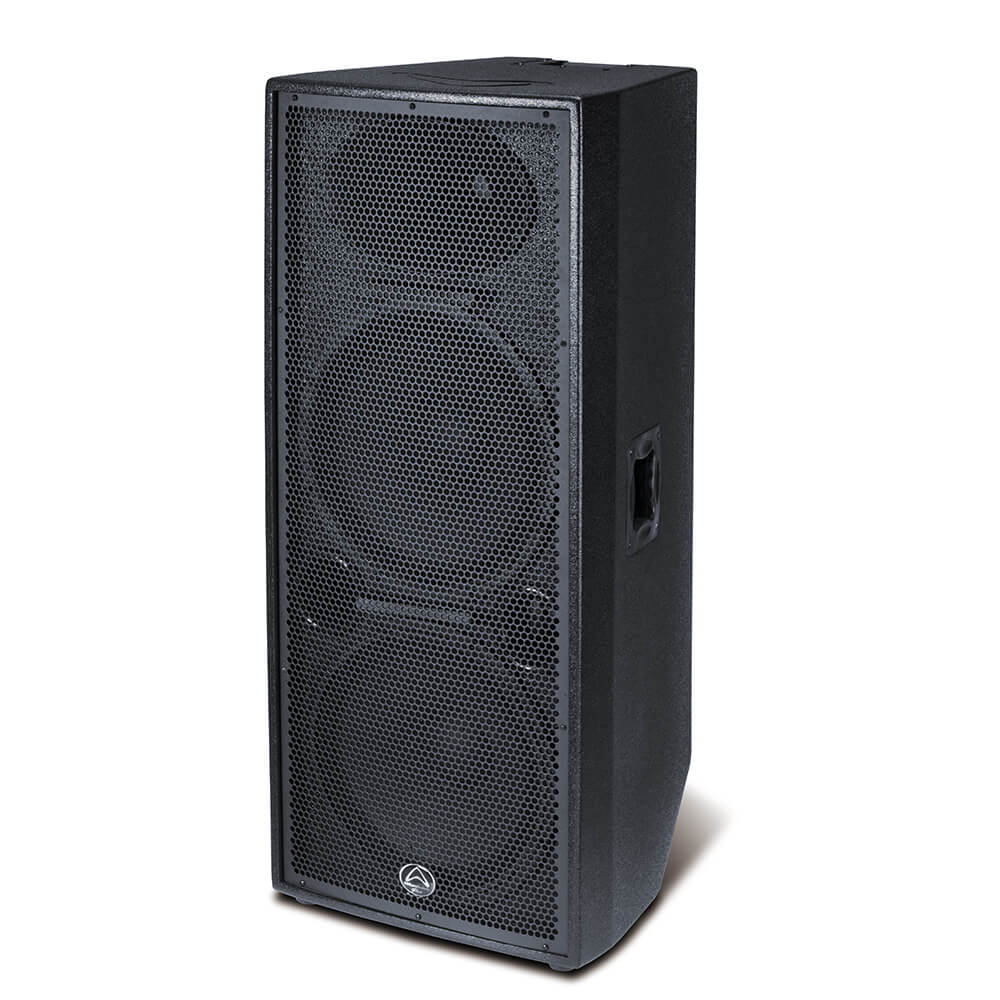

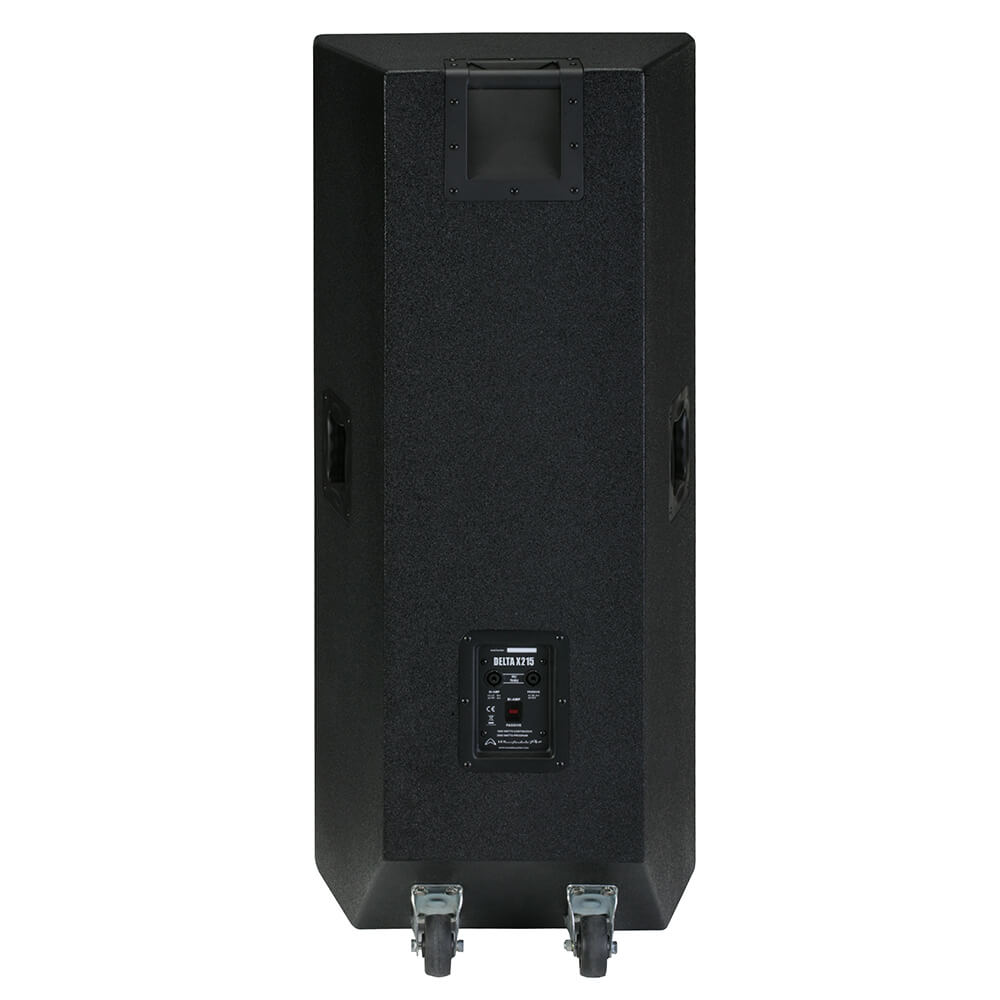

Wharfedale Pro DELTA X215 Quasi 3-way 15” Full Range Speaker
Key Features
|
|
Refinement in detail
Birch Plywood
All Delta-X models use premium Baltic birch plywood construction.
Not only does this create a solid and durable cabinet, but it also contributes to the overall sound and character.
Delta-X is also covered in our most durable and hard wearing Rhino Rock paint finish. This ensures that a Delta-X will always look as good as the day you unboxed it.
TONE-TONE
As with all Wharfedale Pro PA systems, years of expertise is behind a loudspeaker built to last, with thanks to our high standards of quality control.
The Delta-X series are coated in the highest quality polyurea-based Tough-Tone paint finish The properties of Tough-Tone paint also allow for easy touch-ups and cleaning, ensuring that minor imperfections can be corrected, further prolonging the longevity of our already reliable products.
Routed Logo
Delta-X features a routed Wharfedale Pro logo.
It is a logo to be proud of. A logo that lets your audience know that the sound of your even will be of the highest possible quality.
New CROSSOVER DESIGN
Internally Delta-X models have a new crossover design and construction.
Using new component positioning and bracing, the sensitive crossover electronics have been re-engineered to improve long term performance and reliability – even at the highest of volumes.
Bi-amp & passive modes
In BI-AMP mode, two power amplifier channels can be used, one for each section of the loudspeaker (HF compression driver and LF transducers). DSP (Digital signal processing) is used to separate the audio signal into specific frequency bands for each amplifier channel, powering only the corresponding driver section inside the loudspeaker. This gives you the advantage of being able to select the optimal power specifications and use independent limiter and EQ settings for each driver, resulting in more granular system control and a safer, more efficient, and protected system.
In PASSIVE mode, a single amplifier channel can be used to power all drivers inside the loudspeaker. The full frequency range is put into the loudspeaker and the loudspeakers’ internal passive crossover separates the frequencies, delivering the right frequencies to the right driver. In the example of a 2-way passive loudspeaker, this means that the single amplifier channel is powering both the HF compression driver and the LF transducers. The internal crossover takes care of both the frequency and power separation.
The Wharfedale Pro Preset Library includes factory presets for both BI-AMP and PASSIVE modes, these must be used for optimal loudspeaker performance and protection.
SPECIFICATIONS
| Model Name | DELTA-X215 |
| System Type | Passive |
| Configuration | Quassi Three-way |
| Frequency Response (+/-3dB) | 45-20KHZ |
| Frequency Range (- 10 dB) | 45-20KHZ |
| Sensitivity (2.83v/1m) | 101dB |
| Calculated Maximum SPL @1m | 137dB |
| System Rated Impedance | 4Ω |
| Low Frequency Transducer | |
| Size | 2 x 404mm / 15″ |
| Voice-Coil Size | 77.1mm / 3″ |
| Rated Impedance | 2×8Ω |
| LF Power (re:AES2-2012) | 2x500W |
| High Frequency Transducer | |
| HF Driver Type | Compression Driver |
| Voice-Coil Size | 50.8mm / 2″ |
| Exit Size | 35.6mm / 1.4″ |
| Diaphragm Material | Titanium |
| Rated Impedance | 8Ω |
| HF Power (re:AES2-2012) | 50W |
| Nominal Coverage (H x V) | 90⁰ x 45⁰ |
| Power | |
| System Continuous Power | 1000W |
| System Programme Power | 2000W |
| System Peak Power | 4000W |
| Crossover frequency | 1.8Hz |
| Input Connector | 2 x NL4 (speakON Compatible) |
| Hardware | |
| Handles | 2 on Sides / 1 on Back |
| Enclosure | |
| Enclosure Material | 15mm Plywood |
| Finish | black paint |
| Grille Material & Finish | 1.5 mm Steel Black |
| Dimensions – Unpacked | |
| Height | 1135mm / 44.7″ |
| Width Front | 488mm / 19.2″ |
| Width Rear | 299.6mm / 11.8″ |
| Depth | 450mm / 17.7″ |
| Dimensions – Packed | |
| Height | 1218mm / 48.0″ |
| Width Front | 558mm / 22.0″ |
| Width Rear | 558mm / 22.0″ |
| Depth | 522mm / 20.6″ |
| Weight | 59.0kg / 130.0lbs |
| Net Weight (kg / lbs) | 52.9kg / 116.6lbs |
| Gross Weight (kg / lbs) | 59.0kg / 130lbs |
