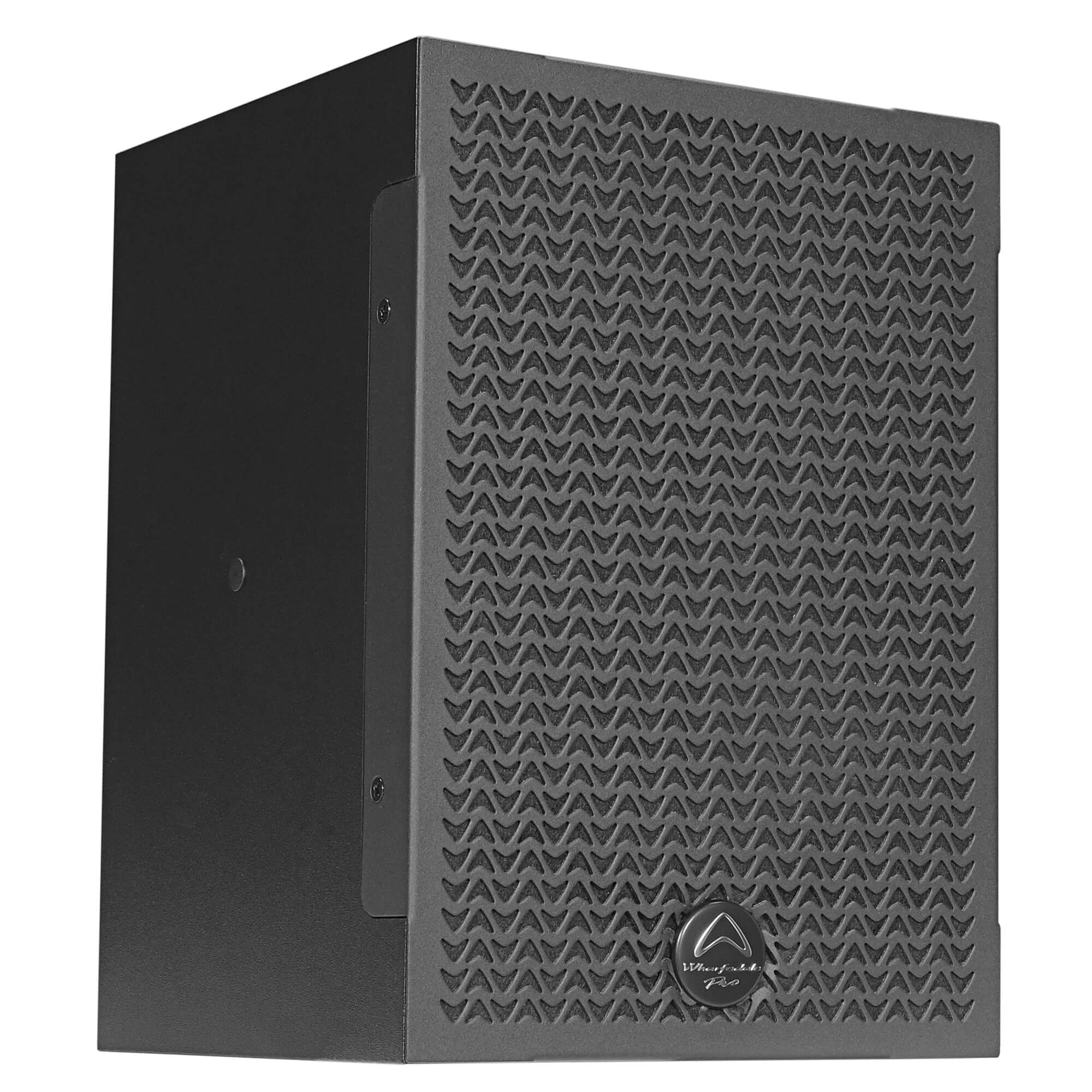

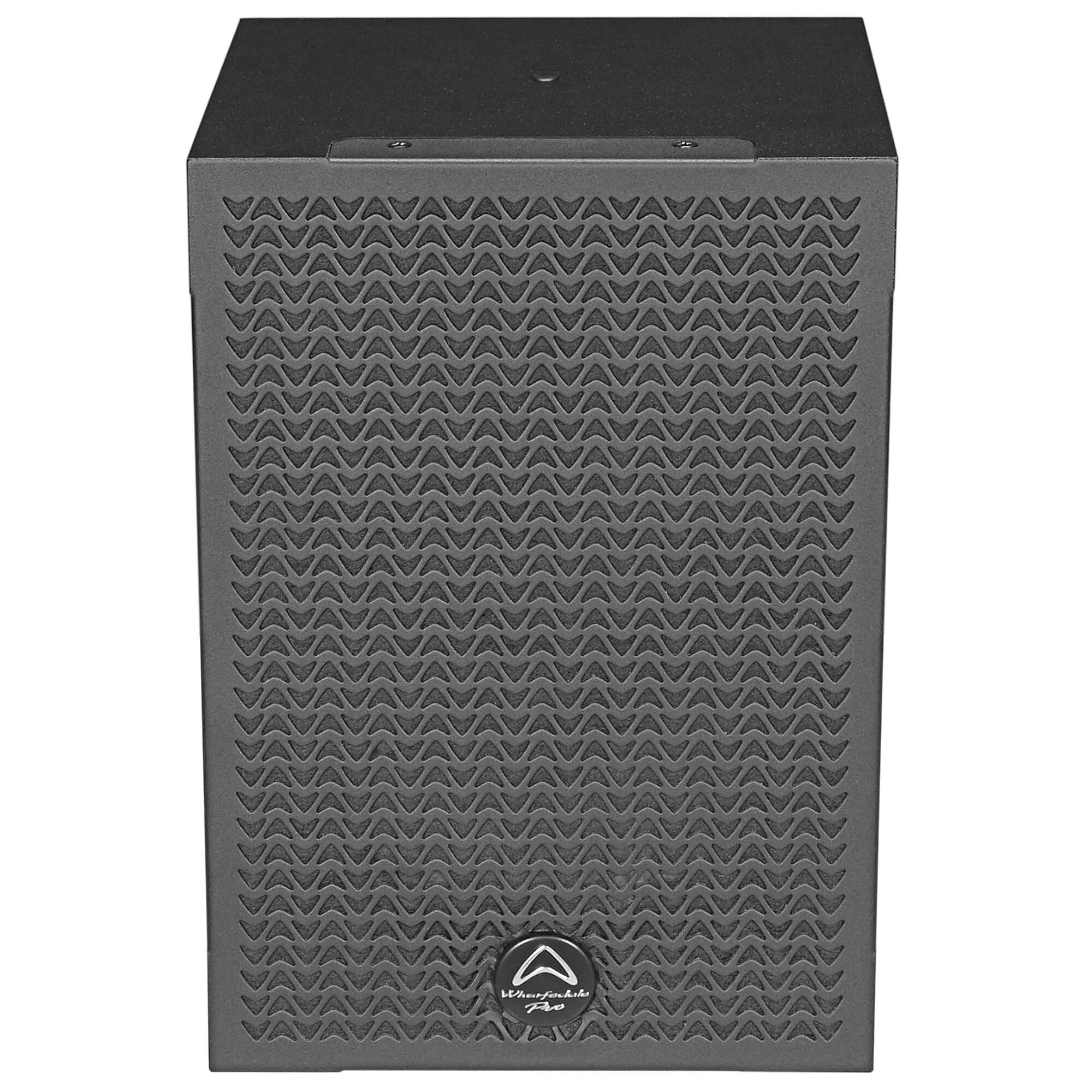

Wharfedale Pro Programme-X35ET Installation Speaker

  • 6.5″ Passive installation loudspeaker
  • 60 Watts Continuous power
  • 120 Watts Programme power
  • 240 Watts Peak power
  • T version – 70 V Taps 5/10/20/40 W
  • T version – 100 V Taps 10/20/40 W
  • 4 x M6 rigging points

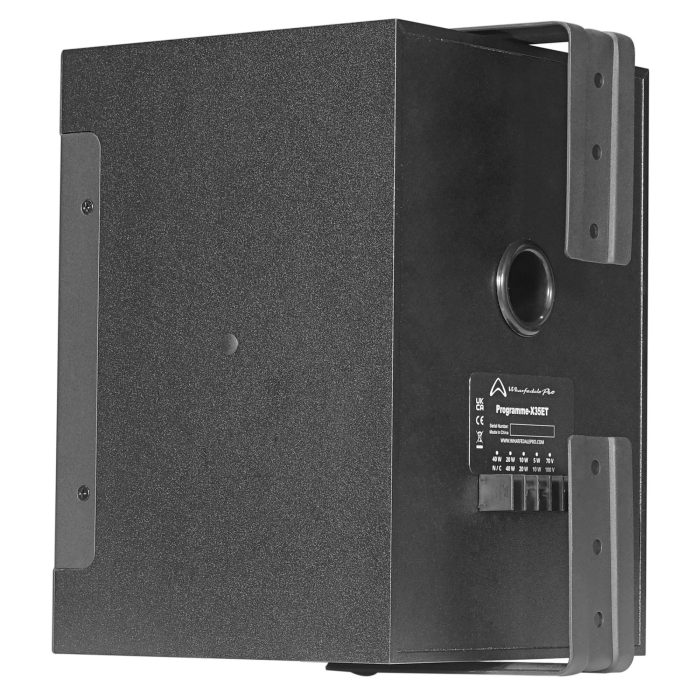

  • U brackets included
  • 70° x 70° dispersion
Description

DESCRIPTION:

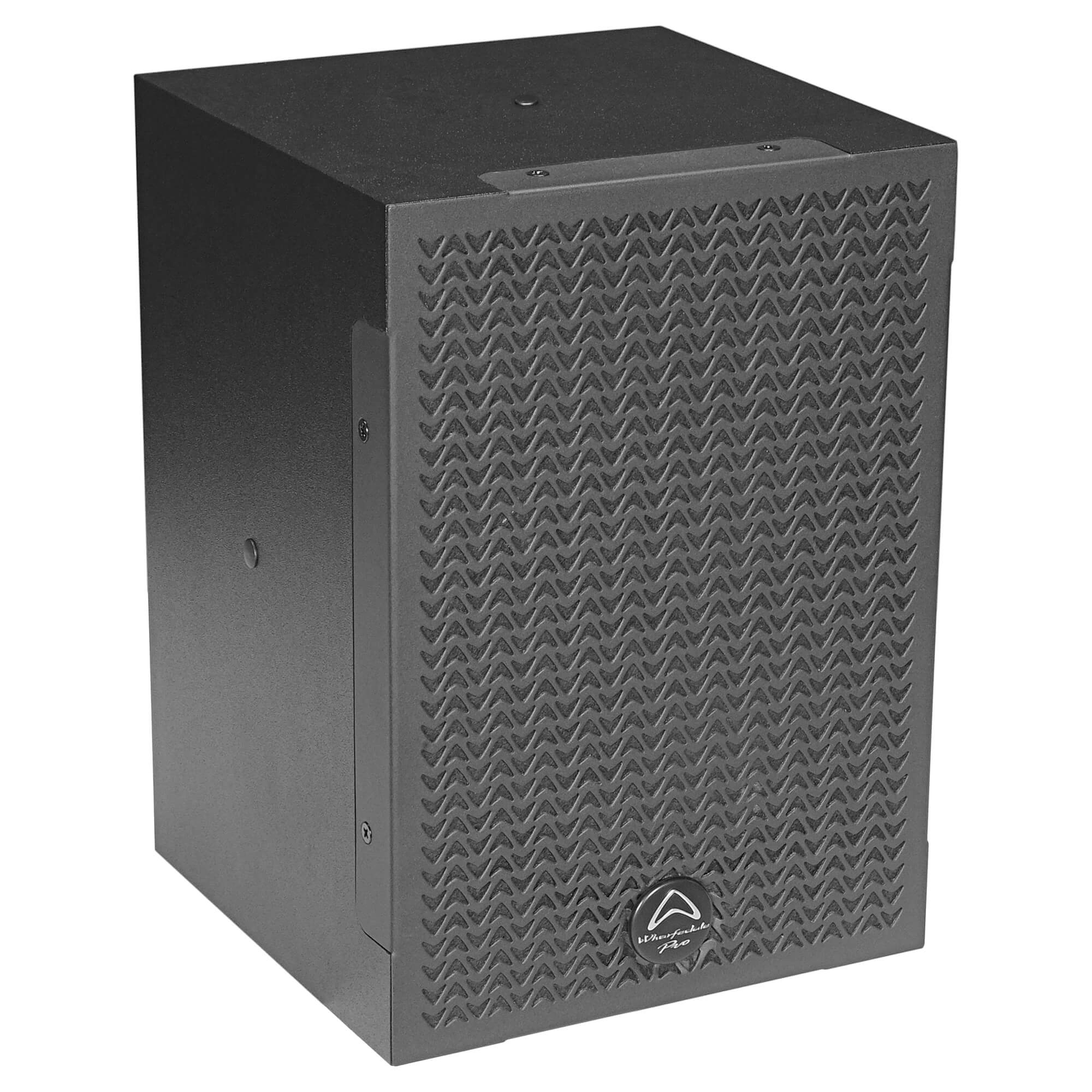

The all-new Programme-X35ET model gives the audio performance and subtle cosmetic styling that hospitality venues and their guests demand.

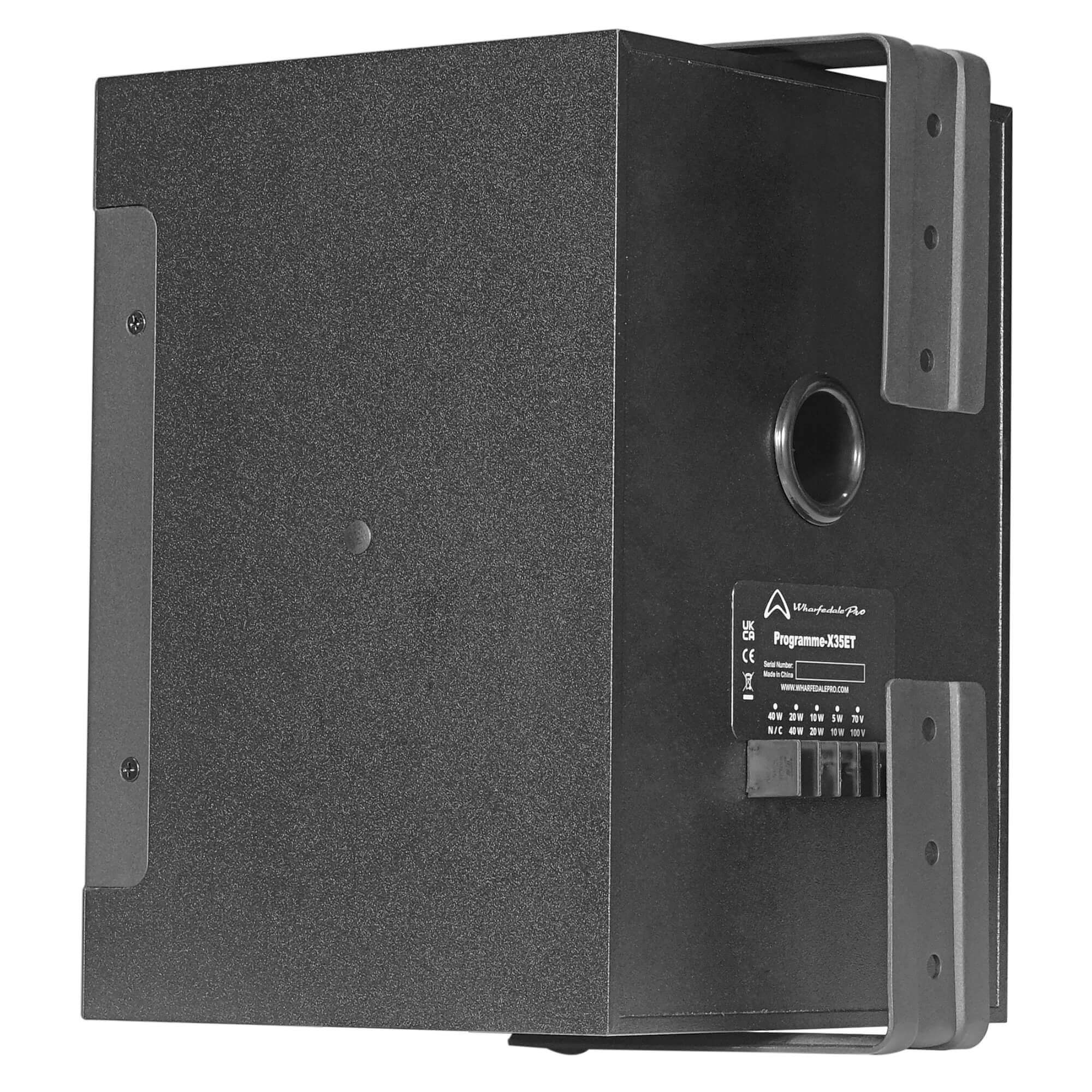

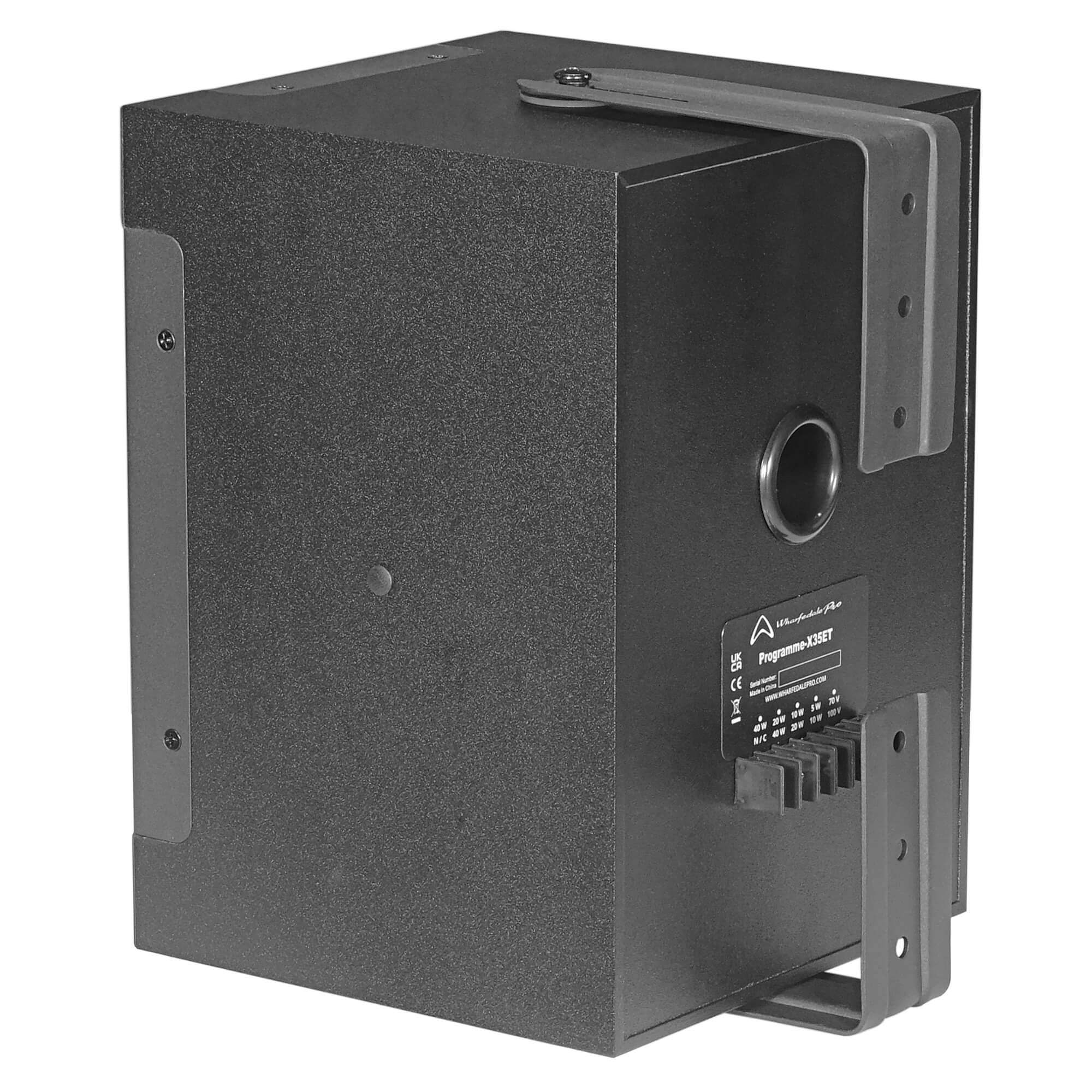

Available in low and high impedance formats and supplied in pairs, the X35ET’s are perfect for smaller installations where quality background music is required. They even come supplied with U-brackets for tidy, ‘close to the wall’, installation.

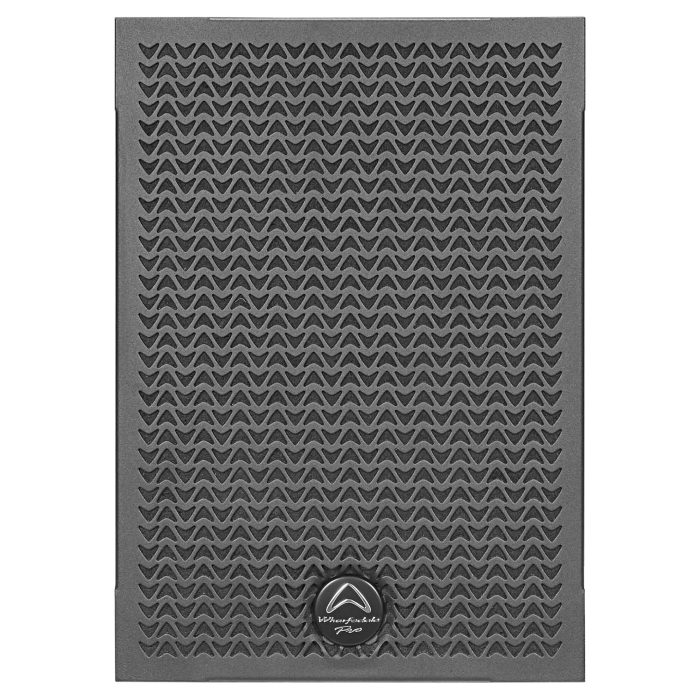

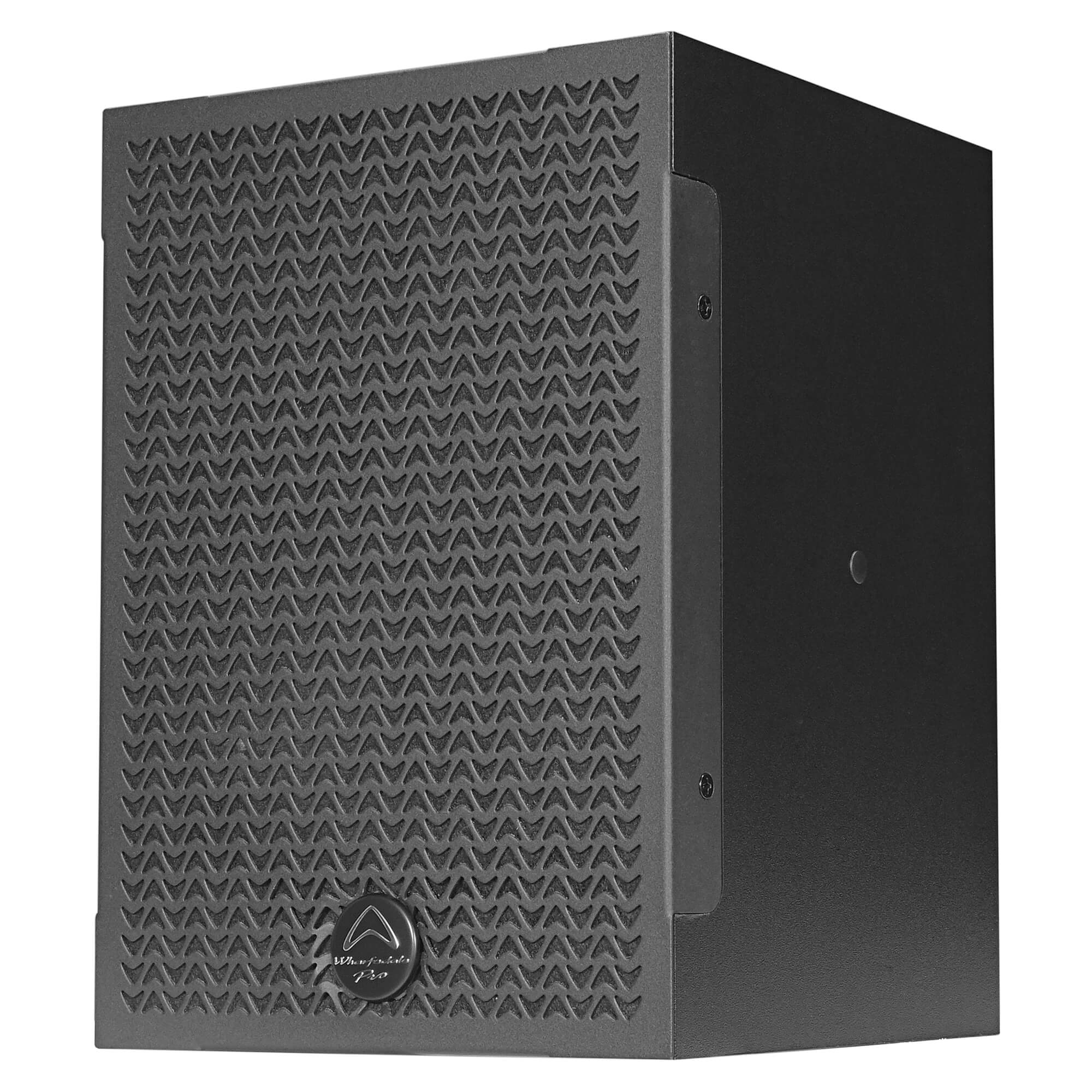

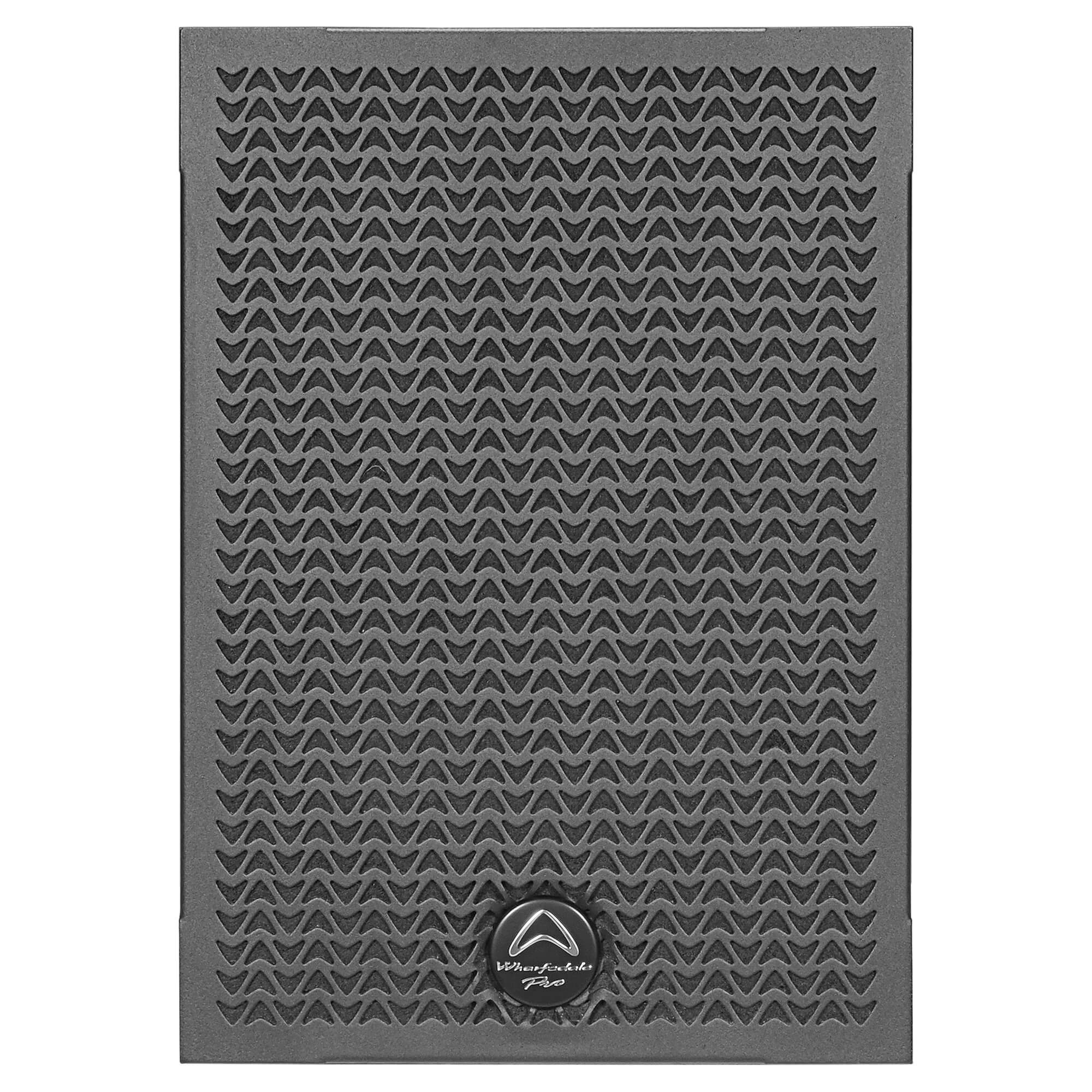

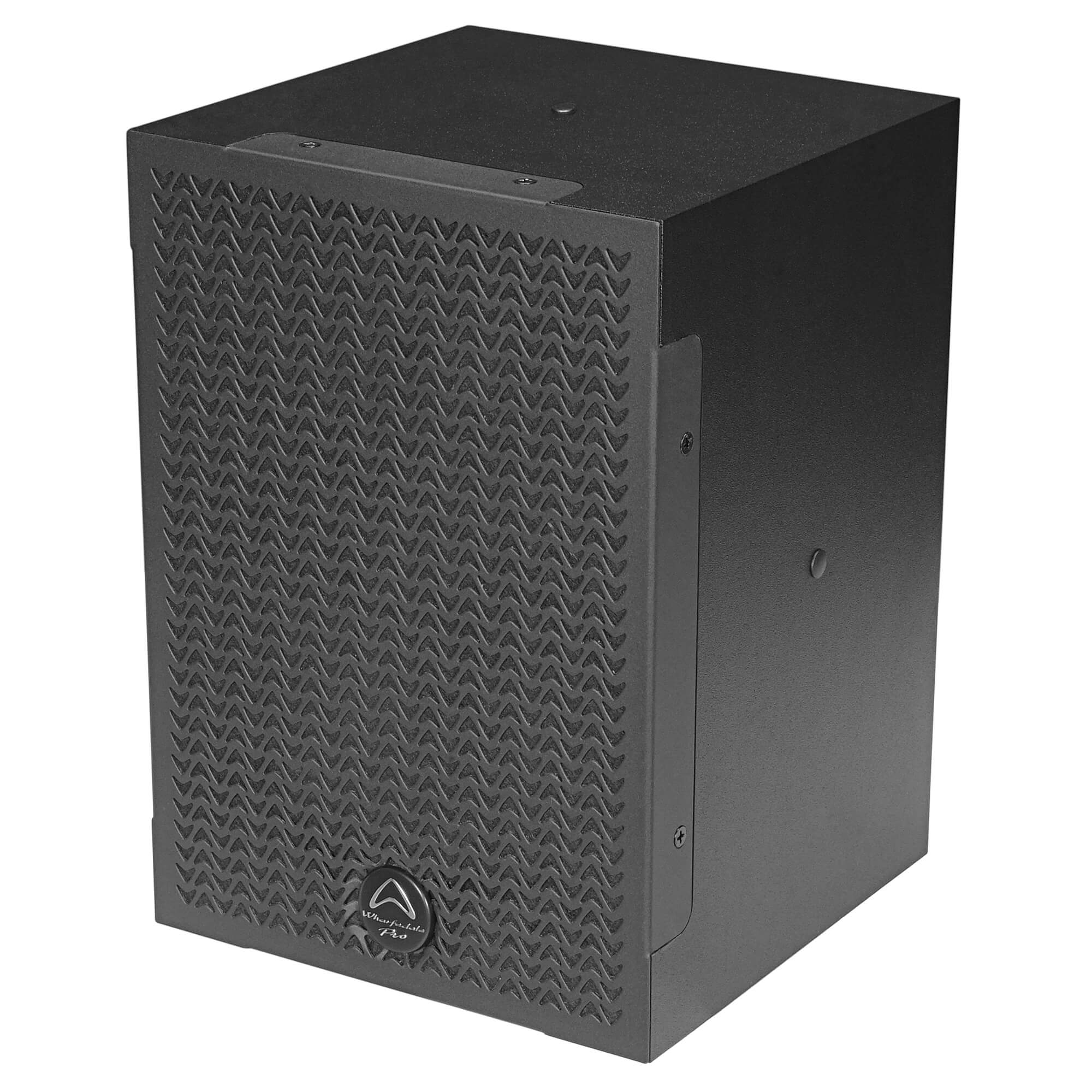

Behind the steel grille, which is tastefully cut with the Wharfedale Pro ‘boomerang’ logo, is a 1.0” silk dome tweeter for smooth highs and even dispersion, plus a 6.5” LF driver to deliver that low-mid energy when its needed. In addition, rigging is also made simple with 4 x M6 rigging points hidden on the sides.

Simple connections, stylish design, practical wall fixings and superior sonic performance.

SPECIFICATIONS:

Model Name X35ET
System Type 6.5″ Passive
Configuration Two-way
Frequency Response (+/-3 dB) 65 Hz – 20 KHz
Frequency Range (- 10 dB) 60 Hz – 20 KHz
Sensitivity (2.83v/1m) 88 dB
Calculated Maximum SPL @1 m 112 dB
System Rated Impedance 8 Ω
Low Frequency Transducer
Size 165.1 mm / 6.5″
Voice Coil Size 25.5 mm / 1″
Rated Impedance 8 Ω
LF Power (re:AES2-2012) 60 w
High Frequency Transducer
HF Driver Type Dome Tweeter
Voice Coil Size 25.4 mm / 1″
Exit Size 25.4 mm / 1″
Diaphragm Material silk Dome
Rated Impedance 8 Ω
HF Power (re:AES2-2012) 10 w
Nominal Coverage (H x V) 70˚ x 70˚
Power
System Continuous Power 60 w
System Programme Power 120 w
System Peak Power 240 w
Crossover frequency 2.3 KHz
Recommended HPF = BW 18 dB/oct. 43 Hz
Input Connector Bare Wire Spring

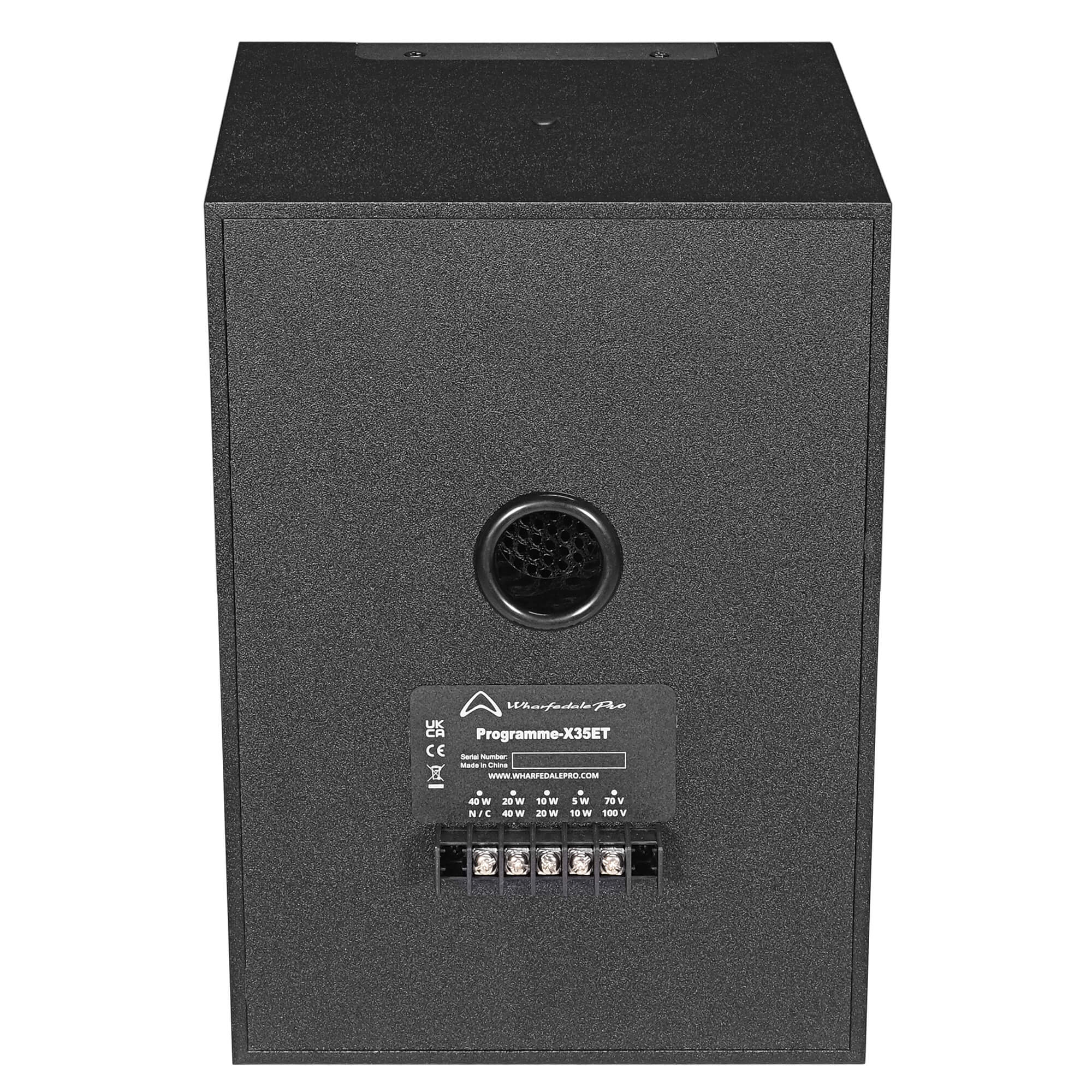

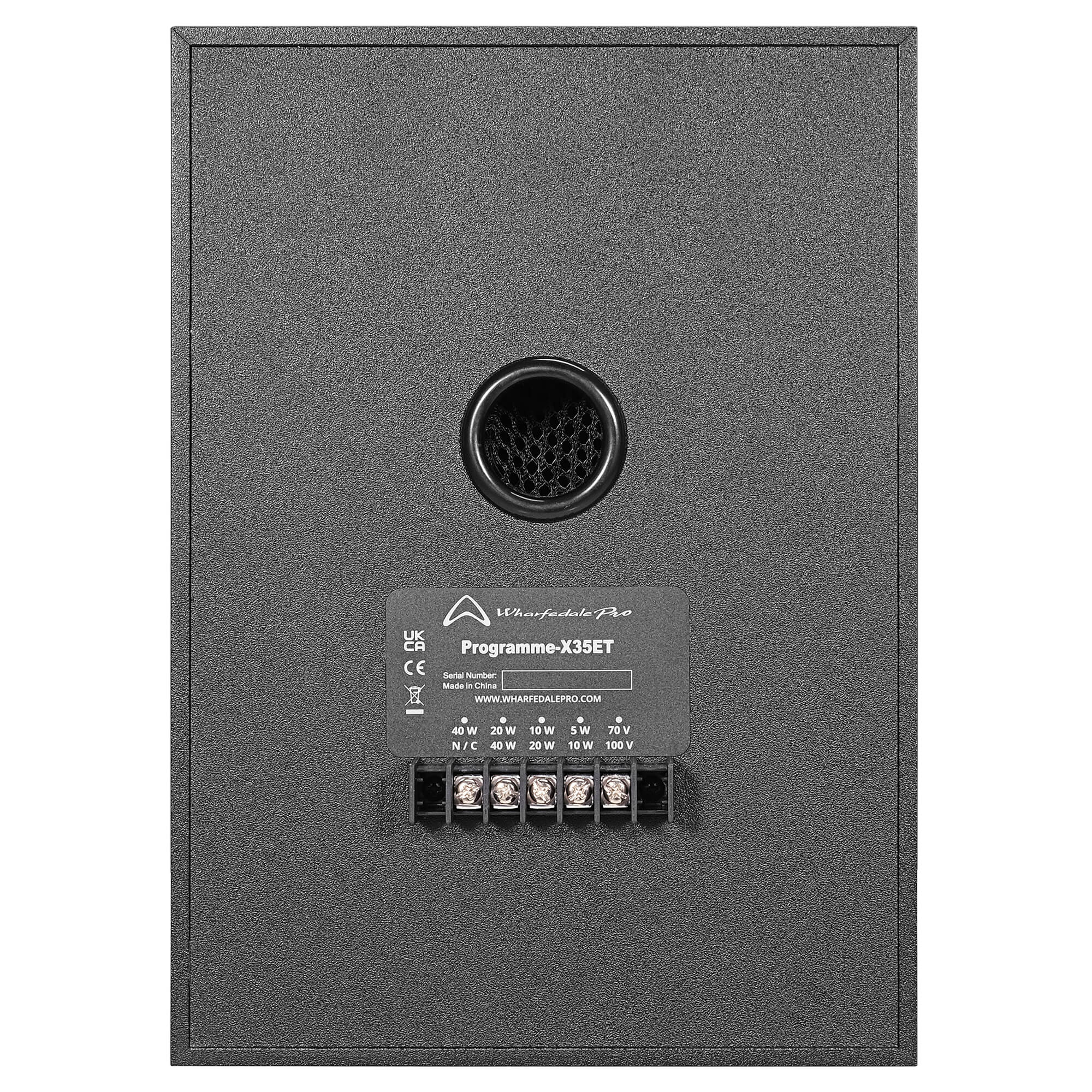

Input Connectors (T) Barrier Strip
Transformer (T) 100 V / 70 V
Transformer Taps (70 V) 5,10,20,40 W
Transformer Taps (100 V) 10,20,40 W
Hardware
Rigging M6 x 4
Pole Mount N/A
Enclosure
Enclosure Material MDF
Finish Black Paint
Grille Material & Finish Black Full (Steel)
Dimensions – Unpacked
Height 275 mm / 10.83″
Width Front 196 mm / 7.72″
Width Rear 196 mm / 7.72″
Depth 192 mm / 7.56″
Dimensions – Packed
Height 326 mm / 12.8″(pair)
Width Front 488 mm / 19.2″(pair)
Width Rear 488 mm / 19.2″(pair)
Depth 256 mm / 10.1(pair)
Weight
Net Weight : Regular / T-Version 8.04 kg / 9.06 kg(pair)
Gross Weight : Regular / T-Version 10.2 kg / 11.2 kg(pair)
Included accessory black U bracket
