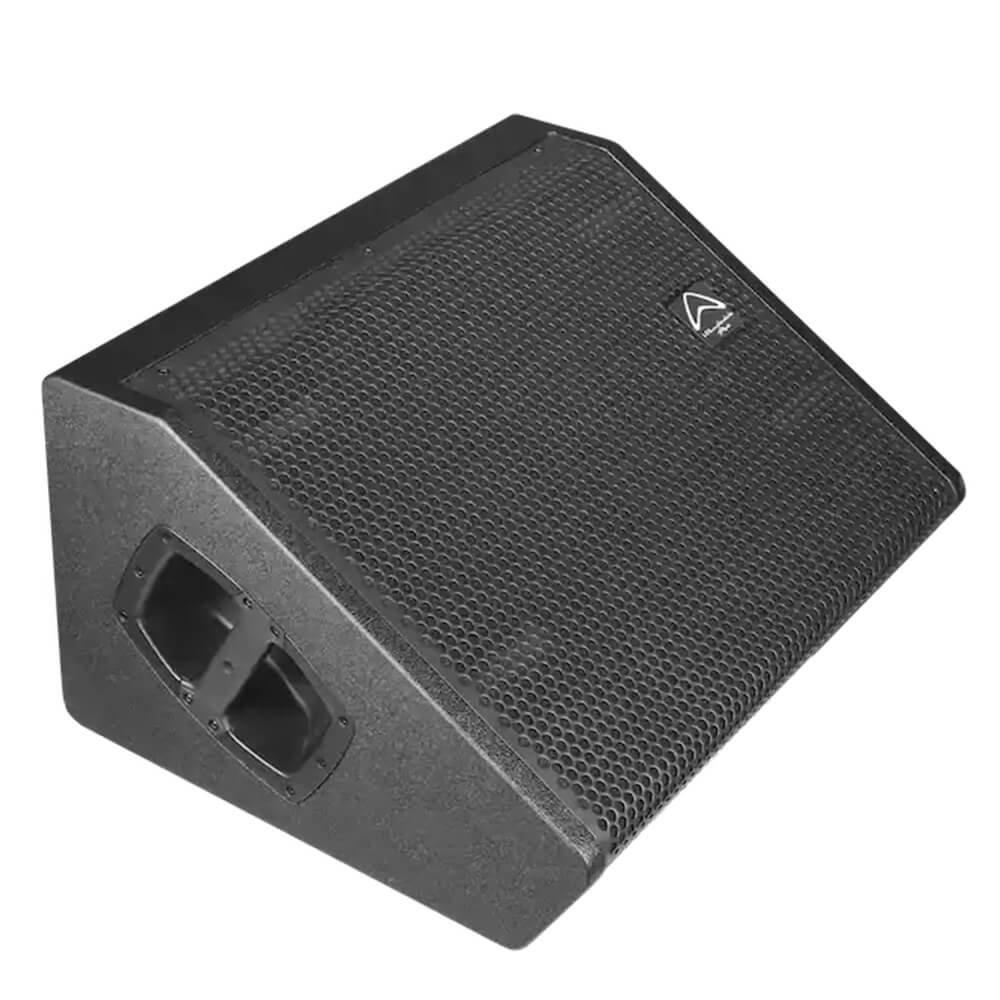

Wharfedale Pro WDG-A15 Active Floor Monitor
FEATURES
- Versatile floor monitors….with more
- Coaxial design
- Deploy as 25° or 60°
- Spherical waveguides
- Optional WPB-W12/ 15 U-Brackets and WPB-7 for easy wall mounting
- Active models with 8 x presets inc FIR plus PRO=LINK software control
- Durable Tough-Tone paint finish. Put your boot on it!!
Coaxial WeDGe monitors, not only for the stage
WDG series has been engineered to re-define the traditional floor monitor. Available in active or passive and with 12” and 15” models, WDG has some handy tricks up its trouser leg……
WDG-12, WDG-15 and active variants WDG-A12, WDG-A15, feature Wharfedale Pro coaxial drivers and a spherical waveguide delivering 70° nominal coverage. All models are versatile due to thoughtful cabinet design. WDG monitors can be deployed as 25° degrees for far field or 60° near field applications. There is also a 35 mm pole socket and WDG can even be deployed on the optional WPB-7 or U- brackets.
Active models feature 8 x DSP presets for easy hands on control, but can also be managed using RS485 protocol with the Wharfedale Pro PRO=LINK software. This allows for detailed remote preset editing and system management. There is also a practical HF Output EQ knob for any real-time tweaks needed on-stage.
Stage, pole, near or far or even on a wall. WDG delivers all the advantages of coaxial in a versatile manner.
VERSATILE DESIGN
![]()
ACTIVE CONTROL
Active models (WDG-A12 and WDG-A15) include 8 presets with or without FIR, for critical low-latency applications, but the system is also fully controllable using the RS485 protocol through our Wharfedale Pro PRO=LINK control software.

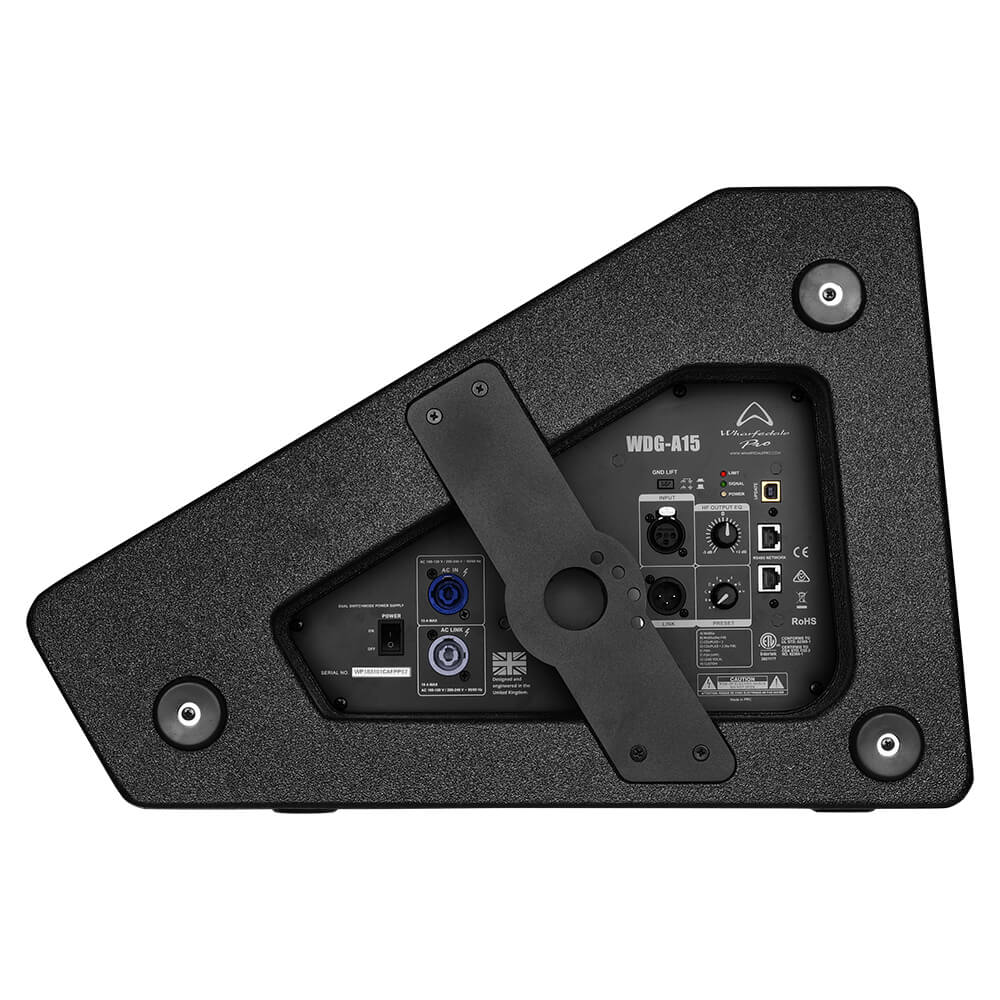

Active models also feature Ground Lift and a handy HF Output EQ allowing for real-time tweaks.
MAKING IT EASIER WITH PICTURES
PRODUCT DIMENSIONS
SPECIFICATIONS:
| Model Name | WDG-A15 | |
|---|---|---|
| System Type | 15″ coaxial Active | |
| Configuration | Two-way | |
| Frequency Response (+/-3 dB) | 55 Hz – 20 KHz | |
| Frequency Range (- 10 dB) | 40 Hz – 25 KHz | |
| Sensitivity 2.83 V/1 m | 99 dB | |
| Calculated Maximum SPL @1 m | 128 dB | |
| System Peak SPL* | 134 dB | |
| *level at 1 m using pink noise with crest factor 4, with dedicated preset. | ||
| LF Size | 15” | |
| LF Voice Coil Size | 3.0” | |
| LF Frame Material | Aluminium | |
| HF Driver Type | Compression Driver | |
| Voice Coil Size | 2.0” | |
| Exit Size | 1.0” | |
| Waveguide Type | Spherical | |
| Nominal Coverage (H x V) | 70° | |
| Driver brand | Wharfedale Pro | |
| Amplifiers | ||
| Amplifier Design | Class D | |
| Power Rating: | 800 W Peak (700 W LF + 100 W HF), | |
| 400 W Continuous (350 W LF + 50 W HF) | ||
| Thermal Protection | Amplifier Shut Down. Auto Reset | |
| Low Line Voltage Shut Down | 60% Nominal Line Voltage | |
| Driver Protection | Independent LF/ HF RMS and Peak Limiters | |
| DC and Short Protection | Yes | |
| Clip Limiter | Yes | |
| Limiter Indicator | Red LED | |
| Signal Indicator | Green LED | |
| Power/Active Indicator | White LED | |
| Find Function Indicator | Blue LED | |
| Input Sensitivity | +4 dBu | |
| Maximum Input Level | +18 dBu | |
| Input Impedance | Balanced:10 KΩ | |
| AC Power details – Power Supply | AC 100-120 V~ and 220-240 V~, 50/60 Hz Automatic | |
| Input | Balanced socket XLR | |
| Link | Balanced pin XLR | |
| UPDATE | / | |
| NETWORK | / | |
| AC Power | AC Output: powerCON | |
| AC Input: powerCON | ||
| Rigging & Hardware: | 35 mm Pole-mount | |
| 4 x M8 threaded points for WPB-7 or PowerdriveTM Series 100 products | ||
| Optional Accessories | WDG-W15 horizontal flying yoke | |
| Heavy-duty transport soft cover | ||
| Handle | 1 on top | |
| Cabinet Type | Trapezoid | |
| Enclosure Material and finish | 15 mm plywood | |
| Tough-Tone | ||
| Colour Options | Black paint, White on request | |
| Grille Material & Finish | Powder coated steel | |
| Monitor Angle (degrees) | 60° – 25° | |
| Dimensions – Unpacked (mm / inches): | ||
| Height | 350 mm / 13.8″ | |
| Width | 560 mm / 22.05″ | |
| Depth | 530.8 mm / 20.9″ | |
| Dimensions – Packed (mm / inches): | ||
| Height | 655 mm / 25.8″ | |
| Width | 625 mm / 24.6″ | |
| Depth | 435 mm / 17.1″ | |
| Weight | ||
| Net Weight | 26.5 Kg/ 58.3 lbs | |
| Gross Weight | 30.0 Kg/ 66.0 lbs | |
