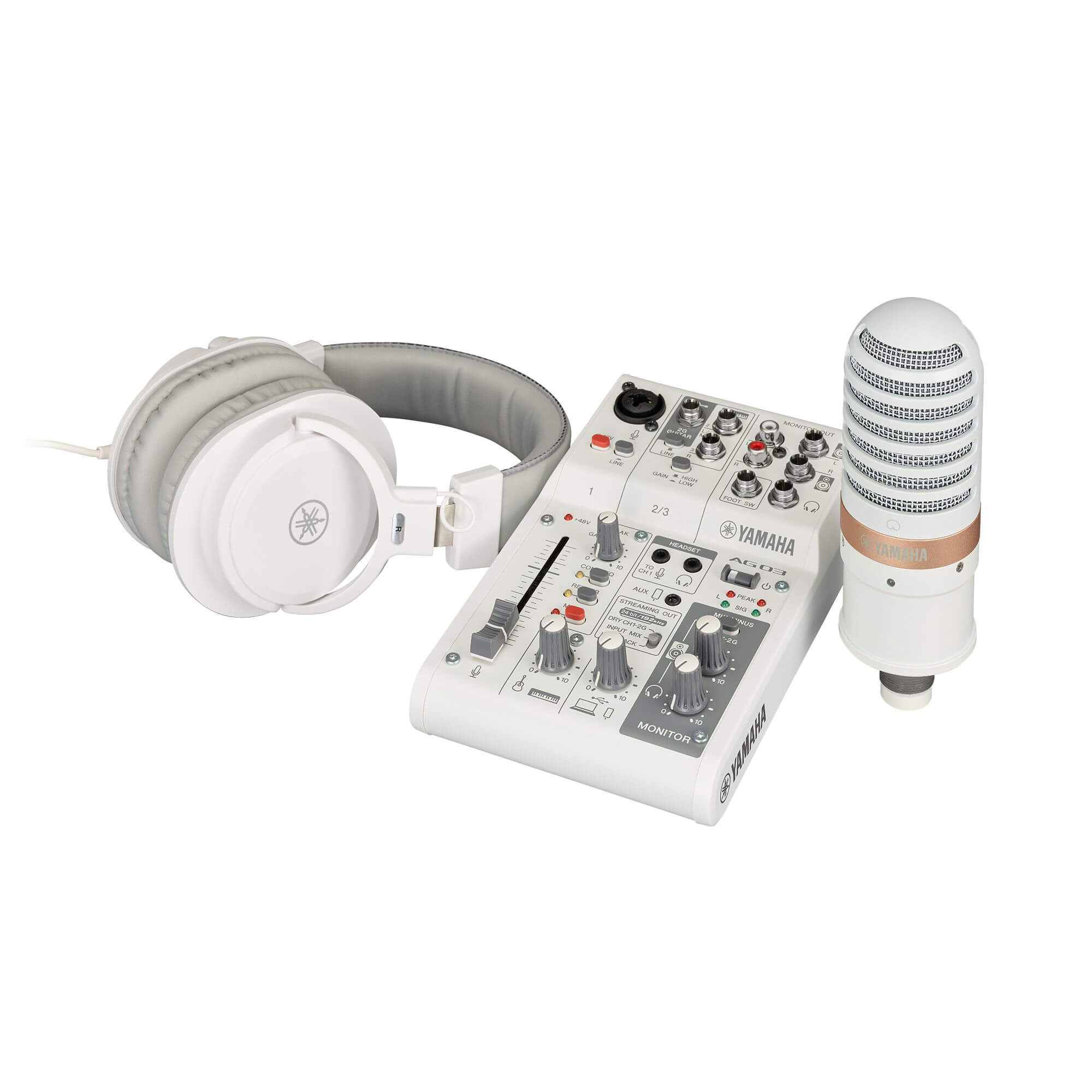

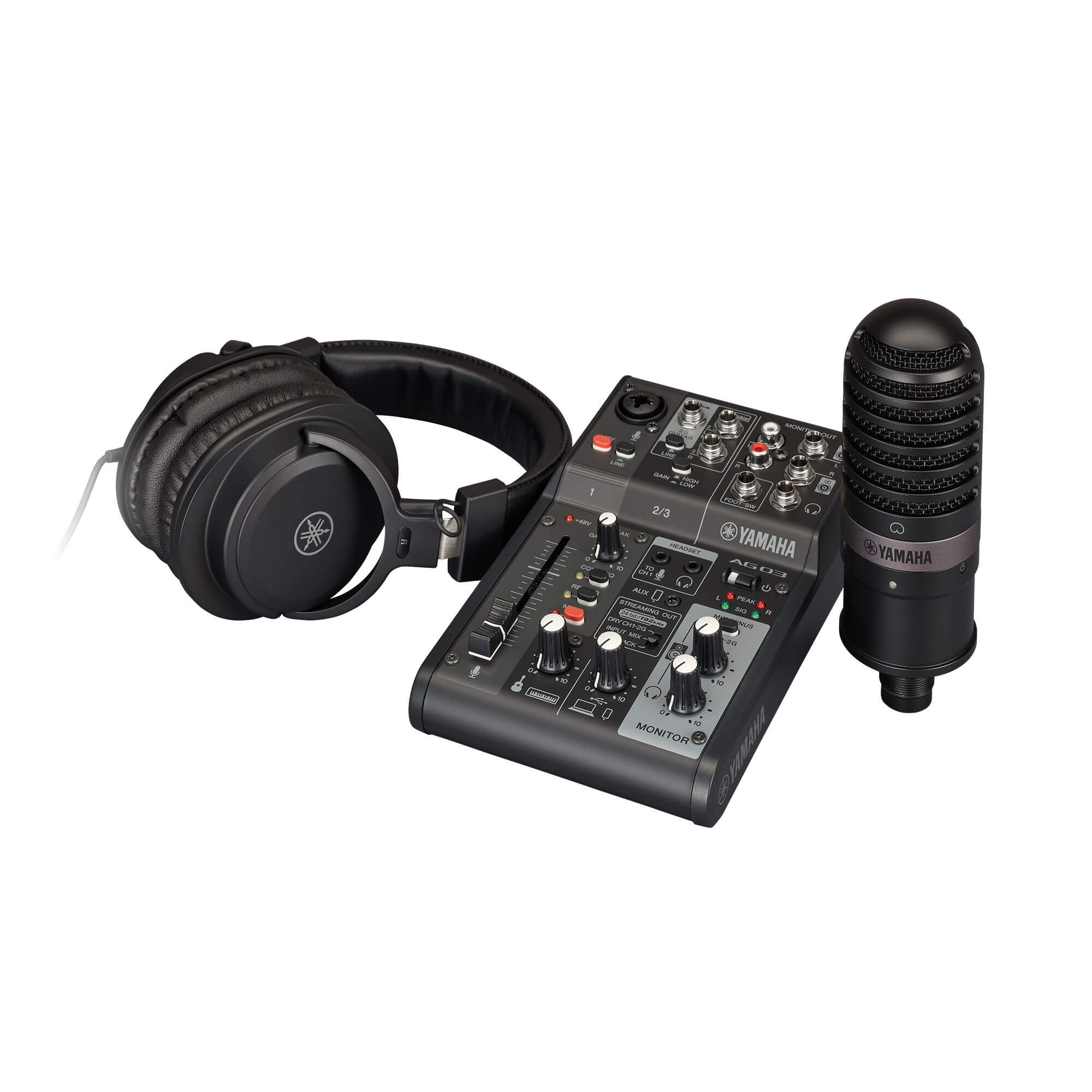

Yamaha AG03MK2 LSPK Live Streaming Pack
A comprehensive package of the AG03MK2 that includes all the products you need to get started with live streaming right away.
- New design with two models in black and white
- AG03MK2: 3-channel Live Streaming mixer with USB audio interface
- YCM01: Studio-quality condenser microphone (XLR, Cardioid type)
- YH-MT1: Studio-quality headphones
- XLR microphone cable (3 m, Black)
Your Audience Awaits.
The AG03MK2 LSPK (Live Streaming Package) is a full streaming setup that includes, and centers around an AG03MK2 3-channel mixer— the successor to the AG03 console that has become a mainstay of the personal live streaming market. The package also includes a YCM01 cardioid condenser microphone ideal for live vocal or instrument performances, as well as YH-MT1 high-fidelity headphones, and an XLR mic cable to complete this simple yet powerful streaming station.
Ideal for beginners or users building a new system from scratch, LSPK packages and their respective products come in either black or white, for a unifying aesthetic that makes it easier to adapt your new system to your particular streaming environment.
| AG03MK2 | ||
|---|---|---|
| Input Channels | Mono[MIC/LINE] | 1 – Combo (Mic, +48 V phantom power / Line), 3.5 mm (1/8″) stereo mini (Headset mic, Plug-in power) *CH1 input and Headset mic cannot be used simultaneously |
| Stereo[LINE] | 1 – Stereo Line / Guitar Input (Mono) | |
| Smartphone | 1 – 4-pole mini input/output (TRRS) | |
| USB | 1 | |
| Output Channels | PHONES | 1 – PHONES / HEADSET PHONES *Cannot be used simultaneously |
| Smartphone | 1 – 4-pole mini input/output (TRRS) | |
| MONITOR OUT | 2 – L/R Stereo: Phone, RCA | |
| USB | 1 | |
| Bus | 1 Stereo | |
| Functions | MUTE button x 1, PAD button x 2, HI-Z button x 1, STREAMING OUT (DRY CH 1-2G / INPUT MIX / LOOPBACK), MIX MINUS MIC (ON / OFF) | |
| On-board processors | DSP | COMP/EQ, REVERB (SPX Reverb), AMP SIM *Detail is operated on AG Controller |
| USB | USB Audio | 2 IN / 2 OUT, USB Audio Class 2.0 Compliant, Sampling Frequency: Max. 192 kHz, Bit Depth: 24-bit, Type-C |
| USB DC Power input | 1 – Type-C, 5 V DC, 900 mA | |
| Power requirements | 5 V DC, 900 mA | |
| Power consumption | Max. 4.5 W | |
| Dimensions | W | 126 mm (5.0″) |
| H | 63 mm (2.5″) | |
| D | 201 mm (7.9″) | |
| Net weight | 0.8 kg (1.8 lbs) | |
| Included Accessories | USB2.0 Cable (1.5 m), Quick Guide, Safety Guide, Wavelab Cast Download Information, Cubase AI Download Information | |
| Others | Operating Temperature: 0 to + 40 ℃ | |
| YCM01 | ||
|---|---|---|
| Microphone Unit | Back electret condenser type | |
| Polar Pattern | Cardioid | |
| Adress Type | Side | |
| Frequency Response | 30 Hz – 20 kHz | |
| Max Input SPL | 130 dB (THD ≦ 1.0 ％ at 1 kHz) | |
| Sensitivity | -37 dB ± 3 dB (0 dB=1V/Pa, at 1kHz) | |
| Connector | XLR | |
| Dimensions (Microphone Only) | Ø55 x 166 mm (Ø2.2″ x 6.5″) | |
| Weight (Microphone Only) | 0.4 kg (0.9 lbs) | |
| Included Accessories | Microphone stand adaptor x 1, Microphone pouch x 1, Owner’s manual, Technical specifications | |
Compatible operating systems (AG01/AG03MK2/AG06MK2)
Please see following page.
