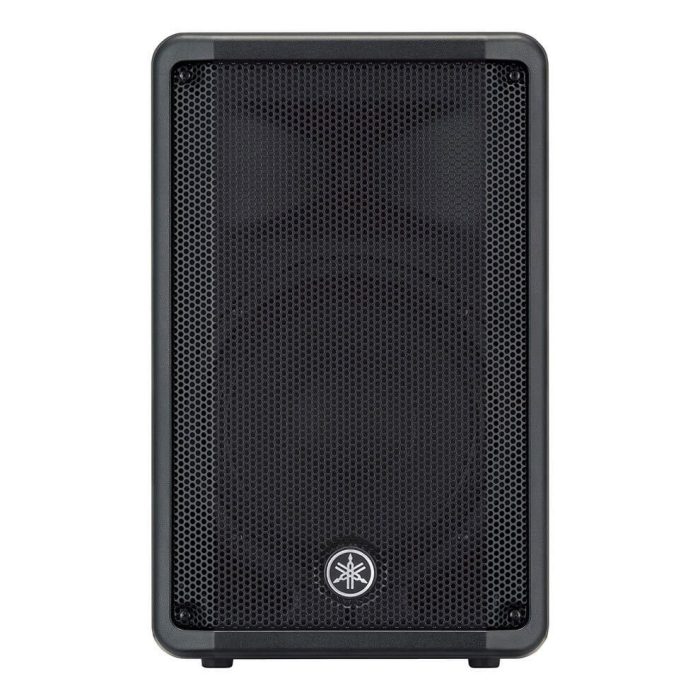

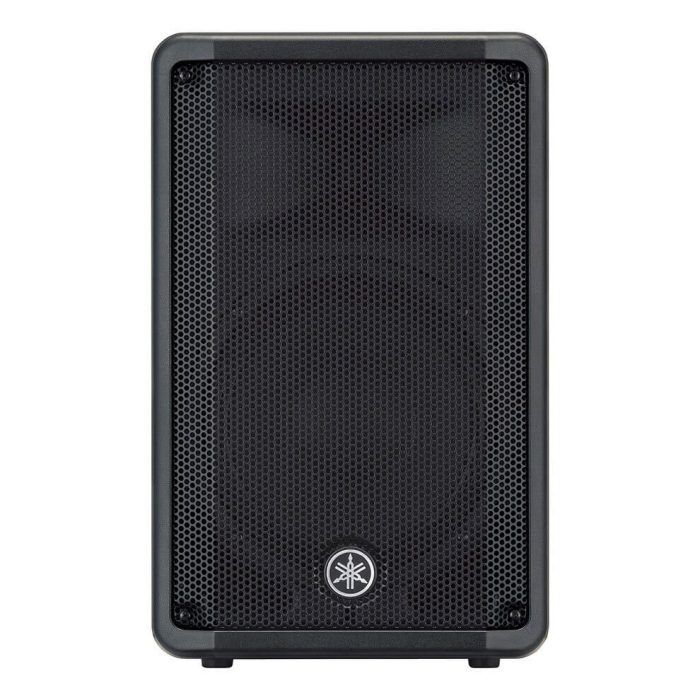

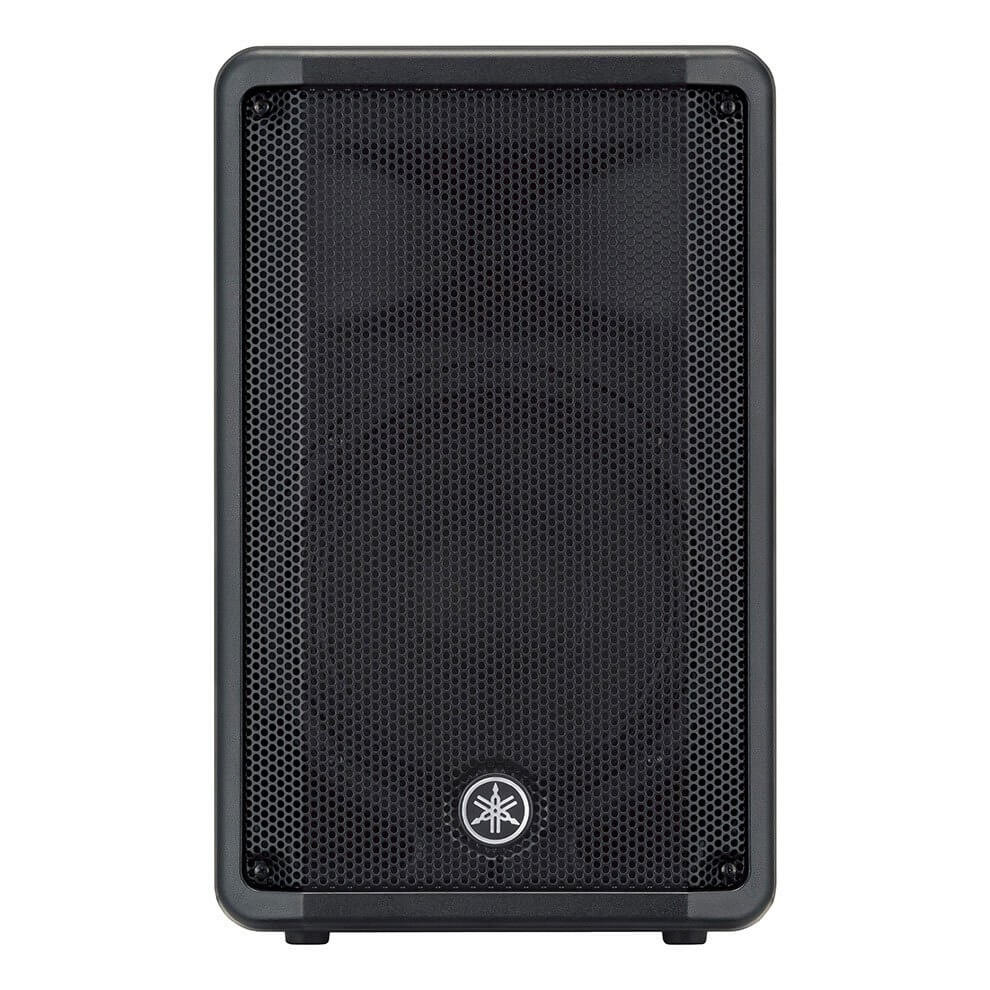

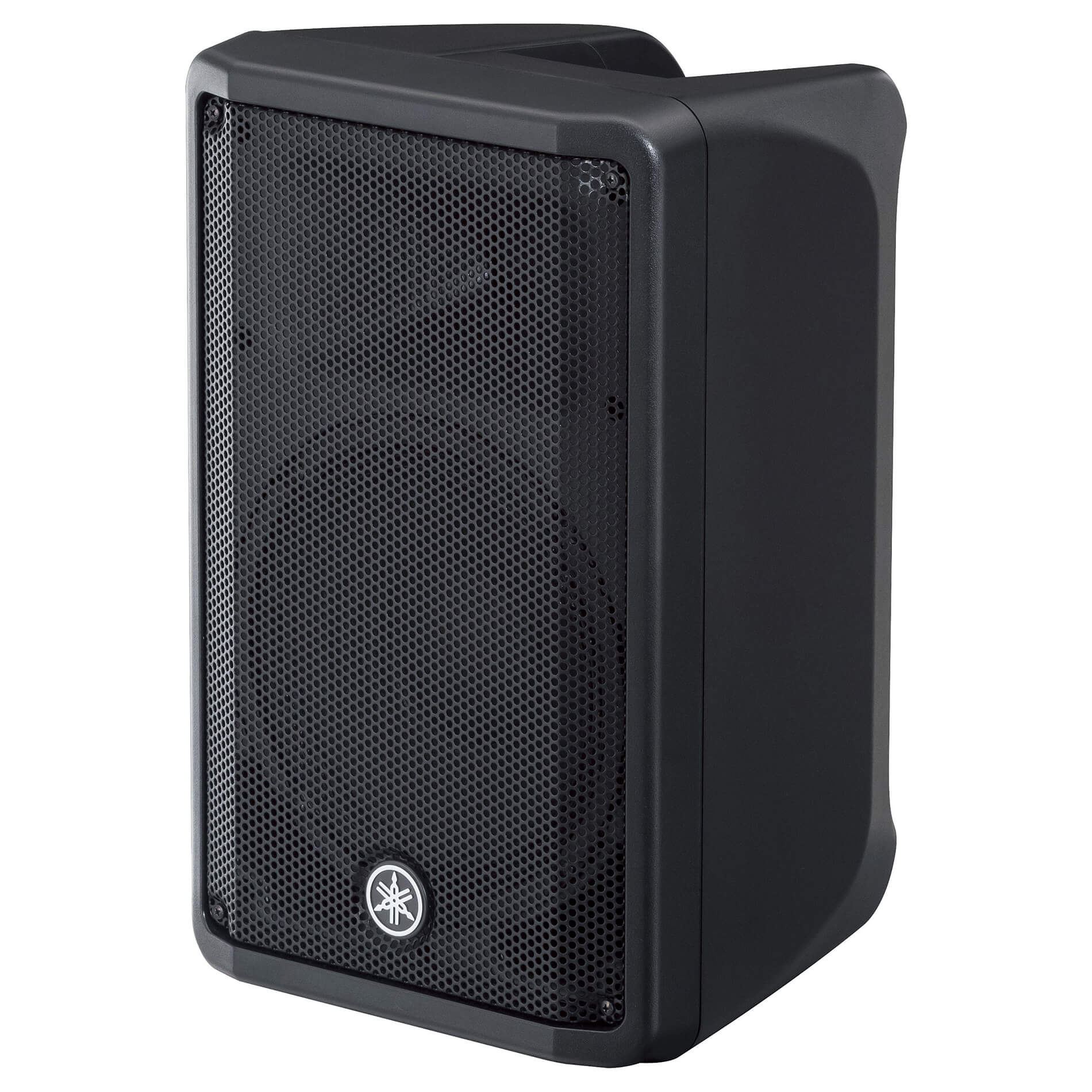

Yamaha CBR10

The CBR10 is the most compact model in its series. While delivering astonishing power for its size and weight, the CBR10 is ideal for both portable and installed applications.

    Description

    POWER TO PLAY

    The CBR Series is a new lineup of passive loudspeakers developed by adopting the extensive knowledge of speaker designand acoustic technologies that Yamaha has accrued over a long and storied history of making speakers of every kind.Combining a meticulous materials selection process, thorough customization of the audio components, and a fresh, innovativeapproach to speaker design, our engineering team’s primary focus was to deliver high-power, high-definition sound in a highlyportable and versatile design that is equally at home in front-of-house, floor monitoring, or rigged configurations.- Custom Designed Transducers and Wide-Dispersion Constant Directivity Horn for Powerful High-Definition Sound- HF Protection Function and Highly Responsive LF Unit for Reliable Performance at Any Output Level- Rugged, Highly Portable Enclosure Design- Simple Connectivity- Versatility for a Variety of Applications

    Custom Designed Transducers and Wide-Dispersion Constant Directivity Horn for Powerful High-Definition Sound

    CBR Series speakers come equipped with carefully selected and customized transducers that feature a highly responsive woofer and a precise 2.5” compression driver (CBR15) or 2”compression driver (CBR10 and CBR12), ensuring consistent high-definition sound with minimal distortion even at high output levels. Additionally, a newly designed wide-dispersion constant directivity horn minimizes the radiation pattern deterioration in oblique directions that more conventional horns are prone to, allowing sound to expand in a more rectangular pattern, evenly dispersing wide-frequency sound to the outer-most edges of the coverage area.

    HF Protection and Highly Responsive LF Unit for Reliable Performance at Any Output Level

    Have you ever blown your speakers by cranking up the output levels beyond your speakers capabilities? CBR Series speakers employ a protection function that limits excessive input to the HF unit. This valuable protection circuit affords you worry-free operation of your speakers when you need them most. Combined with a highly responsive LF unit, CBR Series speakers reliably deliver clear, precise sound at any output level.

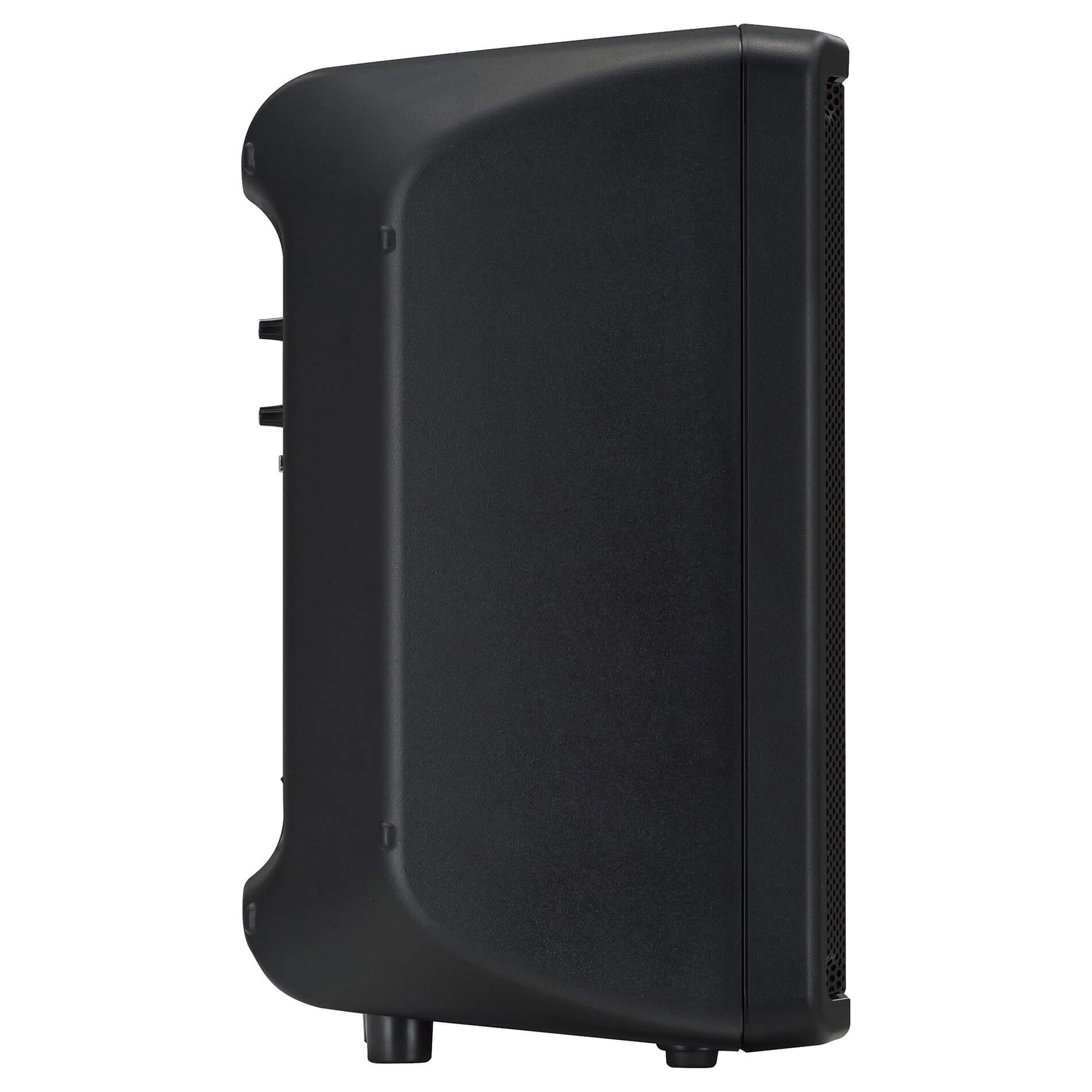

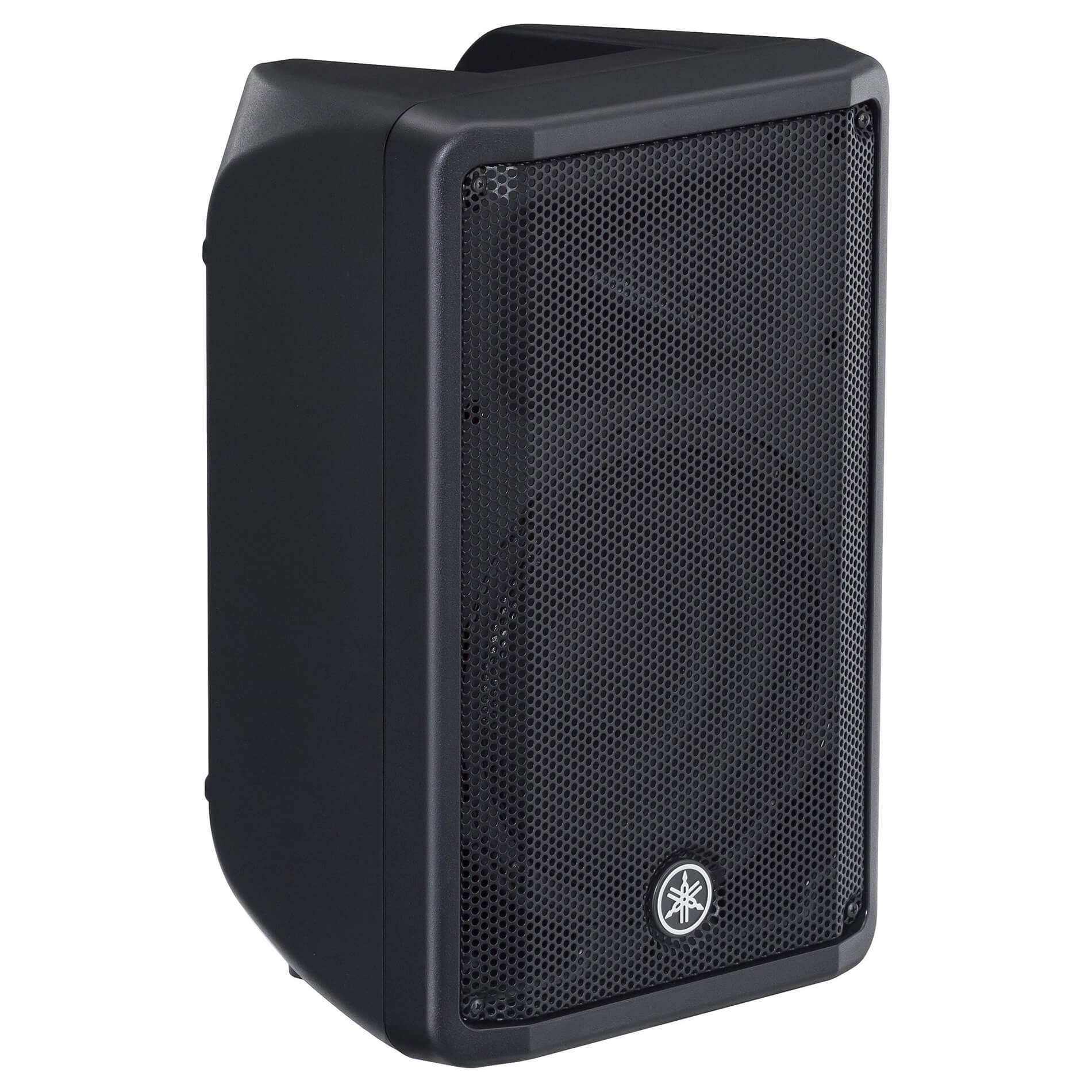

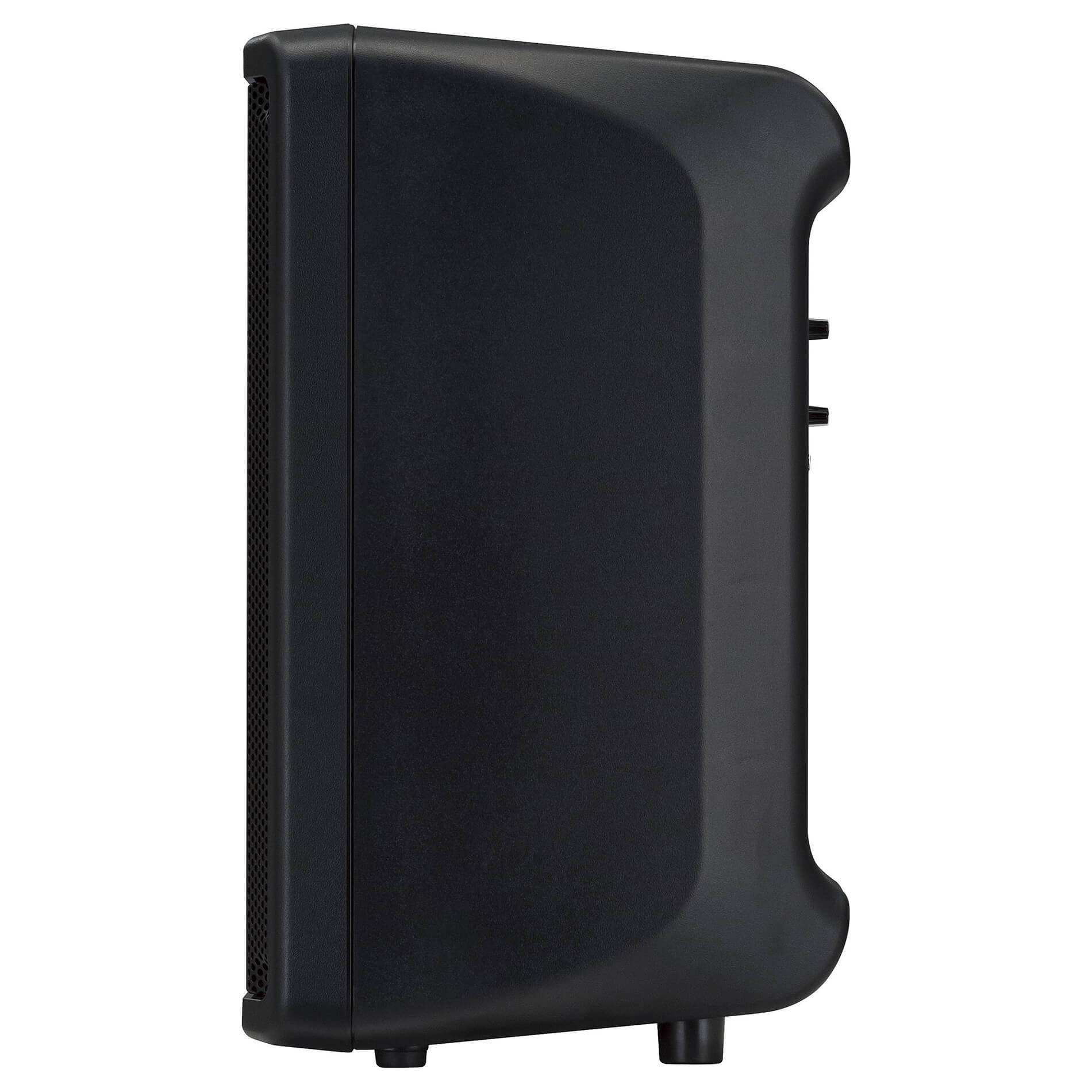

    Rugged, Highly Portable Enclosure Design

    CBR Series speakers feature a very compact, durable, and lightweight plastic cabinet equipped with newly designed, ergonomic handles that greatly minimize system transport and setup. In addition, all CBR models feature a sleek, steel front grille that seamlessly blends in with installation aesthetics while protecting the vital inner speaker components from environmental hazards.

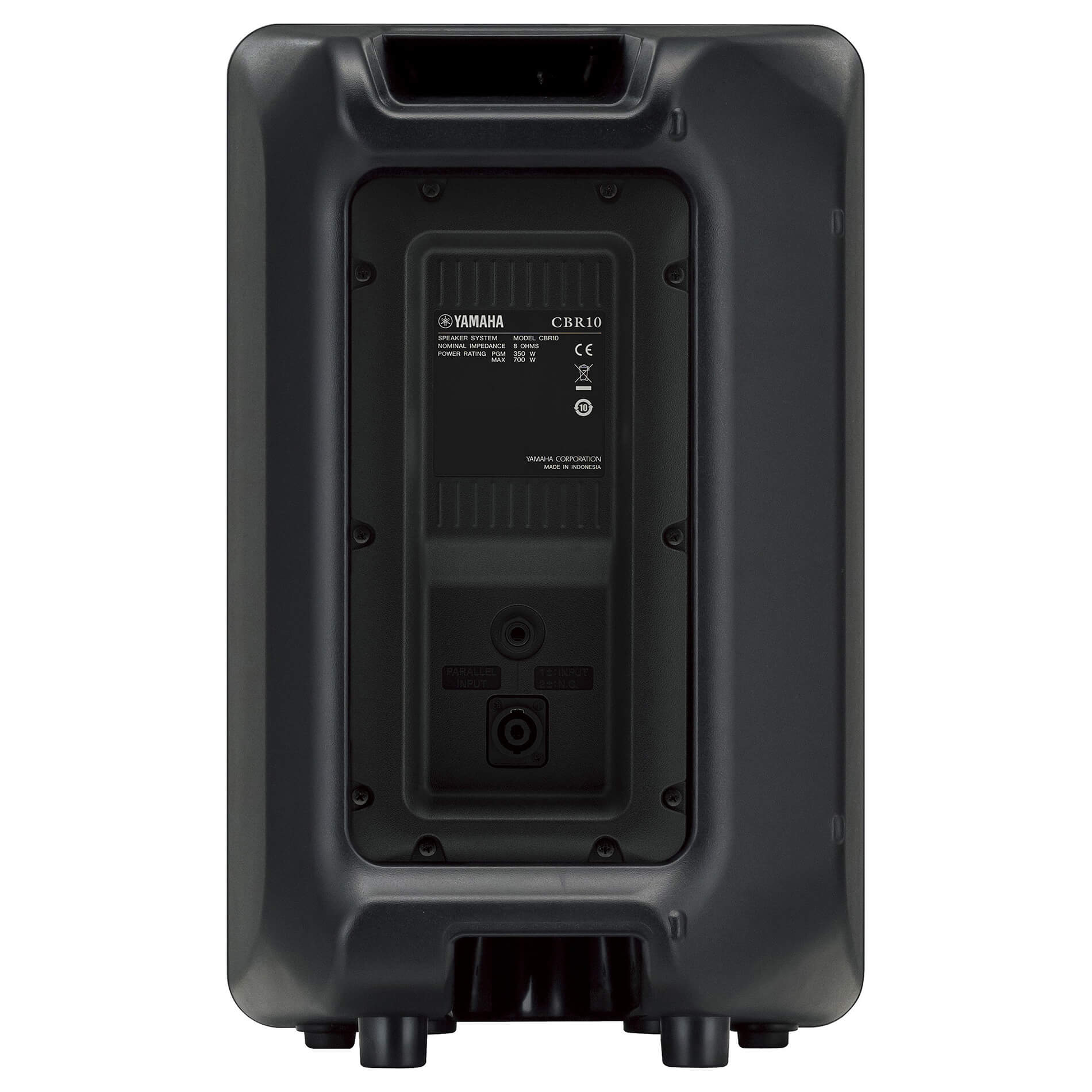

    Simple Connectivity

    CBR Series speakers are equipped with one speakON jack and one 1/4″ Phone jack that allow for fast and easy connectivity in both personal and professional environments.

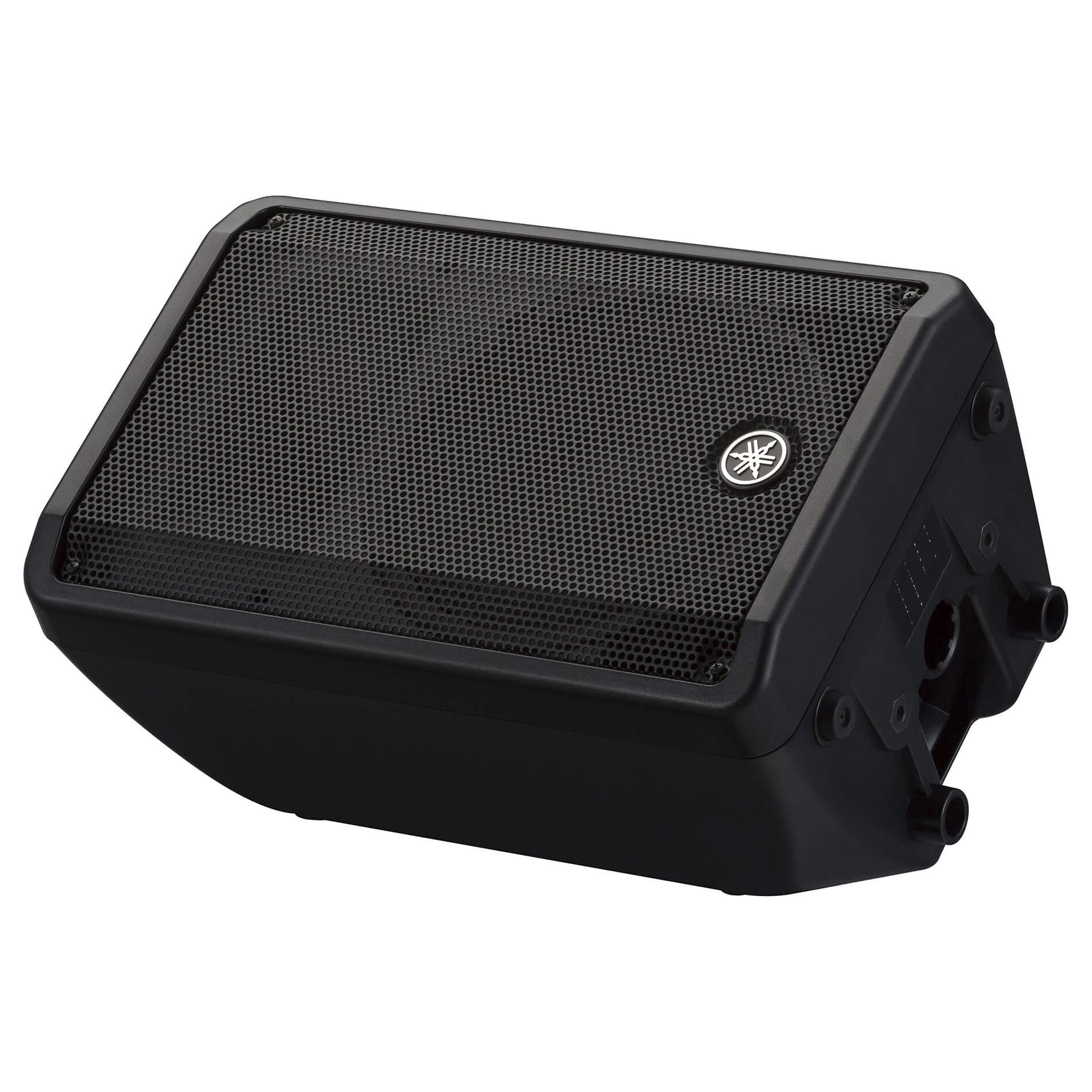

    Smart Enclosure Design for Floor Monitoring

    The CBR Series speakers feature an optimized 50° wedge angle for floor monitoring. In addition, the CBR12 and CBR15’s symmetrical shape allows for effortless configuration of a mirror-mode floor monitoring system for a larger and more defined sweet spot.

    Rigging Points for Installation Applications

    CBR loudspeakers come equipped with M8 rigging points, allowing for rigged applications with optional speaker brackets or standardized eye-bolts.

    Functional Speaker Cover (Option)



    The functional speaker covers that protect your speakers from unfavorable weather conditions during outdoor performances, dusty and dirty warehouse storage, or the rigors of equipment transport on the road.- Trilaminar fabric of durable polyester, with inner PVC coat and cushion inside for impact suppression.- Front mesh allows sound reinforcement with the cover as well as ensures amp cooling.- Rear roof allows easy access to the rear panel with the cover on.- Handle slit allows easy access to the handles for carriage- Inner pocket additional space for carrying cables.*NOTE: The covers do NOT guarantee water-drip protection.

    Key Specifications

    Configuration
    Passive 2-Way
    Enclosure Type
    Bass-Reflex Loudspeaker
    Total Power Capacity
    175 W RMS
    350 W Program
    700 W Peak
    HF Driver
    1 x 2″ / 50.8 mm Compression Driver
    LF Driver
    1x 10″ / 254 mm Woofer
    Enclosure Type
    Bass-Reflex Loudspeaker
    Total Power Capacity
    175 W RMS
    350 W Program
    700 W Peak
    Constant Voltage / Transformer Taps
    No
    System Impedance
    8 Ohms
    Drivers
    HF Driver
    1 x 2″ / 50.8 mm Compression Driver
    HF Voice Coil
    1″ / 51 mm
    LF Driver
    1x 10″ / 254 mm Woofer
    LF Voice Coil
    2″ / 5.1 cm
    Magnet
    HF:
    Ferrite
    LF:
    Ferrite
    Performance
    Frequency Response
    50 Hz to 20 kHz -10 dB
    Maximum SPL
    123 dB SPL (Peak)
    Coverage Angle
    90° H x 60° V
    Speaker Sensitivity
    94 dB SPL
    Connectivity
    Audio I/O
    1x speakON NL4 Speaker Input
    1x 1/4″ TS Speaker Input
    Signal Processing
    Crossover
    2.8 kHz
    Physical
    Handles
    1x Top
    Construction Material
    Plastic
    Dimensions
    12.1 x 19.4 x 11.4″ / 30.8 x 49.3 x 28.9 cm
    Weight
    20.7 lb / 9.4 kg
