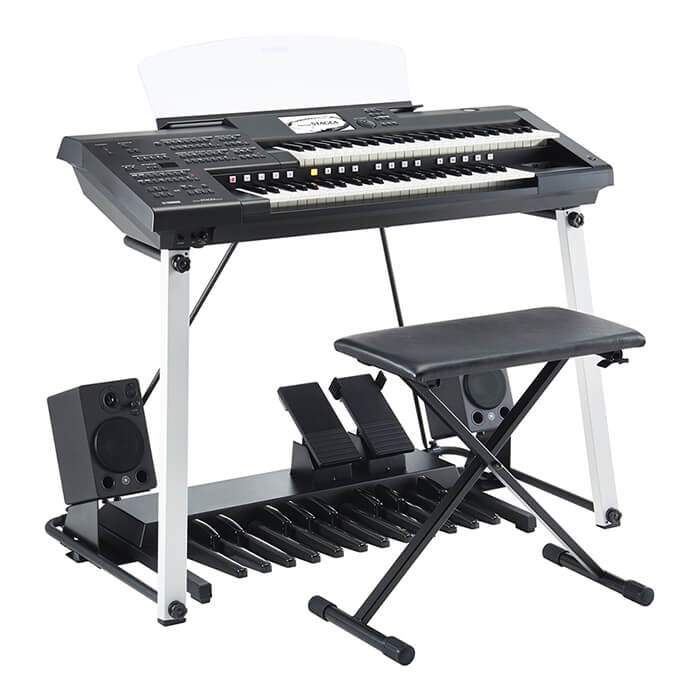

Yamaha ELC-02 STAGEA Electone
A compact, portable and high-performance Electone, suitable for both serious practice and live playing.
Explore unlimited musical expression
A compact, portable Electone for every occasion—suitable for both serious practice and live playing.
More freedom, more fun
The compact body is fully loaded with the voices and sounds you want, and is designed for easy assembly, disassembly, and transportation.
With the ELC-02, the world is your stage.
Portability
The main keyboard unit, pedal unit, stand, speakers, and bench can all be separated for easy portability. The bench even folds into a flat, compact form. Set up and perform with ease, anywhere you want.
Voice
The ELC-02 contains a comprehensive library of 986 preset Voices that allows you to find the sound that you want to play. Super Articulation Voices have been included which realistically reproduce the unique characteristic techniques used in playing wind, string, and other instruments. There is also a wide range of organ Voices available for performing everything from jazz to classical pieces. In addition to presets, you can enjoy editing Voices to suit your own preferences.
*Super Articulation Voices cannot be edited.
Rhythm
Discover 634 diverse rhythm presets suitable for a wide range of music genres. Choose an existing rhythm that matches the tune you want to play, or edit a rhythm to suit your music. You can even build your own rhythms from scratch, creating unique performances with a beat that’s all you.
*Some patterns cannot be edited.
Registration
Registrations are preset combinations of Voices and rhythms. Press the registration memory button to instantly call-up a registration whenever you want. The ELC-02 features a rich menu of 506 different presets sorted by music genre, allowing you to play the songs you want immediately. You can also save your own registrations to USB flash memory.
Keyboard Control
The ELC-02 comes with both Initial Touch, which varies tonal expression and the dynamics of the sound according to the force with which the key is pressed, and After Touch, which allows sound timbre, volume, and pitch to be varied after the key is pressed. This lets you achieve nuanced musical expression with just the tips of your fingers.
Second Expression Pedal
Use the pedals to apply expressive effects like guitar bending and saxophone bends to your performance.
Right: Expression Pedal
Left: Second Expression Pedal
Color Touch Panel
A large 7-inch LCD panel provides easy viewing of options. This allows simple, stress-free operations, so you can select and control Voices, effects, rhythms, and even edit, all through the intuitive touch panel.
Audio Recording
You can save your performance as an audio file (.wav) directly to USB memory. Enjoying listening to your playing on a portable music player or share it by sending it to friends!
Portability
The main keyboard unit, pedal unit, stand, speakers, and bench can all be separated for easy portability. The bench even folds into a flat and compact form. Set-up and perform anywhere you want with ease.
The Voice Guide will talk to you and support controlling the Electone
When Voice Guide is active, the Electone speaks information from the current display or operation being executed. This allows those who have visual impairments to enjoy playing and using the instrument.
Note:
*When using Voice Guide, make sure that the USB flash memory containing the Voice Guide files is connected to the instrument.
*The audible information of the functions/screen supported by the Voice Guide is limited.
*The Voice Guide file is common for ELS-02/02C and ELC-02.
| ELC-02 | ||
|---|---|---|
| Cabinet | Color | Black |
| Dimensions | Width | 1185 mm |
| Height | 938 mm (with music rest 1091 mm) | |
| Depth | 652 mm | |
| Weight | Weight | 45.8 kg (with music rest 46.8 kg) |
| Packing Box | Width | 1,339 mm (52-11/16") |
| Height | 794 mm (31-1/4") | |
| Depth | 723 mm (28-7/16") | |
| Keyboard | Type | Standard (FS) |
| Upper Keyboard | Number of Keys | 49 |
| Range | C - C | |
| Initial Touch | Yes | |
| After Touch | Yes | |
| Horizontal Touch | - | |
| Lower Keyboard | Number of Keys | 49 |
| Range | C - C | |
| Initial Touch | Yes | |
| After Touch | Yes | |
| Horizontal Touch | - | |
| Pedal Keyboard | Number of Keys | 20 |
| Range | C - G | |
| Initial Touch | Yes | |
| After Touch | - | |
| Pedal | Type | Expression Pedal, 2nd Expression Pedal |
| Foot Switch | Function | Rhythm: Stop, Break, Main A - D, Intro 1 - 3, Ending 1 - 3 Glide: Upper 1 - 2, Lower 1 - 2, Lead 1 - 2, Glide Time Rotary Speaker |
| Other Controllers | Knee Lever | - |
| Display | Size | TFT Color Wide VGA LCD, 800 x 480 dots 7 inch |
| Contrast | Yes | |
| Tone Generation | Tone Generating Technology | AWM+ORGAN |
| Preset | Upper | Voice Section: 2, Voice Button: STRINGS, BRASS, WOODWIND, TUTTI, PAD, SYNTH, PIANO, ORGAN,PERCUSSION, GUITAR, CHOIR, WORLD, USER 1 - 2 |
| Lower | Voice Section: 2, Voice Button: STRINGS, BRASS, WOODWIND, TUTTI, PAD, SYNTH, PIANO, ORGAN,PERCUSSION, GUITAR, CHOIR, WORLD, USER 1 - 2 | |
| Lead | Voice Section: 2, Voice Button: VIOLIN, SYNTH, FLUTE, TRUMPET, USER 1, TO LOWER (Lead 1), SOLO (Lead 2) | |
| Pedal | Voice Section: 2, Voice Button: CONTRABASS, ELEC. BASS, TIMPANI, SYNTH BASS, USER 1, TO LOWER | |
| Number of Voices | 986 (AWM) | |
| Organ Flutes | Types: Sine, Vintage, Euro, Footage: 16', 5 1/3', 8', 4', 2 2/3', 2', 1 3/5', 1 1/3', 1', Attack: 4', 2 2/3', 2', Length, Response, Mode: First, Each, Vibrato: Depth, Speed, Effects: XG Rotary Sp, Rotary Sp 1 - 5, 2Way Rot Sp, Dual Rotsp 1 - 2, Dual Rot Brt, Dual Rot Wrm, Dist+Rot Sp, Odrv+Rot Sp, Amp+Rot Sp, Dist+2Rot Sp, Odrv+2Rop Sp, Amp+2Rot Sp, OFF | |
| Custom | User Voices | AWM: 80(each Unit) |
| Voice Edit | Yes | |
| Voice Link | Yes | |
| Setting | Volume | All Voice Sections 25 Steps (0 - 24) |
| Types | Reverb | HALL 1 - 3, M, L, XG HALL 1 - 2, ROOM 1 - 4 , S, M, L, XG ROOM 1 - 3, STAGE 1 - 2, XG STAGE 1 - 2, PLATE 1 - 2, XG PLATE GM PLATE, WHITE ROOM, ATMO HALLl, ACOSTIC ROOM, DRUMS ROOM, PERC ROOM, TUNNEL, CANYON, BASEMENT |
| Chorus | CHORUS 1 - 2, XG CHORUS 1 - 4, GM CHORUS 1 - 4, FB CHORUS, CHORUS FAST, CHORUS LITE, AMB CHORUS, CELESTE 1 - 4, AMB CELESTE, SYMPHONIC, XG SYMPHONIC, AMB SYMPHO, ENS DETUNE 1 - 2 | |
| Brilliance | All Voice Sections | |
| Delay | DELAY LCR, XG DELAY LCR, DELAY LR, ECHO, CROSS DELAY 1 - 2, TEMPO DELAY 1 - 2, TEMPO ECHO, TEMPO CROSS 1 - 4 | |
| Distortion | DIST HARD 1 - 2, DIST SOFT 1 - 2, ST DISTH HARD, ST DIST SOFT, OVERDRIVE, ST OVERDRIVE, XG DIST, XG ST DIST, V_DIST HARD, V_DIST SOFT, COMP+DIST, XG COMP+DIST, V_DIST WARM, V_DIST CLS H, V_DIST CLS S, V_DIST METAL, V_DIST CRUNC, V_DIST BLUES, V_DIST EDGY, V_DIST SOLID, V_DIST CLN 1 - 2, V_DIST TWIN, V_DIST ROCA, V_DIST JZ CLN, V_DIST FUSION | |
| Distortion Plus | DIST+DELAY, ODRV+DELAY, XG DIST+DLY, XG ODRV+DLY, CMP+DIST+DLY, CMP+ODRV+DLY, XG CMP+DT+DL, XG CMP+OD+DL, V_DISTH+DLY, V_DISTS+DLY, DIST+T DLY, ODRV+T DLY, CMP+DST+TDLY, CMP+OD+TDLY 1 - 6, VDST H+TDLY 1 - 2, VDST S+TDLY 1 - 2 | |
| Amp Simulator | AMP SIM, XG AMP SIM, ST AMP SIM 1 - 5, XG ST AMP, ST AMP SOLID, ST AMP CRUNC, ST AMP BLUES, ST AMP CLEAN, ST AMP HARP, SML ST DIST, SML ST OVRDR, SML ST VINTG, SML ST HEAVY, B CMB CLASC, B CMB TOPBST, B CMB CUSTOM, B CMB HEAVY, B LGND BLUES, B LGND HVY 1 - 2, B LGND CLEAN, B LGND D CLN, US CMB TWIN, USCMB RCH CL, USCMB THN CL, USCMB CRUNCH, JZ CMB BASIC, JZ CMB WARM, US HI GN DTY, US HI GN RIF, US HIGN BURN, US HIGN SOLO, B LD DIRTY, B LD DRIVE, B LD GAINER, B LD HARD | |
| Dynamic | M BAND COMP, COMPRESSOR, COMP MED, COMP HEAVY, COMP MELODY, COMP BASS, V_COMPRESSOR, NOISE GATE | |
| Early/Karaoke | ER 1 - 2, GATE REVERB 1 - 2, REVERS GATE, KARAOKE 1 - 3 | |
| EQ/Enhancer | ST 2BAND EQ, ST 3BAND EQ, XG 3BAND EQ, EQ DISCO, EQ TEL, HM ENHANCER, XG HM ENHNCE | |
| Flanger | FLANGER 1 - 2, XG FLANGER 1 - 3, GM FLANGER, V_FLANGER, TEMP FLANGER, DYNA FLANGER, VIN FLANGER 1 - 2, AMB FLANGER | |
| Miscellaneous | AMBIENCE, IMPULSE EXP, RESONATOR, VOICE CANCEL, TALKING MOD, LO-FI, DYNA FILTER, DYNA RINGMOD, RING MOD, ISOLATOR, LOOP FX 1 - 2, LO-FI DRUM 1 - 4, DAMPER RESO | |
| Phaser | PHASER 1 - 3, EP PHASER 1 - 3, TEMP PHASER 1 - 2, DYNA PHASER, VIN PHASER 1 - 2, VIN PHASER ST 1 - 4 | |
| Pitch Change | 3: PITCH CHANGE, XG PCH CHG 1 - 2 | |
| Rotary Speaker | XG ROTARY SP, ROTARY SP 1 - 5, 2WAY ROT SP, DUAL ROTSP 1 - 2, DUAL ROT BRT, DUAL ROT WRM,DIST+ROT SP, ODRV+ROT SP, AMP+ROT SP, DIST+2ROT SP, ODRV+2ROT SP, AMP+2ROT SP | |
| Tremolo / Auto Pan | TREMOLO 1 - 2, XG TREMOLO, EP TREMOLO, GT TREMOLO 1 - 2, ORG TREMOLO,VIBE VIBRATE, T_TREMOLO, AUTO PAN, XG AT PAN 1 - 2, EP AUTO PAN, T_AUTO PAN 1 - 2 | |
| Wah | AUTO WAH, XG AUTO WAH, V_AUTO WAH, TOUCH WAH 1 - 3, V_TOUCH WAH, AT WAH+DIST, XG AT WH+DST, AT WH+DST HD, AT WH+DST HV, AT WH+DST LT, AT WAH+ODRV XG, AT WAH+OD, AT WH+OD HD, AT WH+OD HV, AT WH+OD LT, TC WAH+DIST XG, TC WH+DST, TC WH+DST HD, TC WH+DST HV, TC WH+DST LT, TC WAH+ODRV XG, TC WAH+OD, TC WAH+OD HD, TC WAH+OD HV, TC WAH+OD LT CLAVI, TC WAH EP TOUCH WAH, WAH+DST+TDLY, WAH+OD+TDLY1 - 2, WAH+DIST+DLY, XG WH+DST+DL, WAH+ODRV+DLY, XG WH+OD+DLY, TEMPO AT WAH, T_A.WH+DST, T_A.WH+DSTHD, T_A.WH+DSTHV, T_A.WH+DSTLT, T_A.WH+ODRV, T_A.WH+OD HD, T_A.WH+OD HV, T_A.WH+OD LT | |
| Functions | Pan | All Voice Sections |
| Slide | LEAD 1 - 2 (ON/FOOT PEDAL/OFF, Portament Time) | |
| Sustain | Upper Keyboard (FOOT PEDAL), Lower Keyboard (FOOT PEDAL), Pedal Keyboard | |
| Touch Vibrato | All Voice Sections | |
| User Vibrato | All Voice Sections (Delay, Depth, Speed) | |
| To Lower | LEAD 1, PEDAL 1 - 2 | |
| Solo | LEAD 2 | |
| Lead Priority | LEAD 2 | |
| Pedal Poly Mode | Yes (ON/OFF) | |
| Feet | All Voice Sections (Preset, 16 Feet, 8 Feet, 4 Feet) (2 Feet for Pedal) | |
| Preset | Control | Start/Stop, Synchro Start, Tempo Display, Bar/Beat Lamp |
| Select Button | MARCH, WALTZ, SWING & JAZZ, POPS, R&B, LATIN, WORLD MUSIC, BALLAD, ROCK, DANCE, USER 1 - 2 | |
| Number of Rhythm | 634 (including the metronome) | |
| Number of Variation | Intro(1 - 3), Ending(1 - 3), Main/Fill-in (A - D), Break, Auto Fill | |
| Fingering | Auto Bass Chord (Mode: OFF, Single Finger, Fingered Chord, Custom A.B.C., Memory: Lower Keyboard, Pedal Keyboard), Melody on Chord (OFF, Mode 1 - 3, Knee Lever) | |
| Other Functions | Accompaniment (Chord 1 - 2, Pad, Phrase 1 - 2) | |
| Keyboard Percussion | 1 Unit Preset 1 - 2, User 1 - 40 (Pan, Pitch coarse, Pitch fine, Reverb, Volume) | |
| Custom | Number of User Rhythm | 48 |
| Rhythm Edit | Rhythm Pattern Program, Rhythm Sequence Program (SEQ 1 - 4, Rhythm/Regist) | |
| Setting | Volume | Rhythm/Accompaniment: 25 Steps (0 - 24) |
| Registration | Number of Preset Registration | Basic Registration: 16, Registration Menu :506 |
| Number of Buttons | 1 Unit 16 x 5, M. (Memory), 1 - 16, D. (Disable) | |
| Control | Shift, Jump, User (1 Unit: 400 steps), Next Unit | |
| Overall Controls | Master Volume | Yes |
| Transpose | -6 - +6 | |
| Tuning | A = 427.2 - 452.6 Hz, Default value: A = 440 Hz | |
| MIDI Setting | Yes | |
| Miscellaneous | MDR | Search, Song Select: Stop, Play, Pause, Rewind, Fast Forward, Record, Custom Play, Score, Setting (Tempo/Part), Unit Edit Tools: Create Folder, Change Song Name, Copy, Delete, Conversion (XG/EL/ELS format), Format, Information |
| Audio Recording/Playback | Play: Stop, Play, Pause, Rewind, Fast Forward, Volume, Tempo, Pitch Record: Stop, Record Tools: Change Name, Delete File Format: .wav (44.1 kHz,16 bit, stereo) | |
| Storage | External Drives | USB Flash Memory |
| SmartMedia Slot | No | |
| Connectivity | Headphones | 1 |
| FOOT PEDAL | Yes | |
| Microphone | MIC (standard phone, MIC VOLUME) | |
| MIDI | MIDI IN/OUT | |
| AUX IN | L/L+R, R (standard phone) | |
| AUX OUT | (LEVEL FIXED) MAIN: L/L+R, R(standard phone), SUB: 1, 2 (standard phone) | |
| OUTPUT | L/L+R, R (standard phone) | |
| OPTICAL OUT | No | |
| USB TO DEVICE | 3 (two terminals at the right front of the keyboard, one at the rear side of the instrument) | |
| USB TO HOST | Yes | |
| Amplifiers | (20W + 15W) × 2 | |
| Speakers | (Cone: 96 mm, Dome: 19 mm) × 2 | |
| Power Consumption | Main unit:28W (When using PA-300C AC adaptor) | |
| Included Accessories | Bench | 637 × 324 × 580 mm, 5.4 kg |
| SmartMedia | No | |
| Cover | No | |
| Others | Bench, Owner’s Manual, Product ID card, Music rest, Music rest brackets (× 2), AC adaptor: PA-300C, Power cord | |
