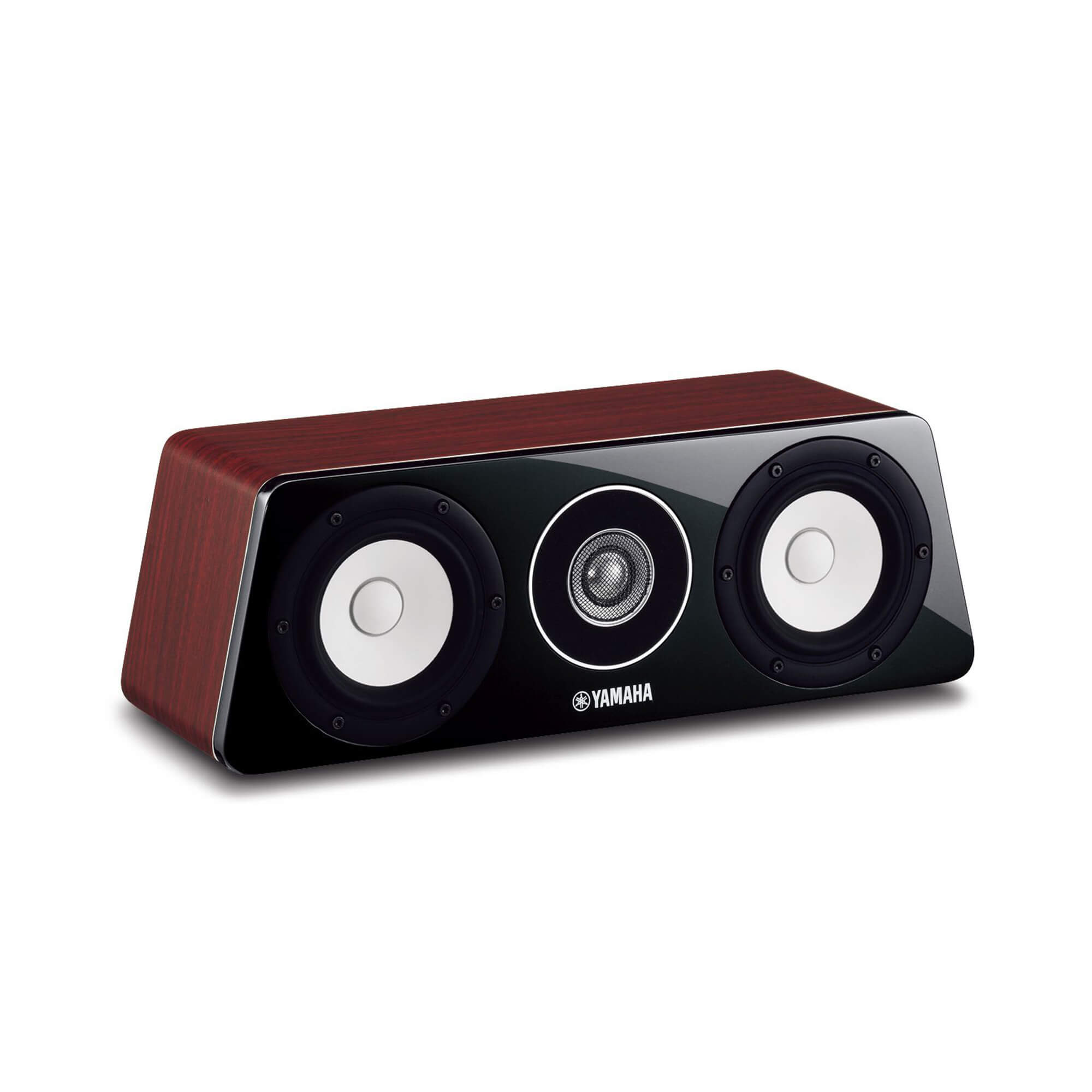

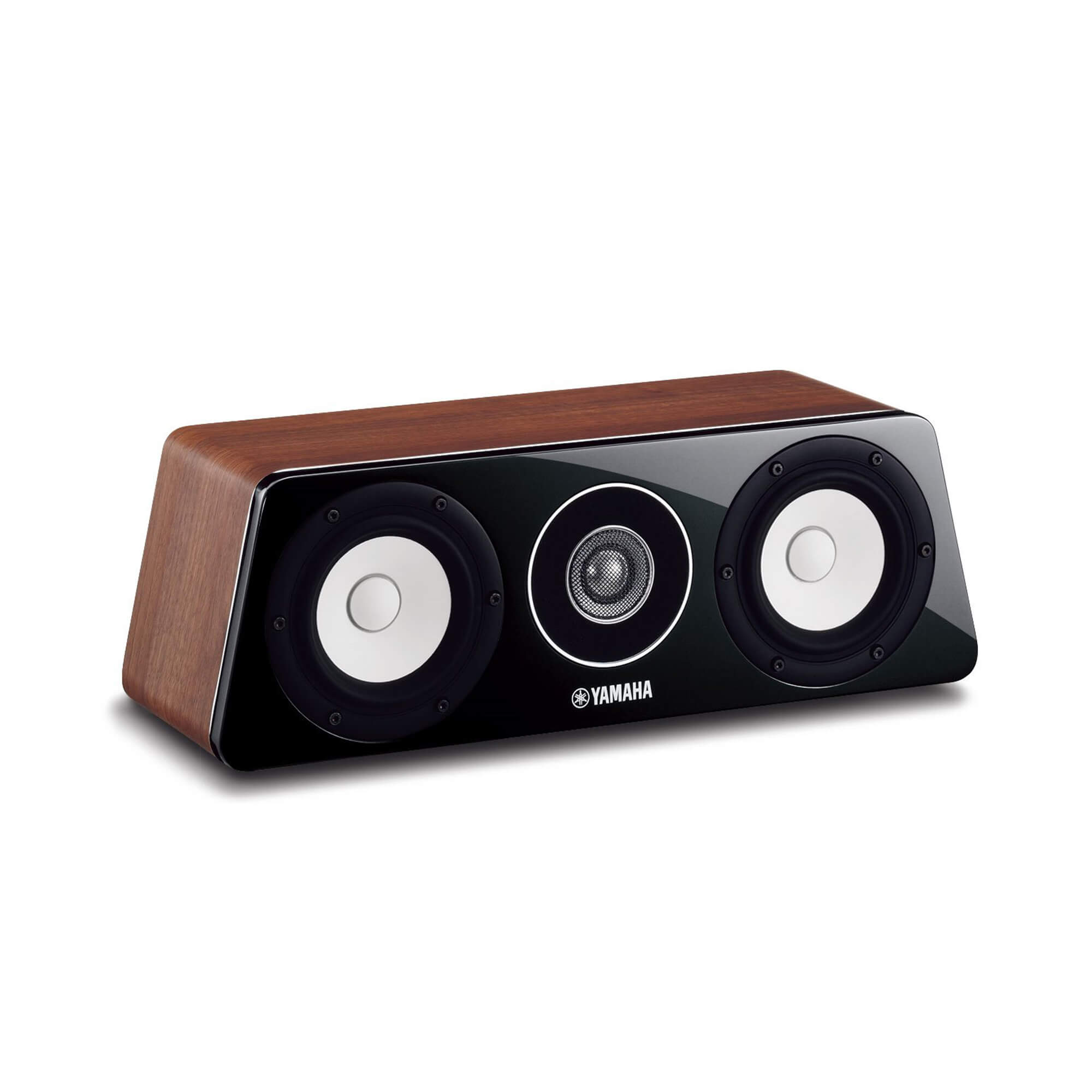

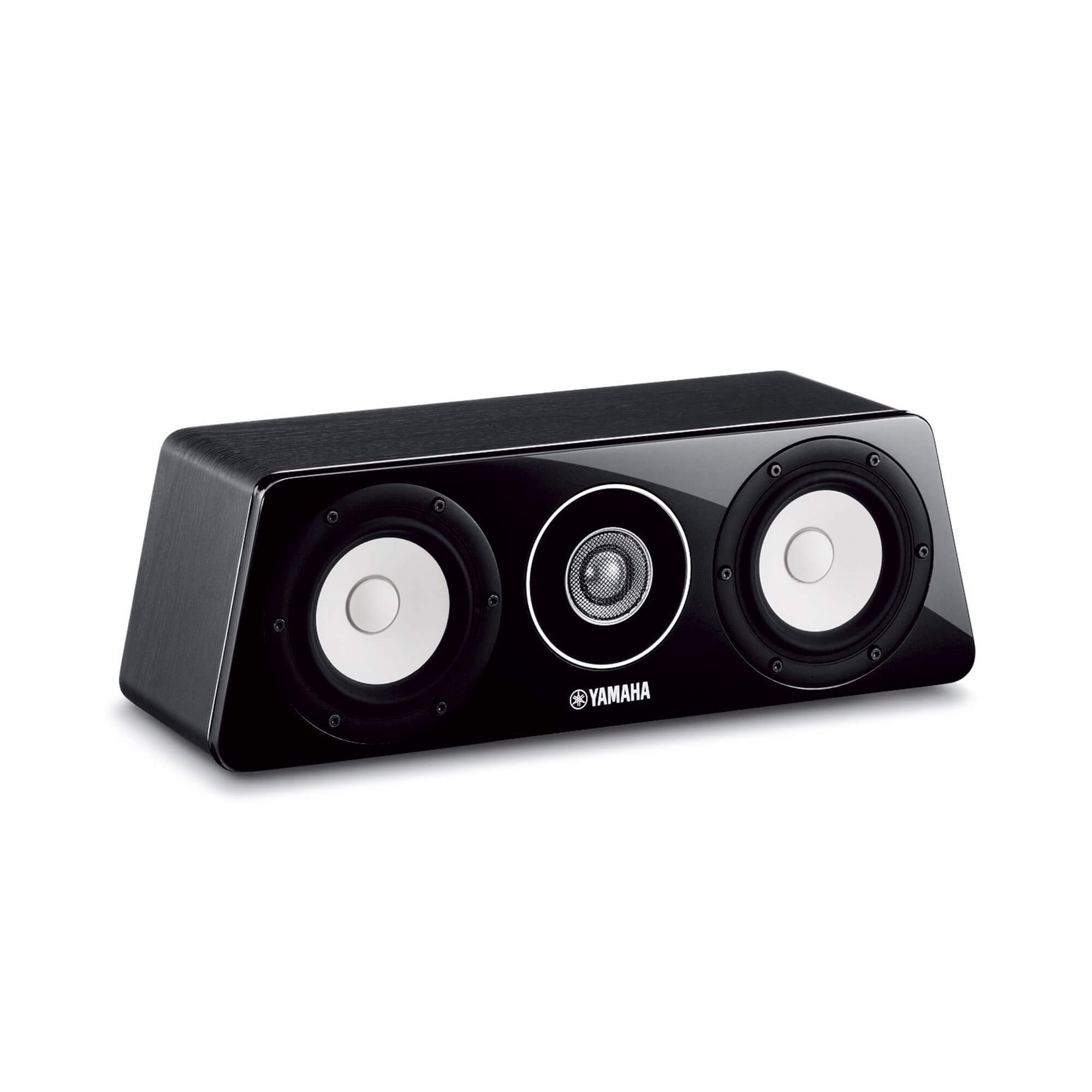

Yamaha NS-C500
An outstanding center speaker that excels at vocal reproduction
Spacious, dimensional sound from the DC-Diaphragm tweeter
Using precision manufacturing technology, the voice coil for the tweeter Is wrapped directly over the aluminum-magnesium alloy diaphragm. This design delivers increased amounts of sound information for smooth reproduction over an exceptionally wide sound spectrum.
A-PMD cone and solid rubber surround for deeply satisfying sound
The woofer utilizes Yamaha’s unique A-PMD together with a solid rubber surround. In conjunction with the large-diameter magnet structure, this assures rich, satisfying reproduction of mid-range and bass.
Non-magnetic shielded for clear initial sound
The entire unit is non-shielded, achieving impressively clear initial sound without distortion from magnetic shielding circuits.
Quality cabinet construction to assure reliable sound
Thanks to Yamaha’s traditional expertise in cabinetry, starting with its three-way mitered joint construction, sound quality is natural and consistent. The higher you turn the volume, the more impressed you’ll be with the rich, clear sound from these compact units.
Specifications
| NS-C500 | ||
|---|---|---|
| Type | 2-Way Acoustic Suspension Center Speaker System | |
| Woofers | Dual 12cm Advanced cone | |
| Tweeter | 3cm aluminium dome with DC-Diaphragm™ | |
| Frequency Response | 55 Hz-50 kHz | |
| Nominal Input Power | 40 W | |
| Maximum Input Power | 160 W | |
| Sensitivity | 87 dB | |
| Crossover Frequencies | 4.1 kHz | |
| Impedance | 6 ohms | |
| Dimensions (W x H x D) | 445 x 158 x 159 mm | |
| Weight | 4.7 kg | |
