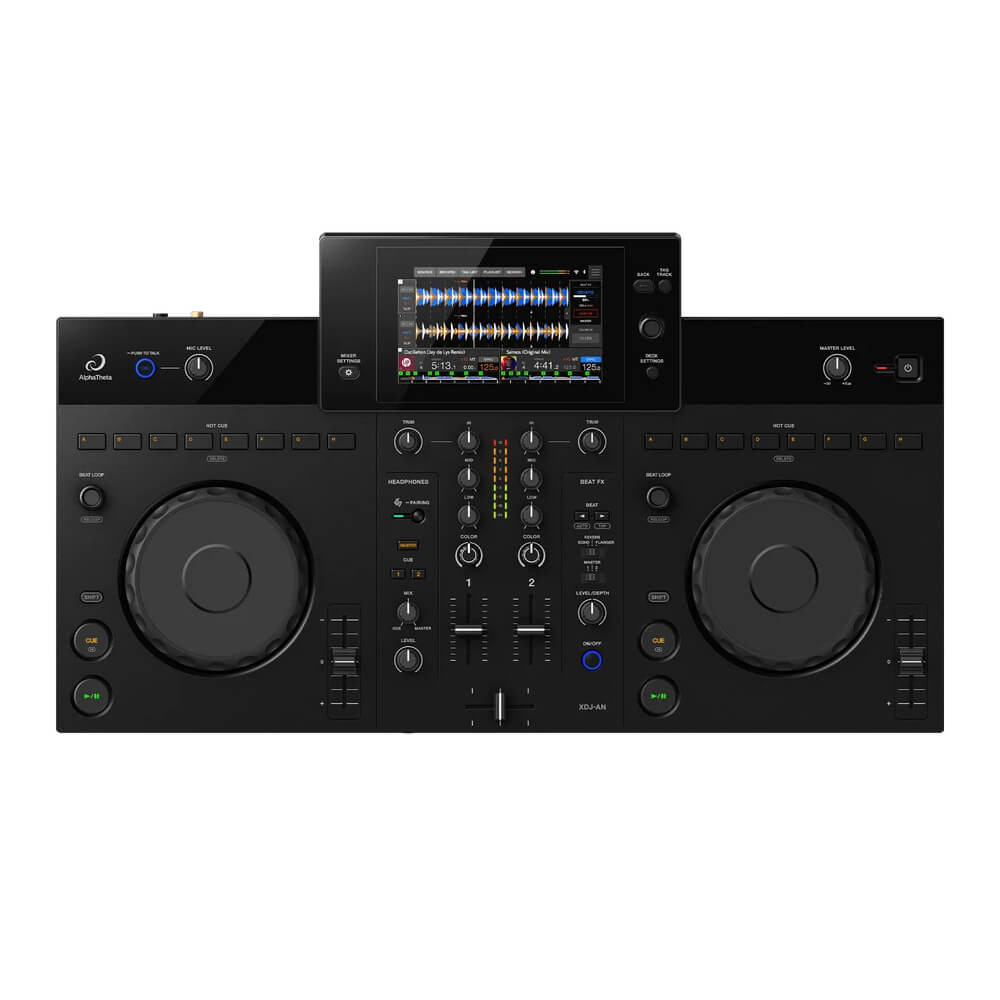

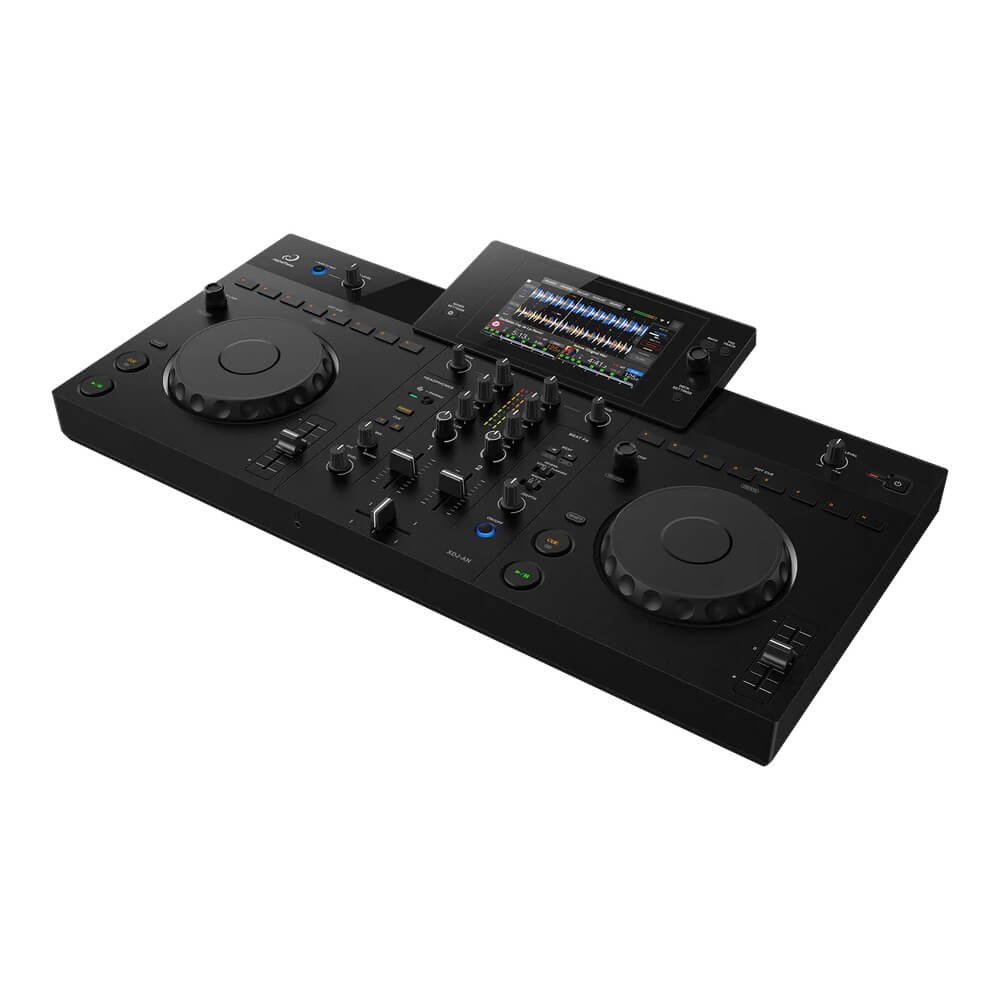

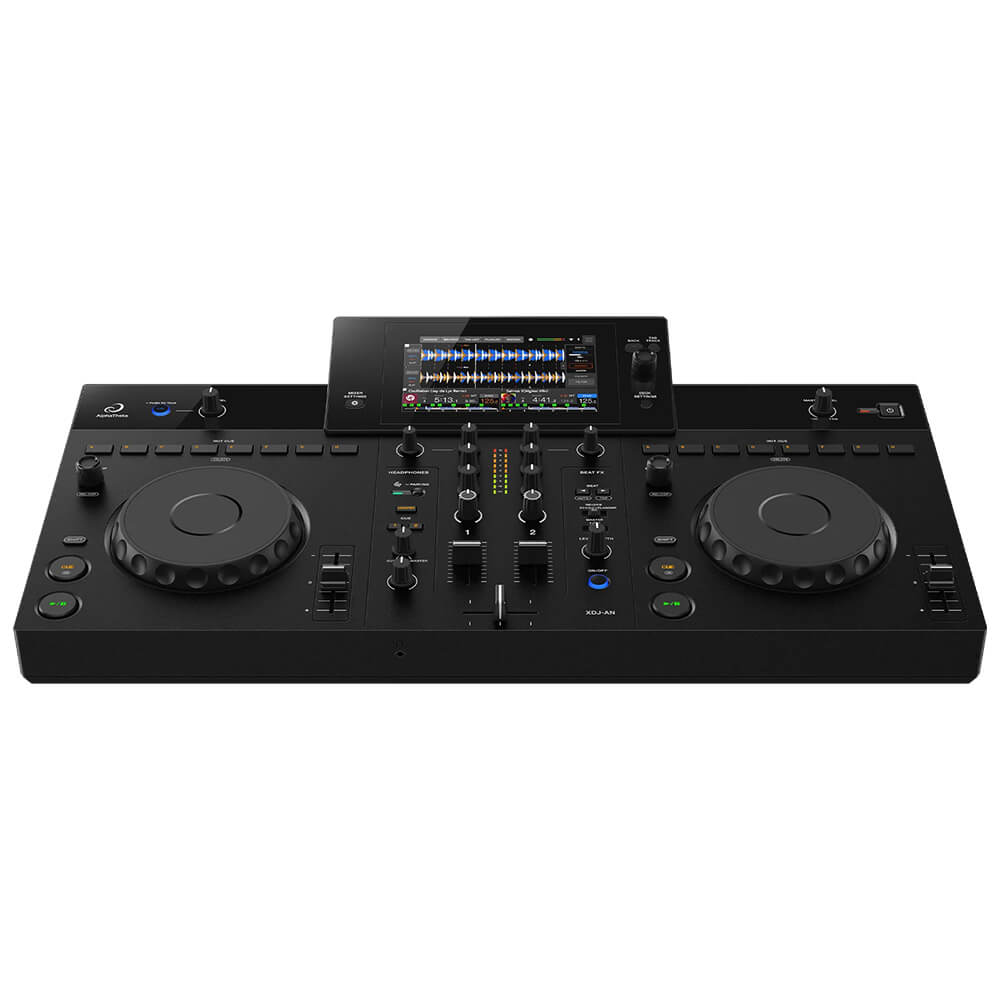

AlphaTheta XDJ-AN 2-channel All-in-One DJ System

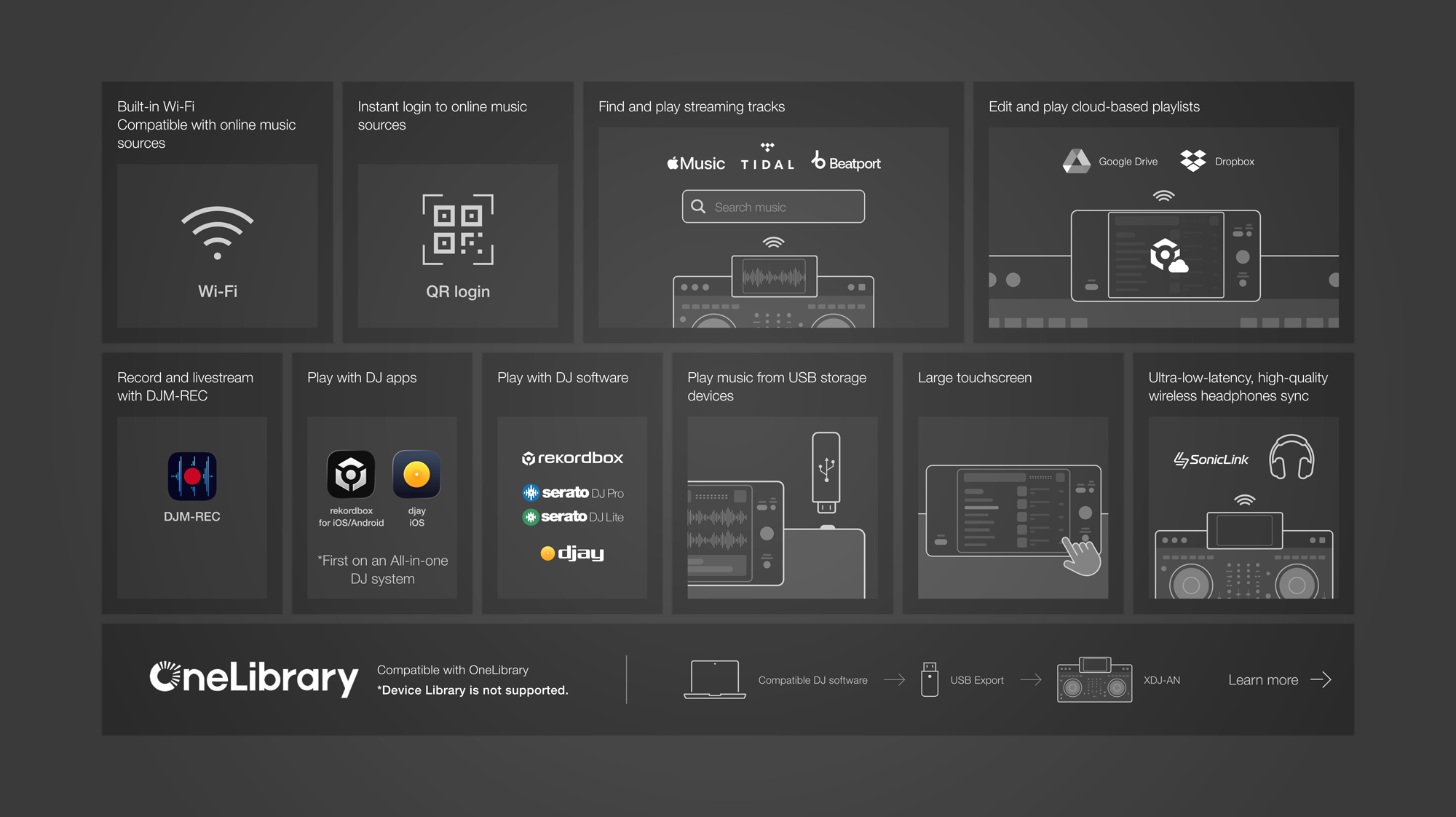

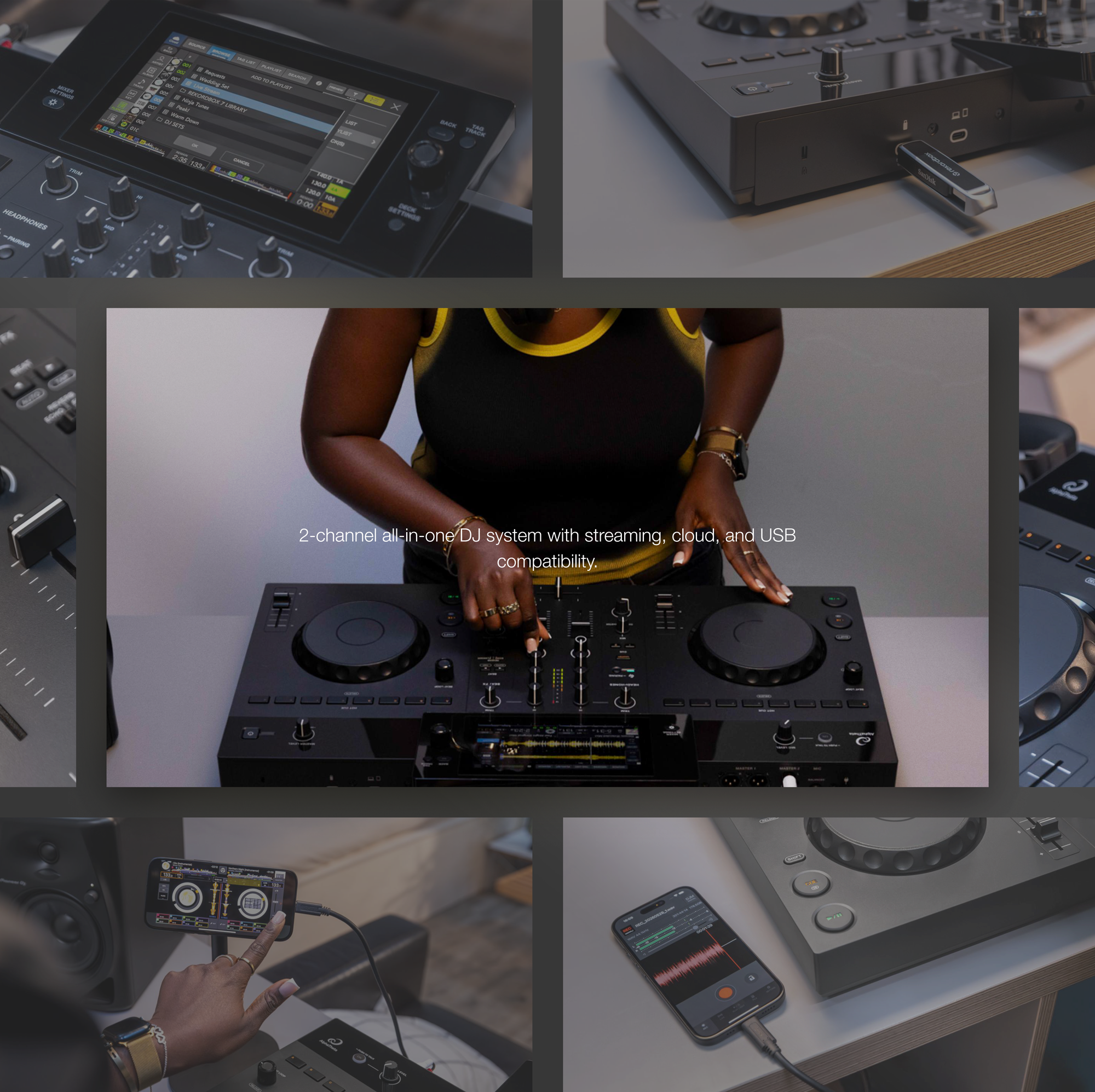

Bring the all-in-one experience home with the AlphaTheta XDJ-AN. This 2-channel DJ system features a touchscreen for library browsing, pad mode selection, Beat Jump controls and more.
- 2 channels and 2 deck control
- 3-band EQ per channel with Sound Color FX and Beat FX
- 8 buttons per deck to control Hot Cues, Serato Stems, Beat Jump and more
- Touchscreen for library browsing, waveform display, and Beat FX control
- Touch-sensitive jog wheels
- 3.5mm stereo mini jack headphone output & volume controls
- Bluetooth connectivity for wireless audio input
- USB Type-C connectivity for a laptop
- XLR master output
- Mic input
QR code login screen

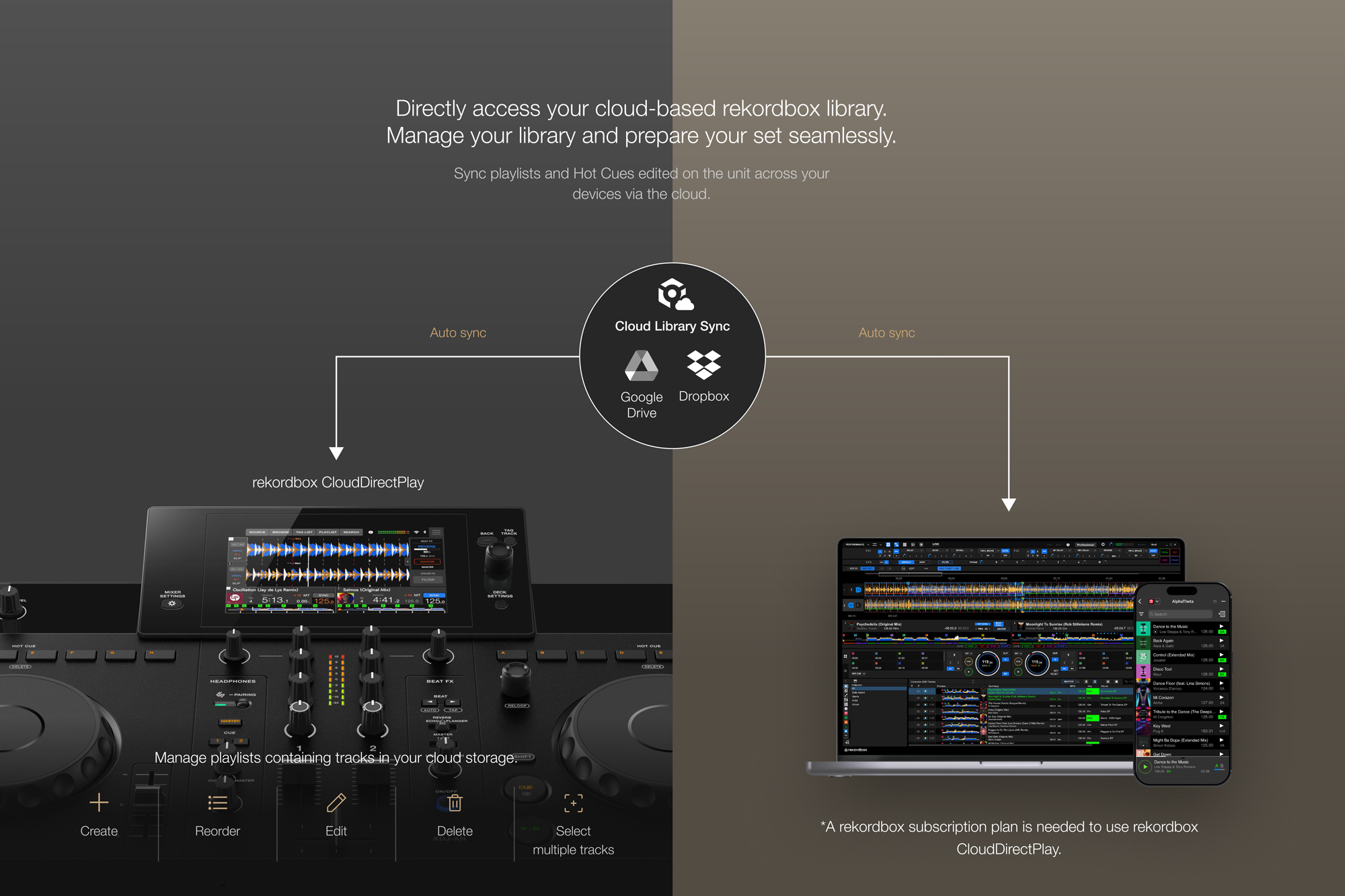

Scan the QR code to quickly access your cloud-based music library and supported streaming services
Source screen
Select your audio source, including USB, cloud, and streaming services.
Browse screen
Displays the tracklist, artwork, Preview waveform, BPM, key, and other track information.
Waveform screen
Check the overall waveform, cues, loops, BPM, key, tempo, and other information while using Beat Jump, Sound Color FX, Sync, and other performance features.
Deck settings screen
Check the overall waveform, cues, loops, BPM, key, tempo, and other information while using Beat Jump, Sound Color FX, Sync, and other performance features.
Mixer settings screen
Set the feel of the mixer to suit your DJ style.
XDJ-AN specifications
| Compatible Software | DJ Performance | rekordbox for Mac/Windows (Hardware Unlock *4 – no license needed) rekordbox for iOS (DJing via USB cable connection is only supported on the iOS version – no license needed) djay Pro for Mac and Windows (subscription needed) djay for iOS (subscription needed) Serato DJ Lite (no license needed) Serato DJ Pro (subscription needed) *4 Please refer to the FAQ for details on the features available via Hardware Unlock. |
| LINK EXPORT *5 | rekordbox for Mac/Windows (no license needed) rekordbox for iOS/Android (no license needed) *5 Allows you to play with tracks directly from your rekordbox library using compatible DJ equipment that’s connected to rekordbox for Mac/Windows or rekordbox for iOS/Android direct via a wireless LAN connection. |
|
| StreamingDirectPlay Compatible Music Streaming Service | Apple Music, Beatport Streaming, Tidal
*A subscription is needed to use music streaming services. |
|
| Frequency Response | 20 Hz – 20 kHz (USB, MIC) | |
| S/N Ratio | (At rated output, A-WEIGHTED) 112 dB (USB), 78 dB (MIC) |
|
| Total Harmonic Distortion | (20 Hz – 20 kHz BW) 0.003% (USB) | |

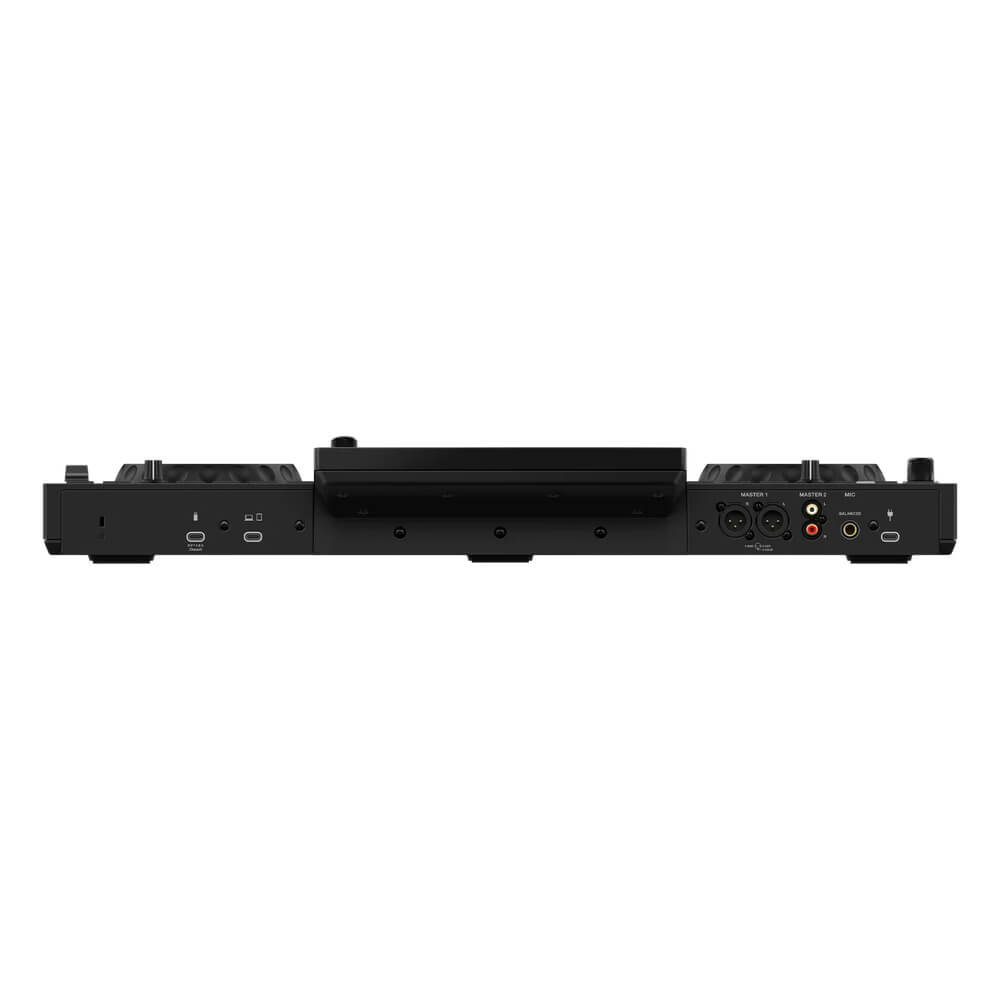

| Input / Output Terminals | Inputs | MIC ×1 (1/4″ TRS jack) |
| Outputs | MASTER × 2 (XLR × 1, RCA × 1) PHONES ×1 (3.5 mm stereo mini jack) |
|
| USB | USB Type-C ×1 (Storage) USB Type-C ×1 (PC/Mac/Mobile device) USB Type-C ×1 (Power supply) |
|
| Wireless LAN | Supported standards | IEEE 802.11 a/b/g/n/ac |
| Frequency band used | 2.4 GHz / 5 GHz | |
| Bluetooth | Wireless system | Bluetooth Classic |
| Compatible codecs | Classic Audio (SBC, AAC) | |
| SonicLink | Frequency band used | 2.4 GHz |
| Maximum Dimensions (W × D × H) | 638 × 359.2 × 89.9 mm / 25.1″ × 14.1″ × 3.5″ | |
| Weight | 5.2 kg / 11.5 lb | |
| Accessories | Power cord AC adapter Warranty (for some regions) Quick Start Guide Precautions for Use |
|
