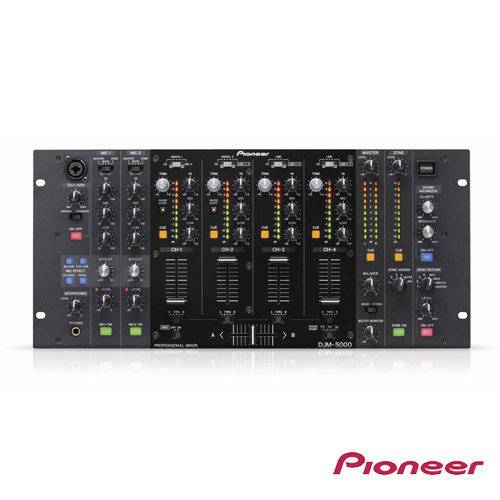

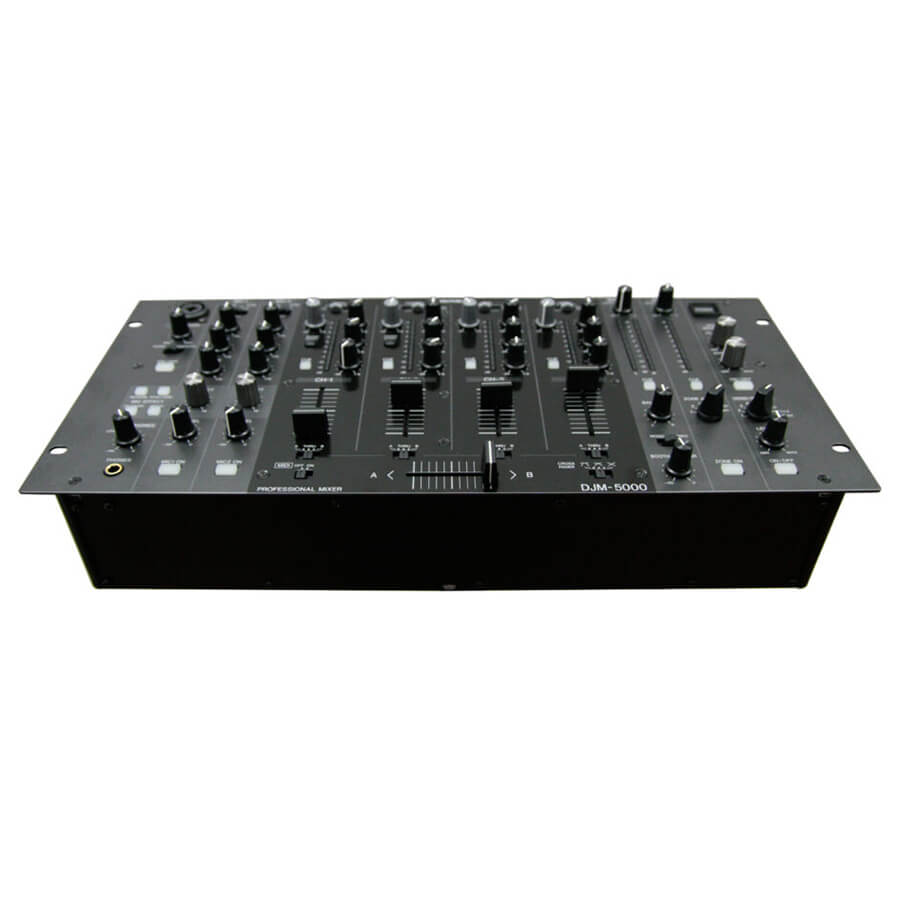

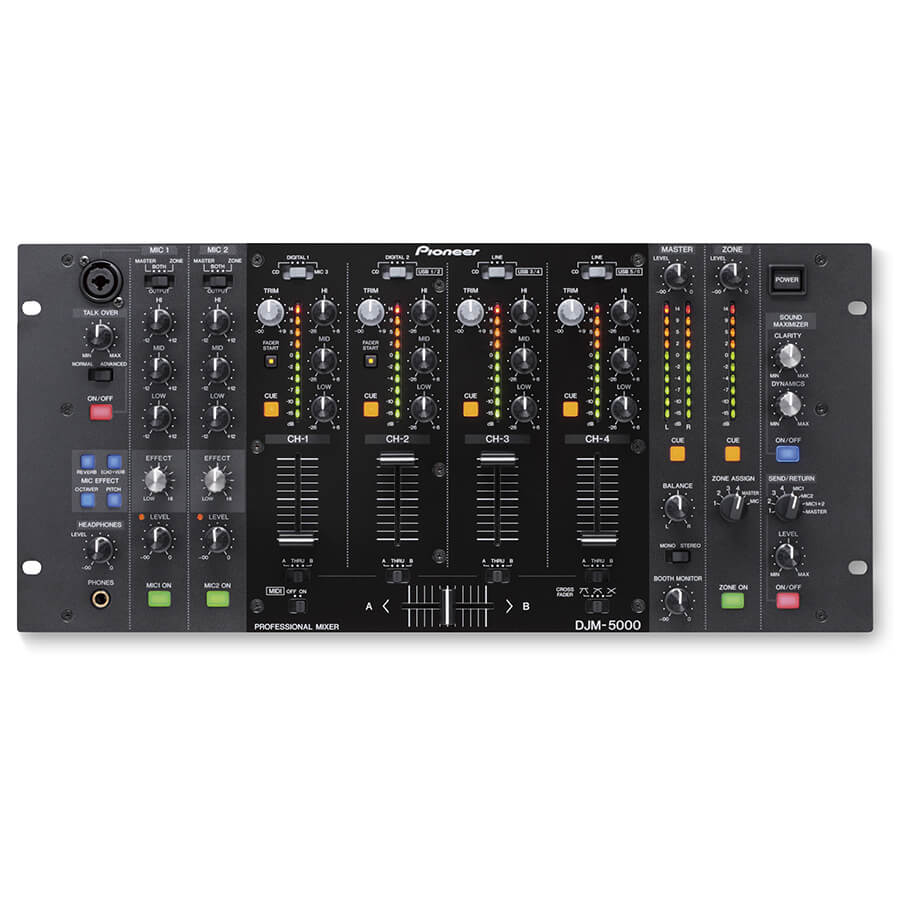

DJM-5000
Mastering Different Zones The DJM-5000 features two flexible output modes: multi-zone and standard.
More flexibility, more compatibility, more punch.
Mobile DJs need more these days: more flexibility, more compatibility, more possibilities and more punch. These requirements are now met by the latest addition to the trusted DJM mixer family – the DJM-5000.
The 4-channel mixer boasts several standout innovations that place a premium on DJ dynamism, usability and professional style.
The ideal companion for our MEP-7000 media player, the DJM-5000 delivers 96kHz/24-bit sound and is also fully MIDI-enabled.
Its built-in sound card for the laptop DJ guarantees quick and convenient PC/Mac connectivity, while three microphone channels together with four mic effects and an Advanced talk over application allow meticulous control over MCs, announcements and vocals.
It also offers a dedicated Master/Zone output facility, enabling one DJ to manage two separate outputs across two different locations. Adding to its knockout credentials, the DJM-5000 includes a new Sound Maximizer function that boosts EQ dynamics to suit play in any environment and breathe new life into MP3’s.
Main Features
MIDI Control |
Full assignable MIDI controls |
|---|
Specifications
Rack Mount |
Yes |
|---|---|
Width |
482.6 mm |
Height |
107.8 mm |
Depth |
225.1 mm |
Weight |
8.9 kg |
S/N Ratio Line |
102 dB |
S/N Ratio Mic |
84 dB |
Crosstalk Line |
80 dB |
Distortion |
< 0.005 % |
Master
Master Balance |
Yes |
|---|---|
Stereo/Mono Switch |
Yes |
Level Meter Size |
10 segment |
Master Out Attenuator |
Yes |
Channels
EQ/ISO |
3 band |
|---|---|
EQ/ISO Range |
–26 dB ~ +6 dB |
Level Meter Type |
Individual |
Level Meter Size |
10 segment |
Performance Control
Channels |
4 |
|---|
Effect/Sampler
Sound Processor |
32 |
|---|
Crossfader
Crossfader Type |
Carbon Rail |
|---|---|
Curve Assignable |
Yes |
Mic
Mic Connection |
|
|---|---|
Mic EQ |
3 band |
Mic EQ Range |
-12 dB ~ +12 dB |
Talkover |
ON/OFF Button |
Talkover Attenuator |
Yes |
MIDI Info
Assignable Controls |
61 |
|---|---|
MIDI Out (DIN) |
1 (5P DIN) |
MIDI On/Off |
Yes |
Sound card
Sample Rate |
24 bit |
|---|---|
Frequency |
|

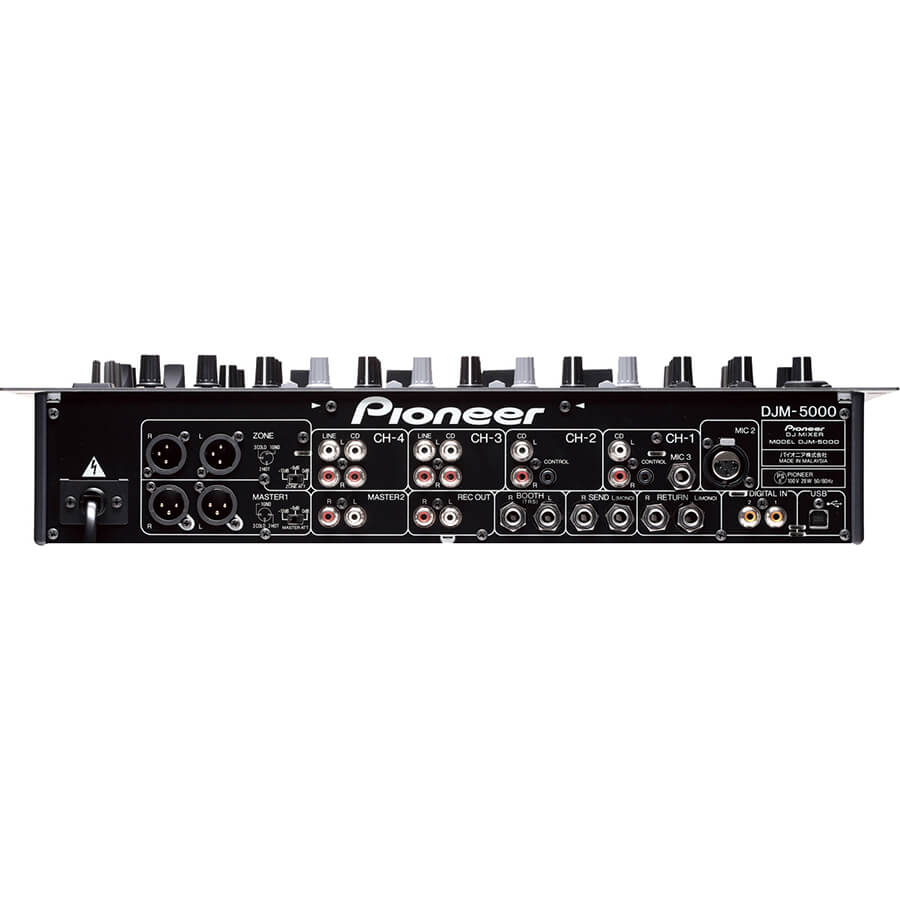

Terminals
Inputs |
|
|---|---|
Outputs |
|
USB |
3 USB A ports |
