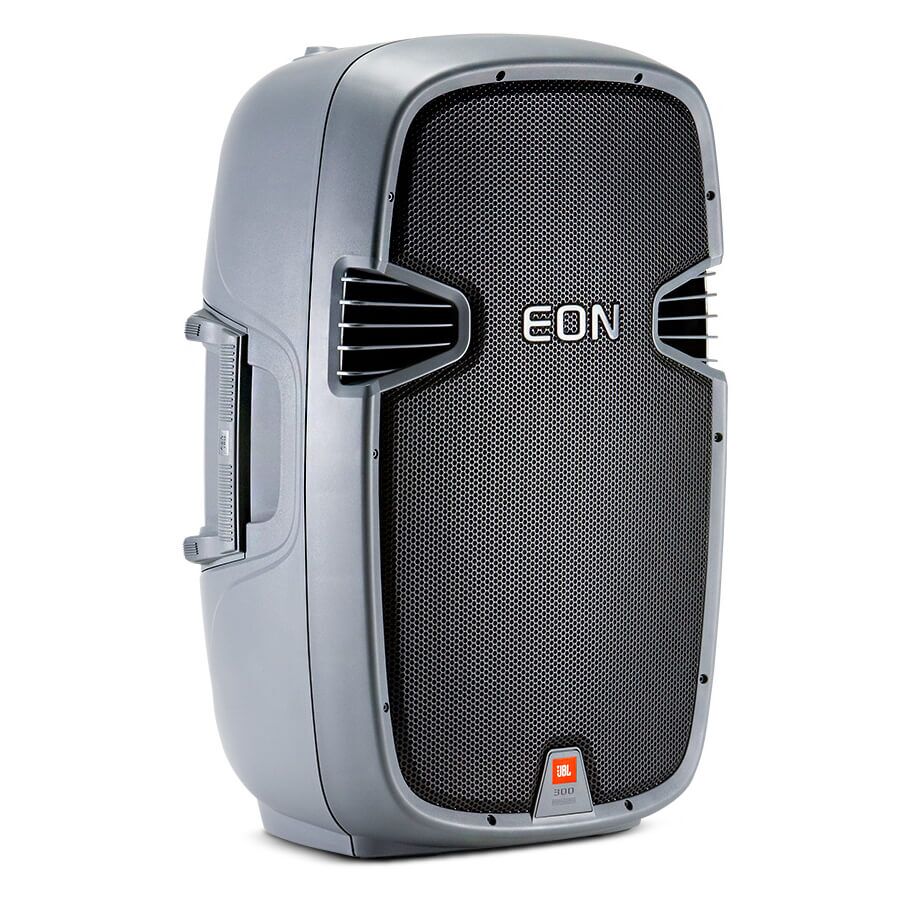

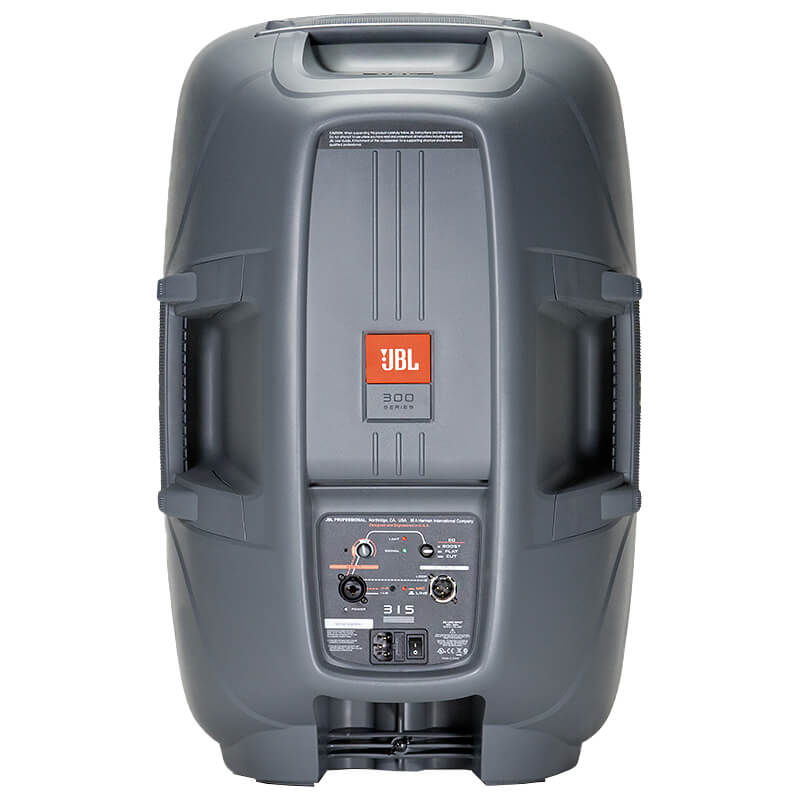

JBL EON 315 Portable Bi-amplified 15″ Speaker
The EON315 is a 15-inch, two-way, powered, portable speaker system. It is a complete self contained sound reinforcement system, capable of full-bandwidth reproduction at high levels with the added benefit of a microphone pre-amp enabling the direct connection of a dynamic microphone. The EON315 is comprised of a 380 mm (15 in) JBL woofer, a 25.4 mm (1 in) neodymium high frequency compression driver coupled to a 100° H by 60° V waveguide. Both components are driven by the discrete channels of a 280 watt Class-D integrated power amplifier. The input section contains all cross-over functions, protection, and system EQ functionality.
Features
- 280 watt Powered Speaker System
- Light Weight. True portability weighing only 15.9 kg (35 lb)

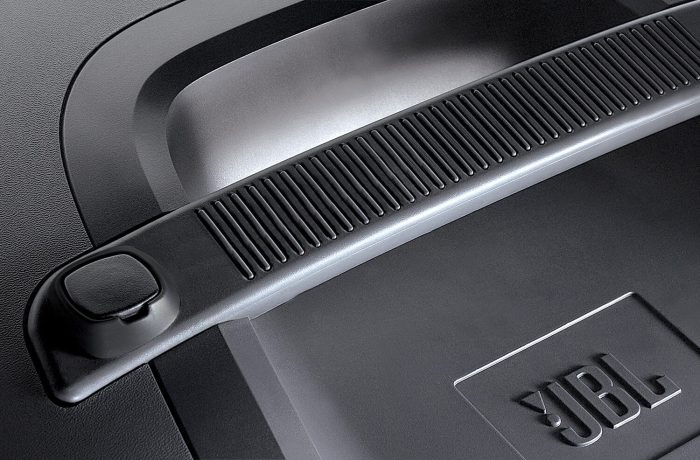

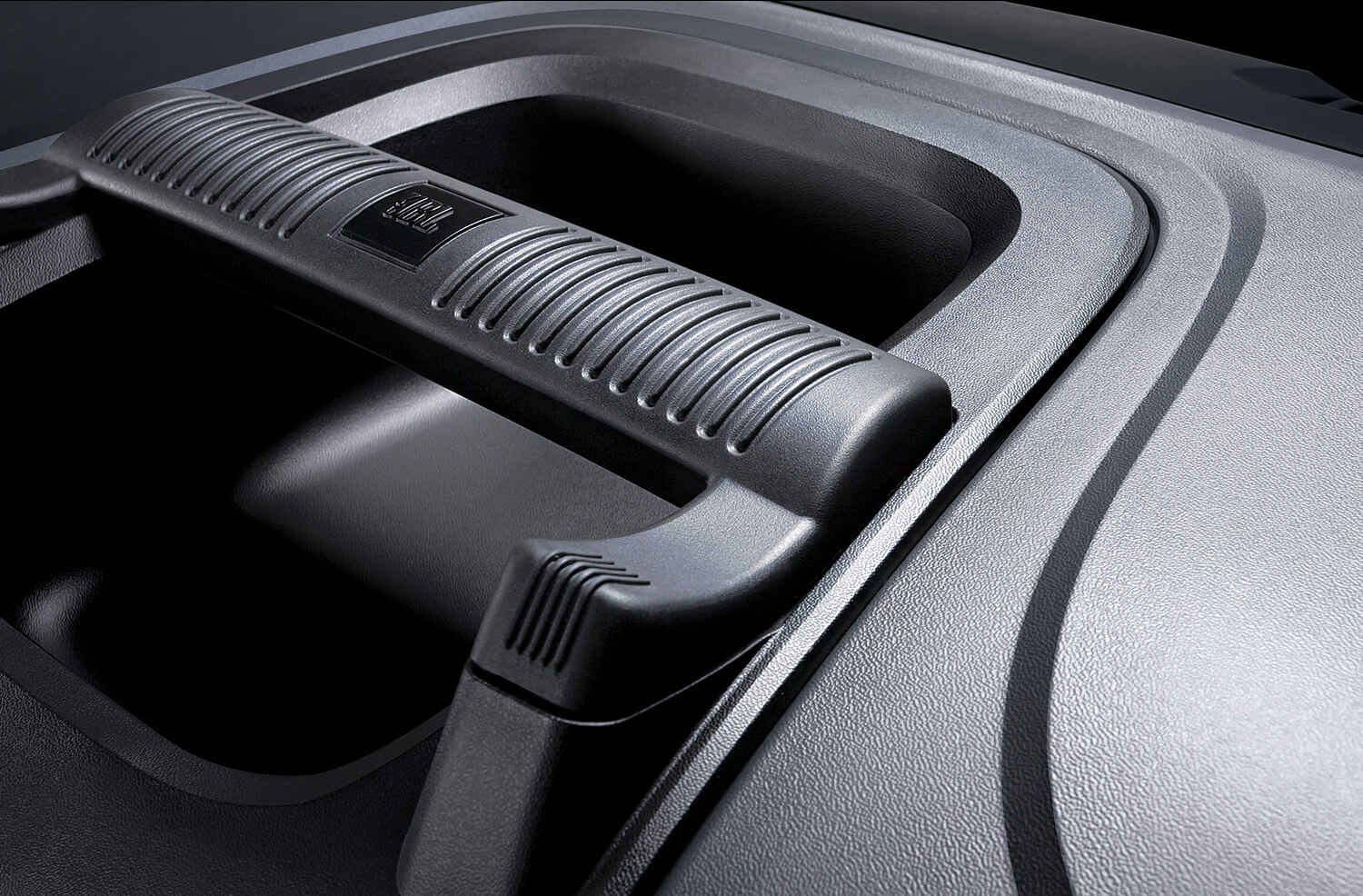

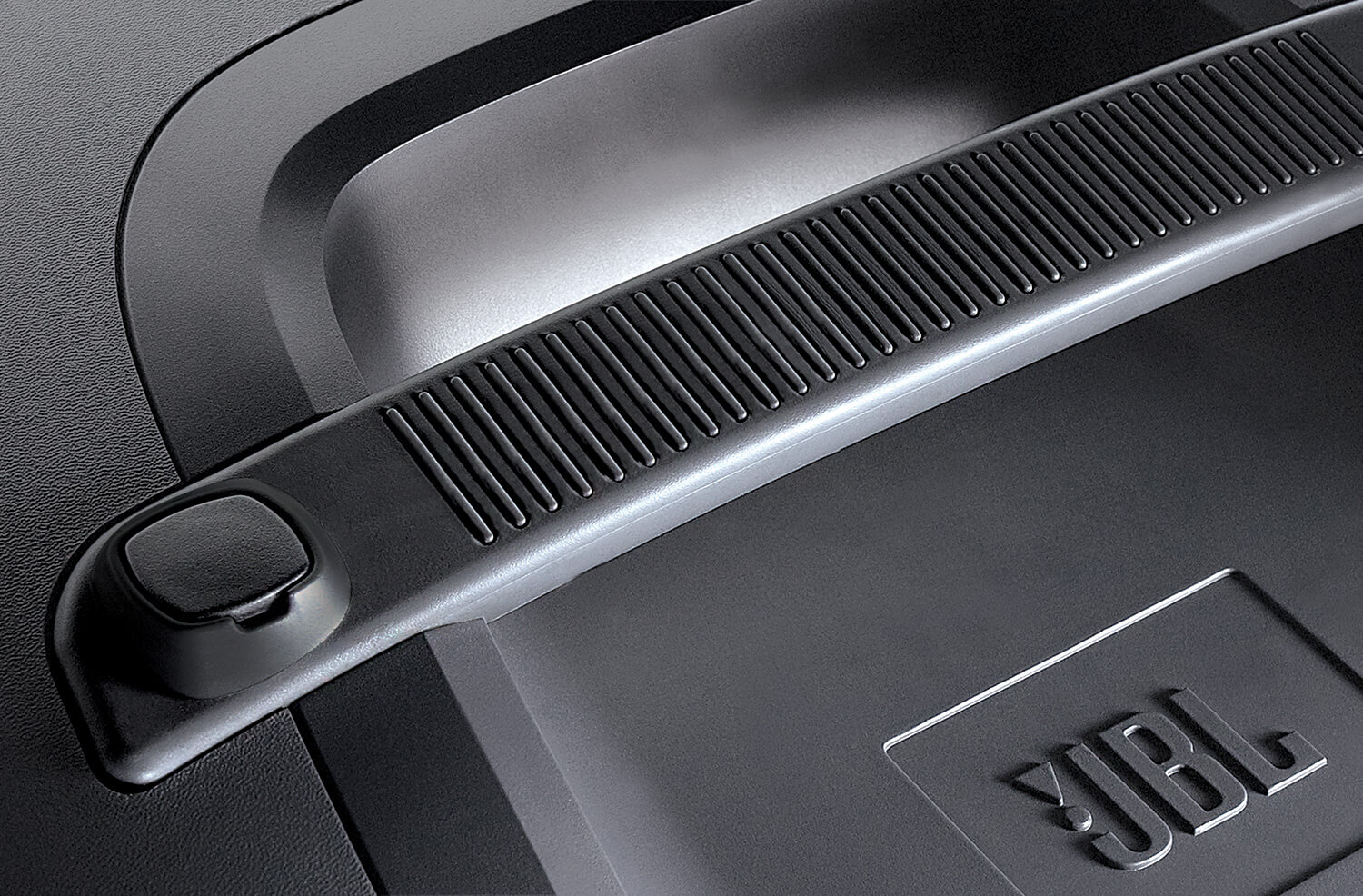

- Multiple handles for easy transport
- 15″ JBL low-frequency driver
- 1″ throat diameter next generation JBL neodymium compression driver
- Efficient Class-D digital amplifier technology
- 100° H x 60° V asymmetrical wave guide for uniform audience coverage

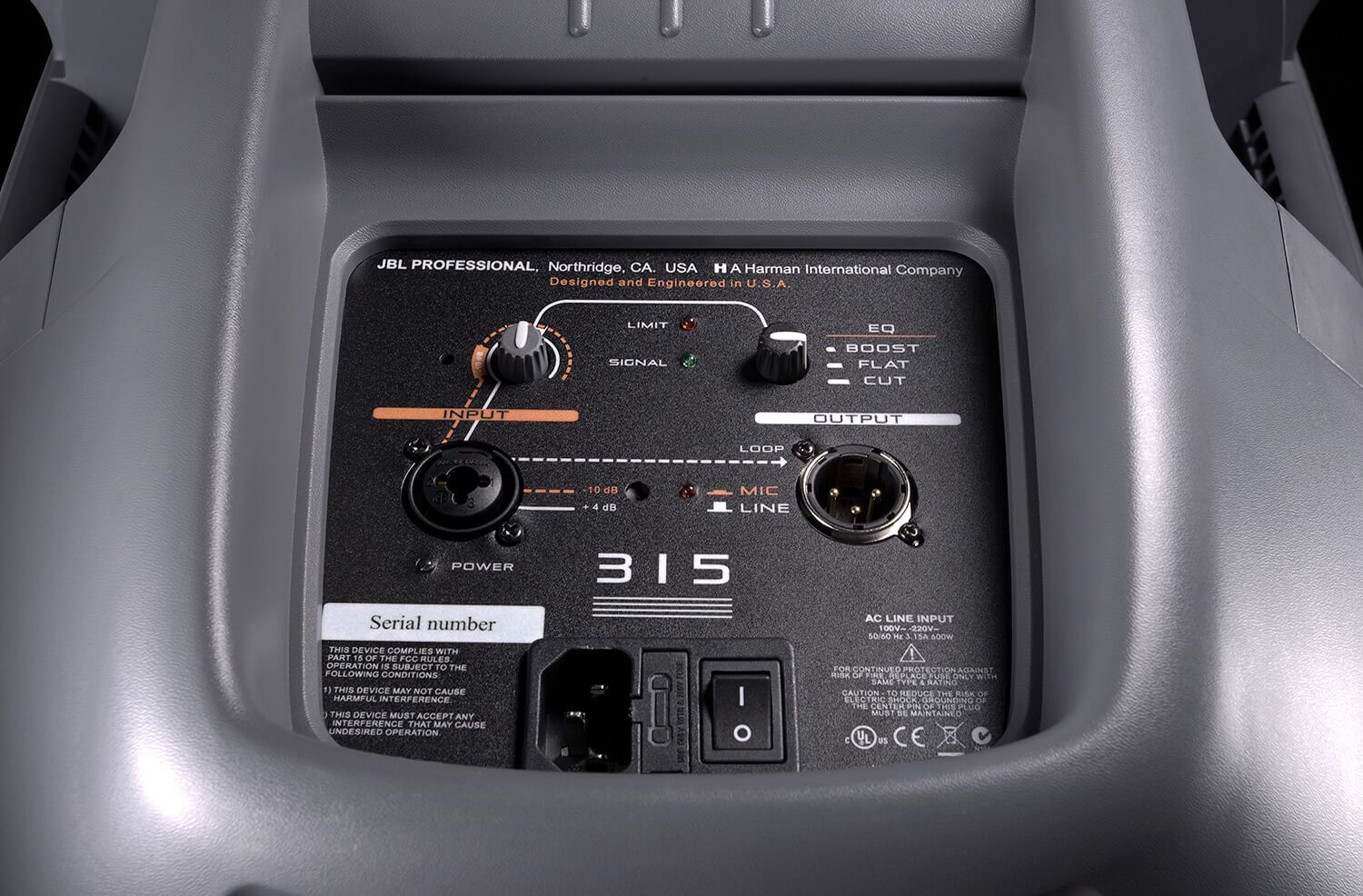

- Line level and direct microphone input capability
- Selectable Pre-engineered EQ settings
- Loop thru signal flow for extended system application and easy “daisy-chain” connections
- Integrated M10 suspension points for easy rigging
- Multi angle enclosure for main or monitor applications
- Integrated 36 mm pole mount socket with stabilizing securing screw
- Highly designed composite enclosures for durability, lightweight, and acoustic performance
Applications
- Live sound reinforcement, speech and vocals, music playback in entertainment, A/V, and institutional venues – especially when ease of use and portability are important factors.
- Amplification and monitoring for electronic musical instruments.
- Everywhere you need to be heard.
The universal mounting capabilities make the EON305 perfect for live performers, fixed installations or commercial A/V rental companies. Whether you use the speaker on a tripod stand, mounted on a subwoofer with a pole, in the floor monitor position or in a fixed position suspended by the M10 points, you can count on superior and reliable performance.
Specifications
| System Power Rating | 280 W continuous560 W peak |
| Frequency Range (-10dB) | 38 Hz – 20 kHz (EQ in ‘Flat’ position) |
| Dimensions (H x W x D) | 685 mm x 438 mm x 366 mm(27 in x 17.3 in x 14.4 in) |
| Frequency Response (±3 dB) | 50 Hz – 18 kHz (EQ in ‘Flat’ position) |
| Coverage Pattern | 100° H x 60° V nominal |
| Maximum SPL (1m) | 127 dB |
| Net Weight | 15.9 kg (35 lb) |
