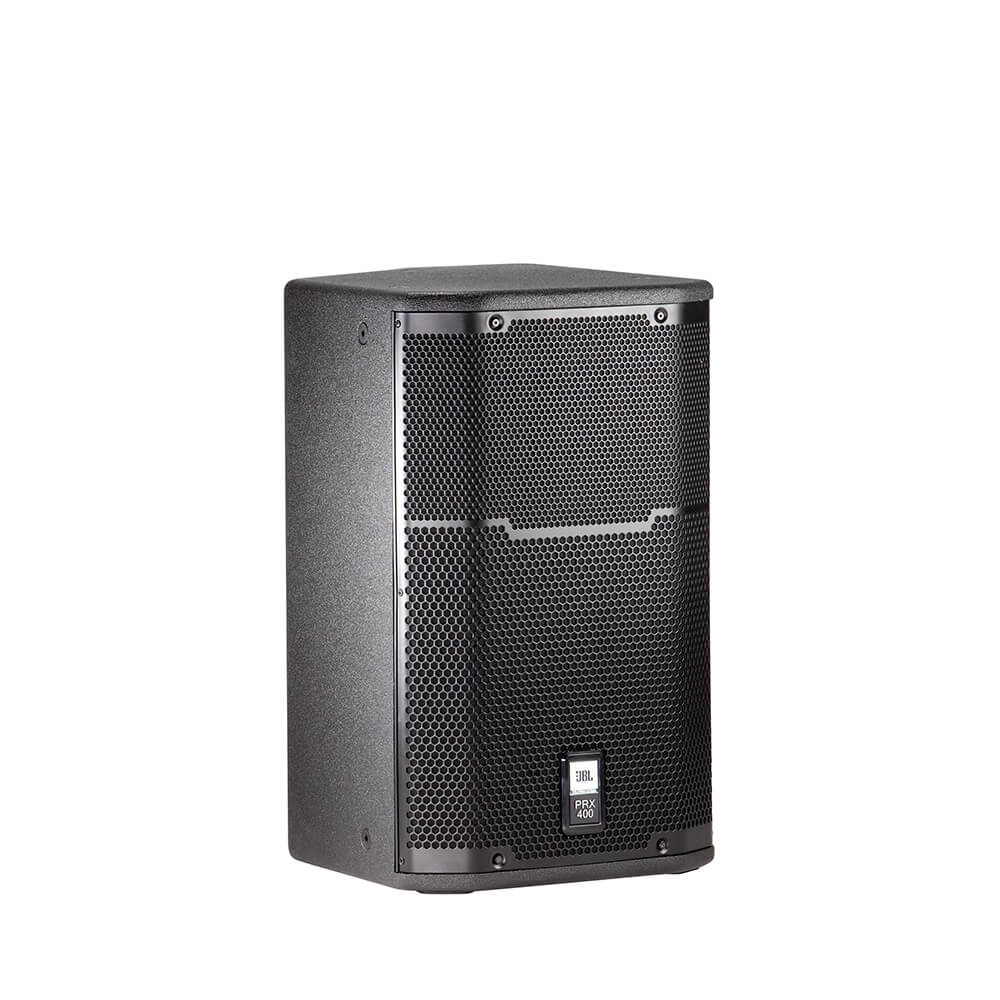

JBL PRX412M 12″ Two-Way Stage Monitor and Loudspeaker
PRX412M is a portable, twelve-inch, two-way speaker system designed for either main sound reinforcement or monitoring applications.

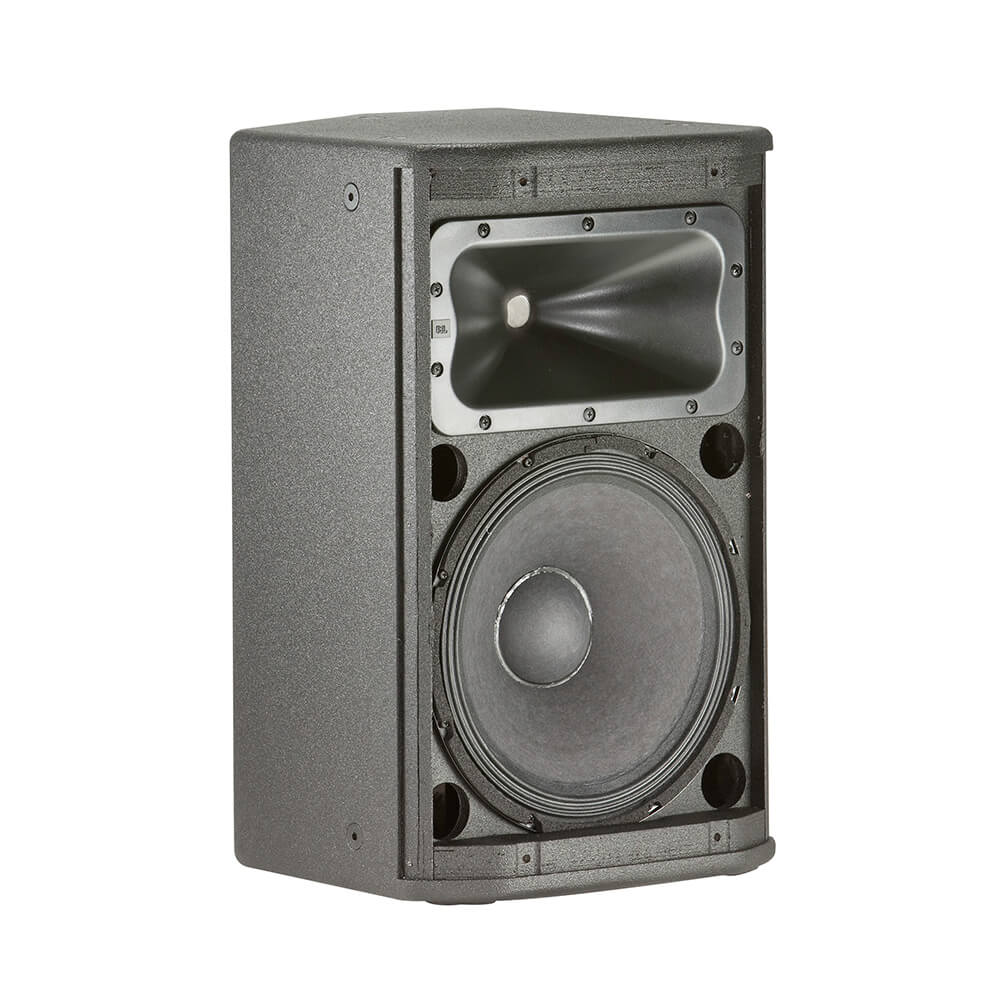

The PRX412M is a premium, utility/monitor speaker. The PRX412M uses a 305 mm (12 in) woofer and a 2414H-C 25 mm (1 in) polymer diaphragm compression driver for 300 watts (continuous) power capacity. A 90° x 50° horn provides smooth, even coverage whether used in the vertical (mains) or horizontal (monitor) orientation.

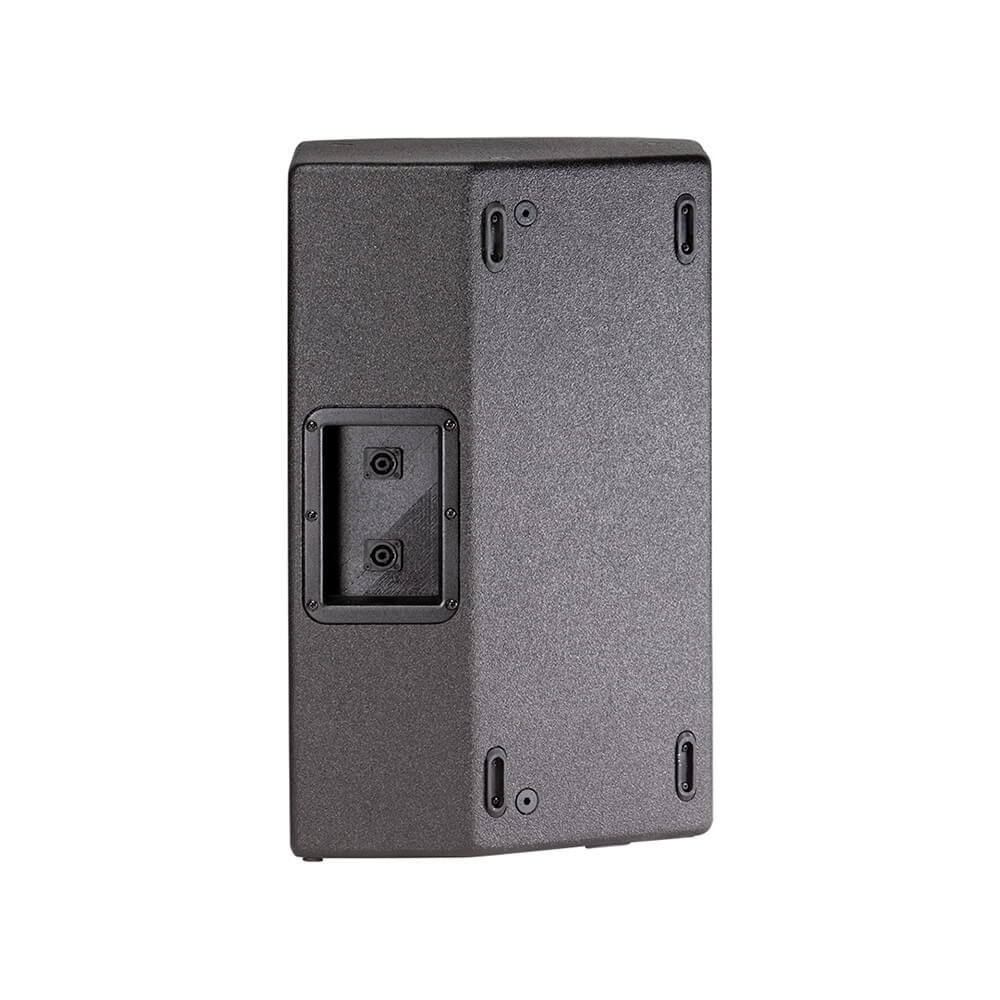

NL-2 and ¼” phone combination connectors are provided. A passive network provides accurate reproduction throughout the cross-over region.
For use on a tripod or over a subwoofer, JBL’s dual angle pole mount is included. This feature allows the speaker to be mounted in a vertical position or with a 10° down tilt for optimum audience coverage.
The enclosure is constructed of birch/poplar multi-laminate hardwood and coated in JBL’s rugged DuraFlex™ finish. The distinctive 16-gauge steel grille is CNC-machined for precision. The grilles are internally lined with an acoustically transparent screen to provide additional driver protection and give a very professional appearance.
Features
- 90° x 50° coverage for even and smooth response on and off axis
- Dual-angle pole socket for applications requiring tripod mounting
- Heavy Duty 16 gauge protective screen backed steel grille
- Tough DuraFlex™ enclosure finish
- Utilizes twelve M10 suspension points for safe deployment in light duty installations.
- SonicGuard™ protects the high frequency driver from excess power without interrupting the performance.
Applications
- Speech reinforcement

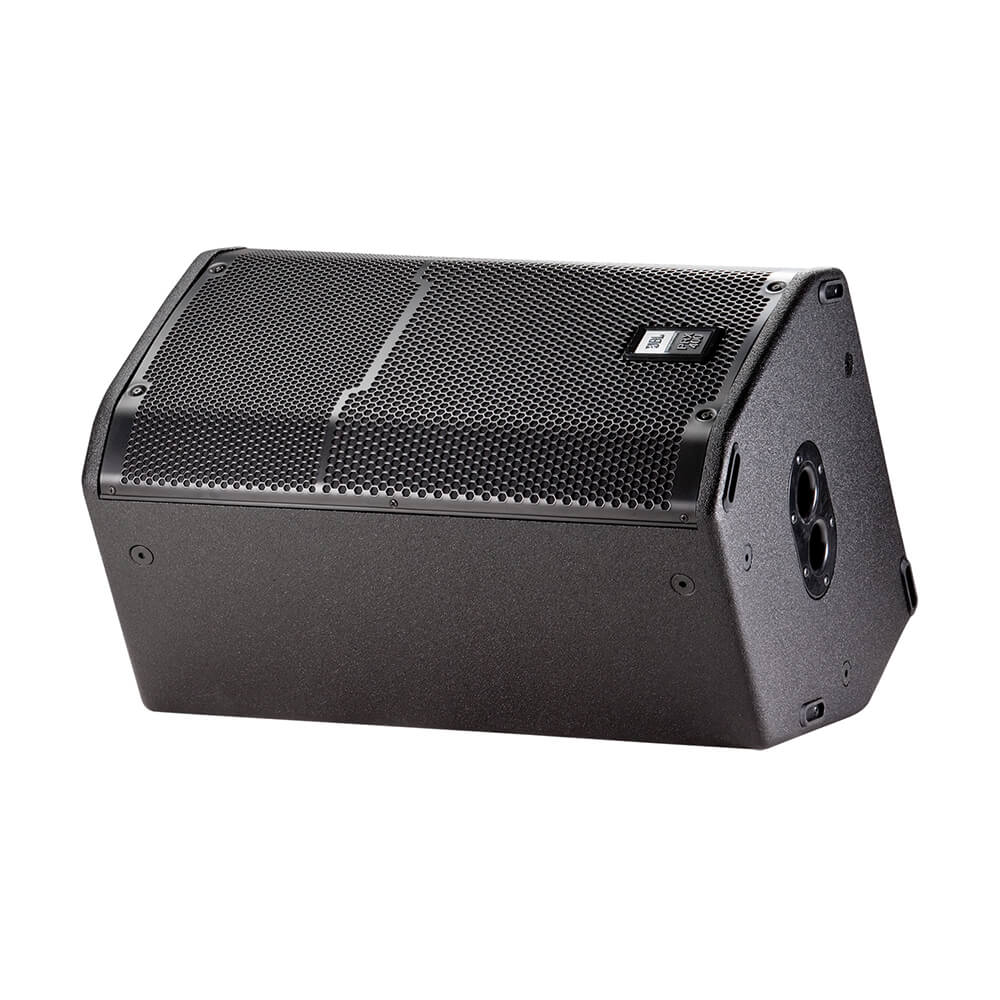

- Live performance stage monitoring
- Reinforcement of vocal and acoustic music
- High-performance satellite speaker for use with subwoofers
Specifications
| Frequency Range (-10dB) | 50 Hz – 20 kHz |
| Frequency Response (±3 dB) | 62 Hz – 19 kHz |
| Coverage Pattern | 90° x 50° nominal |
| System Sensitivity | 95 dB SPL (1w@1m) |
| Power Rating, Pink Noise | 300 W / 600 W / 1200 W(Continuous/Program/Peak) |
| Maximum SPL (1m) | 126 dB SPL peak |
| Nominal Impedance | 8 ohms |
| Dimensions (H x W x D) | 574 mm x 353 mm x 399 mm (22.6 in x 13.9 in x 15.7 in) |
| Net Weight | 16 kg (35 lbs.) |
| Inputs | Parallel Neutrik® Speakon® NL-2 / ¼” phone combo jacks |
| Enclosure | Duraflex coated plywood |
