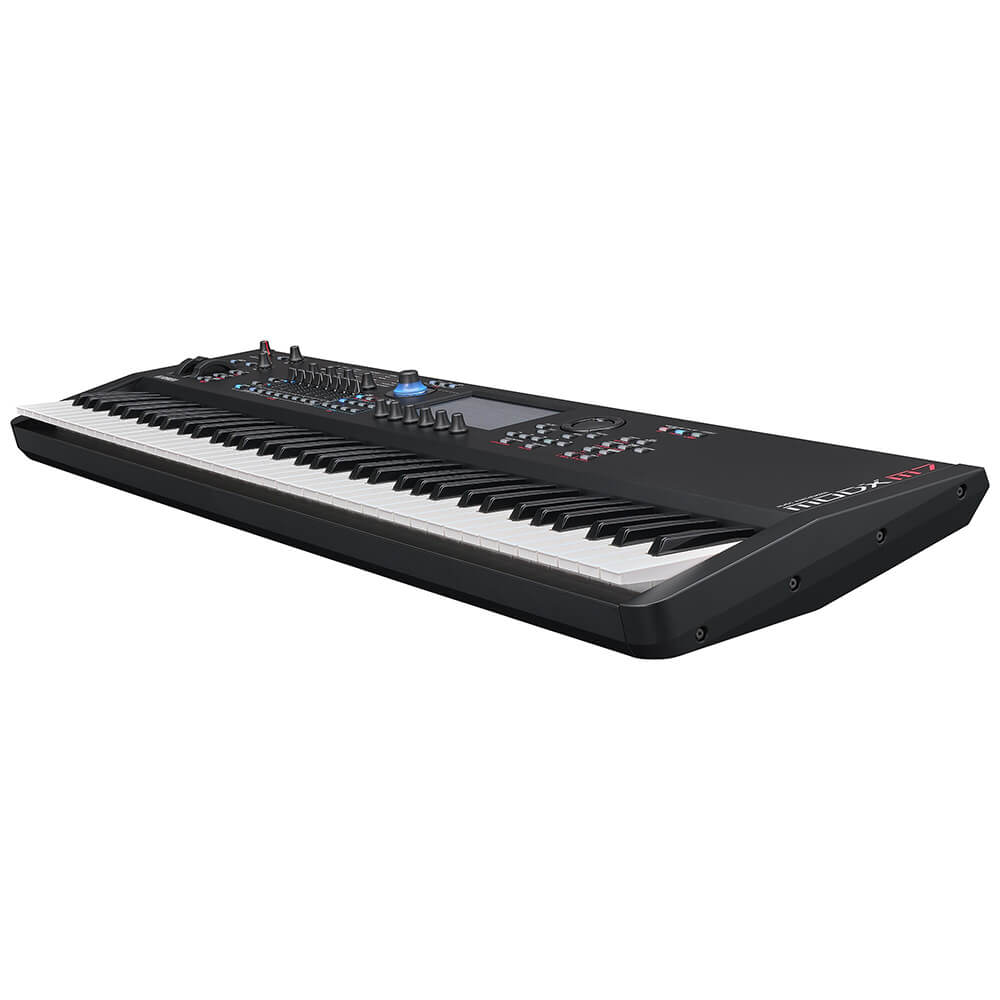

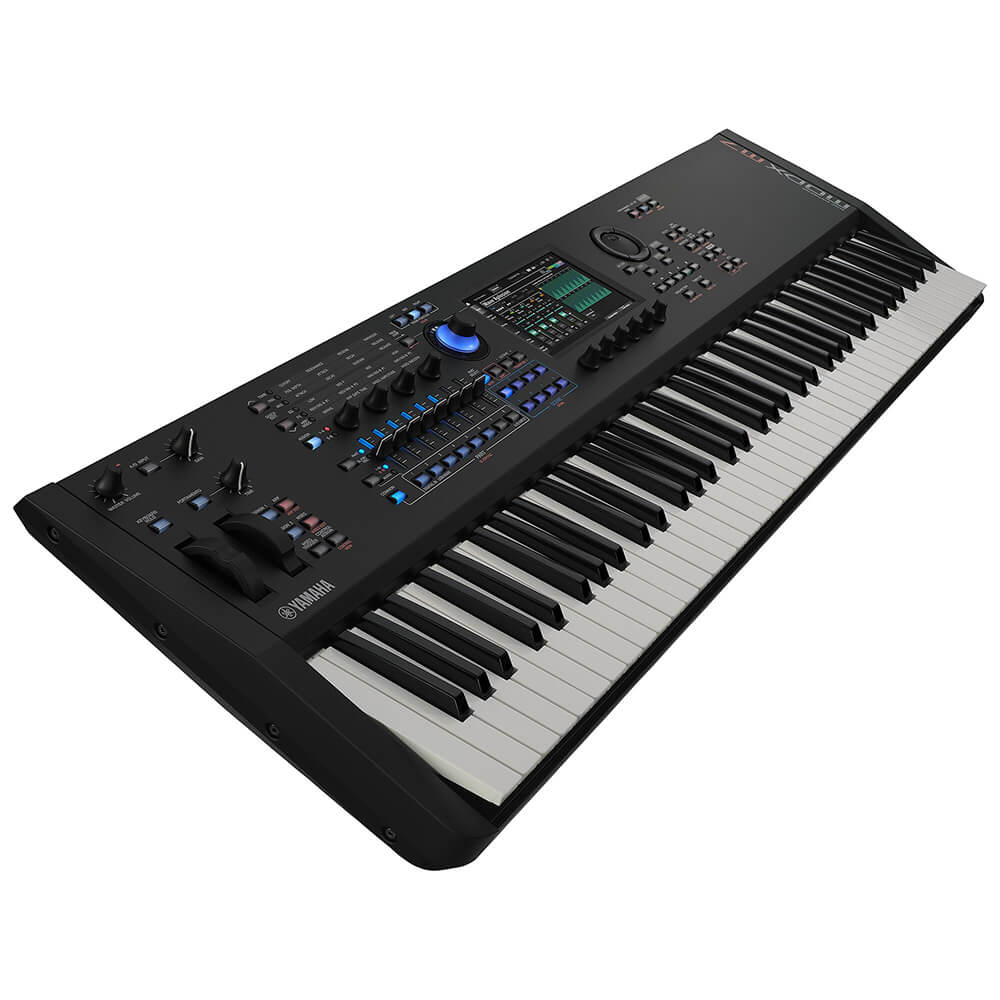

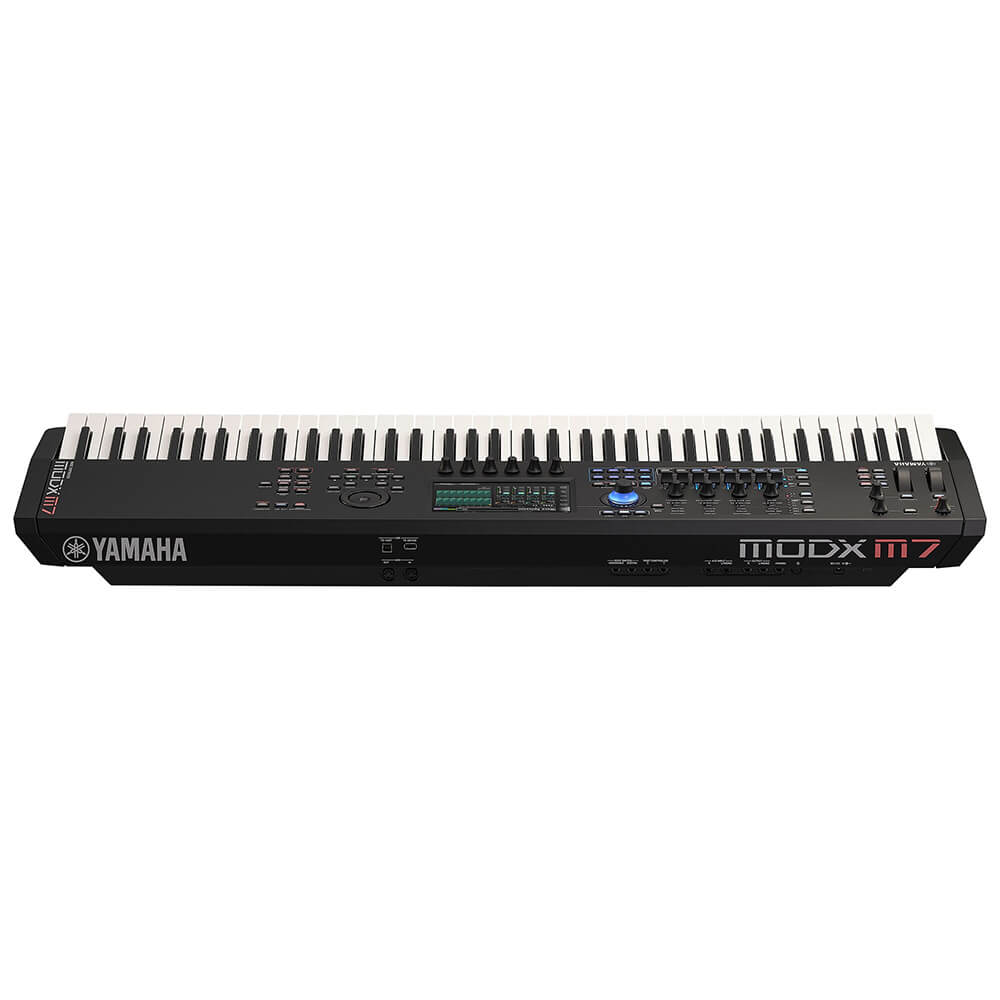

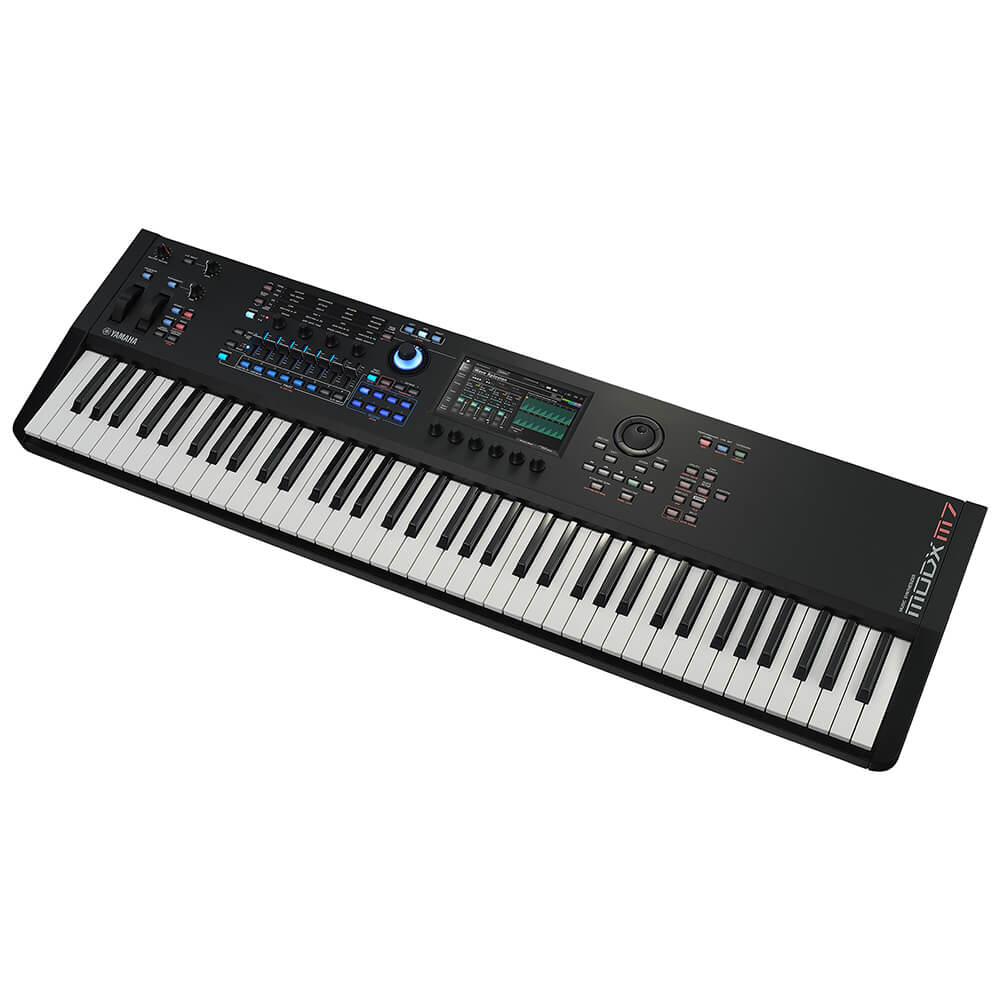

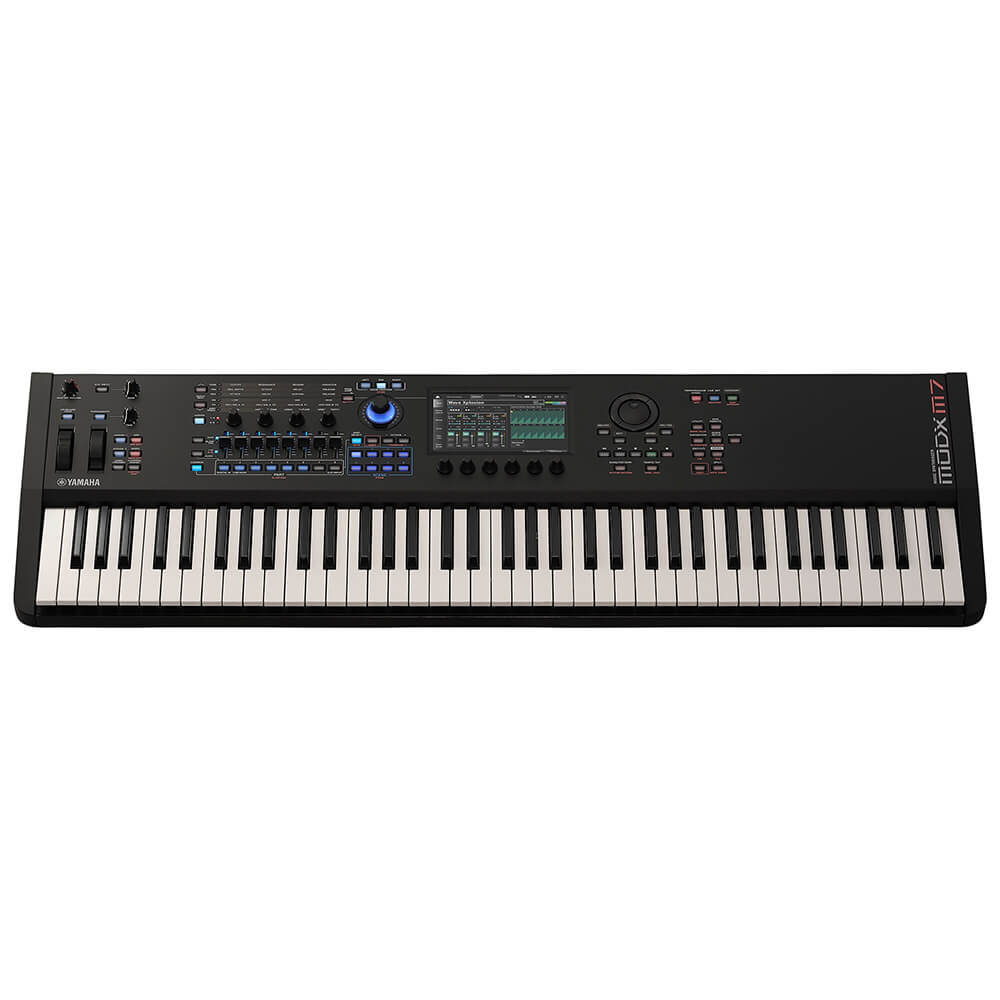

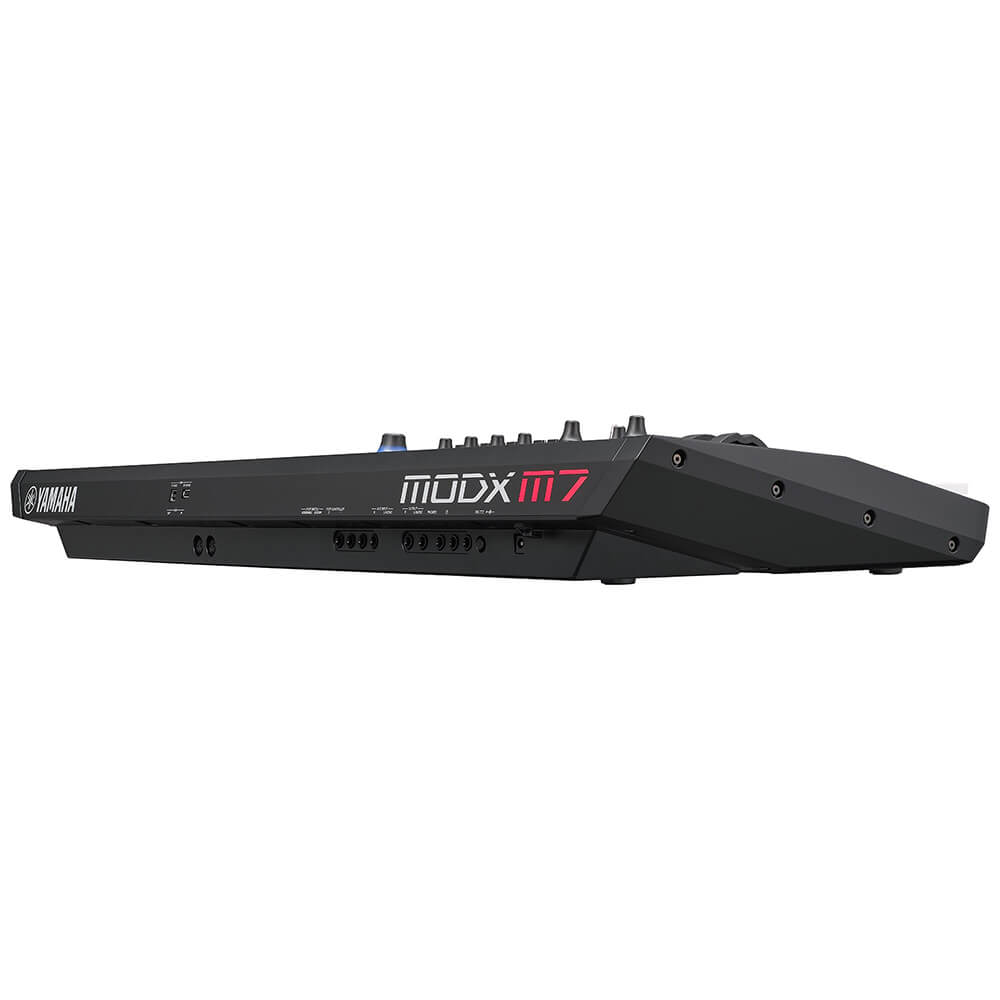

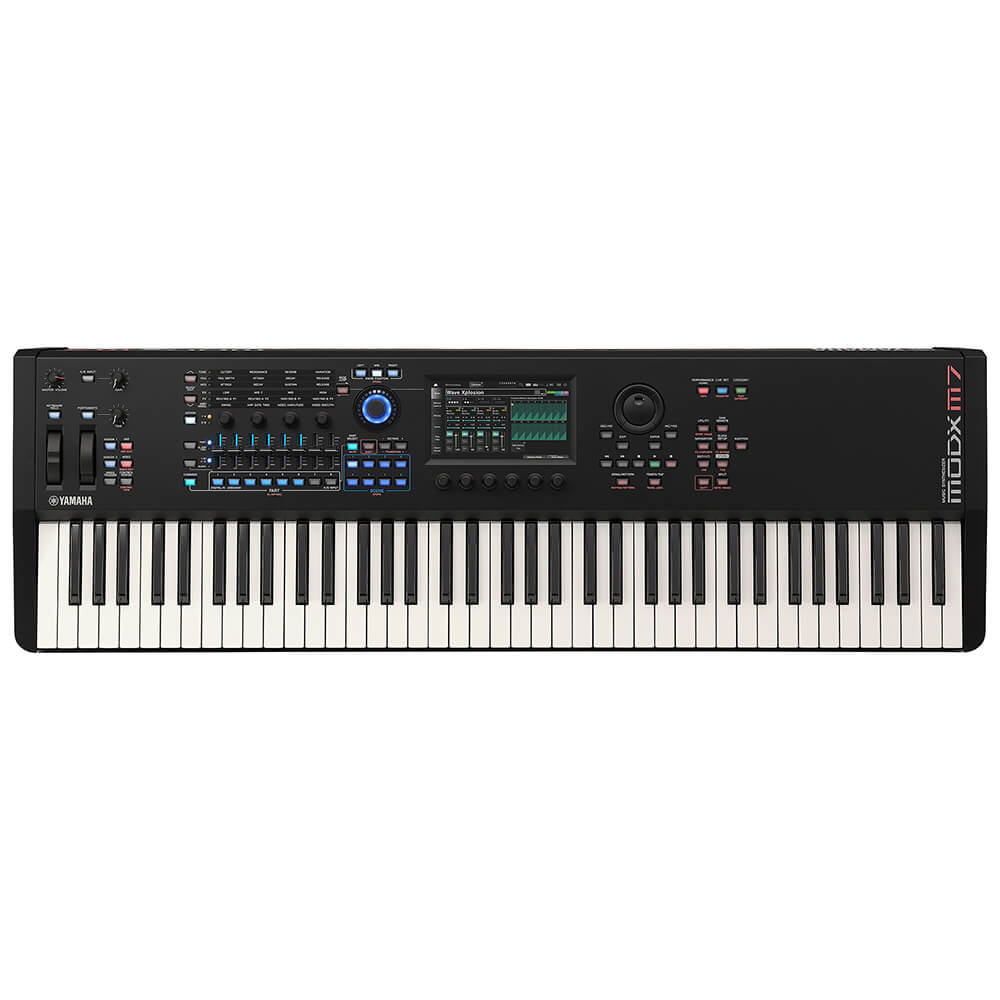

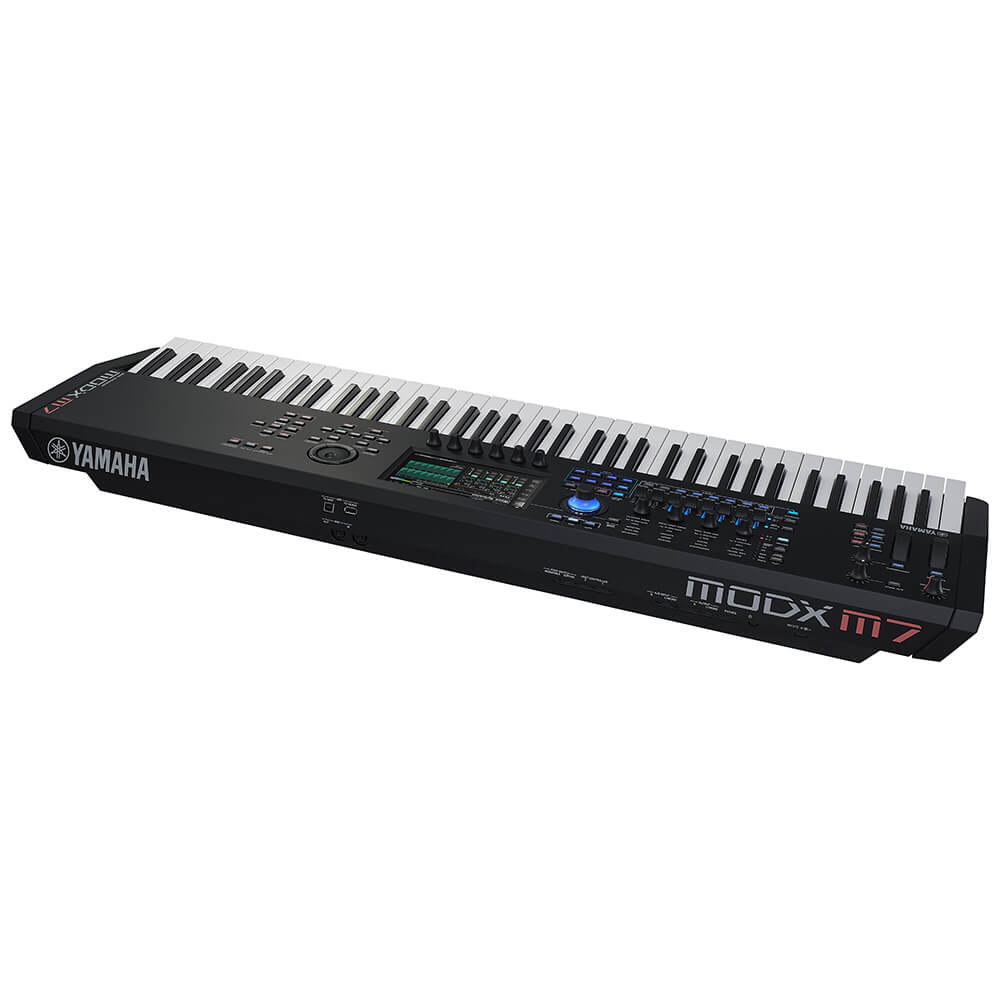

MODX M7
Built for working keyboardists, the 76-key MODX M7 delivers exceptional sound, expressive control and streamlined workflow in a compact, lightweight design ideal for stage or studio. Featuring three engines that create a stunning variety of sounds, as well as improved keyboard action for better playability, MODX M elevates expression everywhere.
Features
-
SOUNDInspired Performance
Take your performance anywhere with the compact, lightweight MODX M featuring three powerful engines.
-
CONTROLUnique Expression
Motion Control unifies the three Synth engines and provides the performer with a massive amount of interactive expression.
-
WORKFLOWExpanded Creativity
MODX M realize flexible and streamlined workflow.
SOUND
Inspired Performance
AN-X ENGINE
Integrated into the Motion Control system, the AN-X Engine allows you to create expressive, unique analog sounds.
– Two filters
– 10 filter types
– Pulse width modulation
– Oscillator Self Sync
– Ring modulation
– FM, and wave shaper
– Wave folder
– Voltage drift and aging settings to simulate vintage synth behavior
AWM2
Experience realism and detail with the MODX M Advanced Wave Memory (AWM2). Offering up to 128 Elements per Part, AWM2 allows for more layers and articulations, giving you an expansive canvas for sound creation, especially for “nameable” sounds such as piano and strings.
268 NOTES TOTAL POLYPHONY
MODX M offers up to 268 notes of polyphony across its three engines:
– 128 notes for AWM2 Preset and User Waveform Parts
– 128 notes for FM-X Parts
– 12 notes for AN-X Parts
AND MORE
– PRESET WAVE AND FLASH MEMORY UPGRADE: MODX M offers approx. 2x the memory over MODX/MODX+ with an increase from 5.68 GB to 10.7 GB of AWM2 memory, and 1.9 GB of User flash memory.
– VCM ROTARY SPEAKER: The VCM Rotary Speaker effect simulates the rich and enveloping motion of a classic rotary speaker cabinet.
CONTROL
Unique Expression
DEDICATED PART AND SCENE CONTROL
You’ll find dedicated Part and Scene Selection buttons to control 8 Parts per Performance. Particularly beneficial for live performances, this intuitive control improves overall usability and adds dimension to each Performance.
HIGH RESOLUTION CONTROL
The MODX M Knobs, Super Knob, Pitch Bend, Mod Wheel, and Sound Engine – are now High Resolution. Because of the fine resolution, you’ll find the MODX M performs smoother than its predecessors.
MOTION CONTROL SYNTHESIS ENGINE
Experience a new level of sound design with this groundbreaking engine. You’ll interact with sound like never before using powerful tools such as:
– Motion Sequences – dynamically automate synth and effect parameters, all perfectly in sync with your tempo
– Super Knob – control dozens of modulations with a single gesture
– Envelope Follower – shape your sound using input from the A/D or another Part
– And so much more!
AND MORE
– 8 Faders, 4 Knobs
– 4 Pedal Inputs
– 6 Display Knobs
WORKFLOW
Expanded Creativity
EXPANDED SOFTSYNTH PLUGIN (ESP)
Free for all registered MODX M owners, the Expanded Softsynth Plugin (ESP) replicates MODX M in your favorite Digital Audio Workstation (DAW). ESP lets you to create, edit and mix performances anywhere you happen to be – without the hardware – offering an unprecedented level of stage and studio integration.
FASTER, MORE INTUITIVE NAVIGATION
Upgraded navigation enables quick, intuitive sound editing and operation. You’ll find features like a color touch screen, 6 display knobs, and Stereo A/D input with 2 insertion effects.
USB MIDI 2.0 AND MULTICHANNEL AUDIO INTERFACE
Simplifying your studio setup, MODX M offers a USB MIDI and multichannel 10 output/4 input audio interface in 44.1kHz. Streamline MIDI recording, virtual instrument monitoring, and multi-track audio recording through a single USB cable, so you can spend more time being creative.
MIDI 2.0 delivers high resolution data for note velocity, Super Knob, pitch bend, modulation.
CUBASE AI
Cubase AI provides the basic tools for recording, editing and mixing – from the initial idea to the final masterpiece. It’s the perfect entry into the world of Digital Audio Workstations (DAW), offering powerful, yet easy-to-use software tools for all genres.
AND MORE
– DEDICATED DAW REMOTE BUTTON: Use your MODX M as a hardware controller for DAWs such as Cubase, Logic, ProTools and Live. Control the mixer, transport, Softsynth plugins and more.
Sound Demo
Elevate Expression Everywhere
Built for working musicians, the MODX M Series of synthesizers combines expressive control, streamlined workflow, and exceptional sound in a lightweight design ideal for stage or studio. Featuring three engines that create a stunning variety of sounds, and shared DNA from our flagship MONTAGE M, MODX M elevates expression everywhere.
FOR MODX M OWNERS
Update
SPECIFICATIONS:
| MODX M7 | |||
| Size/Weight | Dimensions | Width | 1,089 mm (42-7/8″) |
| Height | 117 mm (4-5/8″) | ||
| Depth | 347 mm (13-11/16″) | ||
| Weight | Weight | 7.6 kg (16 lb, 12 oz) | |
| Control Interface | Keyboard | Number of Keys | 76 |
| Type | Semi-weighted FSB Keyboard | ||
| Initial Touch | Yes | ||
| Aftertouch | No | ||
| Tone generator | Tone Generator | Motion Control Synthesis Engine AMW2: 128 Elements (max.), FM-X: 8 Operators, 88 Algorithms, AN-X: 3 Oscillators, 1 Noise | |
| Maximum Polyphony | AWM2: 128 (max.; stereo/mono waveforms), FM-X: 128 (max.), AN-X: 12 (max.) | ||
| Multi Timbral Capacity | 16 Parts (internal), Audio Input Parts (A/D*1, USB*1) *1 stereo Part | ||
| Wave | Preset: 11.29 GB (when converted to 16-bit linear format), User: 1.9 GB | ||
| Performance | 3,487 | ||
| Filter | 18 types | ||
| Effects | Reverb x 13 types, Variation x 91 types, Insertion A x 91 types*2, Insertion B x 94 types*3, Master Effect x 28 type *2 A/D part insertion x 86 types *3 Part 2~16: 91 type, A/D part insertion x 86 types <Preset settings for parameters of each effect type are provided as templates> Master EQ (5 bands), 1st part EQ (3 bands), 2nd part EQ (2 bands) | ||
| Performance Recorder | Note Capacity | 1 Song/Pattern: Approx. 130,000 notes, Store area: Approx. 520,000 notes (Pattern); approx. 520,000 notes (Song) | |
| Note Resolution | 480 ppq (parts per quarter note) | ||
| Tempo (BPM) | 5 – 300 | ||
| Sequence formats | MONTAGE M/MODX M original format, SMF formats 0, 1 | ||
| Arpeggio | Parts: 8 Parts simultaneous (max.), Preset: 10,922 types or more, User: 256 types | ||
| Sequencer | Patterns | 128 patterns | |
| Pattern tracks | 16 Sequence tracks | ||
| Pattern Recording type | Real time replace, Real time overdub | ||
| Songs | 128 songs | ||
| Song tracks | 16 Sequence tracks, Tempo track, Scene track | ||
| Song recording type | Real time replace, Real time overdub, Real time punch in/out | ||
| Functions | USB audio interface | [Sampling Frequency = 44.1 kHz] Input: 4 channels (2 stereo channels), Output: 10 channels (5 stereo channels) [Sampling Frequency = 44.1kHz / 48kHz / 96kHz] Input: 2 channels (1 stereo channel), Output: 2 channels (1 stereo channel) | |
| Other | Controllers | Master Volume, A/D Input Gain knob, Pitch Bend wheel, Modulation wheel, Control Slider x 8, Knob x 4, Super knob, Display knob x 6, Portament knob, Data Dial, Assignable swich x 2, MSEQ trigger switch, Portamento switch, Keyboard hold switch | |
| Display | 7″ TFT Color Wide VGA LCD touch screen | ||

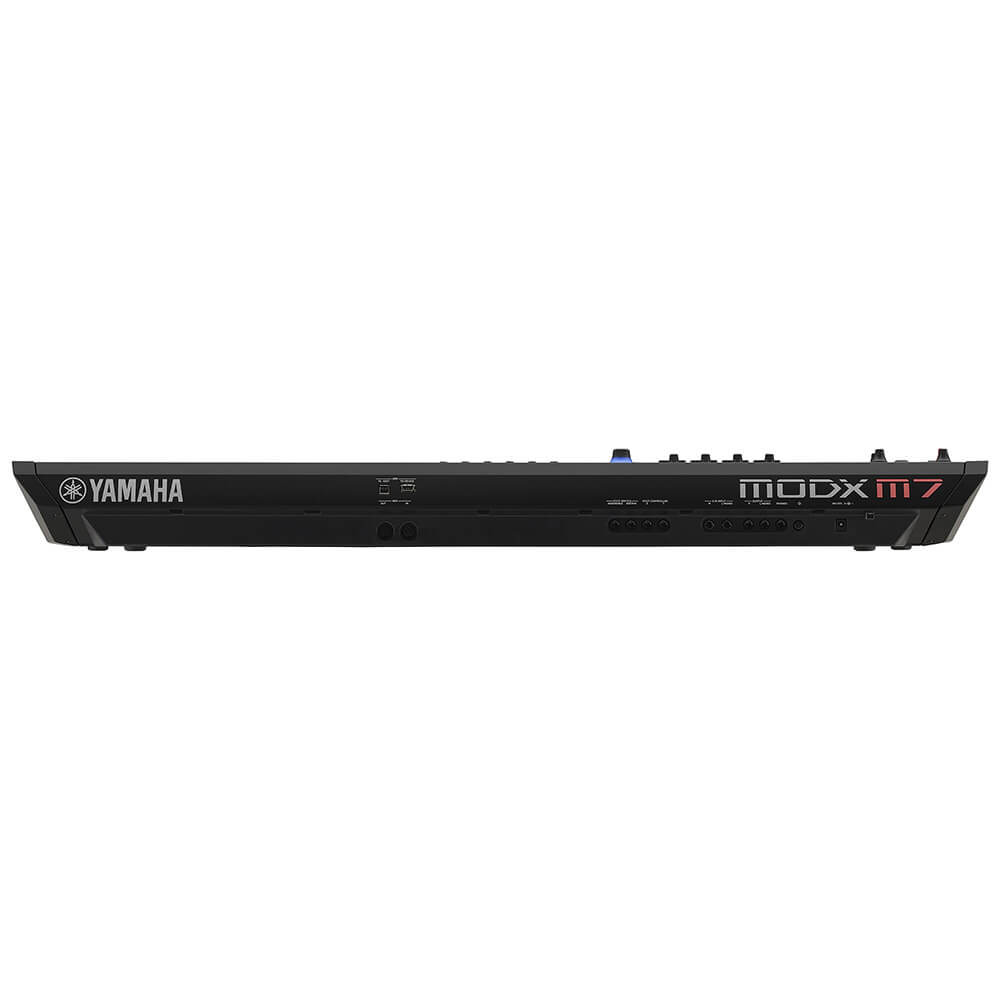

| Connectors | USB [TO DEVICE], USB [TO HOST], MIDI [IN]/[OUT], FOOT CONTROLLER [1]/[2], FOOT SWITCH [SUSTAIN]/[ASSIGNABLE], OUTPUT [L/MONO]/[R] (6.3 mm, standard phone jacks), [PHONES] (6.3 mm, standard stereo phone jack), A/D INPUT [L/MONO]/[R] (6.3 mm, standard phone jacks) | ||
| Power Consumption | 19 W (When using PA-300C AC adaptor) | ||
| Accessories | AC adaptor: PA-300C, Quick guide, Cubase AI Download Information, Expanded Softsynth Plugin for MONTAGE M/MODX M Download Information, About downloading manuals, Welcome card | ||
| Live Sets | Preset: 256, User: 2,048 | ||
