Peavey CS 1400

The Peavey CS 1400 – Stereo Power Amplifier (500W per Channel at 4 Ohm) is a 2RU rack mountable amp designed for live sound reinforcement applications such as for parties, clubs, houses of worship and concerts. The amplifier is capable of outputting 1400W bridged at 4Ω, 700W per channel at a 2Ω, 500W per channel at 4Ω, and 330W per channel at 8Ω with a frequency response of 10 to 25,000 Hz.

Building on the reputation of the world-famous Peavey CS 800, which conquered the power amp market in the 1970s, the CS Series is the global standard bearer for workhorse reliability. Over the years, these amps have benefited from some of Peavey’s most popular audio innovations, including our exclusive DDT compression/anti-clipping protection. With its 2RU design and power points up to 4080 watts, this latest evolution of the CS Series is leaner, louder and lighter than ever.

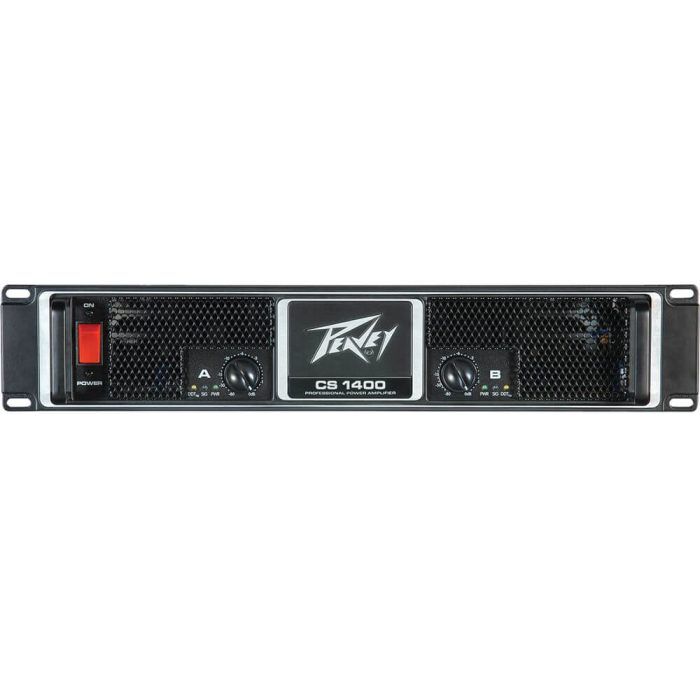

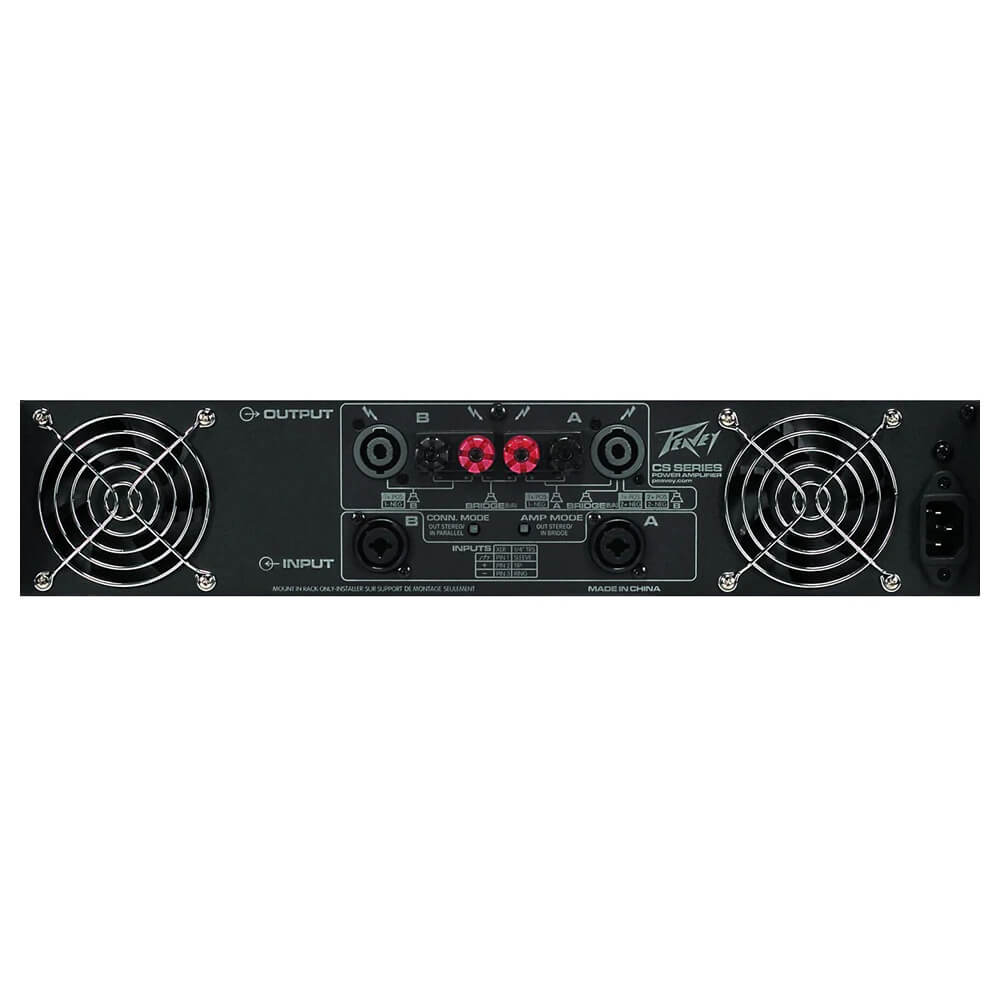

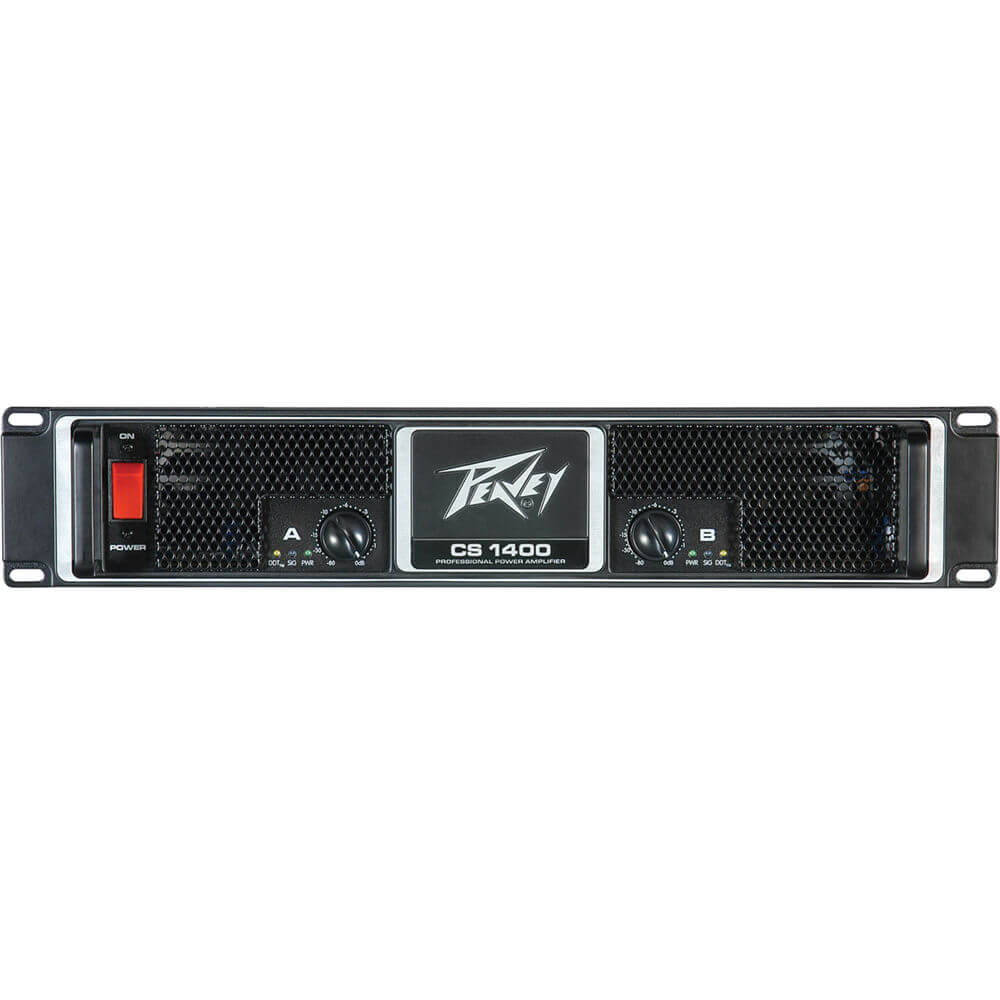

The unit can be operated in either stereo or switched to bridged mono mode. It includes Peavey’s Distortion Detecting Technique Limiting (DDT) circuitry as well as LFC impedance sensing, thermal, short circuit, DC voltage, and Turn-On/Turn-Off protection circuits. The front panel includes two input attenuators for controlling the level as well as LED indicator lights for power, signal, and DDT. For I/O, the back panel features combination 1/4″ and XLR inputs, Speakon outputs, and binding post outputs.

FEATURES

Two temperature-dependant dual-speed fans
700 watts (rms) per channel at 2 ohms
500 watts (rms) per channel at 4 ohms
330 watts per channel at 8 ohms
1400 watts at 4 ohms bridged
5-year warranty
2-rack-space stereo power amp featuring DDT™
Packed Weight: 39.01 lb (17.69 kg)
Packed Length: 22.75″ (57.79 cm)
Packed Width: 21″ (53.34 cm)
Packed Height: 5.87″ (14.91 cm)

SPECIFICATIONS:

Rated Power	1,400 W at 1 kHz <0.1% THD Bridged 2x 700 watts per channel at 1 kHz at 2 Ω ( <0.1% THD both channels driven) 2x 500 watts per channel at 1 kHz at 4 Ω ( <0.1% THD both channels driven) 2x 330 watts per channel at 1 kHz at 8 Ω ( <0.1% THD both channels driven) 1x 785 watts per channel at 1 kHz at 2 Ω ( <0.1% THD) 1x 550 watts per channel at 1 kHz at 4 Ω ( <0.1% THD) 1x 345 watts per channel at 1 kHz at 8 Ω ( <0.1% THD)
Minimum Load Impedance	2 Ω
RMS Voltage Swing	61 V
Frequency Response	10 to 25,000 Hz, +0, -1 dB at 1 W
Power Bandwidth	10 to 35,000 Hz, +0, -3 dB at rated 2 Ω power
THD	2x 2 Ω: <0.20% at 560 W per channel from 20 to 20,000 Hz 2x 4 Ω:<0.20% at 425 W per channel from 20 to 20,000 Hz 2x 8 Ω:<0.15% at 300 W per channel from 20 to 20,000 Hz
SMPTE	<0.1% 60 and 7,000 Hz (250 W at 4 Ω)
Slew Rate	17 V/uS
Damping Factor (8 Ω)	> 400:1 at 20 to 400 Hz
Input CMRR	> -101 dB at 1,000 Hz
Voltage Gain	x40 (32 dB)
Input Sensitivity	0.910 V at 2 Ω, 1.13 V at 4 Ω, 1.26 V at 8 Ω
Input Impedance	20 kΩ, balanced
Hum and Noise	> -107 dB, “A” weighted referenced to rated 4 Ω power
Crosstalk	> -74 dB, “A” weighted referenced to rated 4 Ω
Current Draw	At 1/8 power: 745 W at 2 Ω, 505 W at 4 Ω, 325 W at 8 Ω At 1/3 power: 1,930 W at 2 Ω, 1,235 W at 4 Ω, 815 W at 8Ω
Cooling	Two 80 mm DC fans, dual speed operation
Controls	2 front panel attenuators, rear panel mode switch, rear panel DDT switch
Indicator LEDs	2x DDT/clipping 2x Status/power 2x Signal
Protection	Temp DC Turn-On transients Subsonic Improper load or shorts
Connectors	2x Combination XLR and 1/4″ inputs 2x Speakon output 2x Binding post speaker output IEC mains connector
Construction	16 gauge steel with cast aluminum front panel and steel grill
Dimensions	3.5 x 19 x 14.8 + 1.25″ for rear support ears (88.9 x 483 x 376 +31.8 mm for rear support ears) +1.50″ (38.1 mm) for handle depth
Weight	32.7 lb (14.8 kg)

Click to enlarge

Back to products

Order on WhatsApp

Call 0740418548

Add to wishlist

Categories: Amplifiers, PA Equipment, Power Amplifiers

Description

Rated Power	1,400 W at 1 kHz <0.1% THD Bridged 2x 700 watts per channel at 1 kHz at 2 Ω ( <0.1% THD both channels driven) 2x 500 watts per channel at 1 kHz at 4 Ω ( <0.1% THD both channels driven) 2x 330 watts per channel at 1 kHz at 8 Ω ( <0.1% THD both channels driven) 1x 785 watts per channel at 1 kHz at 2 Ω ( <0.1% THD) 1x 550 watts per channel at 1 kHz at 4 Ω ( <0.1% THD) 1x 345 watts per channel at 1 kHz at 8 Ω ( <0.1% THD)
Minimum Load Impedance	2 Ω
RMS Voltage Swing	61 V
Frequency Response	10 to 25,000 Hz, +0, -1 dB at 1 W
Power Bandwidth	10 to 35,000 Hz, +0, -3 dB at rated 2 Ω power
THD	2x 2 Ω: <0.20% at 560 W per channel from 20 to 20,000 Hz 2x 4 Ω:<0.20% at 425 W per channel from 20 to 20,000 Hz 2x 8 Ω:<0.15% at 300 W per channel from 20 to 20,000 Hz
SMPTE	<0.1% 60 and 7,000 Hz (250 W at 4 Ω)
Slew Rate	17 V/uS
Damping Factor (8 Ω)	> 400:1 at 20 to 400 Hz
Input CMRR	> -101 dB at 1,000 Hz
Voltage Gain	x40 (32 dB)
Input Sensitivity	0.910 V at 2 Ω, 1.13 V at 4 Ω, 1.26 V at 8 Ω
Input Impedance	20 kΩ, balanced
Hum and Noise	> -107 dB, “A” weighted referenced to rated 4 Ω power
Crosstalk	> -74 dB, “A” weighted referenced to rated 4 Ω
Current Draw	At 1/8 power: 745 W at 2 Ω, 505 W at 4 Ω, 325 W at 8 Ω At 1/3 power: 1,930 W at 2 Ω, 1,235 W at 4 Ω, 815 W at 8Ω
Cooling	Two 80 mm DC fans, dual speed operation
Controls	2 front panel attenuators, rear panel mode switch, rear panel DDT switch
Indicator LEDs	2x DDT/clipping 2x Status/power 2x Signal
Protection	Temp DC Turn-On transients Subsonic Improper load or shorts
Connectors	2x Combination XLR and 1/4″ inputs 2x Speakon output 2x Binding post speaker output IEC mains connector
Construction	16 gauge steel with cast aluminum front panel and steel grill
Dimensions	3.5 x 19 x 14.8 + 1.25″ for rear support ears (88.9 x 483 x 376 +31.8 mm for rear support ears) +1.50″ (38.1 mm) for handle depth
Weight	32.7 lb (14.8 kg)
