Peavey CS 4080

The Peavey CS 4080HZ – Stereo Power Amplifier (2040W per Channel at 4 Ohm) is a 2RU rack mountable amp designed for live sound reinforcement applications such as for parties, clubs, houses of worship and concerts. The amplifier is capable of outputting 4080W bridged at 4Ω, 2040W per channel at 4Ω, and 1250W per channel at 8Ω with a frequency response of 10 to 100,000 Hz.

Building on the reputation of the world-famous Peavey CS 800, which conquered the power amp market in the 1970s, the CS Series is the global standard bearer for workhorse reliability. Over the years, these amps have benefited from some of Peavey’s most popular audio innovations, including our exclusive DDT compression/anti-clipping protection. With its 2 RU design and power points up to 4080 watts, this latest evolution of the CS Series is leaner, louder and lighter than ever.

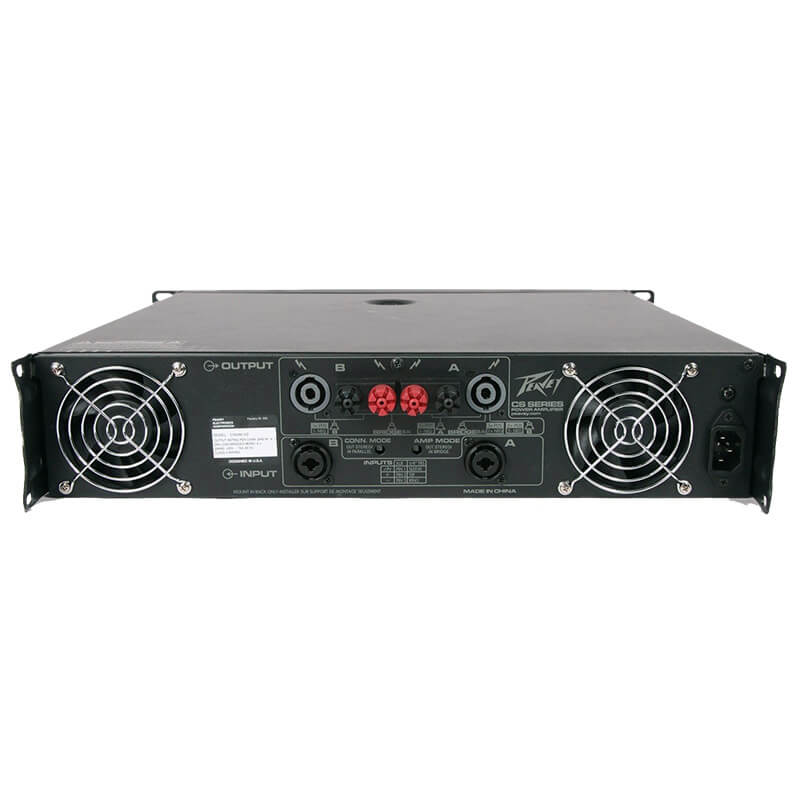

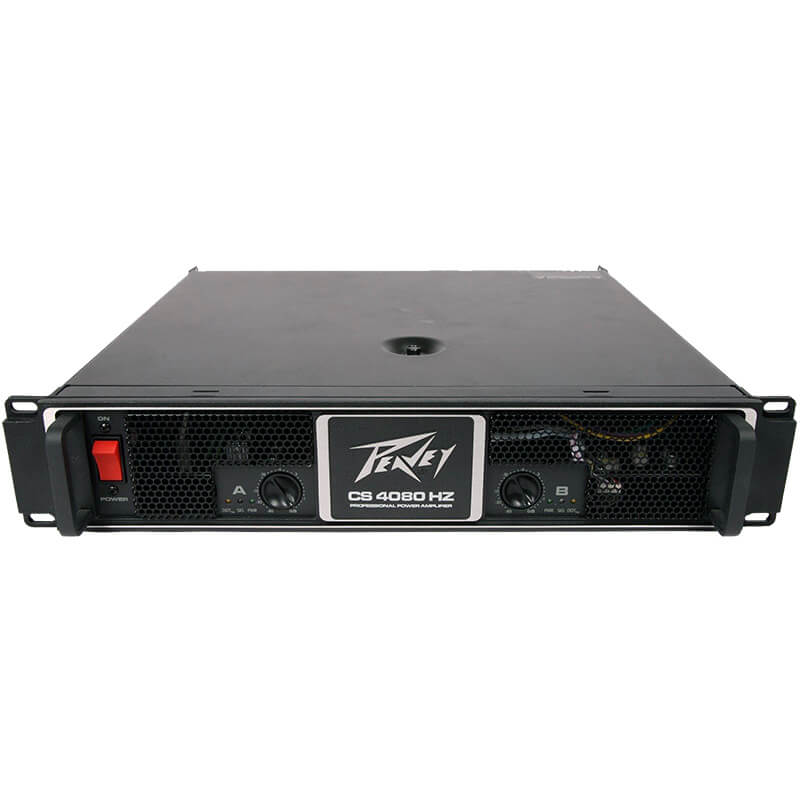

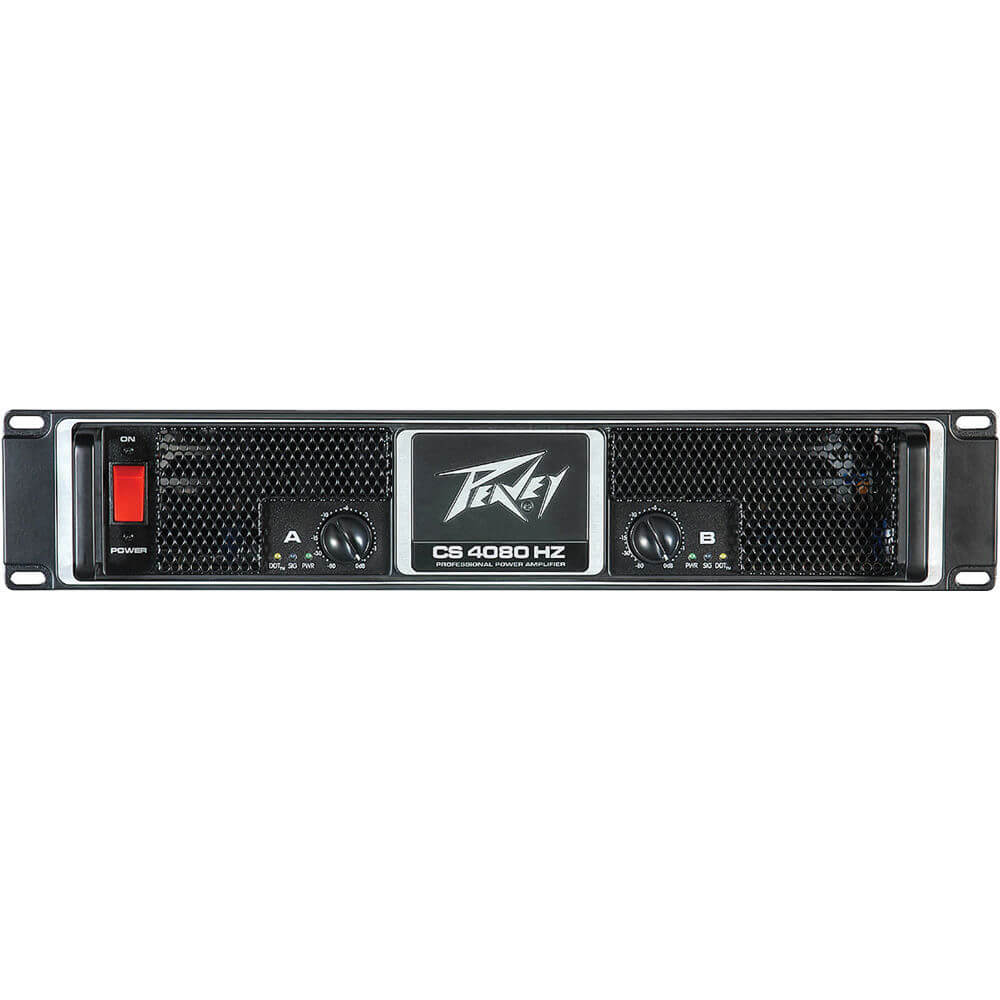

The unit can be operated in either stereo or switched to bridged mono mode. It includes Peavey’s Distortion Detecting Technique Limiting (DDT) circuitry as well as LFC impedance sensing, thermal, short circuit, DC voltage, and Turn-On/Turn-Off protection circuits. The front panel includes two input attenuators for controlling the level as well as LED indicator lights for power, signal, and DDT. For I/O, the back panel features combination 1/4″ and XLR inputs, Speakon outputs, and binding post outputs.

FEATURES:

2 temperature-dependant variable speed fans
2040 watts (rms) per channel at 4 ohms
1250 watts per channel at 8 ohms
4080 watts at 8 ohms bridged
5-year warranty
2-rack-space stereo power amp featuring DDT™
Packed Weight: 53.01 lb (24.04 kg)
Packed Length: 22.5″ (57.15 cm)
Packed Width: 21″ (53.34 cm)
Packed Height: 6″ (15.24 cm)

SPECIFICATIONS:

Rated Power	4,080 W at 1 kHz <0.1% THD Bridged 2x 2040 W per channel at 1 kHz at 4 Ω ( <0.05% THD both channels driven) 2x 1250 W per channel at 1 kHz at 8 Ω ( <0.05% THD both channels driven) 1x 2450 W per channel at 1 kHz at 4 Ω ( <0.05% THD) 1x 1400 W per channel at 1 kHz at 8 Ω ( <0.05% THD)
Minimum Load Impedance	4 Ω
RMS Voltage Swing	115 V
Frequency Response	10 to 100,000 Hz, +0, -0.75 dB at 1 W
Power Bandwidth	10 to 35,000 Hz, +0, -3 dB at rated 4 Ω power
THD	2x 4 Ω:<0.10% at 1650 W per channel from 20 to 20,000 Hz 2x 8 Ω:<0.10% at 950 W per channel from 20 to 20,000 Hz
CMRR	> -75 dB at 1,000 Hz
Voltage Gain	x40 (32 dB)
Crosstalk	> -70 dB at 1,000 Hz with rated power 8 Ω
Hum and Noise	> -108 dB, “A” weighted referenced to rated 8 Ω power
Slew Rate	15 V/uS
Damping Factor (8 Ω)	> 500:1 at 20 to 1,000 Hz
Phase Response	+5 to -12 degrees from 20 to 20,000 Hz
Input Sensitivity	2.25 V ±3% for 1,000 Hz, 4 Ω rated power,
Input Impedance	15 kΩ, balanced
Current Draw	At 1/8 power: 1185 W at 4 Ω, 720 W at 8 Ω At 1/3 power: 2,975 W at 4 Ω, 1835 W at 8 Ω
Cooling	Two back panel temperature dependent variable speed 80 mm DC fans
Controls	2 front panel attenuators, rear panel mode switch, rear panel mode switch
Indicator LEDs	2x DDT (clip limiting) 2x Active status/power 2x Signal presence
Protection	Thermal DC Turn-on bursts Subsonic Incorrect loads
Connectors	2x Combination XLR and 1/4″ inputs 2x Speakon output 2x Binding post speaker output 15 A IEC mains connector
Construction	16 gauge steel with cast front panel and cast handles
Dimensions	3.5 x 19 x 14.8 + 1.25″ for rear support ears (88.9 x 483 x 376 +31.8 mm for rear support ears) +1.50″ (38.1 mm) for handle depth
Weight	47.3 lb (21.5 kg)
