Peavey PV 1015 2-Way 15″ Full Range Passive Speaker
The PV 1015 is a full range two-way speaker system utilizing a 15” premium woofer and a RX14 titanium diaphragm dynamic compression driver for the highs. This high performance driver is mounted on a Peavey patented asymmetric Quadratic Throat Waveguide, with smooth, even response, low distortion and good high frequency dispersion.
This horn has an asymmetrical vertical polar response, aiming the main energy lobe down 10°, so it is aimed at the audience, instead of over their heads. This helps reduce ceiling reflections for greater clarity and gain before feedback. The constant directivity characteristics provide the even coverage needed for a successful sound reinforcement application.
The lightweight, yet rugged, carpet-covered trapezoidal enclosure with stand mount cup facilitates portable use for live music or speech sound reinforcement, as well as music playback. A full-length, black powder coated perforated steel grille provides driver protection, and a professional appearance. The crossover network includes tweeter protection, and driver EQ, for clear punchy sound, and good long term reliability. Two 1/4” phone jacks are connected in parallel for flexible wiring options.
This is a high-quality two-way speaker system, which has a reliable case and provides rich and well readable sound. The nominal power of this model is 400 W, and the peak power reaches 800 W. It uses a premium 15-inch woofer with a 2.375-inch voice coil and a 1.4-inch RX14 compression driver with a titanium diaphragm. These speakers guarantee deep and voluminous bass, balanced middle frequencies, as well as saturated and bright “tops”. In addition, a horn with Quadratic Throat Waveguide technology is implemented here with a coverage area of 100° x 50°, which provides even greater clarity of sound and protects against the appearance of feedback.
The case of the acoustic system is made of plywood, reinforced with metal corners and distinguished by increased durability, and the speakers are covered by a reliable steel grill. Two 1/4″ Jack connectors connected in parallel are provided for connection on the back panel of the device.
FEATURES:
- Two-way sound reinforcement enclosure
- Peavey exclusive, premium woofer with 2.375” voice coil
- RX14 titanium diaphragm compression driver, 1.4” diameter
- Tweeter protection circuit
- Patented 100° x 50° Quadratic Throat Waveguide™ technology
- Asymmetrical horn directs the sound down to the audience
- 400 W program/800 W peak power handling
- Heavy-duty crossover network with EQ
- T-nut speaker mounting, not just screws
- Heavy-duty full-length perforated steel grille
- Smooth round steel handles
- Rugged dado and rabbet construction plus internal braces for lightweight yet strong cabinet
- Stand adapter

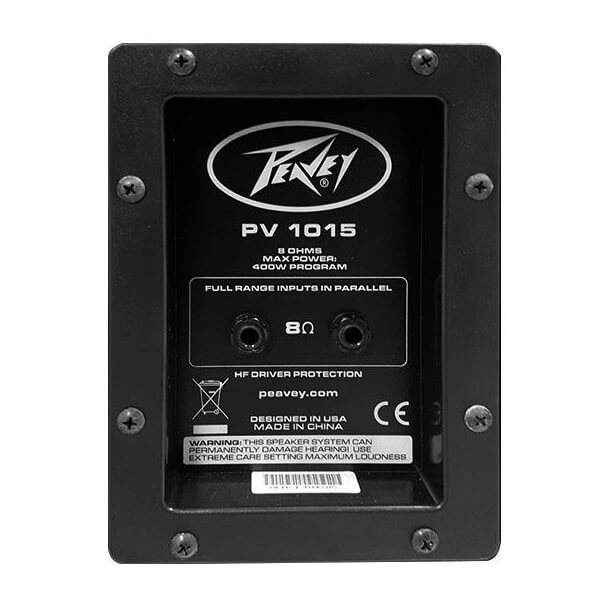

- Two ¼” phone jacks in parallel
