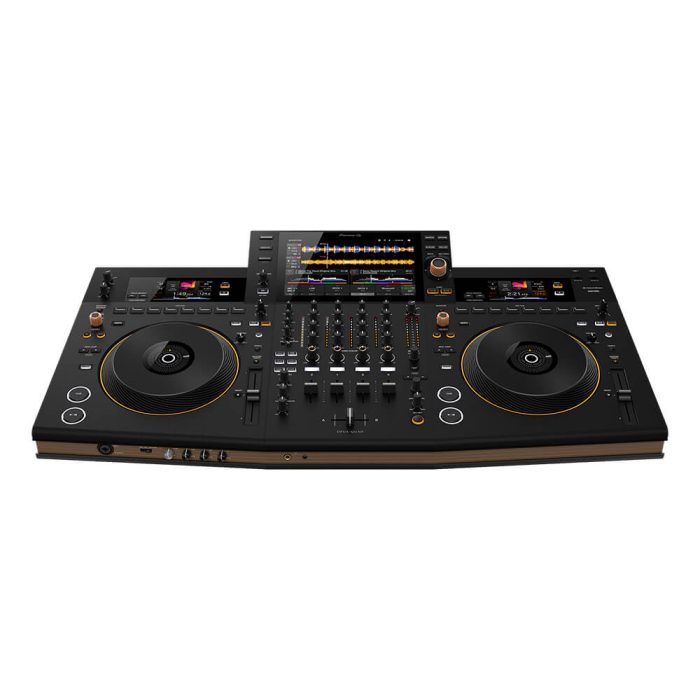

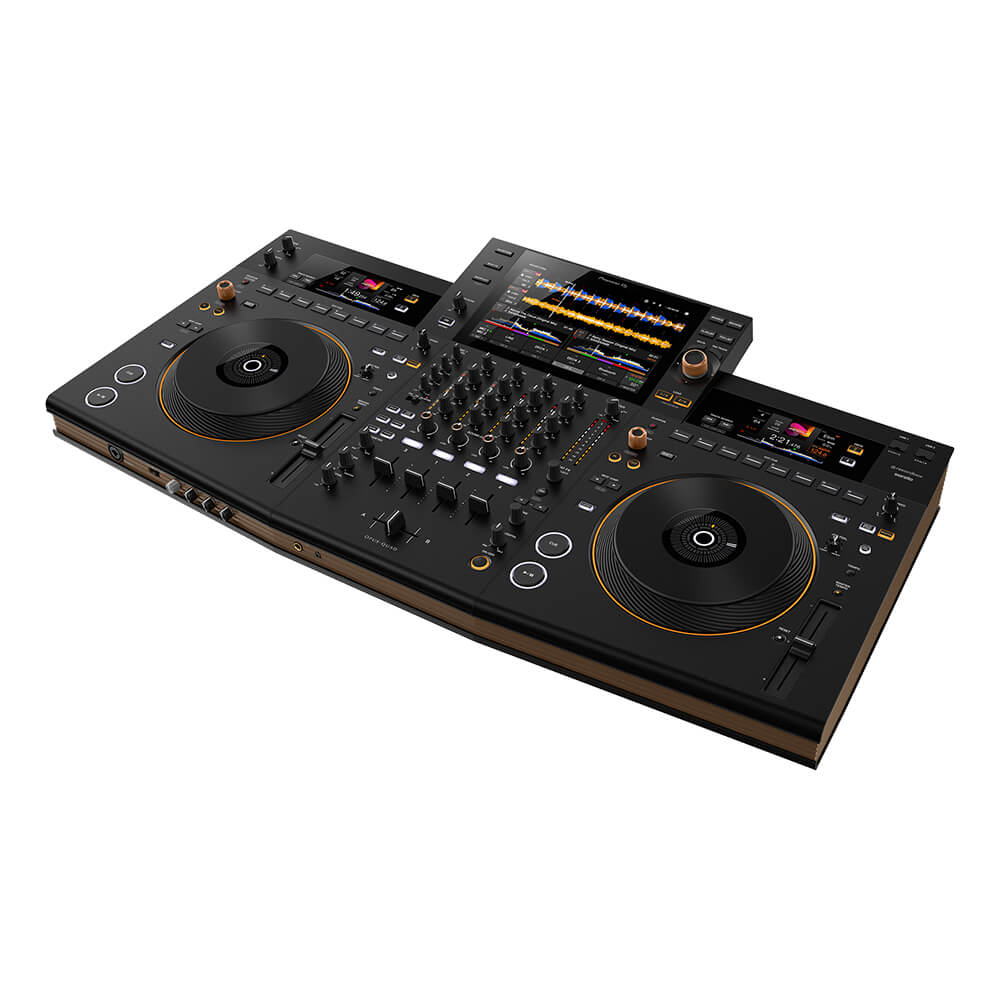

Harmony between brand-new beautiful design and musical playability
The OPUS-QUAD introduces a completely fresh approach to DJ equipment that harmonizes design and playability. Raising the level of elegance in musical direction and the space the music fills, it helps create a special experience for your audience.
Find out more about the OPUS-QUAD design
Standalone 4-deck playback for versatile DJ performances
The OPUS-QUAD offers standalone 4-deck playback for versatile DJ performances. This means you can play 4 tracks on 4 different decks simultaneously, cue up tracks in advance, or leave a deck free for dropping requests into your set at a moment’s notice – all with just one unit. You can also assign a different color to each deck, which is matched by the jog ring illumination, so you’ll always know which deck you’re playing with.
Support for multiple media sources to match different playing styles
How do you like to play? From USB thumb drives or huge SSD drives? By plugging in your PC/Mac that’s running DJ software? By connecting via Wi-FiⓇ to wirelessly play tracks from your smartphone using rekordbox, or by using rekordbox CloudDirectPlay? You can draw from various music libraries with just 1 OPUS-QUAD and you can even pair a mobile device via BluetoothⓇ/MD wireless technology – perfect if you want to quickly drop a request into your set.
Rapid and accurate track search – even from the biggest collections
Find your tracks faster and more accurately than ever before with the freshly designed user interface with an electrostatic touch module. No matter how big your music library is, you can use the 10.1-inch touch screen to quickly search for songs via the keyboard or use Playlist Bank for quick navigation between playlists. With Touch Preview, you can even preview tracks while browsing. The new Smart Rotary Selector offers a joystick-like experience with left/right, up/down, rotation, and push control. And the other browsing controls are neatly arranged around the selector so you can scour your music collection and preview and load tracks without moving your hand.
Optimized deck configuration and new Smart Cue

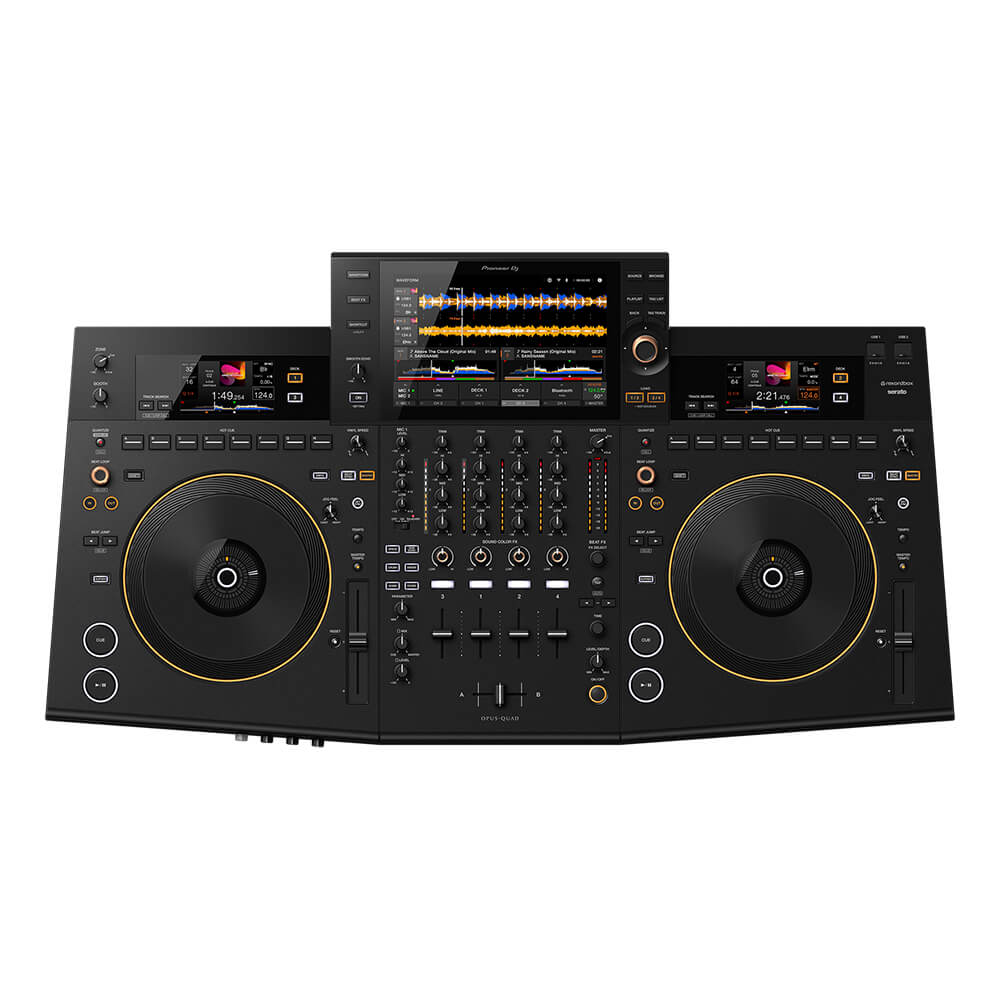

Take control of the music with a slick deck layout that includes a deck display and 8 Hot Cue buttons above each full-size jog wheel. With this arrangement, you don’t need to switch your gaze when manipulating tracks or checking things such as the track information, parameter, and status of each function. And with the new Smart Cue feature*, you can automatically overwrite the current cue position with the recalled Hot Cues. This makes it much quicker and more intuitive than ever before to use Hot Cues with one touch.
*To use the Smart Cue function, ‘Overwrite Current Cue with Hot Cue’ must be turned on in the Utility setting in advance.
High-quality pleasant sound that enhances the audience’s experience
Designed to meet the needs of the increasingly diverse DJ scene, the OPUS-QUAD produces high-quality sound that’s comfortable to listen to for long periods of time. The configuration of the unit eliminates transmission loss and AD-DA conversion loss and it’s loaded with a high-quality 32-bit D/A converter from ESS Technology. As a result, wherever you play on the OPUS-QUAD, the entire venue is gently enveloped by a comfortable sound that enhances the spatial experience.
Easy-to-use professional effects
The evolved effects on the OPUS-QUAD make it easy to add texture and tension to the music so you can hype up the crowd and personalize your sound with Beat FX. The XY-Pad makes it easy to control features such as FX Bank and channel select, as Beat FX parameters and the cut-off frequency of the filter are controlled by movement on the X and Y-axis respectively, so you can blend both effects with a single finger. With the popular Smooth Echo feature, you can easily trigger an echo sound by moving a fader or knob you’ve pre-assigned to apply the effect when it’s turned on.
Zone output for playing different music in different spaces
Thanks to the zone output – which can output sound that’s separate from the master – you can play different music in different rooms from just 1 OPUS-QUAD. For example, you could connect a phone to the unit via Bluetooth and set a playlist of background music to play quietly in a bar area or second room where people are socializing while you mix tracks from a USB device in the main room.
rekordbox and Serato compatibility
Plug-and-play compatibility for rekordbox Performance mode and Serato DJ Pro is included with the OPUS-QUAD. You can simply plug in your PC/Mac running either application to get started – there’s no need for a license or subscription. If you use rekordbox you can also connect to the rekordbox for iOS/Android mobile app.
To use the system with rekordbox for free, click here to install the PC/Mac version of the software.
rekordbox Link Export
Firmware Update Manager
2 Mic inputs
Beat Loop knob
Supported music file formats
MP3, AAC, WAV, AIFF, Apple Lossless, FLAC
FAT16, FAT32, exFAT, HFS+, (NTFS isn’t supported.)
Compatible DJ Software
rekordbox for Mac/Windows: Hardware Unlock, rekordbox for iOS/Android (coming April 2023), Serato DJ Pro: Hardware Unlock (coming summer 2023)
Plug and Play
What’s in the box
OPUS-QUAD, Power cord, Quick Start Guide, Precautions for Use, Warranty (Only products in Europe. Products in North America and Japan include warranty information in the “Precautions for Use”)
20 – 20000 Hz
Dimensional Outline drawing
Click here for the details.
AC 100-240 V, 50 Hz / 60Hz
MASTER DA converter
USB: 114 dB, LINE: 96 dB, PHONO: 85 dB, MIC: 79 dB
USB: 0.003 %, LINE: 0.005 %
Bluetooth ver. 4.2
Maximum transmission distance
Approximately 20 m in unobstructed circumstances.(Transmission distances are a guideline. Transmission distance may change depending on the surrounding environment.)
Frequency band used
FH-SS (Frequency Hopping Spread Spectrum)
4 (USB storage device), 4 (DJ Software control)
Sound Color FX
Space, Dub Echo, Sweep, Noise, Crush, Filter
Delay, Echo, Ping Pong, Spiral, Reverb, Trans, Filter, Flanger, Phaser, Pitch, Slip Roll, Roll, Vinyl Brake, Helix,
8 per deck
IEEE 802.11 a / b / g / n / ac
Frequency band used
2.4 GHz / 5 GHz

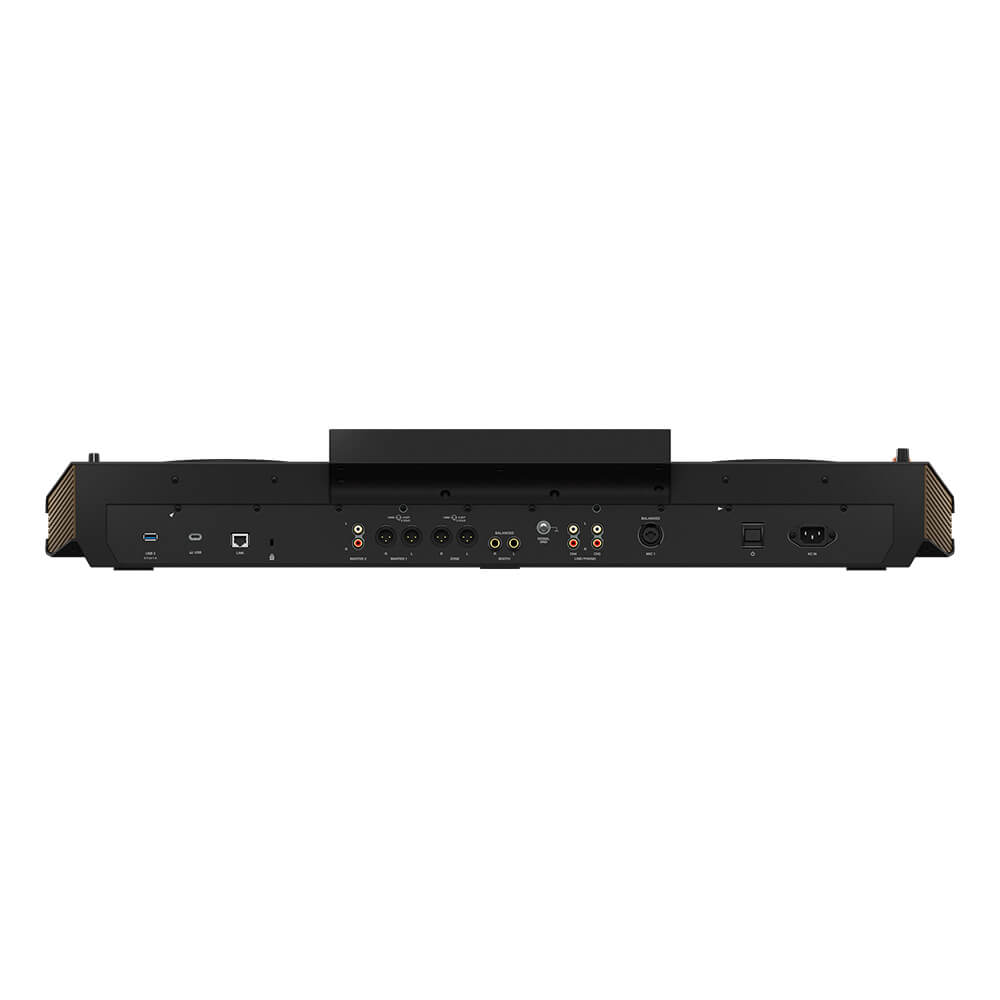

2 LINE (RCA), 2 PHONO (RCA), 2 MIC (XLR connector & 1/4 inch TRS jack)
1 MASTER (XLR), 1 MASTER (RCA), 1 ZONE (XLR), 1 BOOTH (1/4 inch TRS Jack), 1 PHONES (1/4 inch stereo phone Jack), 1 PHONES (3.5-mm stereo mini jack)
3 USB A ports, 1 USB C port
XLR connector & 1/4 inch TRS jack
MIC OFF/ON/TALK OVER slide SW
