Proel Axiom AXE0804HX Line Array System

AXIOM Line Array (Kit):

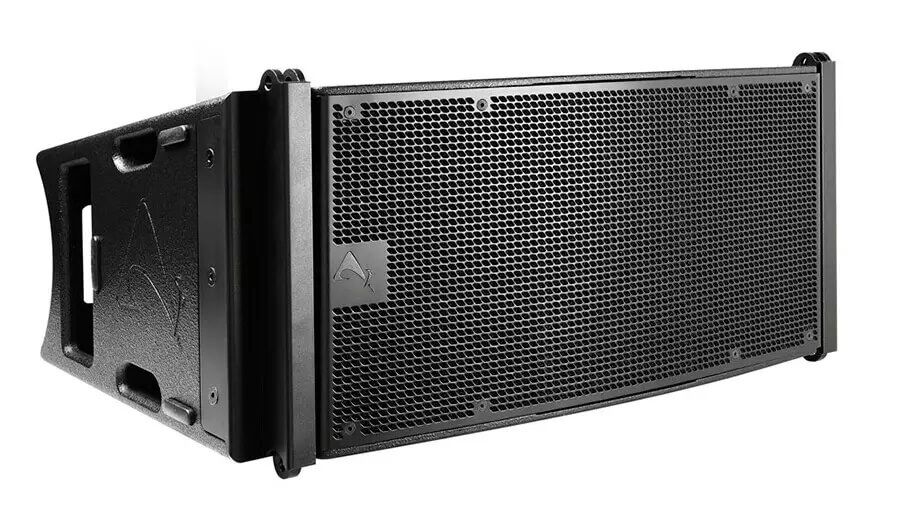

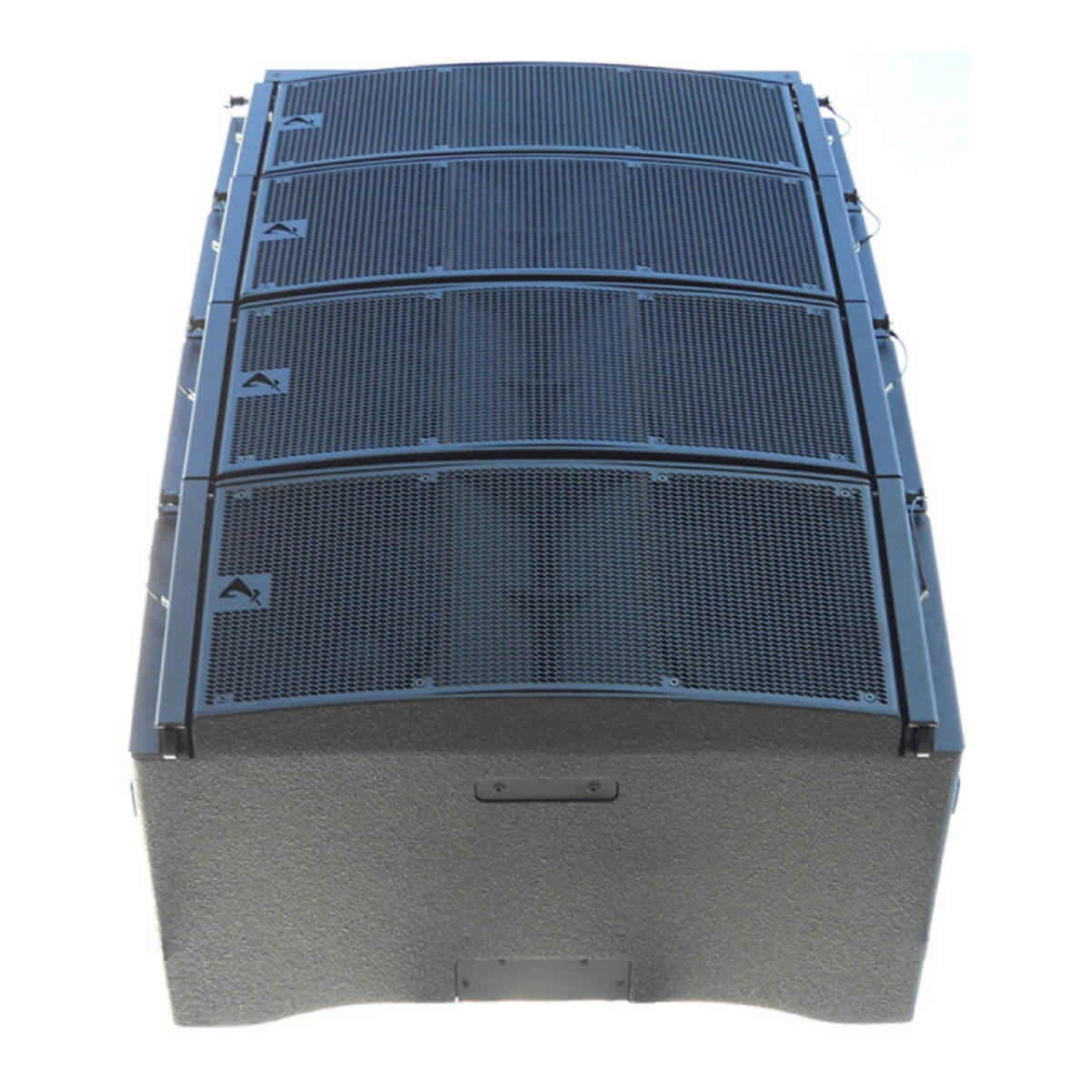

• 8 x AXIOM AX2010P – Line array element 2×10″ + 2×1.4″, 75Hz-18kHz, 800W+200W, 110°x10°, 130dB, 39.9kg. Compatible with PRONET software.
• 2 x AXIOM KPTAX2012P – Frame for hanging or floor mounting of a line array.

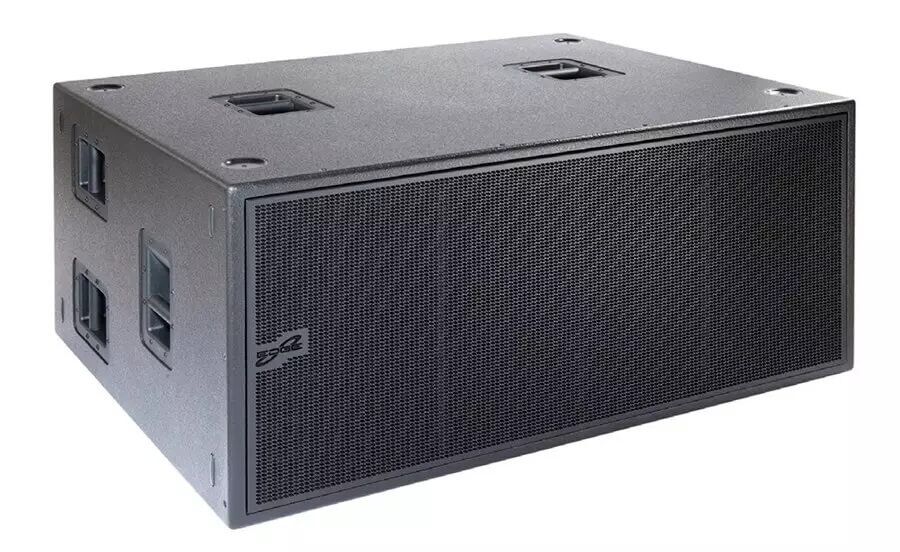

• 4 x AXIOM EDGE SW218P – Subwoofer 2×18″, 1600W (RMS AES), 4800W (peak), 36Hz-100Hz, 140dB, 98kg. Compatible with PRONET software.
• 1 x PC260 – Digital Signal Processor. 2 inputs (+ AES) and 6 outputs. Each input features a fully parametric 5-band EQ, a 28-band graphic EQ, and three bands of powerful and flexible dynamic EQ. Each unit features a fully programmable compressor/limiter and up to 600ms delay, programmable sound pressure level management (SPLM) using an internal clock, and full remote control of all functions from a connected PC via the PRONET protocol.
• 8 x HPX6000 – Power amplifier 2×3000 W.
• 2 x AXRACK – Mobile (on wheels) lockable rack for 10U equipment, switching kit for line array, distributor of network and audio signals.
• 1 x PR1920X – Data exchange cable between amplifier racks, 20m.
• 1 x USB2CAN – USB/CAN converter.
• 2 x Fastening elements for hanging a linear array
