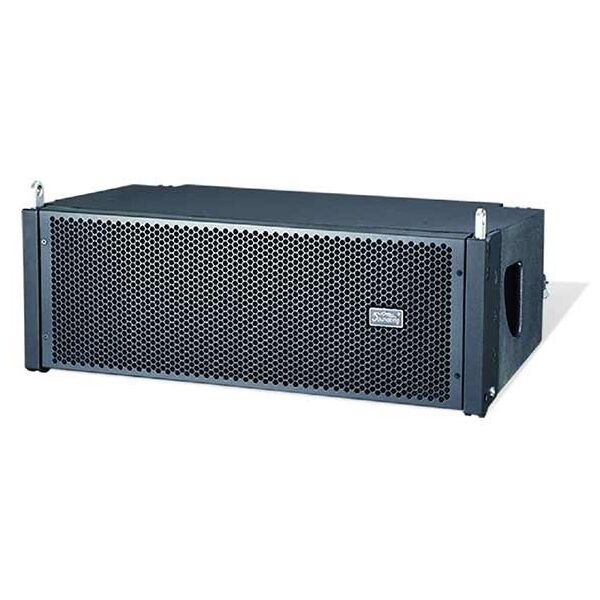

SoundKing G208A Active Line Array System
| Sound King | |
| G Series Passive Line Array Speaker | |
| Model | G208A |
| Type | Active Line Array |
| Frequency response | 70Hz~20KHz (-10dB) 80Hz~18KHz (±3dB) |
| Coverage(HxV) | 120°(H) x 6°(V) |
| LF | 2×8′ ( 204 mm ) |
| HF | 2×1.34′ ( 34mm ) compression driver |
| Sensitivity | 0dBu |
| Voltage | 230V/115V |
| Power | 1000W LF +150W(HF) |
| Max SPL | 134dB |
| Dimension(WxHxD) | 722×246×440(mm) |
| Weight | 30kg |
| Angle | 0,1,2,3,4,5,6° adjustable |
G Series Active Line Array Speaker Cabinet, every full-range speaker totally confirms to line array principle. After many years’ research, Soundking developed the HF wave guide horn, MF phase plug, patented H/M/L speaker and many other core parts exclusive for line array speaker cabinet. G Series Active Line Array Speaker Cabinet with good directivity control, evenly distributed sound field, outstanding volume/sound pressure ratio and also many other fine quality, is highly recognized in the world.
G Series Active Line Array Speaker Cabinet is built in with hi-power Class D amplifier; the amplifier uses high-efficient switching power supply; the DSP module features the adjustment of crossover, EQ, limited voltage, delay, volume, etc; easy operation for DSP panel and computer connection by LANE port.
