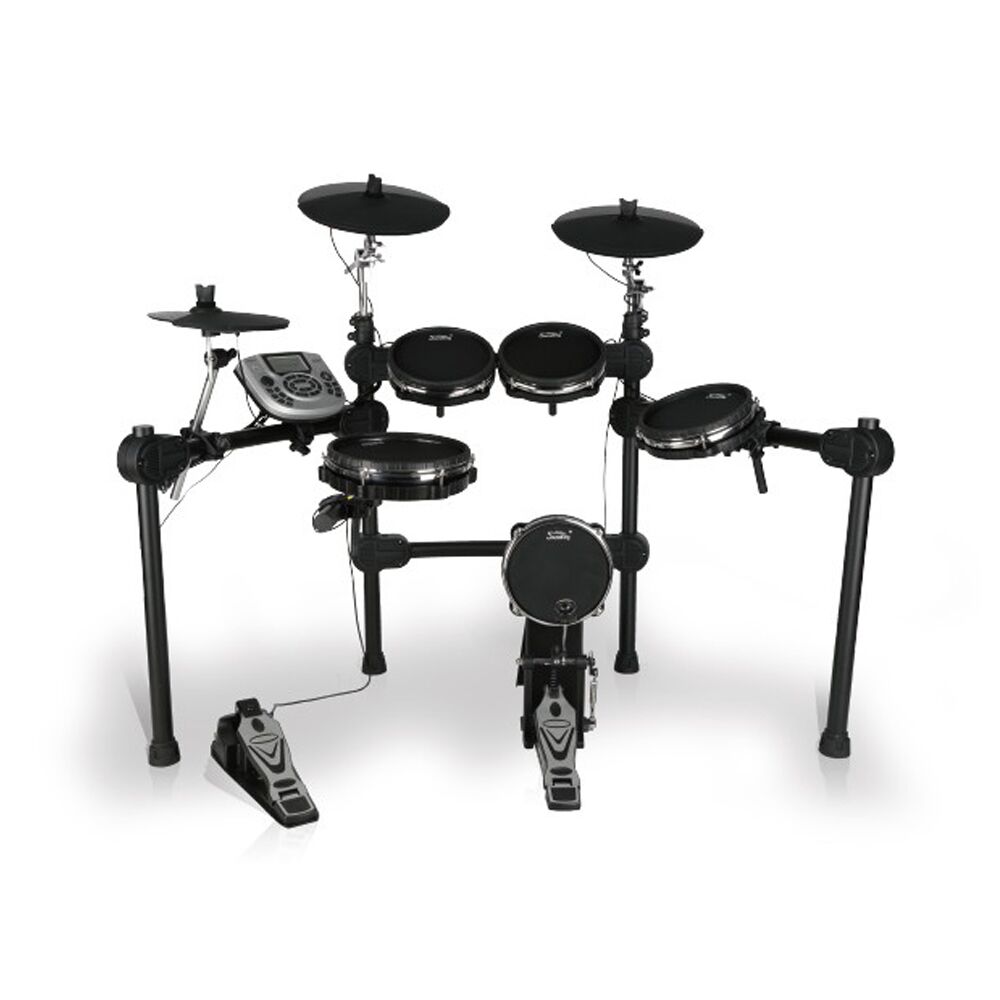

Soundking SKD203 Digital Drumset

Specifications

Module:SKD203

10”Mesh SNARE(x1):dual zones, rim hit strongly

8”Mesh TOM(x3): dual zones

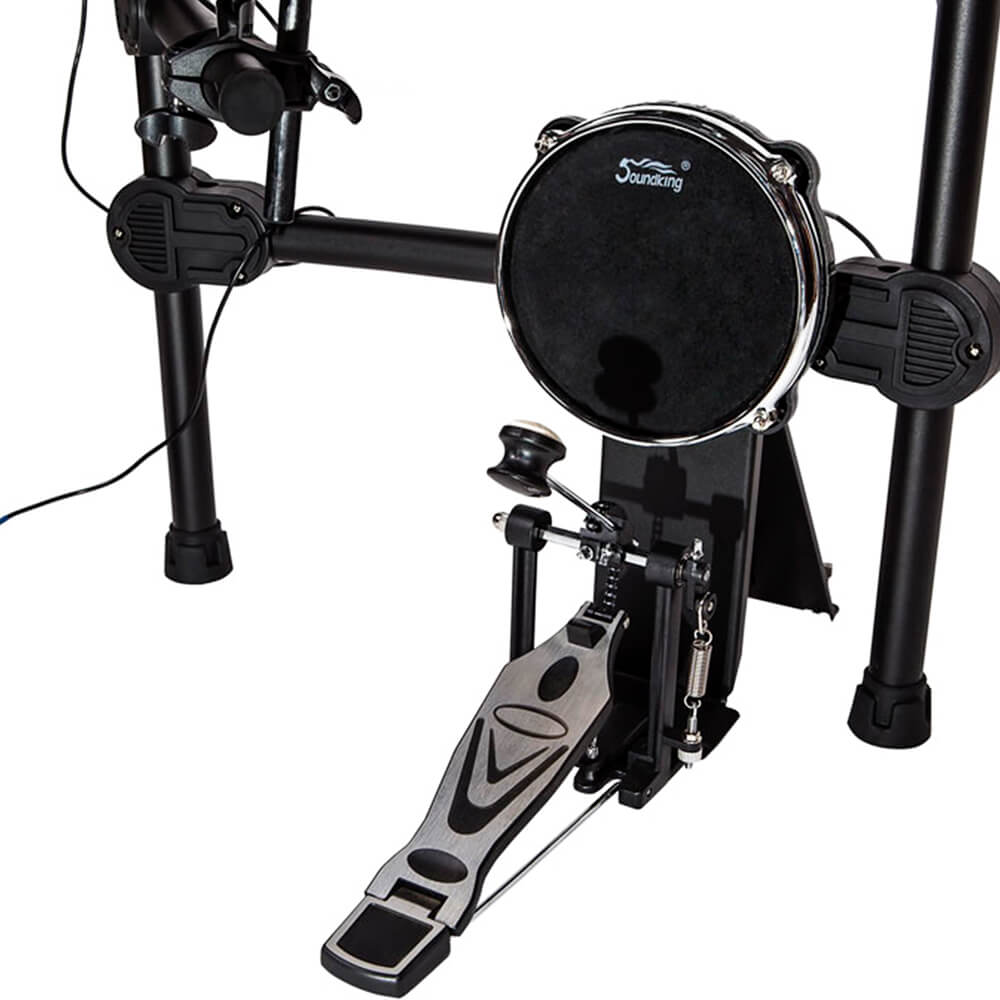

8”Mesh BASS(x1): support dual hammer

10” HI-HAT(x1):mono

12” RIDE(x1)/CRASH(x1):dual zones + choke

HI-HAT PEDAL(x1):

Different status and strength of pedals decide pad voice and volume

    Categories: ,
    Description

    (1) Drum head comprises three-layer mesh skin. Each layer used 60 mesh size PET wire (diameter 0.18mm) and polyester mesh cloth. Magnetic material is assembled in software material. The magnetic material fixed at the middle of software part has larger thickness than the soft material on the edge to reduce the mechanical noise when striking.

    (2) Compared with traditional digital drum with rubber drum head, this patented mesh drum makes little mechanical noise and can guarantee the highest performance quality. Because of the use of mesh drum head, it looks and touches very close to traditional polyester film drum head.

    (3) Patent technique is adopted as the non-contact mesh drum (patent being applied for, application already accepted). This kind of non-contact trigger mesh drum does not make direct contact with conductive medium. Compared with common digital drums on the market that require for direct contact between soft elastic material and mesh surface to transfer mechanical signal, this kind of drum can avoid poor contact caused by the dimensional change due to long-term use and extrusion. In this way, it can always generate accurate sound signal, and the service life can be increased effectively.

    Application:

    Kit Components 5 drum 3
    Cymbal Size: 700mm×1100mm

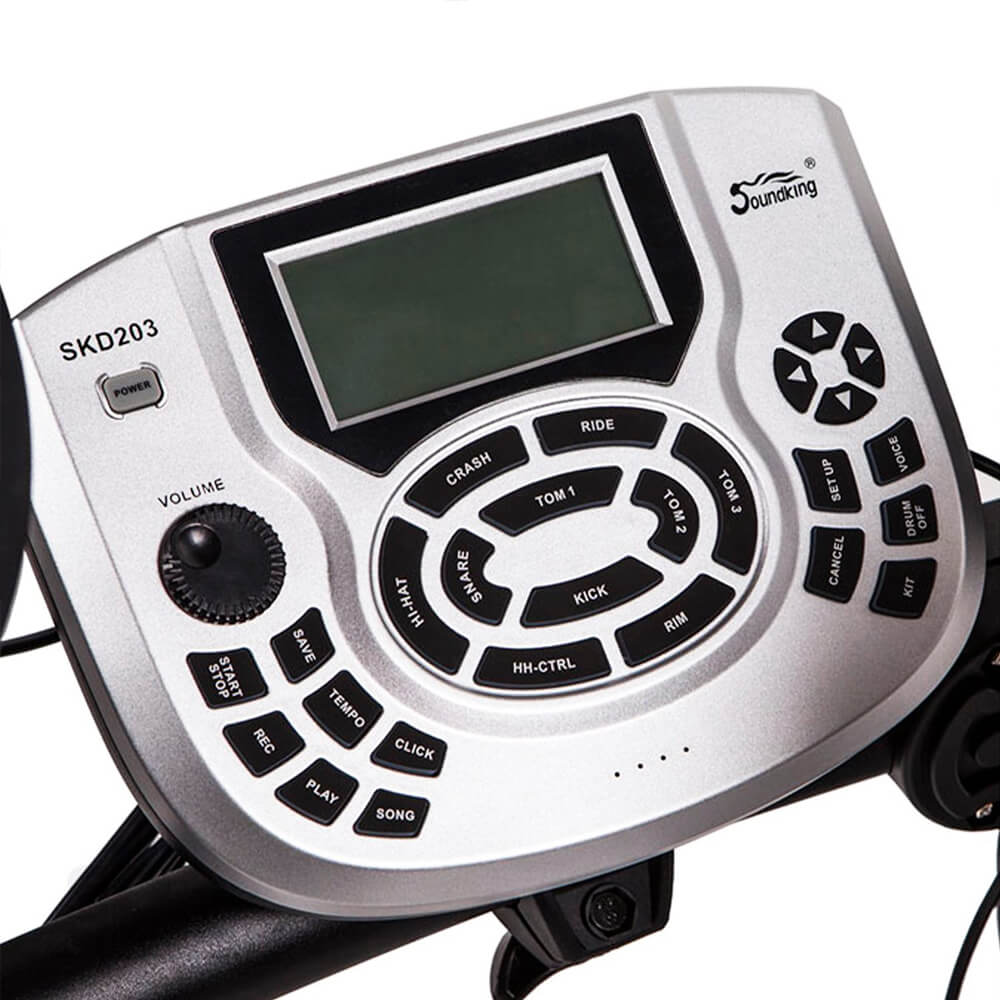

    Patent No:ZL201510514108.7SKD203 Module Parameter
    ▪ 128 x 64 character LCD display
    ▪ 358 high quality percussion voices, including GM percussion instruments
    ▪ 29 preset drum kits+12 user defined drums kits
    ▪ 20 demo songs
    ▪ Recording and playback facility
    ▪ Effect: 3 band EQ, 2 reverb settings
    ▪ Metronome: click voice, interval select, click volume
    ▪ tempo: 30-300 bpm
    ▪ Aux in jack, Line output, Headphone output. USB interface (USB to device), MIDI IN/OUT
    ▪ adjustable sensitivity、crosstalk、thrshld、mask time、retrig cancel
    ▪ DC IN:12V/1A inside+,outside – ;charging the module and internal power supply
    ▪ Internal rechargeable power supply: 5200mAh, working 8 hours continuously without external power supply
    ▪ Charging LED
    ▪ Battery operation to avoid hurt by AC
    ▪ Convenient for outdoors applications.
    ▪ Environmental friendly Lithium battery.
