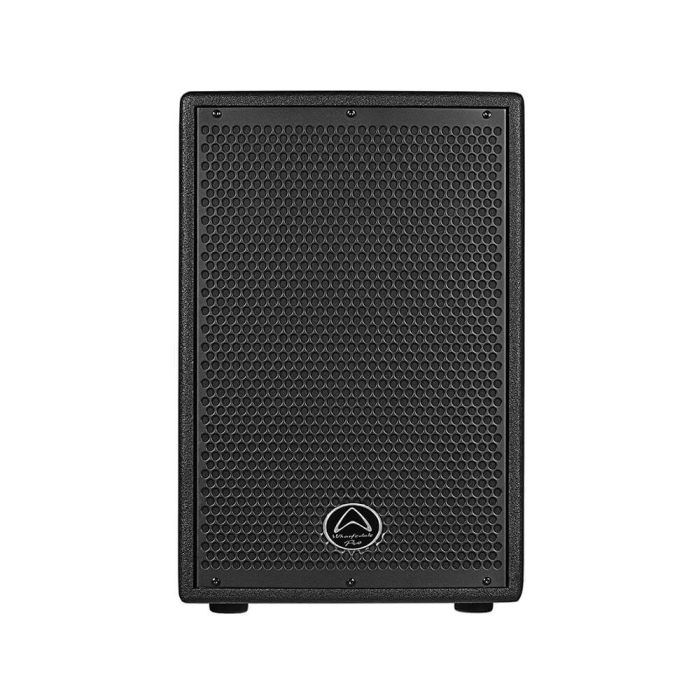

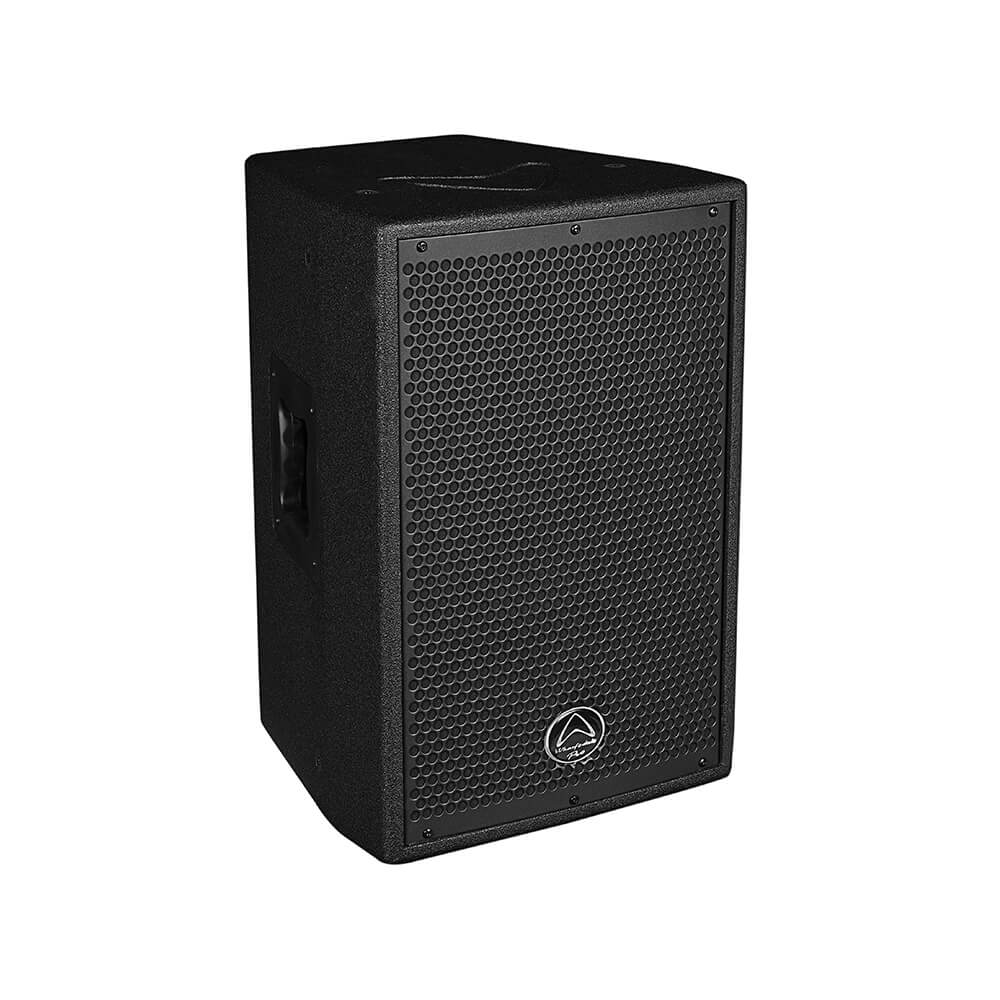

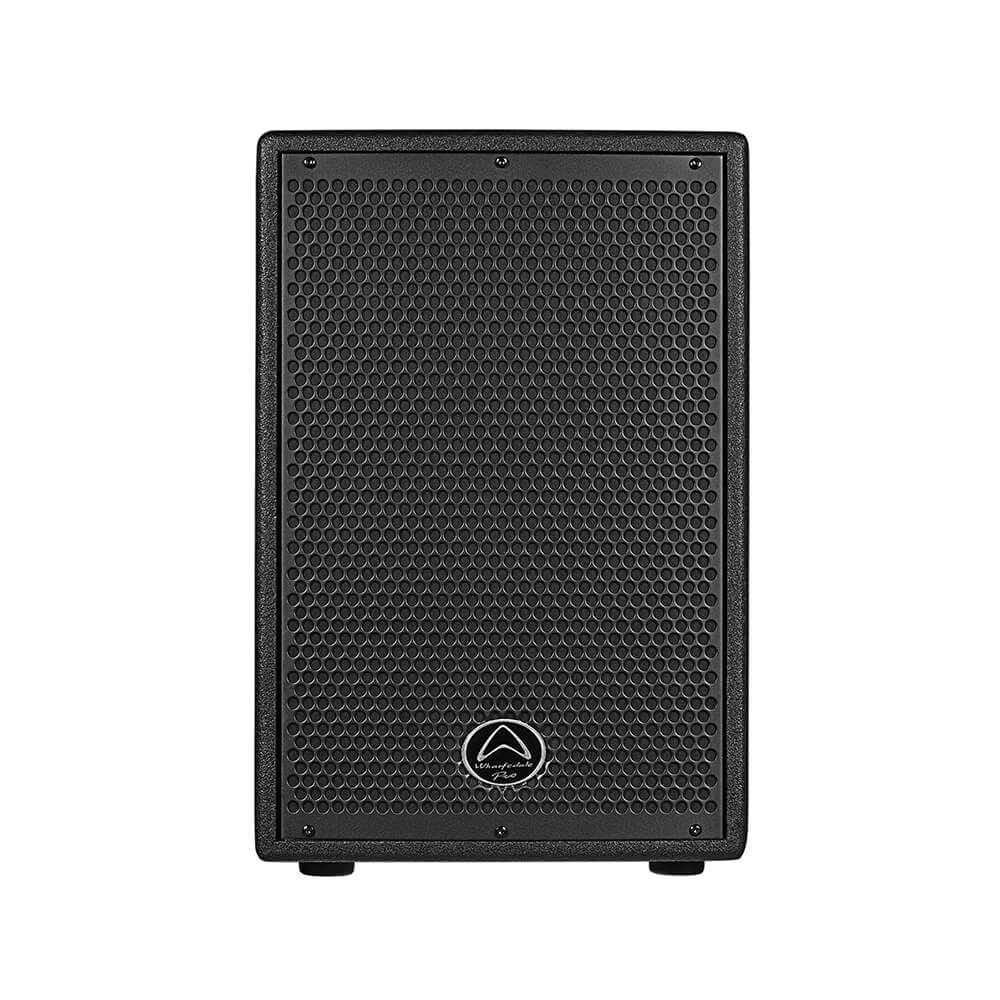

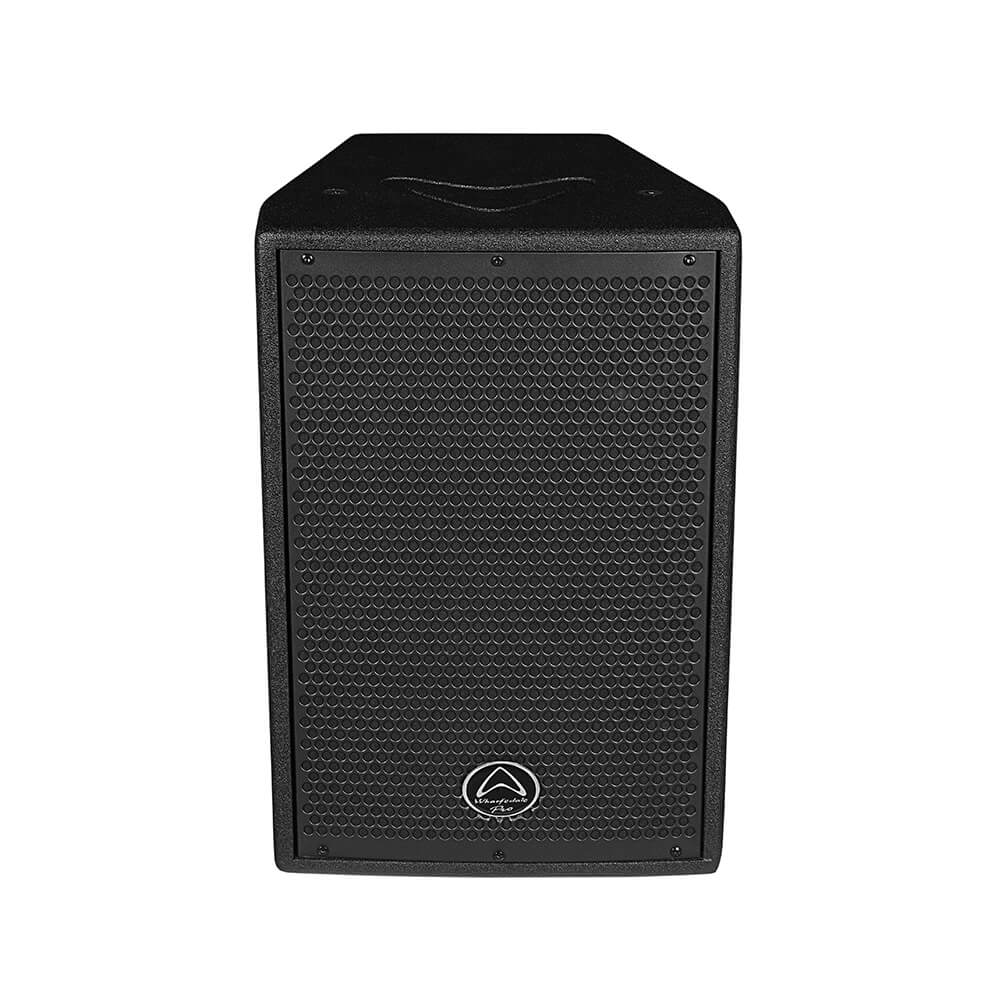

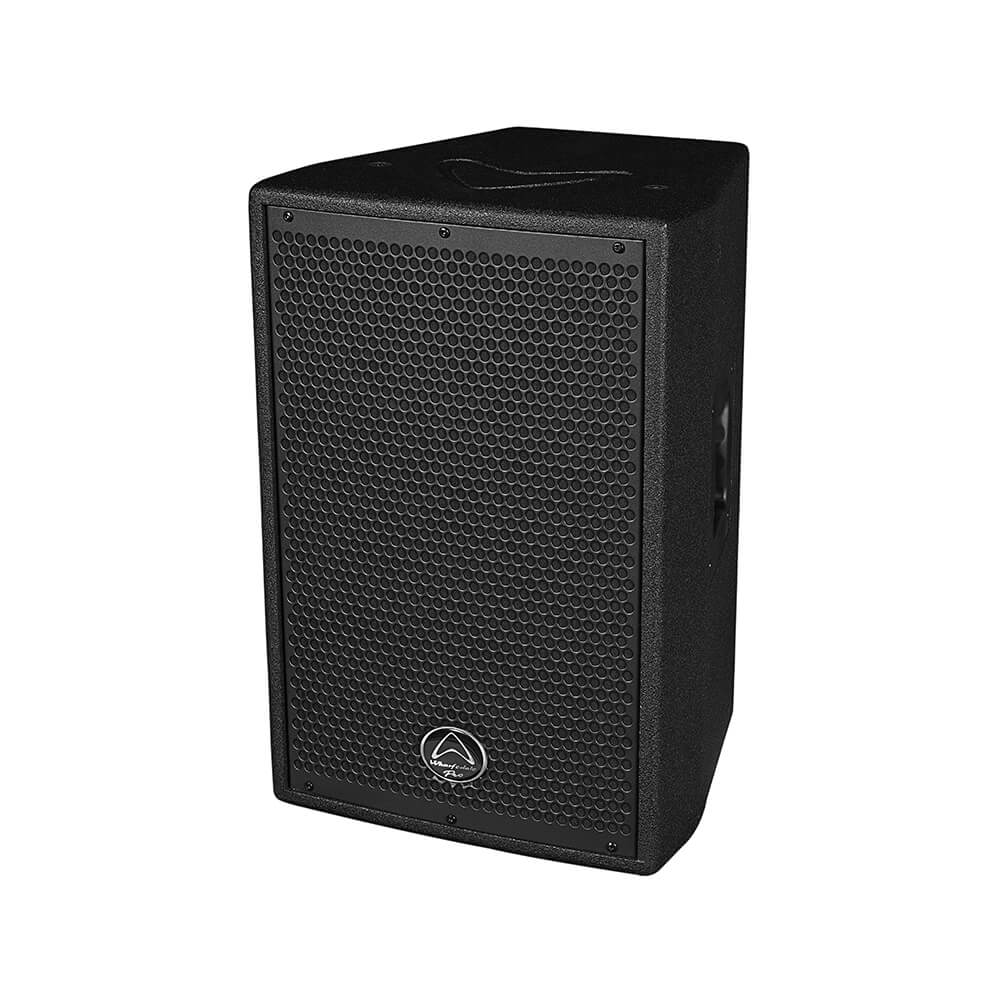

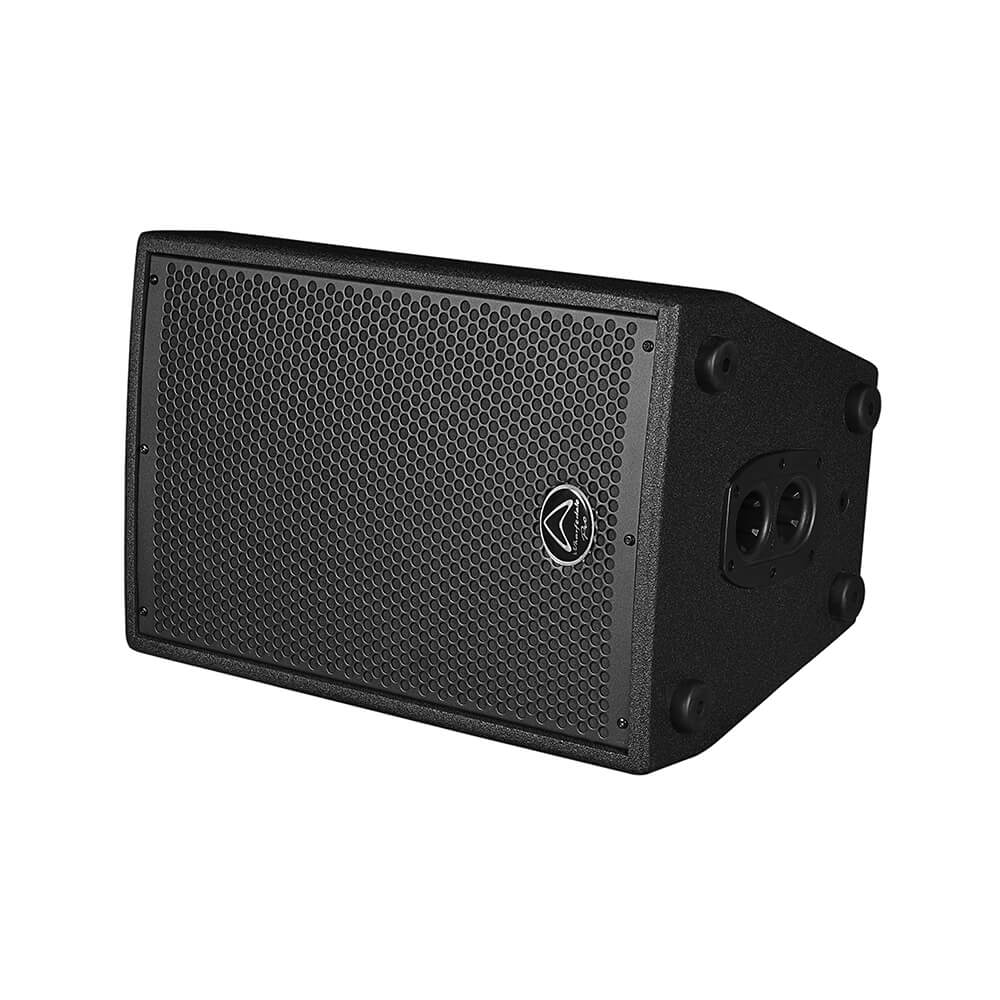

Wharfedale Pro Delta-X10 10″ Passive Speaker

Key Features

  • 10″ 2-way full range
  • 2.5″ LF voice coil
  • 128dB Max SPL
  • Birch plywood construction
  • Premium Rhino Rock paint
  • 8Ω impedance


  • 300w continuous
  • 600w programme
  • 1200w peak
  • 2 carry handles
  • Bi-amp and Passive operation

    Description

    Refinement in detail

    Delta X builds on the global success of the Wharfedale Pro Delta series.

    Constructed from 15mm plywood and covered in the highest quality Rhino Rock paint, the new Delta X10 is instantly recognizable by the engraved iconic Wharfedale Pro ‘boomerang’ logo on its cabinet.  The fresh cosmetic design however is not the only improvement the engineering team have made.

    Internally Delta X10 also has a new crossover design and construction.  Using new component positioning and bracing, the sensitive crossover electronics have been re-engineered to improve long term performance and reliability – even at the highest of volumes.

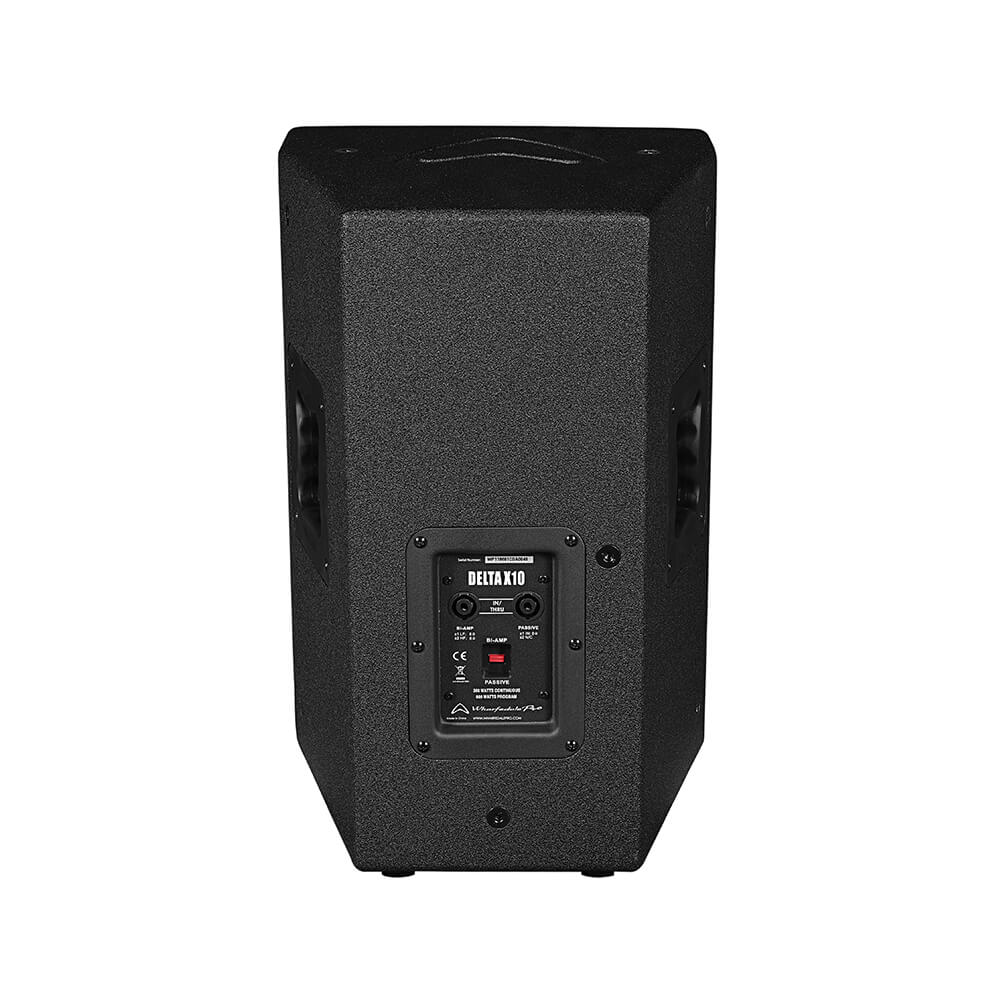

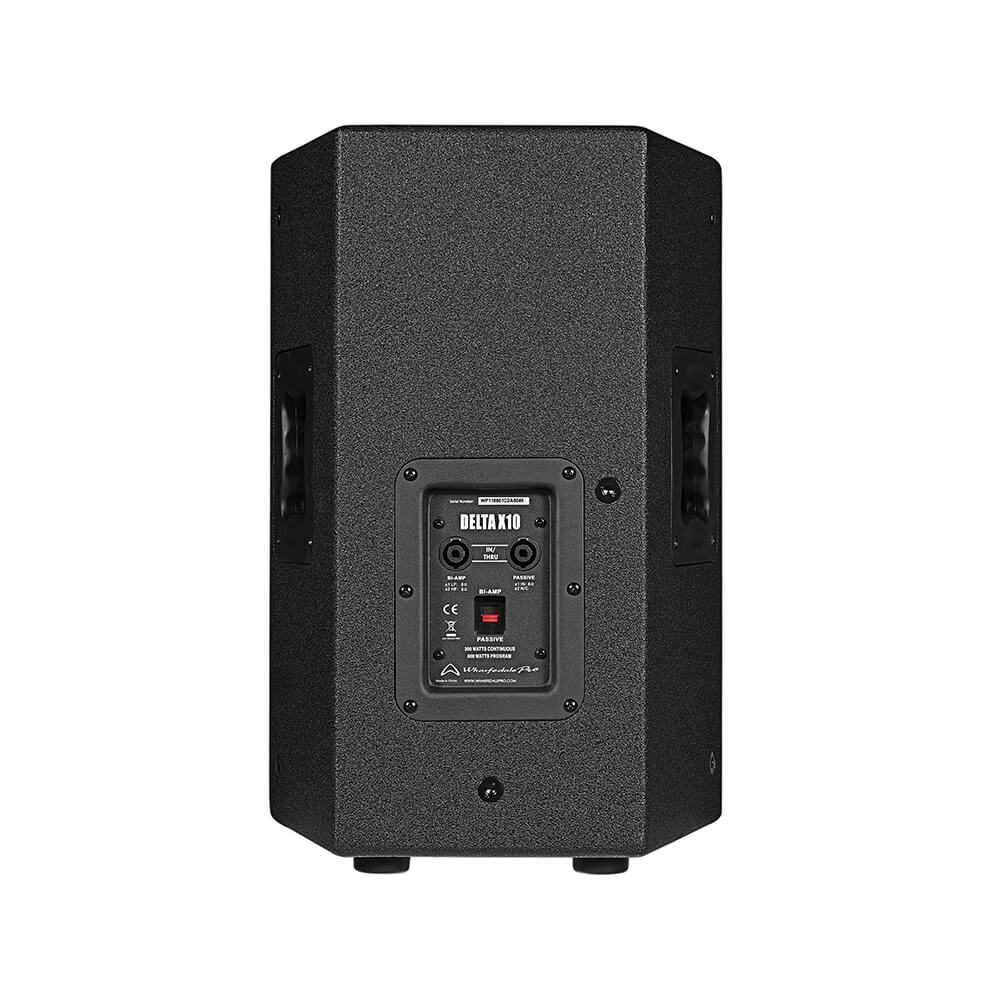

    With rear panel switching, Delta X10 can operate in either Bi-Amp or Passive modes.  This routing flexibility allows for Delta X systems to be refined using multiple amplifiers and external crossovers.

    Custom Wharfedale Pro transducers have also been selected. High output, low physical distortion cast frame woofers deliver unparalleled low frequency response. With the exception of the Delta X10, 2” titanium compression drivers are coupled to 90°x45° elliptical waveguides for impressive output level and smooth HF dispersion.

    With a full lineup of 9 new models, ranging from the 300w RMS Delta X10 to the 1600w RMS Dual Chamber 2 x 18” Delta X218 subwoofer, Delta X models are perfect for fixed installation and touring applications.



    New crossover design

    Internally Delta X models have a new crossover design and construction. Using new component positioning and bracing, the sensitive crossover electronics have been re-engineered to improve long term performance and reliability – even at the highest of volumes.

    15mm Russian Birch Plywood construction

    Delta X10 is made of premium Russian birch plywood. It is even more dense than MDF and creates an extremely strong and durable cabinet. Although not recommended, birch plywood is more tolerant in damp conditions. During construction, it is harder to cut but holds screws better than particle board or MDF. This makes it ideal for flagship professional audio loudspeakers which are to be used in extreme and critical environments.

    Solid as a rock

    As with all Wharfedale Pro PA systems, years of expertise is behind a loudspeaker built to last, with thanks to our high standards of quality control. The Delta X series are coated in the highest quality Rhino Rock paint finish – a chip resistant texture with a professional, discrete aesthetic whilst being prepared for the rigours of life on the road.

    Bi-amp and Passive modes

    In BI-AMP mode, two power amplifiers can be used. This gives you the advantage of being able to select the best power amplifier specifications for each driver inside the loudspeaker. In a BI-AMP configuration, an external crossover is used to separate the frequencies and this splits the signal to the dedicated LF amplifier and the HF amplifier. This way, each amplifier is only working on the given frequency range and, in turn, is powering the corresponding driver inside the loudspeaker. In PASSIVE mode, a single amplifier can be used to power all drivers inside the loudspeaker. The full frequency range is put into the loudspeaker and the loudspeakers’ internal crossover separates the frequencies, delivering the right frequencies to the right driver. In the example of a 2-way passive loudspeaker, this means that the single amplifier is powering both the HF compression driver and the LF transducer. The internal crossover takes care of both the frequency and power separation.



    SPECIFICATIONS

    Model Name DELTA-X10
    System Type Passive
    Configuration Two-way
    Frequency Response (+/-3dB) 65-20kHz
    Frequency Range (-10 dB) 60-20kHz
    Sensitivity (2.83v/1m) 97dB
    Calculated Maximum SPL @1m 128dB
    System Rated Impedance
    Low Frequency Transducer
    Size 288mm / 10″ Paper
    Voice Coil Size 63.5mm / 2.5″
    Rated Impedance
    LF Power (re:AES2-2012) 300W
    High Frequency Transducer
    HF Driver Type Compression Driver
    Voice Coil Size 44.5mm / 1.75″ Titanium
    Exit Size 25.4mm / 1″
    Diaphragm Material Titanium
    Rated Impedance
    HF Power (re:AES2-2012) 40W
    Nominal Coverage (H x V) 90⁰ x 60⁰
    Power
    System Continuous Power 300W
    System Programme Power 600W
    System Peak Power 1200W
    Crossover frequency 2.8kHz
    Input Connector 2 x NL4 (speakON Compatible)
    Hardware
    Pole Mount Dual Angle (0⁰ / 10⁰) 35mm Socket
    Handles 2 on Sides
    Enclosure
    Enclosure Material 15mm Plywood
    Finish black paint
    Grille Material & Finish 1.5 mm Steel Black or White
    Dimensions – Unpacked
    Height 500mm / 19.7″
    Width Front 338mm / 13.3″
    Width Rear 212.4mm / 8.4″
    Depth 330mm / 13.0″
    Dimensions – Packed
    Height 575mm / 22.6″
    Width Front 400mm / 15.7″
    Width Rear 300mm / 11.8″
    Depth 386mm / 15.2″
    Weight
    Net Weight (kg / lbs) 16.58kg / 36.5lbs
    Gross Weight (kg / lbs) 19.6kg / 43.0lb
