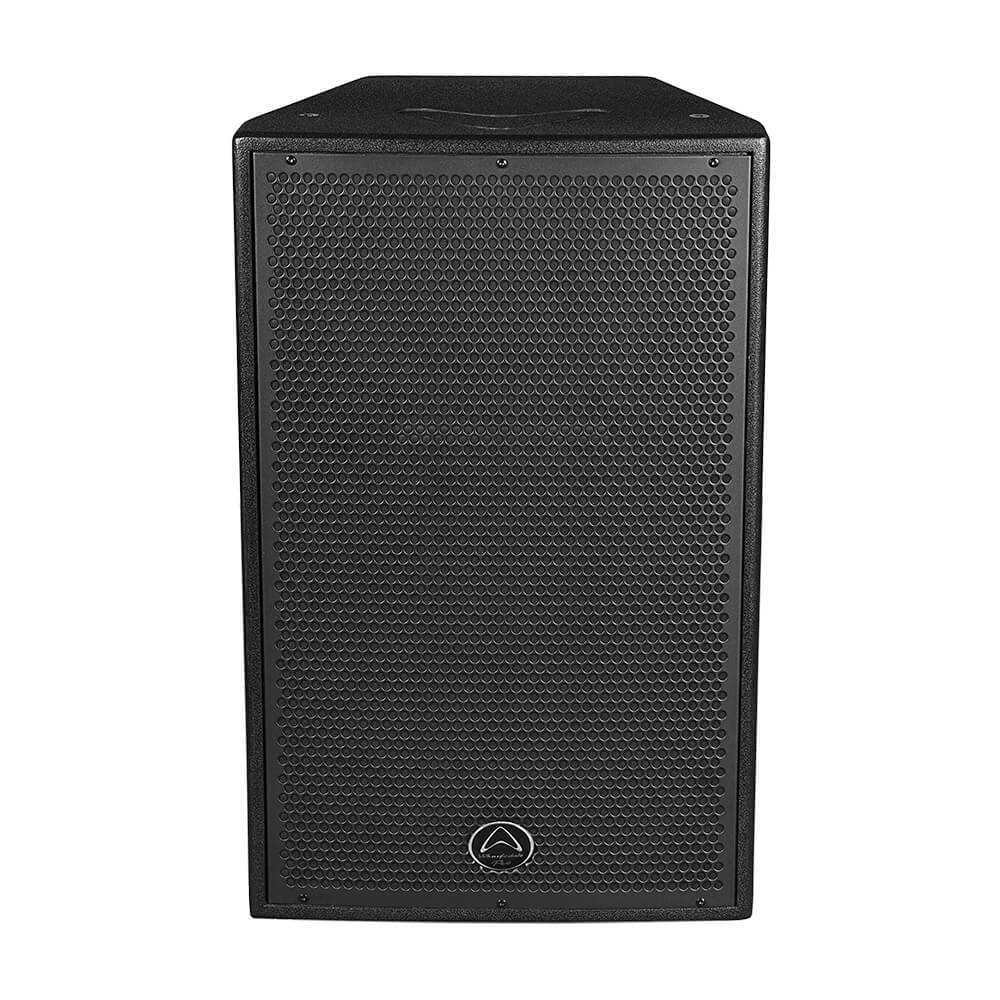

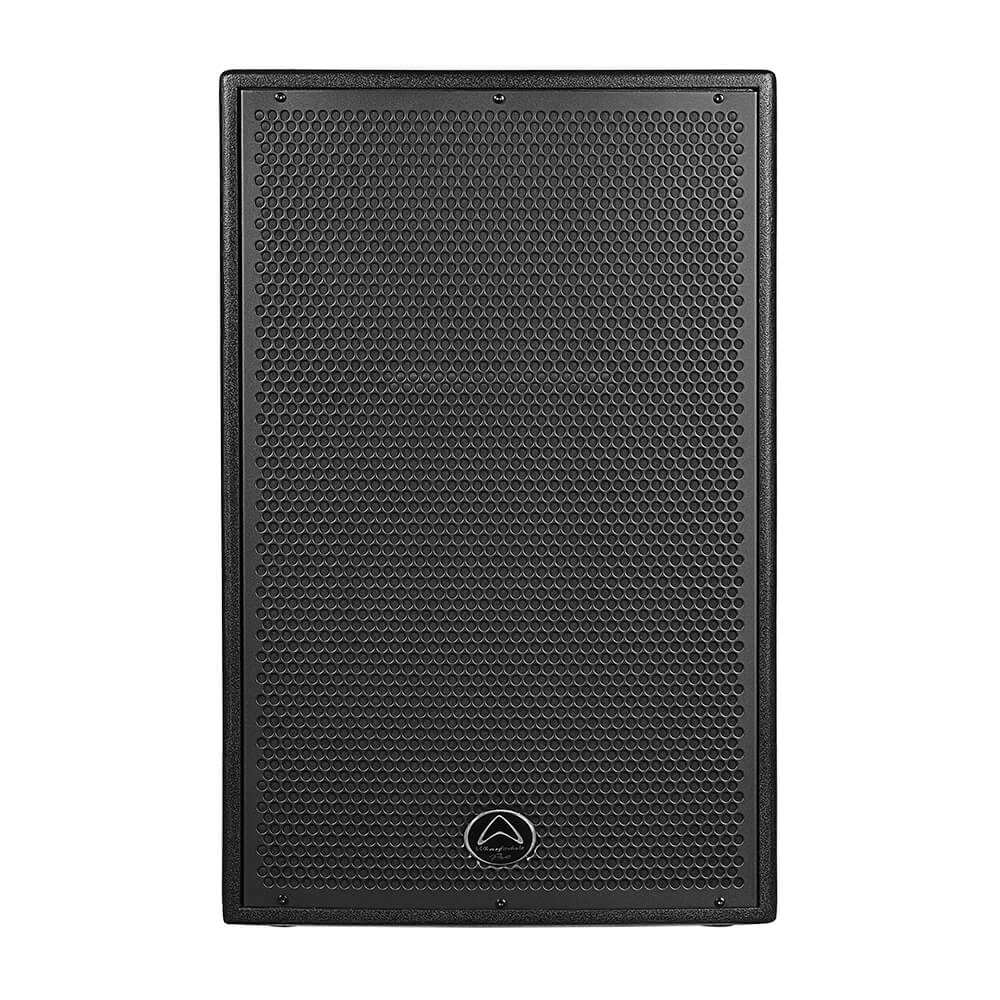

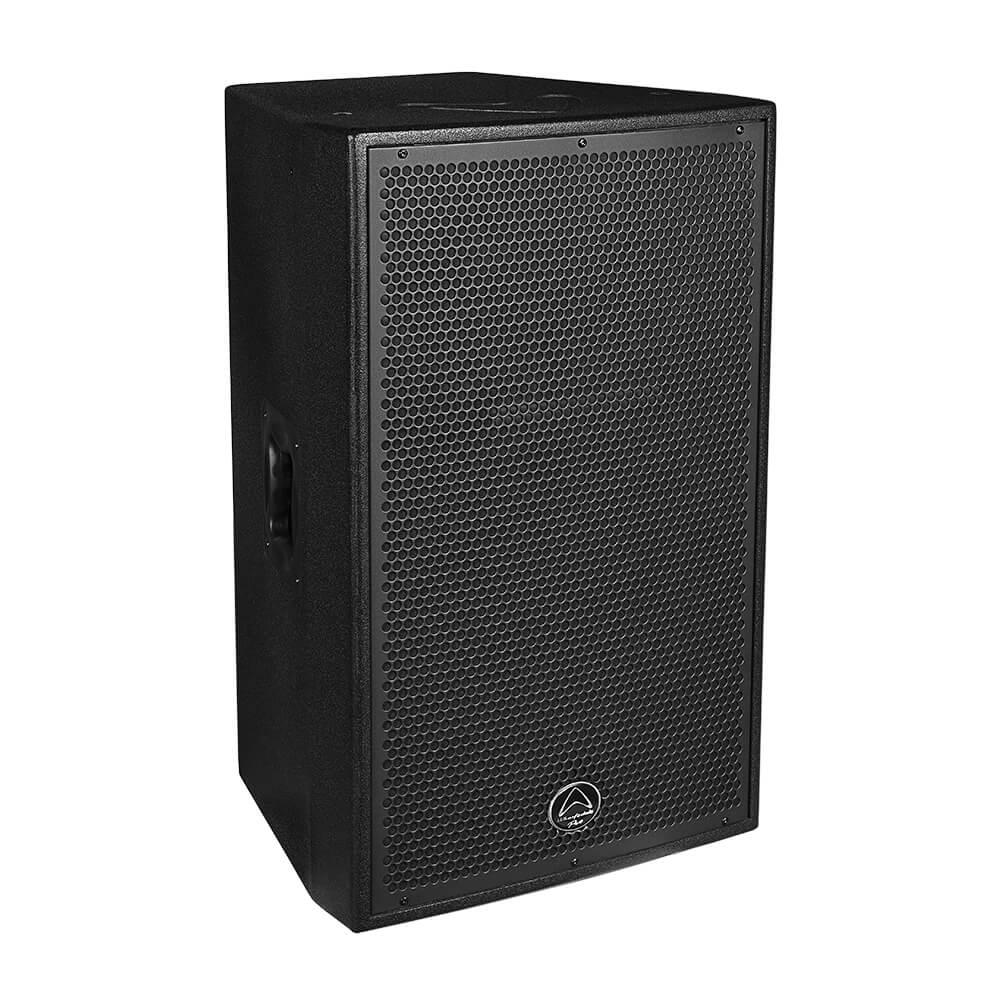

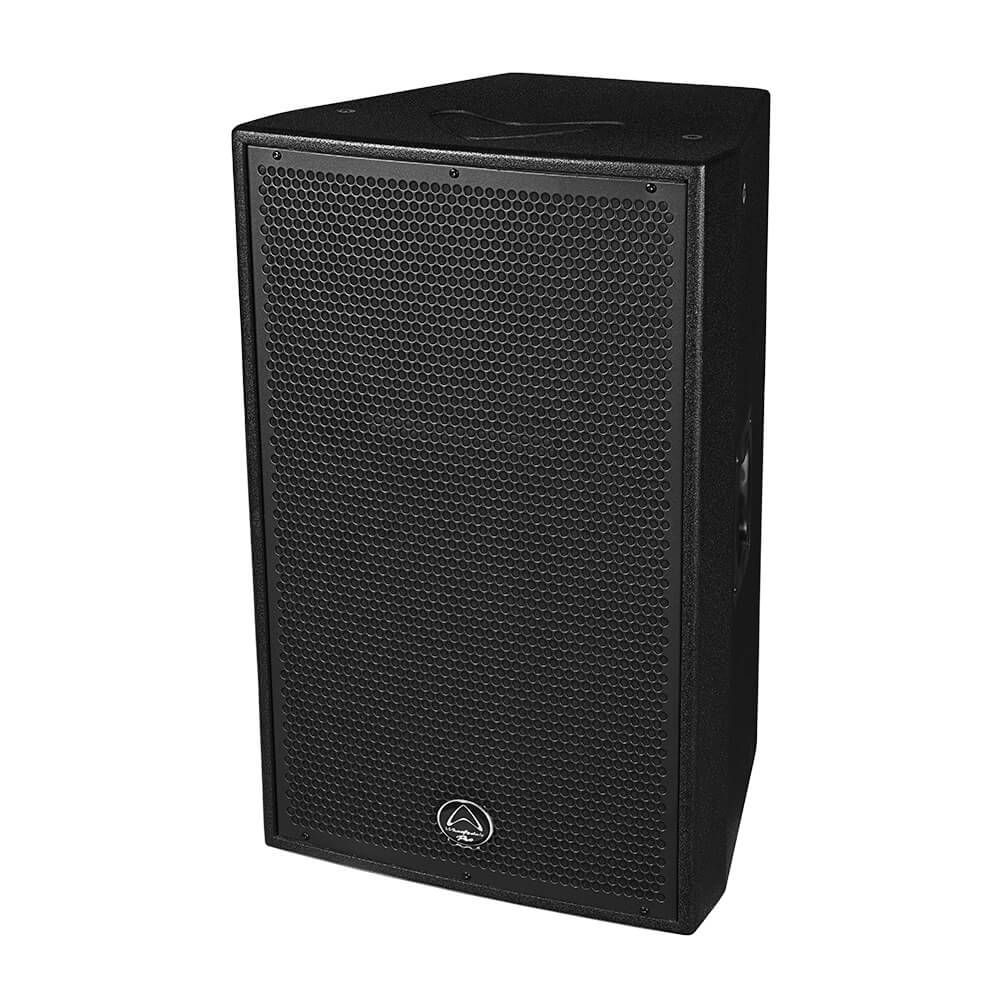

Wharfedale Pro Delta-X15 15″ Passive Speaker
Key Features
|
|
Description
Refinement in detail
Delta X builds on the global success of the Wharfedale Pro Delta series.
Constructed from 15mm plywood and covered in the highest quality Rhino Rock paint, the new Delta X15 is instantly recognizable by the engraved iconic Wharfedale Pro ‘boomerang’ logo on its cabinet. The fresh cosmetic design however is not the only improvement the engineering team have made.
Internally Delta X15 also has a new crossover design and construction. Using new component positioning and bracing, the sensitive crossover electronics have been re-engineered to improve long term performance and reliability – even at the highest of volumes.

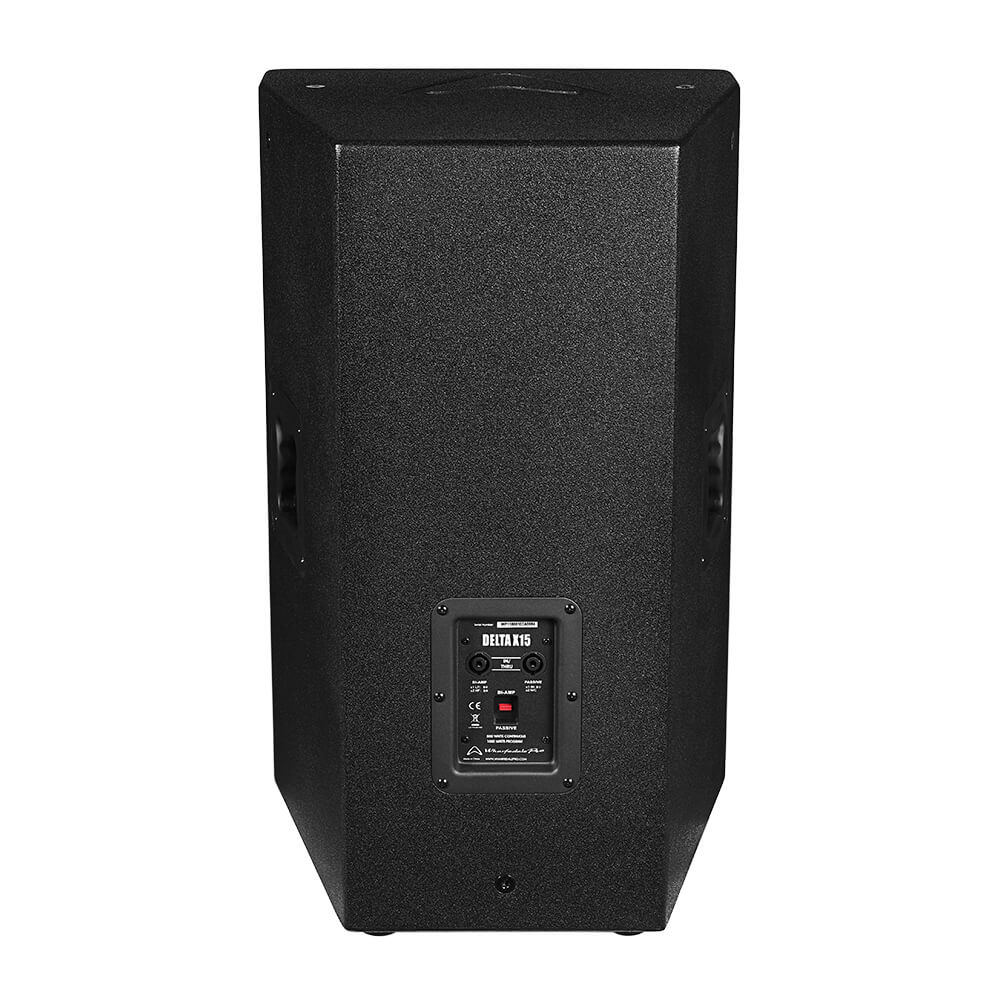

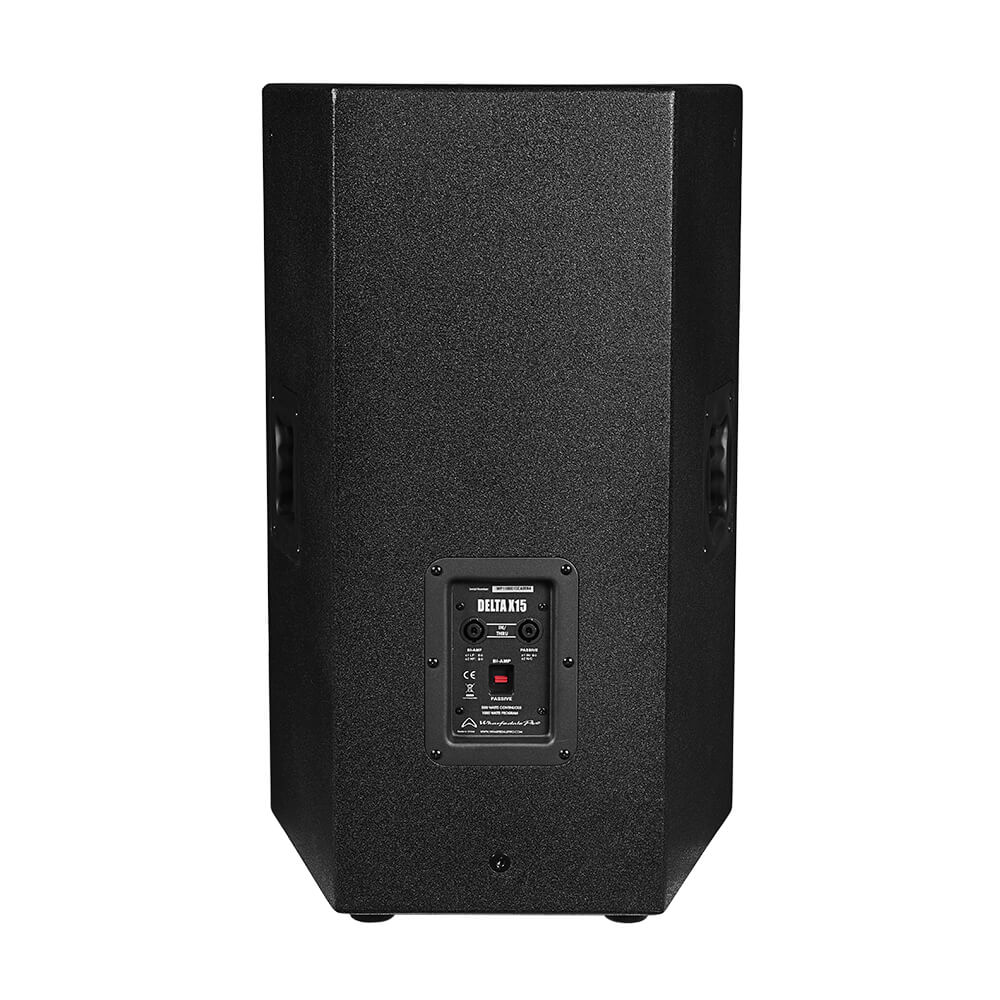

With rear panel switching, Delta X15 can operate in either Bi-Amp or Passive modes. This routing flexibility allows for Delta X systems to be refined using multiple amplifiers and external crossovers.
Custom Wharfedale Pro transducers have also been selected. High output, low physical distortion cast frame woofers deliver unparalleled low frequency response. With the exception of the Delta X10, 2” titanium compression drivers are coupled to 90°x45° elliptical waveguides for impressive output level and smooth HF dispersion.
With a full lineup of 9 new models, ranging from the 300w RMS Delta X10 to the 1600w RMS Dual Chamber 2 x 18” Delta X218 subwoofer, Delta X models are perfect for fixed installation and touring applications.
15mm Russian Birch plywood construction
Delta X15 is made of premium 15mm Russian birch plywood. It is even more dense than MDF and creates an extremely strong and durable cabinet. Although not recommended, birch plywood is more tolerant in damp conditions. During construction, it is harder to cut but holds screws better than particle board or MDF. This makes it ideal for flagship professional audio loudspeakers which are to be used in extreme and critical environments.
Bi-amp and Passive modes
In BI-AMP mode, two power amplifiers can be used. This gives you the advantage of being able to select the best power amplifier specifications for each driver inside the loudspeaker. In a BI-AMP configuration, an external crossover is used to separate the frequencies and this splits the signal to the dedicated LF amplifier and the HF amplifier. This way, each amplifier is only working on the given frequency range and, in turn, is powering the corresponding driver inside the loudspeaker. In PASSIVE mode, a single amplifier can be used to power all drivers inside the loudspeaker. The full frequency range is put into the loudspeaker and the loudspeakers’ internal crossover separates the frequencies, delivering the right frequencies to the right driver. In the example of a 2-way passive loudspeaker, this means that the single amplifier is powering both the HF compression driver and the LF transducer. The internal crossover takes care of both the frequency and power separation.
SPECIFICATIONS
| Model Name | DELTA-X15 |
| System Type | Passive |
| Configuration | Two-way |
| Frequency Response (+/-3dB) | 50-20KHZ |
| Frequency Range (- 10 dB) | 45-20KHZ |
| Sensitivity (2.83v/1m) | 98dB |
| Calculated Maximum SPL @1m | 131dB |
| System Rated Impedance | 8Ω |
| Low Frequency Transducer | |
| Size | 404mm / 15″ Paper |
| Voice-Coil Size | 77.1mm / 3″ |
| Rated Impedance | 8Ω |
| LF Power (re:AES2-2012) | 500W |
| High Frequency Transducer | |
| HF Driver Type | Compression Driver |
| Voice-Coil Size | 50.8mm / 2″ Titanium |
| Exit Size | 35.6mm / 1.4″ |
| Diaphragm Material | Titanium |
| Rated Impedance | 8Ω |
| HF Power (re:AES2-2012) | 50W |
| Nominal Coverage (H x V) | 90⁰ x 45⁰ |
| Power | |
| System Continuous Power | 500W |
| System Programme Power | 1000W |
| System Peak Power | 2000W |
| Crossover frequency | 1.8kHz |
| Input Connector | 2 x NL4 (speakON Compatible) |
| Hardware | |
| Pole Mount | Dual Angle (0⁰ / 10⁰) 35mm Socket |
| Handles | 2 on Sides |
| Enclosure | |
| Enclosure Material | 15mm Plywood |
| Finish | black paint |
| Grille Material & Finish | 1.5 mm Steel Black |
| Dimensions – Unpacked | |
| Height | 700mm / 27.6″ |
| Width Front | 446mm / 17.6″ |
| Width Rear | 281.4mm / 11.1″ |
| Depth | 406mm / 16.0″ |
| Dimensions – Packed | |
| Height | 803mm / 31.6″ |
| Width Front | 622mm / 24.5″ |
| Width Rear | 622mm / 24.5″ |
| Depth | 498mm / 19.6″ |
| Weight | |
| Net Weight (kg / lbs) | 29.9kg / 65.9lbs |
| Gross Weight (kg / lbs) | 35.5kg / 78.1lbs |
