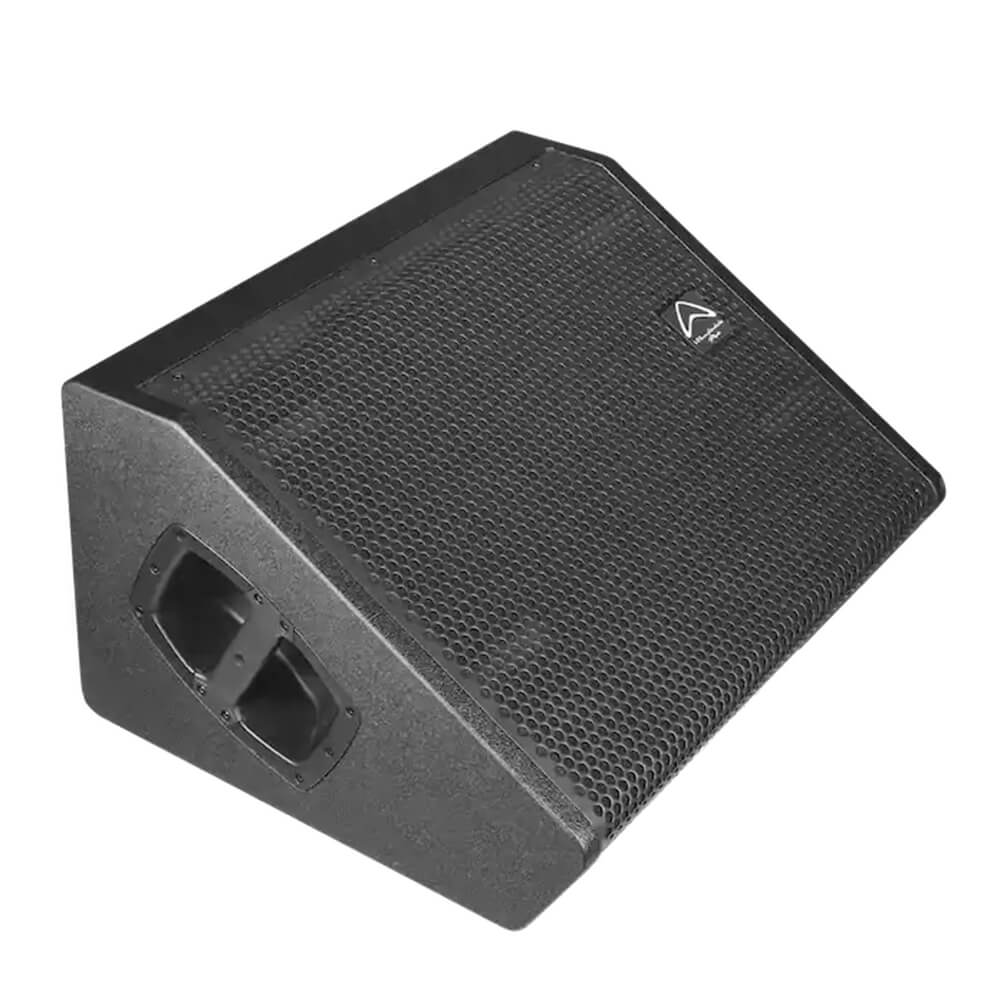

Wharfedale Pro WDG-A12 Active Floor Monitor
FEATURES
- Versatile floor monitors….with more
- Coaxial design
- Deploy as 25° or 60°
- Spherical waveguides
- Optional WPB-W12/ 15 U-Brackets and WPB-7 for easy wall mounting
- Active models with 8 x presets inc FIR plus PRO=LINK software control
- Durable Tough-Tone paint finish. Put your boot on it!!
Coaxial WeDGe monitors, not only for the stage
WDG series has been engineered to re-define the traditional floor monitor. Available in active or passive and with 12” and 15” models, WDG has some handy tricks up its trouser leg……
WDG-12, WDG-15 and active variants WDG-A12, WDG-A15, feature Wharfedale Pro coaxial drivers and a spherical waveguide delivering 70° nominal coverage. All models are versatile due to thoughtful cabinet design. WDG monitors can be deployed as 25° degrees for far field or 60° near field applications. There is also a 35 mm pole socket and WDG can even be deployed on the optional WPB-7 or U- brackets.
Active models feature 8 x DSP presets for easy hands on control, but can also be managed using RS485 protocol with the Wharfedale Pro PRO=LINK software. This allows for detailed remote preset editing and system management. There is also a practical HF Output EQ knob for any real-time tweaks needed on-stage.
Stage, pole, near or far or even on a wall. WDG delivers all the advantages of coaxial in a versatile manner.

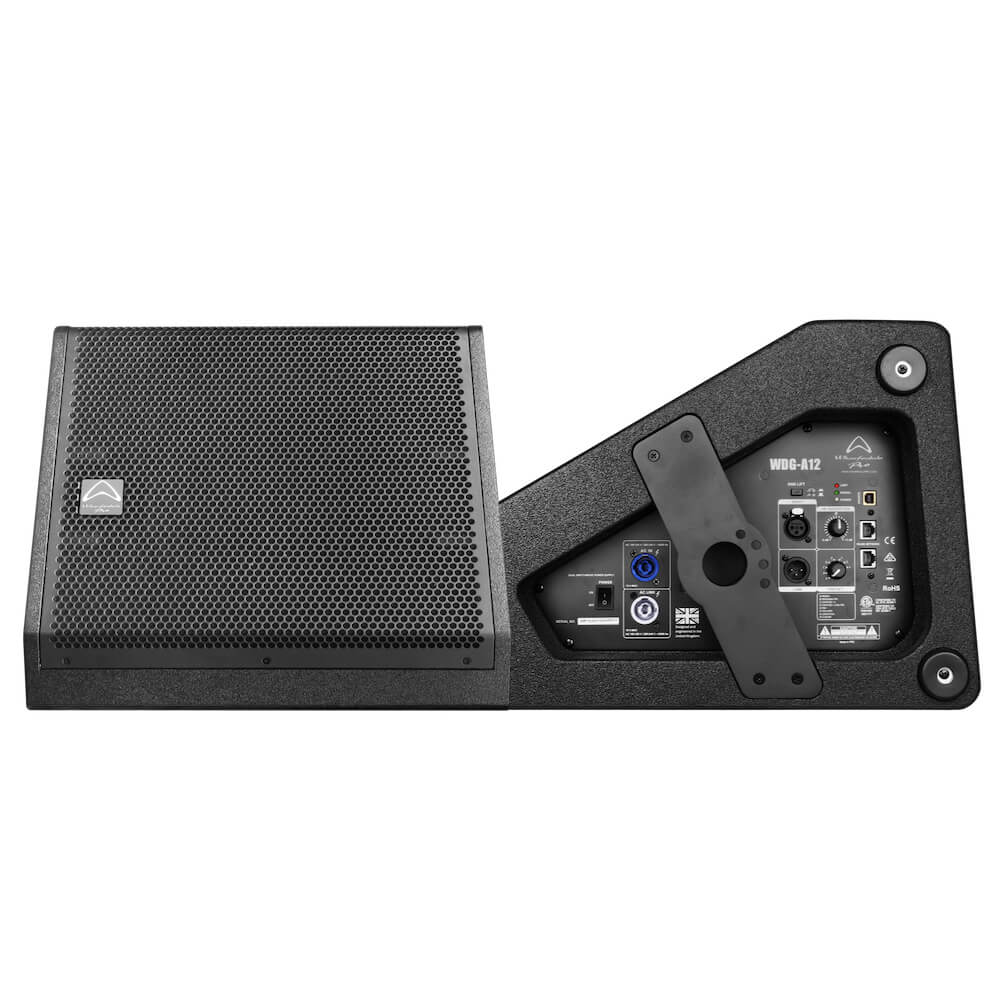

VERSATILE DESIGN
![]()

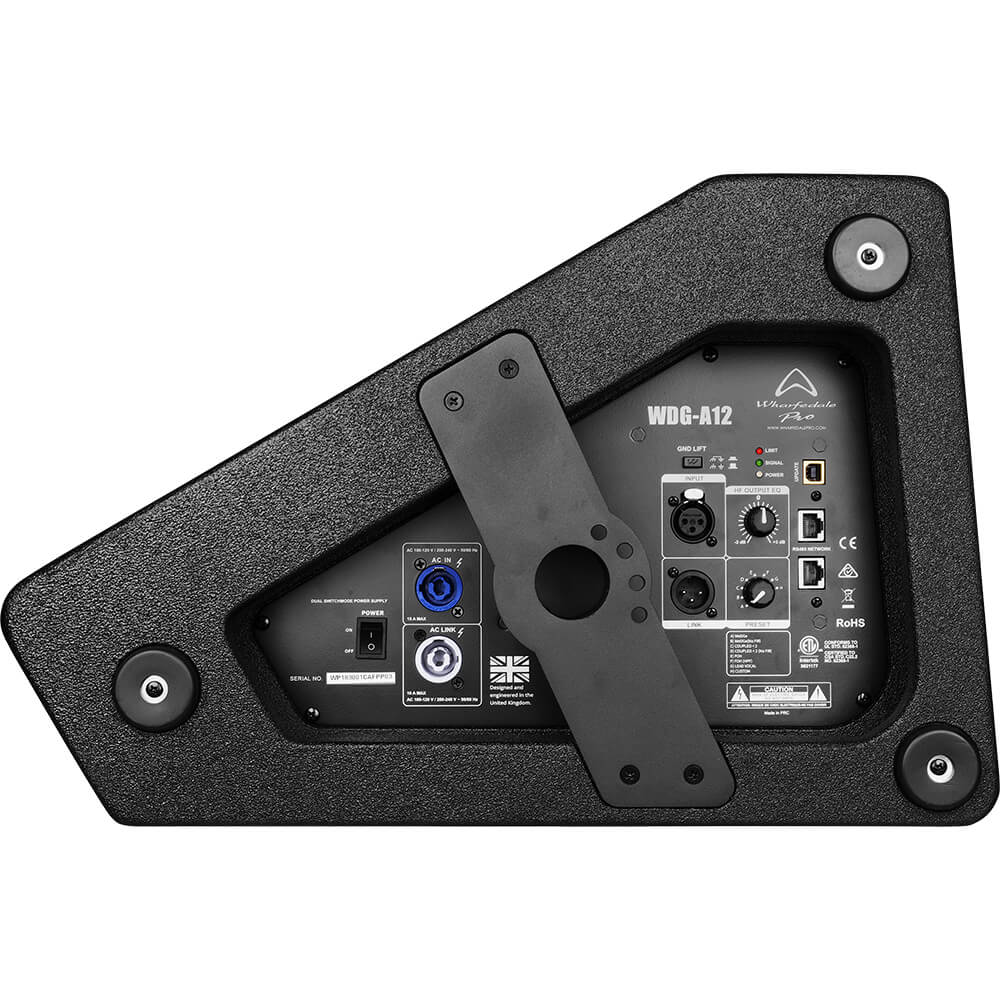

ACTIVE CONTROL
Active models (WDG-A12 and WDG-A15) include 8 presets with or without FIR, for critical low-latency applications, but the system is also fully controllable using the RS485 protocol through our Wharfedale Pro PRO=LINK control software.
Active models also feature Ground Lift and a handy HF Output EQ allowing for real-time tweaks.
MAKING IT EASIER WITH PICTURES
PRODUCT DIMENSIONS
SPECIFICATIONS
Model Name |
WDG-A12 |
|
System Type |
12” Coaxial Active |
|
Configuration |
Two-way |
|
Frequency Response (+/-3 dB) |
58 Hz – 20 kHz |
|
Frequency Range (-10 dB) |
40 Hz – 25 kHz |
|
Sensitivity (2.83 v / 1 m) |
98 dB |
|
Calculated Maximum SPL @1 m |
127 dB |
|
System Peak SPL |
133 dB* |
|
* level at 1m using pink noise with crest factor 4, with dedicated preset |
|
Drivers |
|
|
LF Size |
304.8mm / 12” |
|
LF Voice Coil Size |
63.5mm / 2.5” |
|
LF Frame Material |
Aluminium |
|
HF Driver Type |
Compression Driver |
|
HF Voice Coil Size |
50.8mm / 2” |
|
HF Exit Size |
25.4mm / 1” |
|
Waveguide Type |
Spherical |
|
Nominal Coverage (H x V) |
70° |
|
Driver Brand |
Wharfedale Pro |
Amplifiers |
|
|
Amplifier Design |
Class D |
|
Power Rating |
800W Peak (700W LF + 100 W HF) 400W Continuous (350 W LF + 50 W HF) |
|
Thermal Protection |
Amplifier Shut Down. Auto Reset |
|
Low Line Voltage Shut Down |
60% Nominal Line Voltage |
|
Driver Protection |
Independent LF/HF RMX and Peak Limiters |
|
DC and Short Protection |
Yes |
|
Clip Limiter |
Yes |
|
Limiter Indicator |
Red LED |
|
Signal Indicator |
Green LED |
|
Power/Active Indicator |
White LED |
|
Find Function Indicator |
Blue LED |
|
Input Sensitivity |
+4 dBu |
|
Maximum Input Level |
+18 dBu |
|
Input Impedance |
Balanced: 10 KΩ |
|
AC Power details – Power Supply |
AC 100-120V~ and 220-240 V~, 50/60 Hz Automatic |
|
Input |
Balanced socket XLR |
|
AC Power |
PowerCon In/Out |
Construction |
|
|
Rigging & Hardware |
35mm Pole Mount 4 x M8 Threaded points for WPB-7 or PowerdriverTM Series 100 products |
|
Optional Accessories |
Heavy Duty transport soft Cover WDG-W12 Horizontal Flying Yoke |
|
Vertical Splay Angle Range |
N/A |
|
Handles |
1 on top |
|
Enclosure |
Trapezoid |
|
Enclosure Material |
15 mm Plywood |
|
Finish |
Tough-Tone Finish |
|
Colour |
Black (white available on request – Pricing and availability subject to change) |
|
Grille Material & Finish |
Powder coated steel |
|
Monitor Angle (degrees) |
60° – 25° |
Dimensions – (Unpacked) |
|
|
Height |
310mm / 12.2” |
|
Width |
540 mm / 21.3” |
|
Depth |
471.7 mm / 18.6” |
Dimensions – (Packed) |
|
|
Height |
635 mm / 24.9” |
|
Width |
560 mm / 22.1” |
|
Depth |
398 mm / 15.7” |
Weight |
|
|
Net Weight (kg / lbs) |
20.16 kg / 44 lbs |
|
Gross Weight (kg / lbs) |
23.16 kg / 50.6 lbs |
