Wharfedale Pro WLA-1 Active Hybrid Curvature Array System
WLA-1A ACTIVE
Hybrid Curvature array
- The active version of the WLA-1 System
- Internal amplification
- Internal DSP with FIR filters
- Controlled by software
- 12” and 15” models with coaxial drivers from Beyma
- 21” Subwoofer with 4.0” Quattro voice coil from Beyma
- New 18″ Subwoofer with 4.0″ Duo voice coil from Beyma
- EVO-Fold waveguides
- Integral side plate rigging
- Premium Baltic birch construction
- EASE .gll files for download
- Versatile with comprehensive hardware accessories
The WLA-1 Hybrid Curvature Array system…..is now…..ACTIVE.
The WLA-1A active system incorporates all the incredible hardware features of its passive brother – the WLA-1 System.
The EVO-Fold waveguides, the drivers created by Beyma in Europe and the Hybrid Curvature Array configuration are all included….but the new WLA-1A Active now brings powerful internal amplification and refined internal DSP processing to the party.
It has never been this easy to achieve stunning sonic results in a huge variety of venues.

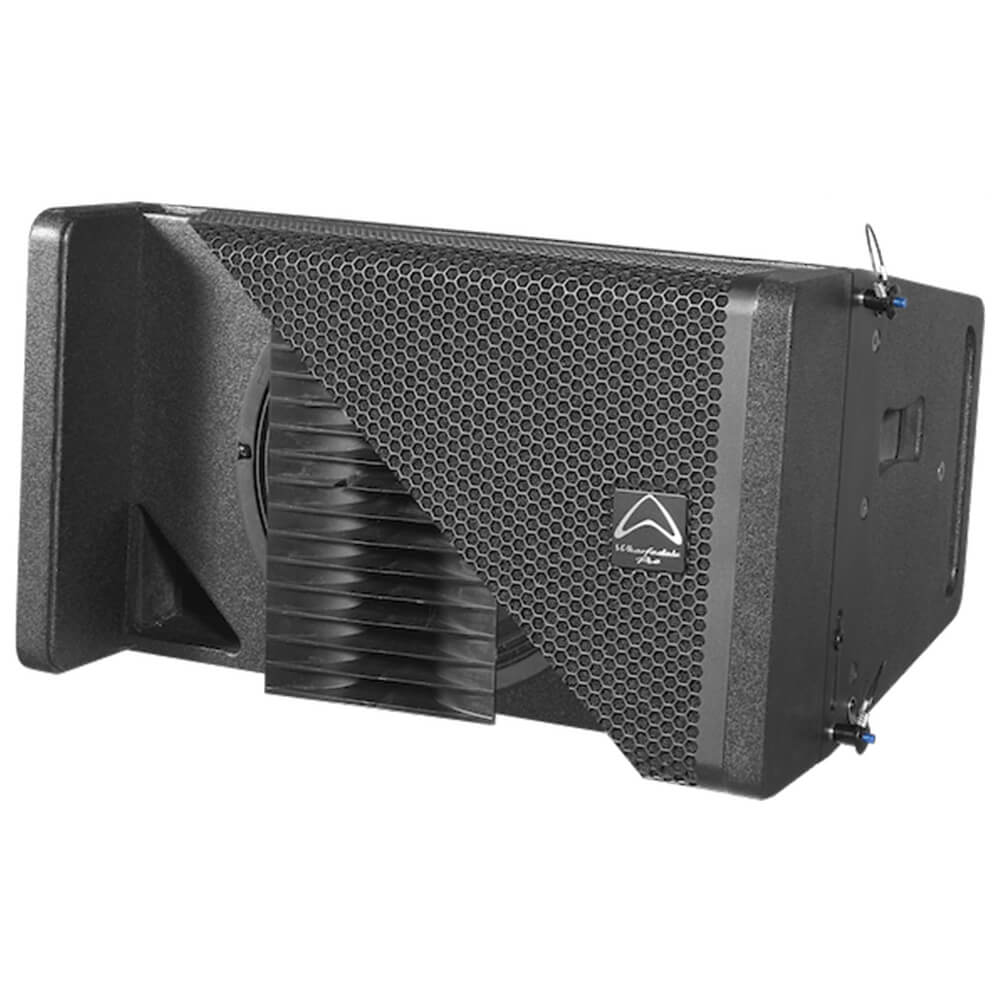

WLA-112A
- Active with DSP & FIR filters
- 12″ Coaxial Beyma driver
- 680 W Continuous
- 1360 W Peak
- 4.0″ LF voice coil
- 2.87″ HF voice coil
- 139 dB System Peak SPL

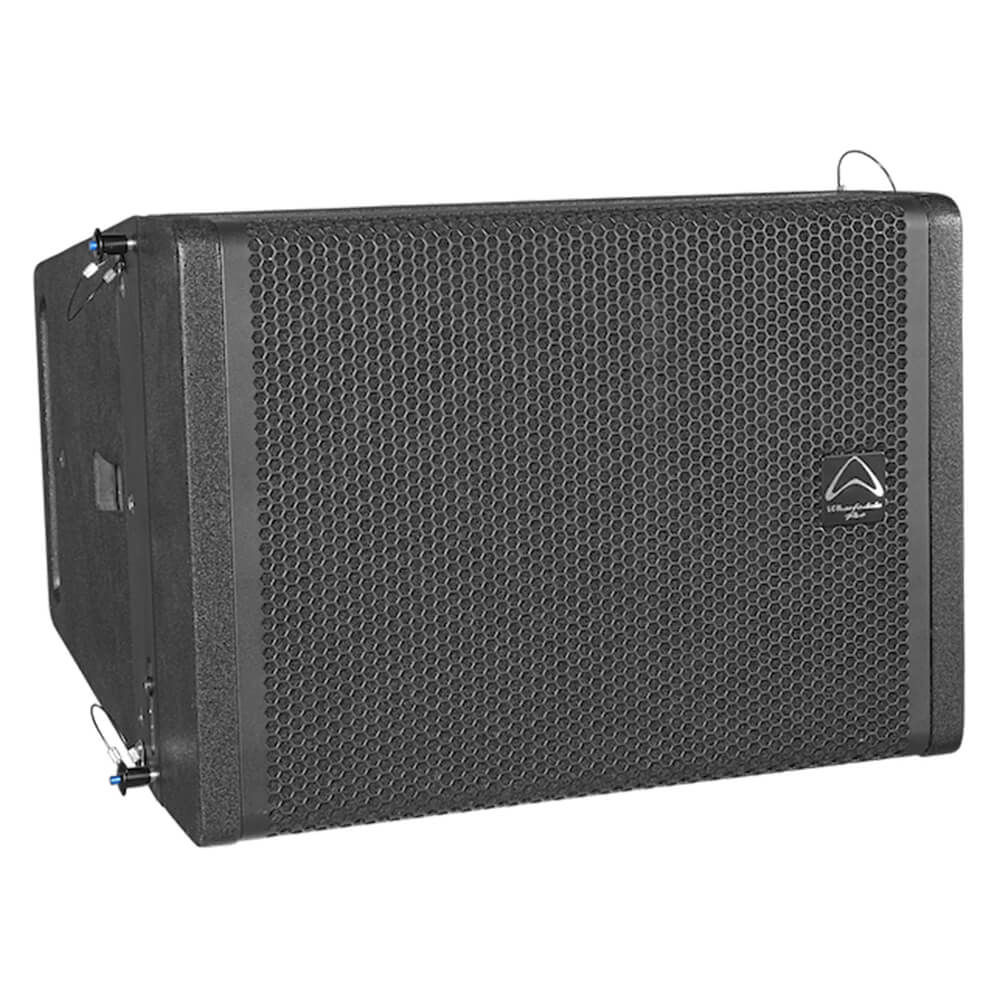

WLA-115A
- Active with DSP & FIR filters
- 15″ Coaxial Beyma driver
- 830 W Continuous
- 1660 W Peak
- 4.0″ LF voice coil
- 2.87″ HF voice coil
- 141 dB System Peak SPL
WLA-118SUBA
- Active with DSP
- 18″ Beyma driver
- 2200 W Continuous
- 4400 W Peak
- 4.0″ Duo in/out LF voice coil
- 142 dB System Peak SPL

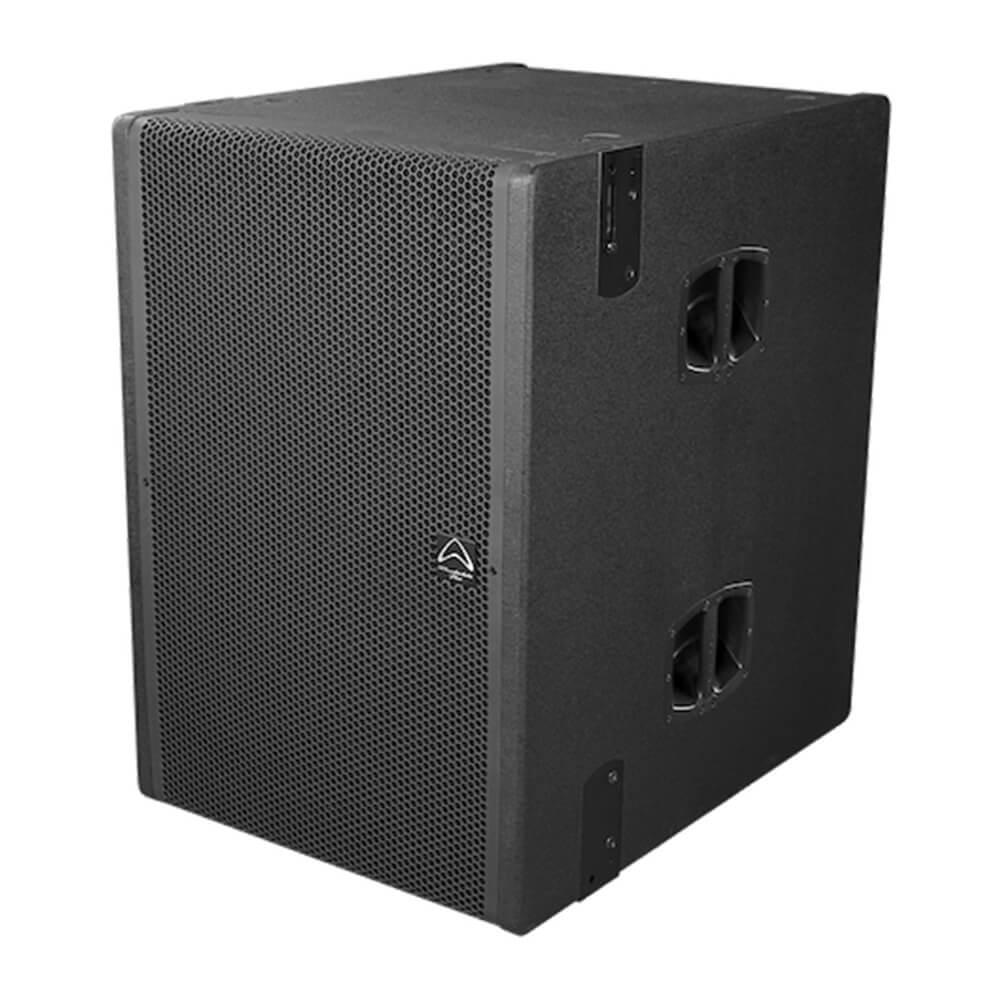

WLA-121SUBA
- Active with DSP
- 21″ Beyma driver
- 2200 W Continuous
- 4400 W Peak
- 4.0″ Quattro LF voice coil (4 layers)
- 142 dB System Peak SPL
Active Electronics

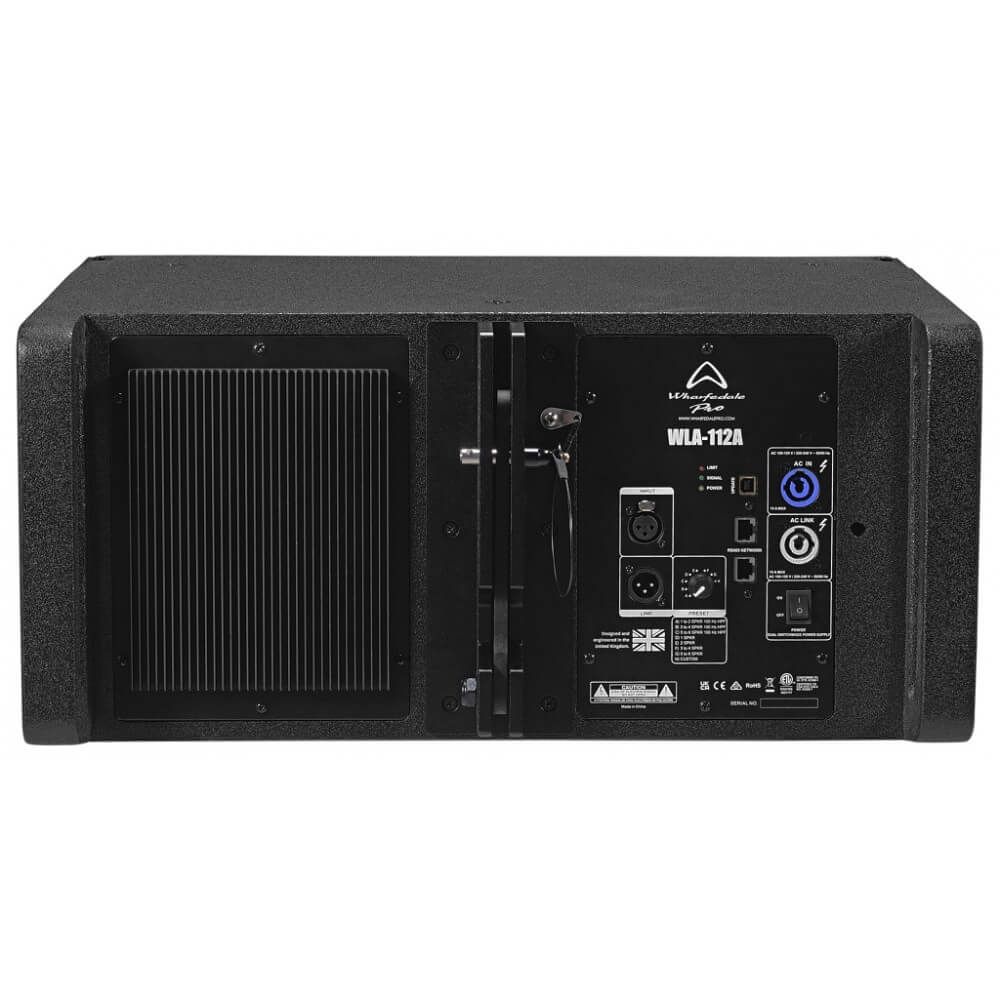

Around the back of WLA-112A and WLA-115A are all the connections and control interfaces needed for a tidy system.
Select between 8 DSP presets with FIR filters and control the system remotely with the RS485 network facility.
COAXIAL FULL RANGE
The 12” and 15” elements use coaxial drivers from Beyma – which are manufactured in Europe.
This coaxial design gives consistent coverage on both Horizontal and Vertical planes – while competitive traditional two-way line arrays do not have consistent coverage in one axis at least by design.
WLA-112A and WLA-115A coaxial design gives consistent coverage and is unique. (Well, except for our own Wharfedale Pro WLA-1 passive models)
WLA-1A System gives constant coverage on both Horizontal and Vertical planes
Competitive traditional constant curvature two way systems do not have consistent coverage in one axis at least by design.
HYBRID CURVATURE ARRAY
With a traditional 2-way array….arrays of 6 elements or more are simply not practical.
With the WLA-1 Hybrid Curvature design, arrays of up to 6 elements with 10:1 safety factor or up to 8 elements with 7:1 safety factor can be configured.

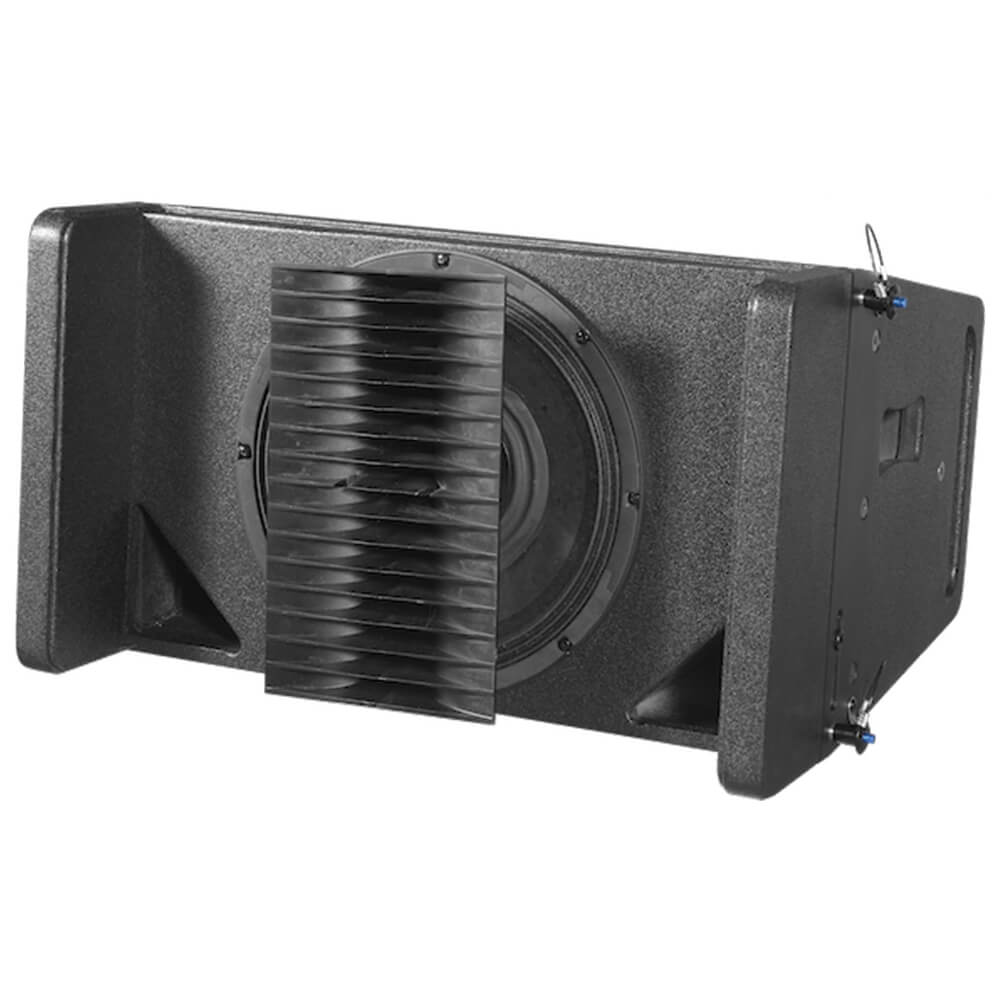

EVO-FOLD
EVO-Fold reduces the usual phase issues that traditional 2-way line arrays have due to them having the drive units physically some distance apart in the array. One specially-designed coaxial mid-high frequency driver is loaded to a unique EVO-Fold horn. The EVO-Fold horn combines a unique folded and manifold design. The most advanced FEM technology has been used to create this.
The high-mid energy exits produce a uniphasic sound in the widest range of frequencies. And visually, the detail of the EVO-Fold waveguide is a work of art.
SUBS – 21″ AND 18″ YES – REALLY!
The 21″ subwoofer driver is manufactured by Beyma in Europe.
Extreme features… for extreme (and controllable) sub sound pressure levels.
Combine the 21″ and the 18″ subs to get extended infrabass from the 21” and an extreme punch from the 18”. A combination to be experienced!
DEPLOYMENT CHOICES
1

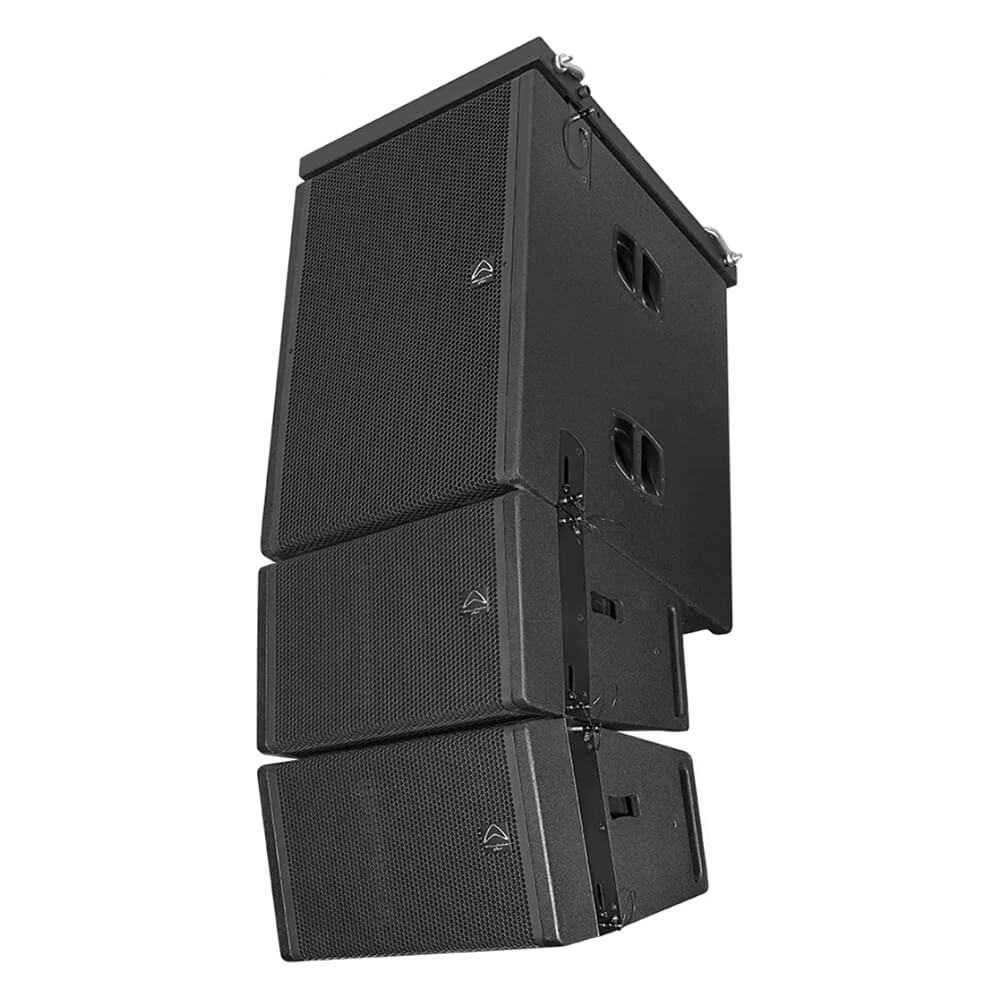

Configure vertically and deploy as a ‘traditional’ flying array.
The optional WLA-1 Common Fly Frame ensures stability and that flying is easy.
2

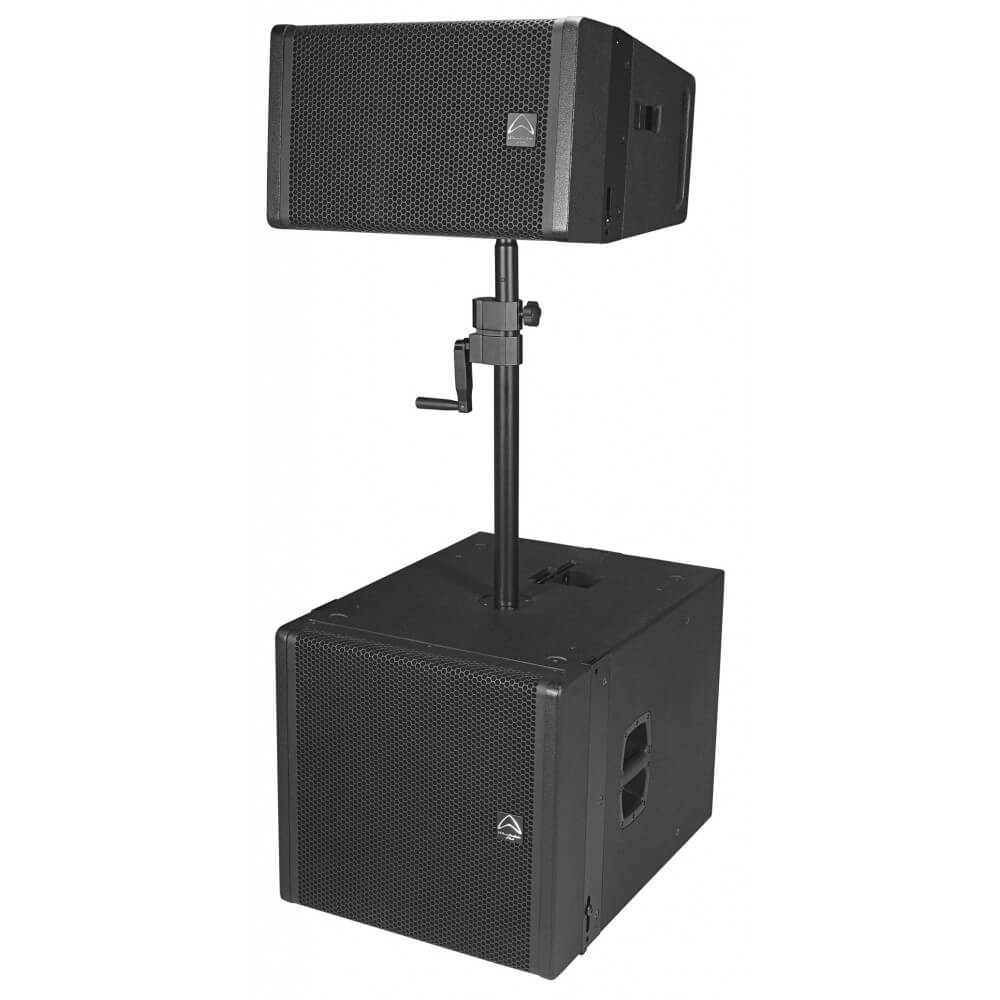

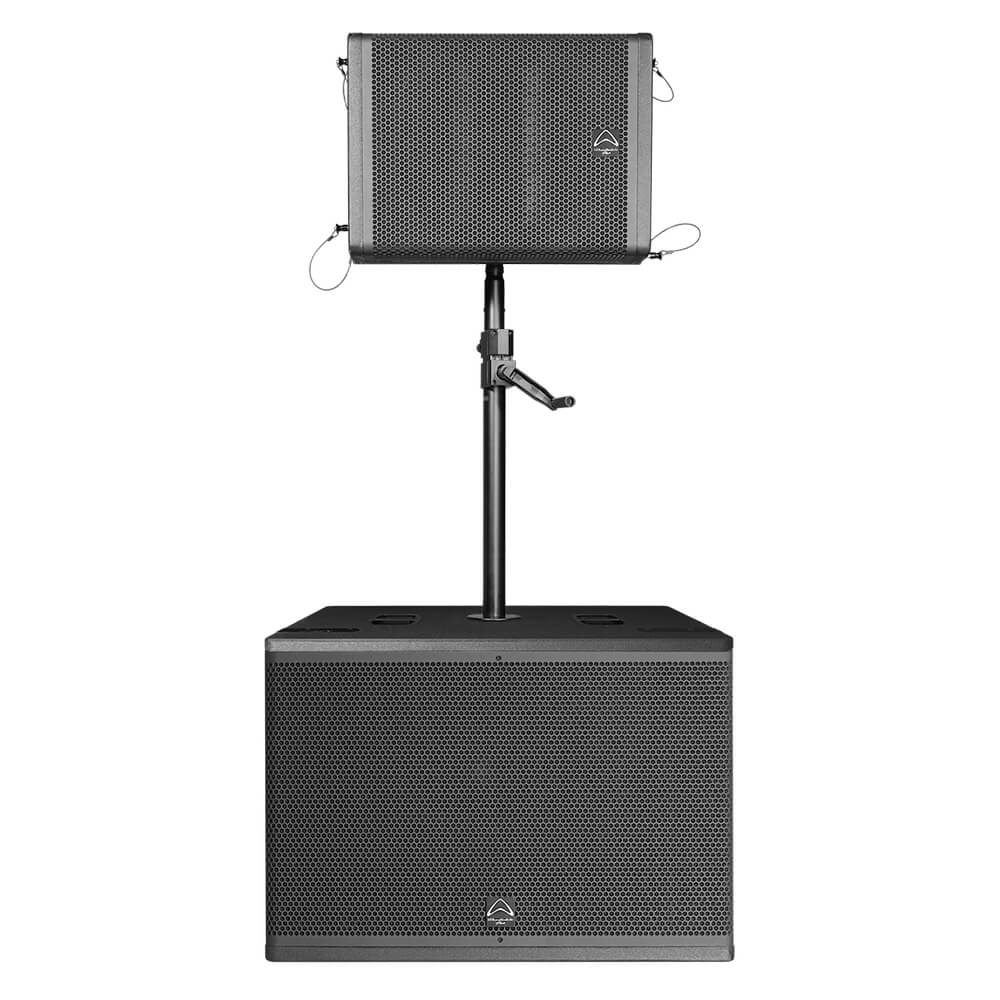

Configure on the ground.
The optional SP-4 pole easily connects the 21″ or 18″ sub to the tops. Dual angle 35 mm pole sockets in the full range elements makes angle adjustments safe and easy.
3

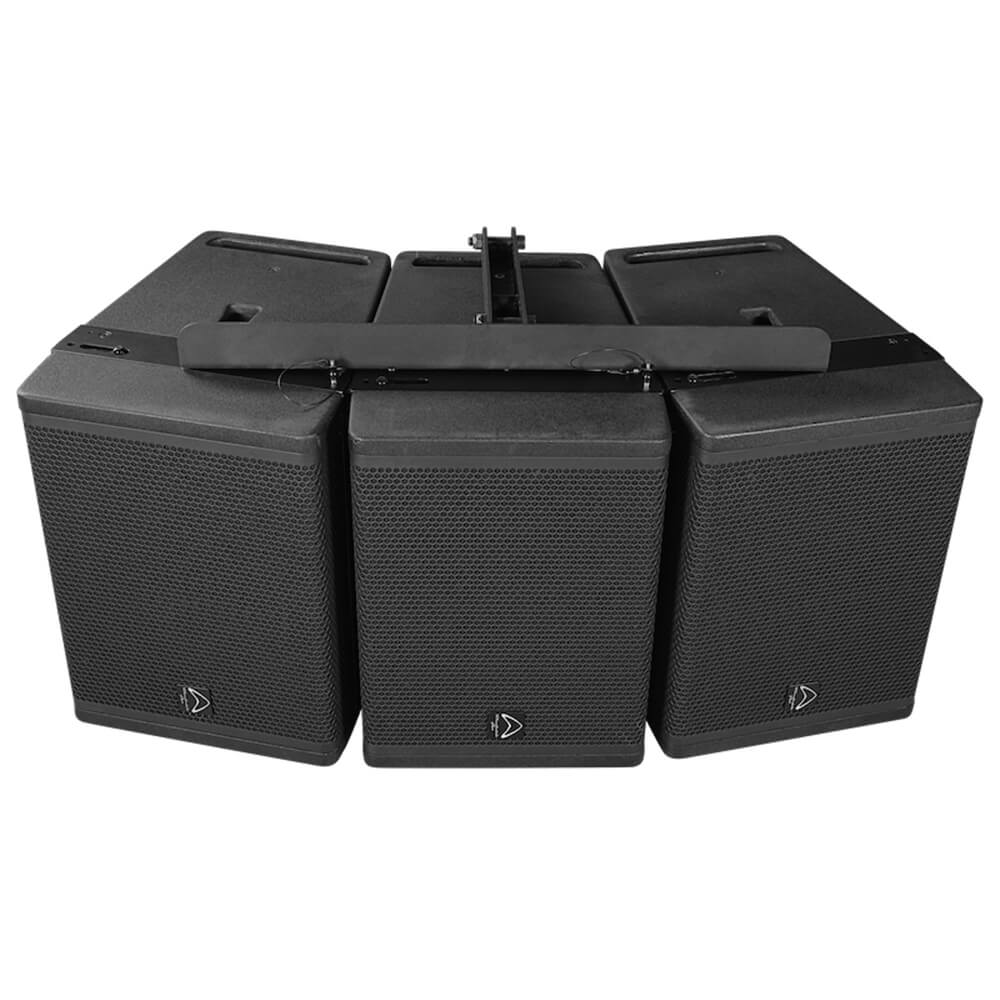

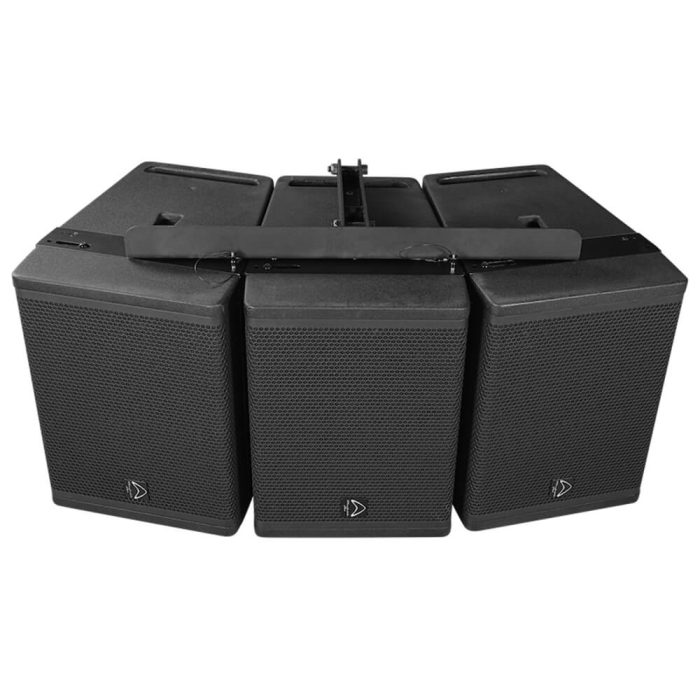

Configure a horizontal flying array.
The optional WLA-1 Link hardware connects three elements of either WLA-112A or WLA-115A to create a 3 unit horizontal array with 60 H x 100 V dispersion
Software control
The network connection uses RS485 protocol and gives GUI control over the DSP parameters of each element in the array.
USB-RS485-RJ45
For easy connection to the computer, the optional USB-RS485-RJ45-MKII convertor can be used.
Read more about it here
powercon ™
When interconnecting WLA series active line array elements, quality, certified power cabling should be used.
Wharfedale Pro distributors also can supply Neutrik ™ powerCON cables as an accessory for sale.
These certified AC interconnecting cables use genuine Neutrik ™ NAC3FCA and NAC3FCB connectors for the ultimate in reliability and safety.
2 meters in length allows for system configuration flexibility while keeping excess cabling to a minimum.
A tidy solution for any Wharfedale Pro Active Line Array.
TALK ABOUT ANGLES
WLA-1A introduces a new Hybrid concept giving variable angles of 0, 5, 10 and 15 degrees.
Easily adjusted using the integral rigging brackets.
Optional Common FLY FRAME
Configure the system how you like with the WLA-1 Common Fly Frame.
Subs at the top ? WLA-115A’s or WLA-112A’s. The Common Fly Frame supports all the different models in the WLA-1A series.
Note : WLA-1 Common Fly Frame supports up to 3 pcs of WLA-118SUB (A). WLA-118SUB (A) will not fly with WLA-121SUB (A).
WLA-112A (WLA-115A)
WLA-118SUBA
WLA-121SUBA
SPECIFICATIONS
| Model Name | WLA-112A | WLA-115A | WLA-118SUBA | WLA-121SUBA |
|---|---|---|---|---|
| System Typology | Hybrid Curvature Array | Hybrid Curvature Array | Subwoofer | Subwoofer |
| System Type | Active 12″ coaxial Bi-Amplified | Active 15″ coaxial Bi-Amplified | Active 18″ Subwoofer | Active 21″ Subwoofer |
| Configuration | two-way | two-way | Single Subwoofer | Single Subwoofer |
| Frequency Response (+/-3 dB) | 55 Hz – 20 KHz | 42 Hz – 20 KHz | 35 Hz – 125 Hz | 25 Hz – 100 Hz |
| Frequency Range (- 10 dB) | 35 Hz – 25 KHz | 25 Hz – 25 KHz | 28 Hz – 160 Hz | 18 Hz – 125 Hz |
| Sensitivity 2.83 V/1 m | 101 dB | 102 dB | 103 dB* | 103 dB* |
| Calculated Maximum SPL @ 1 m | 133 dB | 135 dB | 136 dB* | 136 dB* |
| System Peak SPL | 139 dB** | 141 dB** | 142 dB** | 142 dB** |
| * | level at 1 m under half space conditions using pink noise with crest factor 2, with dedicated preset. | level at 1 m under half space conditions using pink noise with crest factor 2, with dedicated preset. | ||
| ** | level at 1 m under free field conditions using pink noise with crest factor 4, with dedicated preset. | level at 1 m under free field conditions using pink noise with crest factor 4, with dedicated preset. | level at 1 m under half space conditions using pink noise with crest factor 4, with dedicated preset. | level at 1 m under half space conditions using pink noise with crest factor 4, with dedicated preset. |
| Waveguide Type | EVO-Fold® | EVO-Fold® | / | / |
| Nominal Coverage (H x V) | 100° x 20° | 100° x 20° | / | / |
| Signal Processing | DSP based, 8 FIR presets | DSP based, 8 FIR presets | DSP based,8 presets | DSP based,8 presets |
| Preset list | A) 1 to 2 SPKR 100 Hz HPF B) 3 to 4 SPKR 100 Hz HPF C) 5 to 6 SPKR 100 Hz HPF D) 1 SPKR E) 2 SPKR F) 3 to 4 SPKR G) 5 to 6 SPKR H) CUSTOM |
A) 1 to 2 SPKR 100 Hz HPF B) 3 to 4 SPKR 100 Hz HPF C) 5 to 6 SPKR 100 Hz HPF D) 1 SPKR E) 2 SPKR F) 3 to 4 SPKR G) 5 to 6 SPKR H) CUSTOM |
A) 1 SPKR 80 Hz LPF B) 1 SPKR 100 Hz LPF C) >2 SPKR 80 Hz LPF D) >2 SPKR 100 Hz LPF E) CARDIOID AUDIENCE F) CARDIOID STAGE G) CUSTOM H) CUSTOM |
A) 1 SPKR 80 Hz LPF B) 1 SPKR 100 Hz LPF C) >2 SPKR 80 Hz LPF D) >2 SPKR 100 Hz LPF E) CARDIOID AUDIENCE F) CARDIOID STAGE G) CUSTOM H) CUSTOM |
| Amplifiers | ||||
| Amplifier Design | Class D | Class D | Class D | Class D |
| Power Rating: | 1360 W Peak (1200 W LF + 160 W HF), 680 W Continuous (600 W LF + 80 W HF) |
1660 W Peak (1500 W LF + 160 W HF), 830 W Continuous (750 W LF + 80 W HF) |
4400 W Peak, 2200 W Continuous |
4400 W Peak, 2200 W Continuous |
| Thermal Protection | Amplifier Shut Down. Auto Reset | Amplifier Shut Down. Auto Reset | Amplifier Shut Down. Auto Reset | Amplifier Shut Down. Auto Reset |
| Low Line Voltage Shut Down | 60% Nominal Line Voltage | 60% Nominal Line Voltage | 60% Nominal Line Voltage | 60% Nominal Line Voltage |
| Driver Protection | Independent LF/ HF RMS and Peak Limiters | Independent LF/ HF RMS and Peak Limiters | RMS, Peak Limiters and DC | RMS, Peak Limiters and DC |
| DC and Short Protection | Yes | Yes | Yes | Yes |
| Clip Limiter | Yes | Yes | Yes | Yes |
| Limiter Indicator | Red LED | Red LED | Red LED | Red LED |
| Signal Indicator | Green LED | Green LED | Green LED | Green LED |
| Power/Active Indicator | White LED | White LED | White LED | White LED |
| Find Function Indicator | Blue LED | Blue LED | Blue LED | Blue LED |
| Input Sensitivity | +4 dBu | +4 dBu | +4 dBu | +4 dBu |
| Maximum Input Level | +18 dBu | +18 dBu | +18 dBu | +18 dBu |
| Input Impedance | Balanced:10 KΩ | Balanced:10 KΩ | Balanced:10 KΩ | Balanced:10 KΩ |
| AC Power details – Power Supply | High Efficiency Dual Switching Mode Power Supply | High Efficiency Dual Switching Mode Power Supply | High Efficiency Dual Switching Mode Power Supply | High Efficiency Dual Switching Mode Power Supply |
| Connectors | ||||
| Input Connector | Balanced socket XLR | Balanced socket XLR | Balanced socket XLR | Balanced socket XLR |
| Link Connector | Balanced pin XLR | Balanced pin XLR | Balanced pin XLR | Balanced pin XLR |
| UPDATE | USB Type B | USB Type B | USB Type B | USB Type B |
| NETWORK (RS485) | RJ45 | RJ45 | RJ45 | RJ45 |
| AC Power Options | AC 100-120 V~ and 220-240 V~, 50/60 Hz Automatic | AC 100-120 V~ and 220-240 V~, 50/60 Hz Automatic | AC 100-120 V~ and 220-240 V~, 50/60 Hz Automatic | AC 100-120 V~ and 220-240 V~, 50/60 Hz Automatic |
| Special Features | Copper Demodulating rings in both LF and HF units | Aluminium demodulating ring | Aluminium demodulating ring | |
| Waterproof LF cone | Waterproof LF cone | Waterproof LF cone | ||
| Shared High performing Ferrite magnet system design | Malt Cross® TCS | Malt Cross® TCS | ||
| Rigging & Hardware: | 3 points for rigging | 3 points for rigging | 3 points for rigging | 3 points for rigging |
| Vertical Splay angle range: | 0°- 5° – 10° – 15° | 0°- 5° – 10° – 15° | / | / |
| Horizontal Splay angle | 15° | 15° | / | / |
| Accessories: | WLA-1 FLY FRAME | WLA-1 FLY FRAME | WLA-1 FLY FRAME | WLA-1 FLY FRAME |
| Stand pole: | Dual Angle -2.5° / +7.5° | Dual Angle -2.5° / +7.5° | M20 Pole mount | M20 Pole mount |
| Handles: | 2 side / 2 back | 2 side / 2 back | 1 side（2 pcs) | 2 side（4 pcs) + 2 (top / bottom) |
| Enclosure | ||||
| Cabinet Type | Trapezoid | Trapezoid | Rectangular | Rectangular |
| Enclosure Material and finish | 15 mm plywood / TOUGH-TONE | 15 mm plywood / TOUGH-TONE | 18 mm plywood / TOUGH-TONE | 18 mm plywood / TOUGH-TONE |
| Colour | Black paint | Black paint | Black paint | Black paint |
| Grille Material & Finish | Powder coated perforated steel | Powder coated perforated steel | Powder coated perforated steel | Powder coated perforated steel |
| Dimensions – Unpacked: | ||||
| Height Front | 332 mm / 13.1″. | 408 mm / 16.1″. | 535 mm / 21.1″ | 820 mm / 32.3″ |
| Height Rear | 246.4 mm / 9.7″. | 302 mm / 11.8″. | / | / |
| Width | 566 mm / 22.3″ | 566 mm / 23.4″ | 566 mm / 23.4″ | 566 mm / 23.4″ |
| Depth | 465 mm / 18.3″ | 543 mm / 16.5″ | 760 mm / 29.9″ | 760 mm / 29.9″ |
| Dimensions – Packed: | ||||
| Height | 661 mm / 26.0″ | 661 mm / 26.0″ | 630 mm / 24.8″ | 895 mm / 35.2″ |
| Width Front | 550 mm / 21.7″ | 630 mm / 24.8″ | 656 mm / 25.8″ | 656 mm / 25.8″ |
| Width Rear | 550 mm / 21.7″ | 630 mm / 24.8″ | / | / |
| Depth | 410 mm / 16.7″ | 490 mm / 19.3″ | 850 mm / 33.5″ | 850 mm / 33.5″ |
| Weight | ||||
| Net Weight | 30.4 kg / 66.9 lbs | 35.5 kg / 78.1 lbs | 59.8 Kg | 74.0 kg / 162.8 lbs |
| Gross Weight | 32.8 kg / 72.2 lbs | 38.5 kg / 84.7 lbs | 68 Kg | 80.0 kg / 176 lbs |
