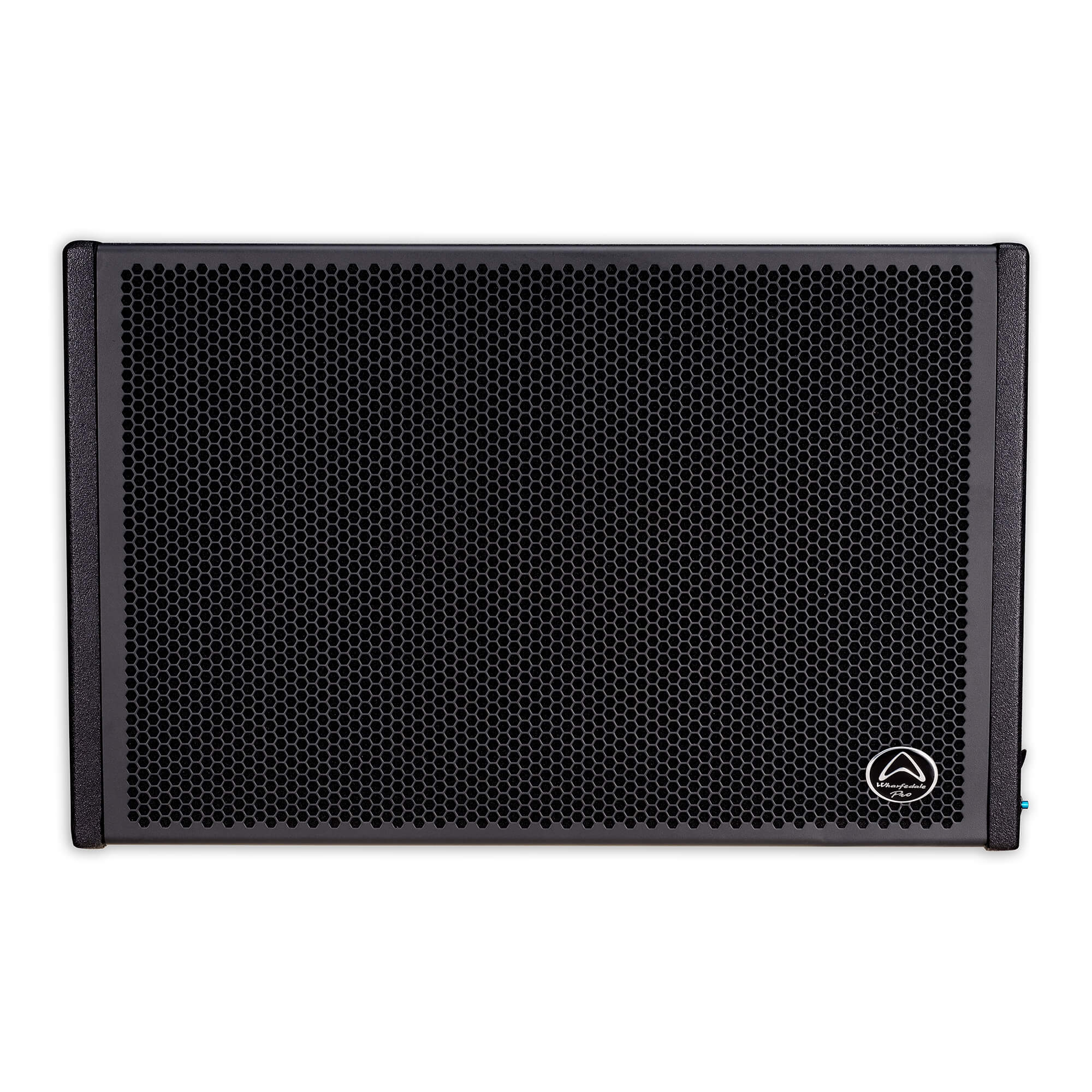

The WLA-210X line array system keeps the same design philosophies as the acclaimed WLA-25 and WLA-28 systems from Wharfedale Pro. Portable, powerful and versatile line array solutions which are ideal for both touring and fixed installation applications.

Each WLA-210X element uses a pair of custom 10” Wharfedale Pro high-power low-frequency drivers, while the high frequencies are handled by a premium 3.0” titanium diaphragm, neodymium magnet compression driver coupled to a 100° x 10° waveguide.

The waveguide exit extends nearly to the top and bottom of the enclosure to create a continuous acoustical source – resulting in greatly reduced destructive interaction within the array.

The WLA-210X element also features Passive and Bi-amp modes which allows for complete system control. The bi-amp feature enables the system designer to select the best amplification for each driver component within the array. Such control, when used with external signal processing such as the Wharfedale Pro Versadrive series, gives the engineer the ultimate in system fine tuning. This, in turn, leads to the best audio output.

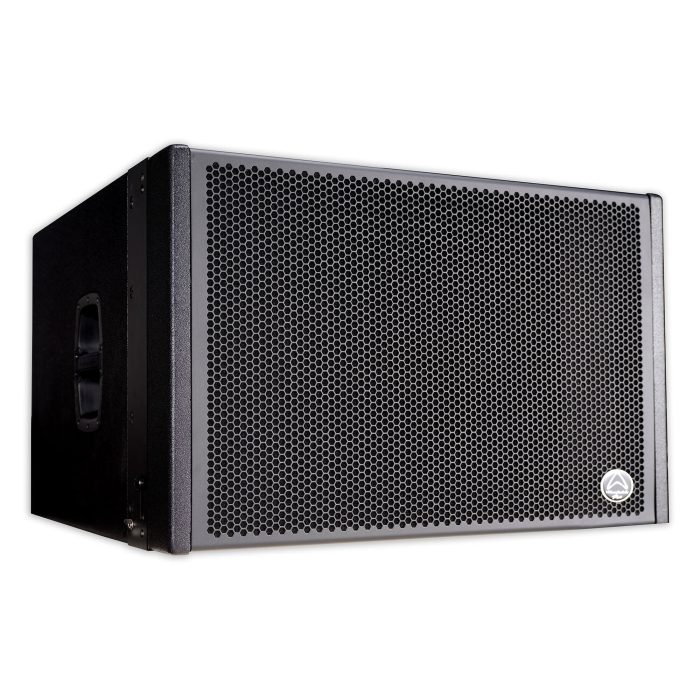

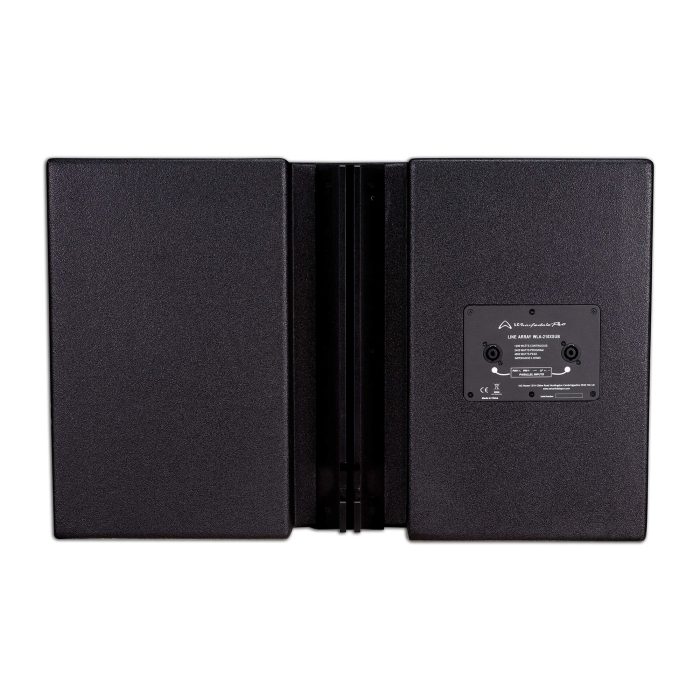

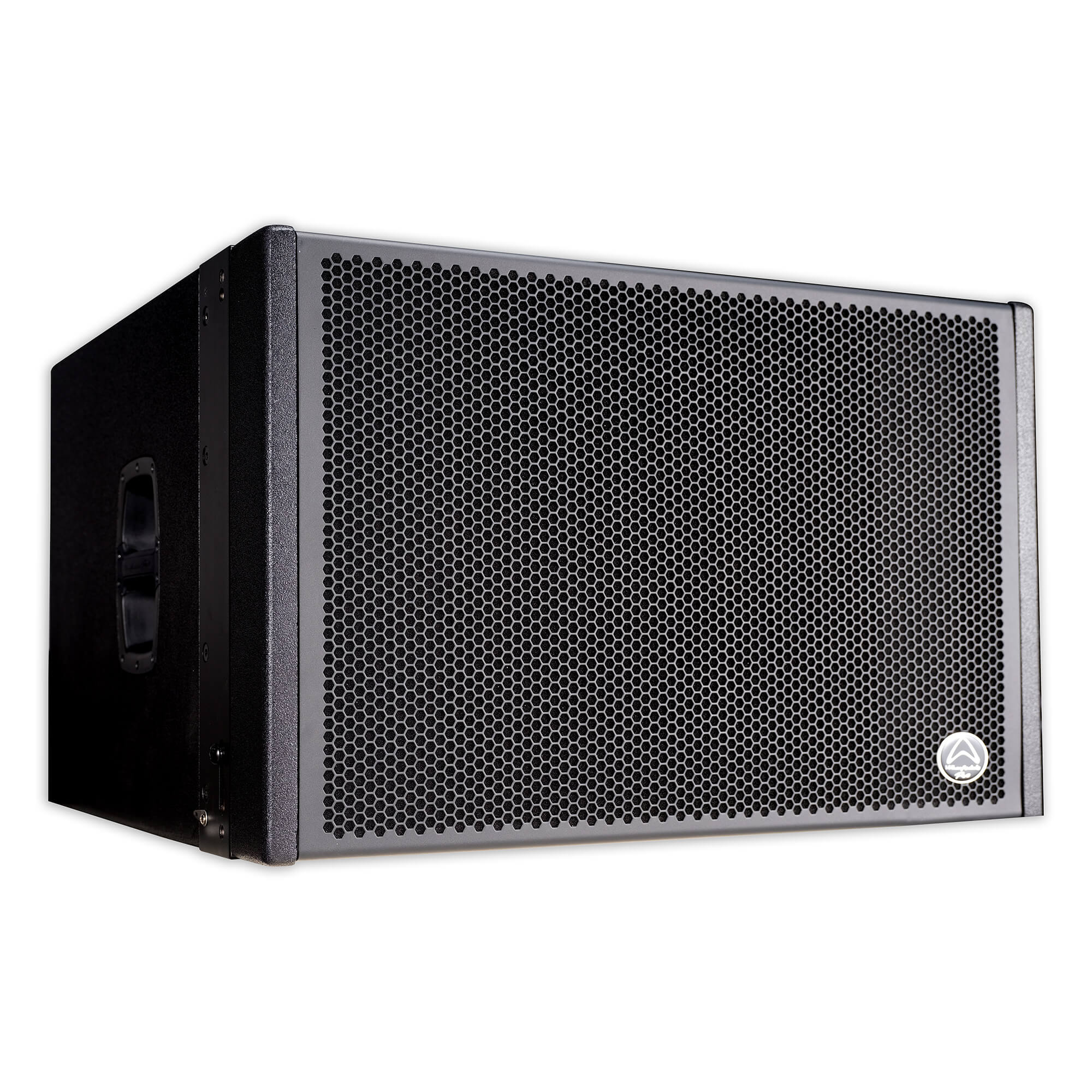

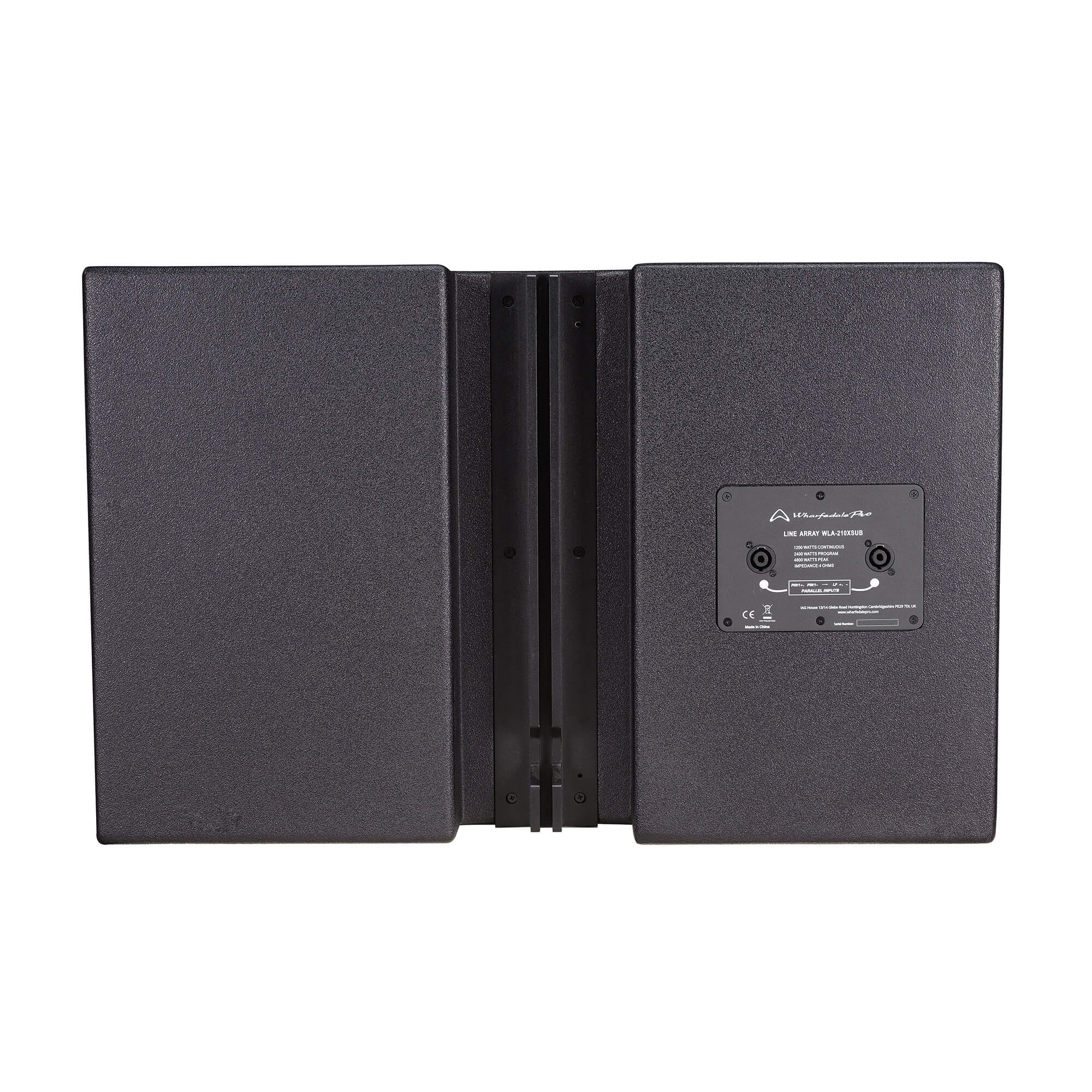

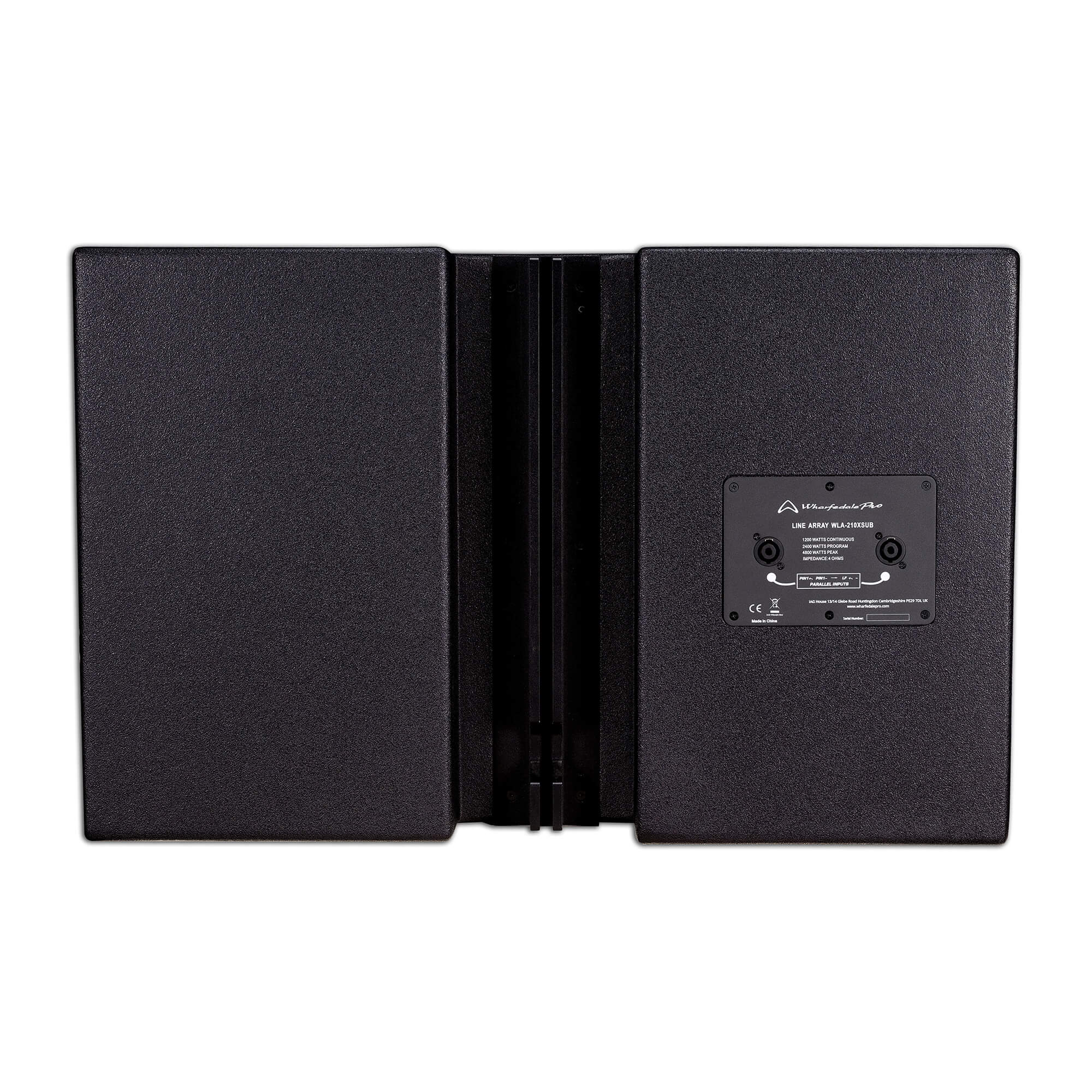

The WLA-210XSUB features dual 15” LF drivers with massive 4.0” voice coils. Specifically created for use with WLA-210X, this subwoofer can be flown or ground stacked easily as a result of its comprehensive rigging hardware.

Premium materials are used throughout the system. The enclosure is constructed of Baltic birch plywood and is coated in a premium and durable Rhino Rock paint. To keep the weight to a minimum and prevent rust, suspension fittings are made of aluminium.

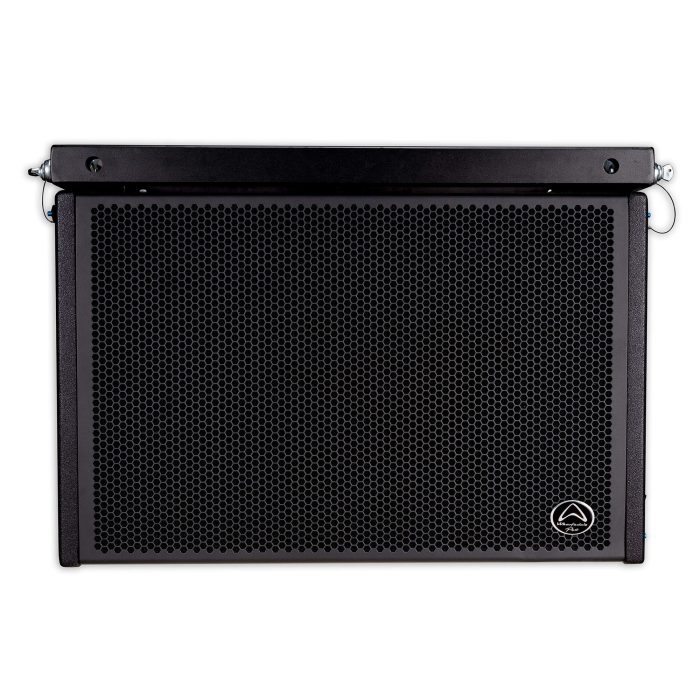

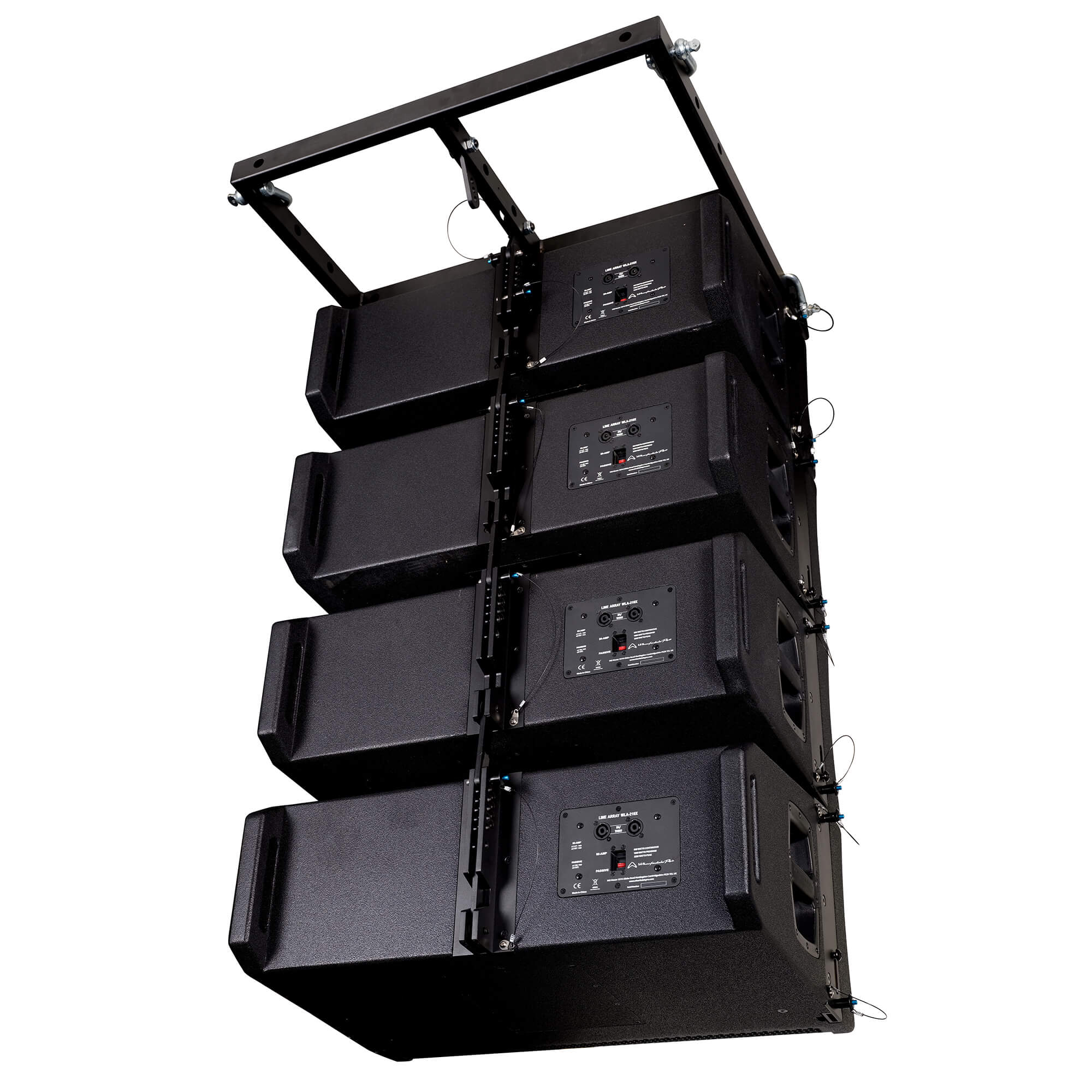

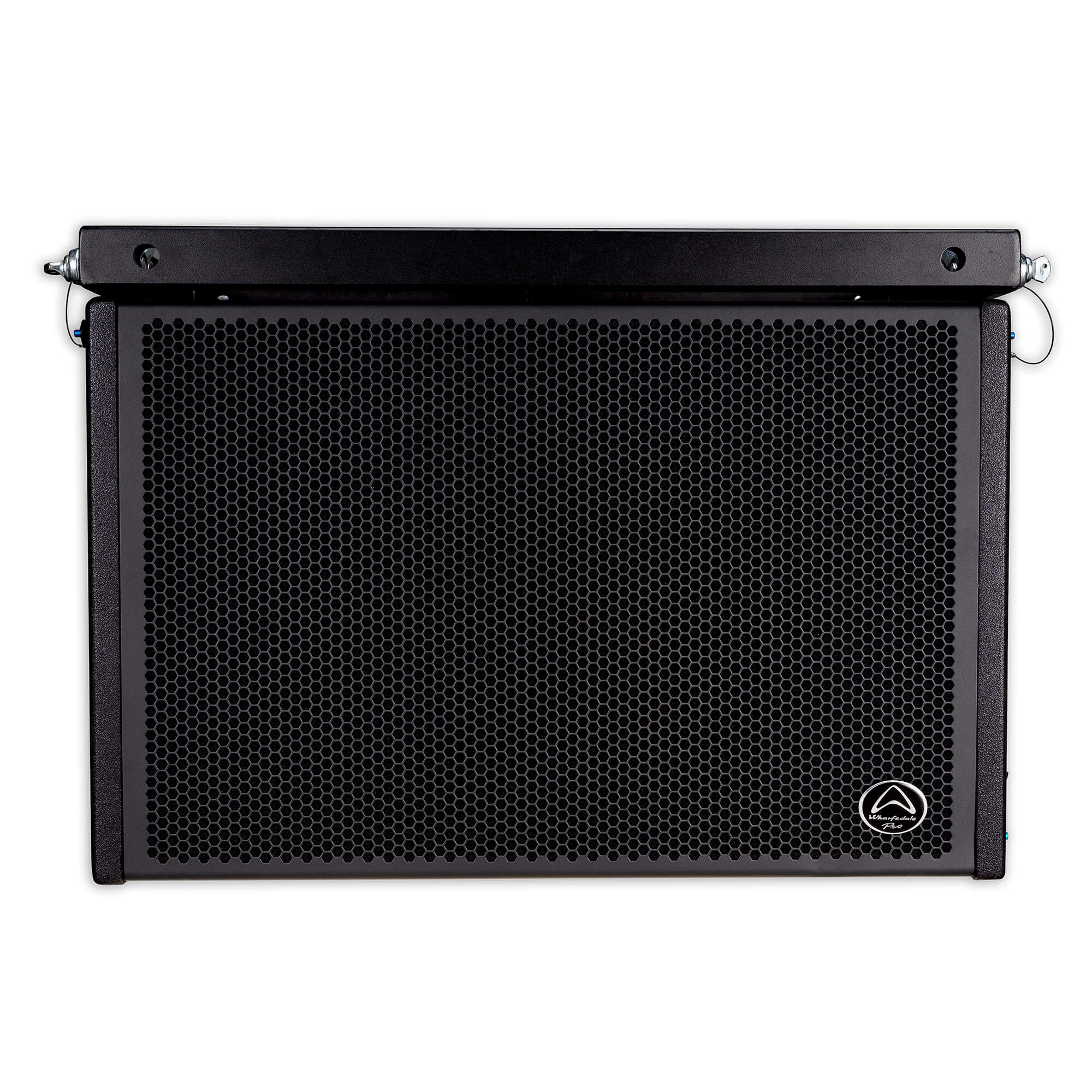

An elegantly simple 3-point suspension system combined with light weight, compact size and excellent handling ergonomics mean that an array can easily be deployed. With the WLA-210X Common Fly frame, systems can be configured as flying or ground stacked in multiple combinations.

WLA-210X

890 watts

AES (RMS)

• 2 x 10″ LF drivers
• 3″ Neodymium HF compression driver
• 138 dB Max SPL
• 15mm / 18mm Birch plywood construction
• Integral, side plate adjustable rigging system
• 100° x 10° dispersion
• 180 watts programme HF
• 1600 watts programme LF
• 16 Ω impedance

WLA-210XSUB

1200 watts

AES (RMS)

• 2 x 15″ LF drivers with 4.0″ voice coils
• 145 dB Max SPL
• 18 mm Birch plywood construction
• Integral rigging system
• 1200 watts AES (RMS)
• 2400 watts Programme
• 4800 watts Peak
• 4 Ω impedance

Dual 10″

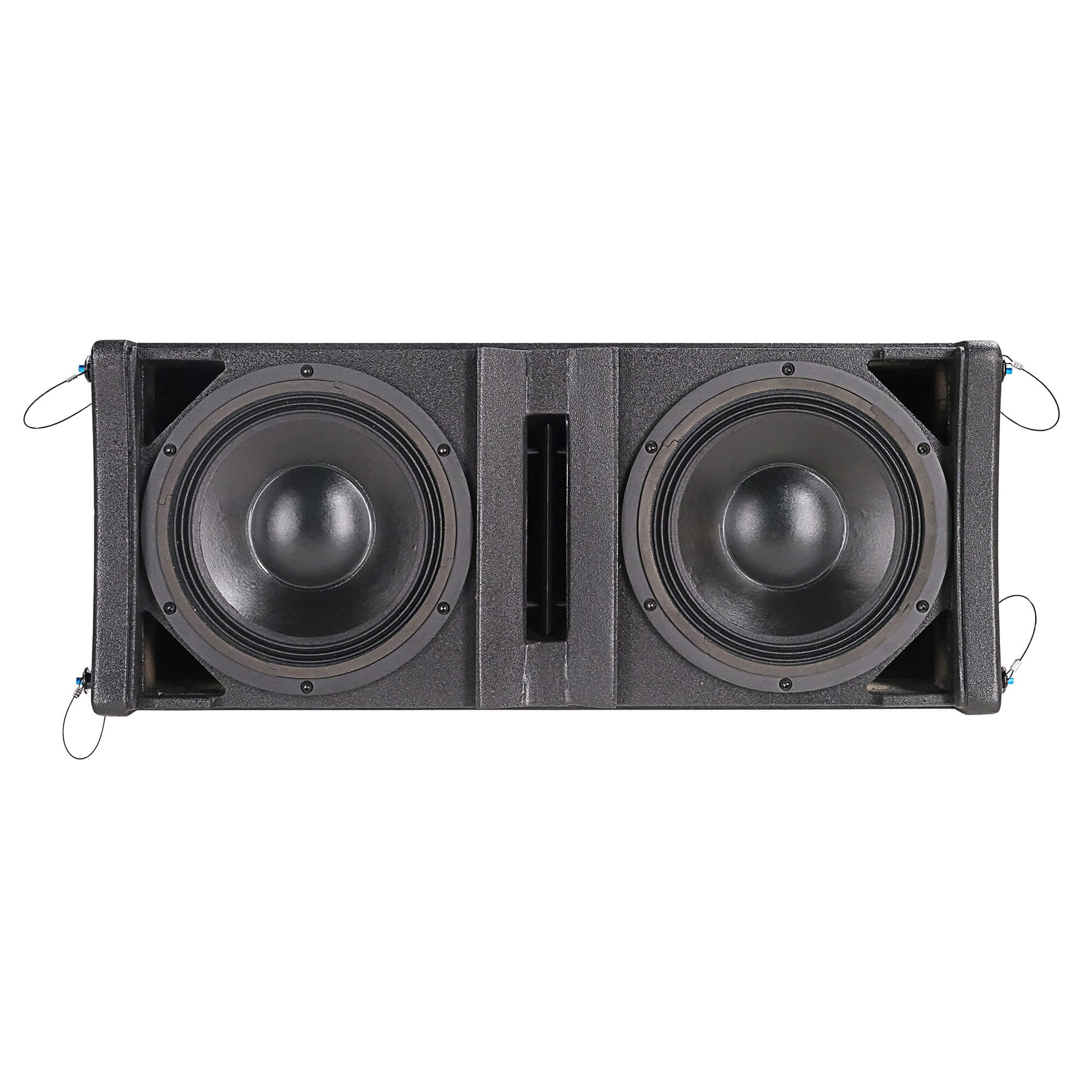

At the heart of the WLA-210X are 2 x 10″ custom Wharfedale Pro LF drivers.

These have been meticulously designed to ensure high efficiency and high power handling.

The HF Compression driver is also custom made by Wharfedale Pro. Using a neodymium magnet and a 3.0″ voice coil, this compression driver is coupled to a 100° x 10° waveguide.

These custom designed transducers are what give a WLA-210X system its incredible sound and power handling capacity.

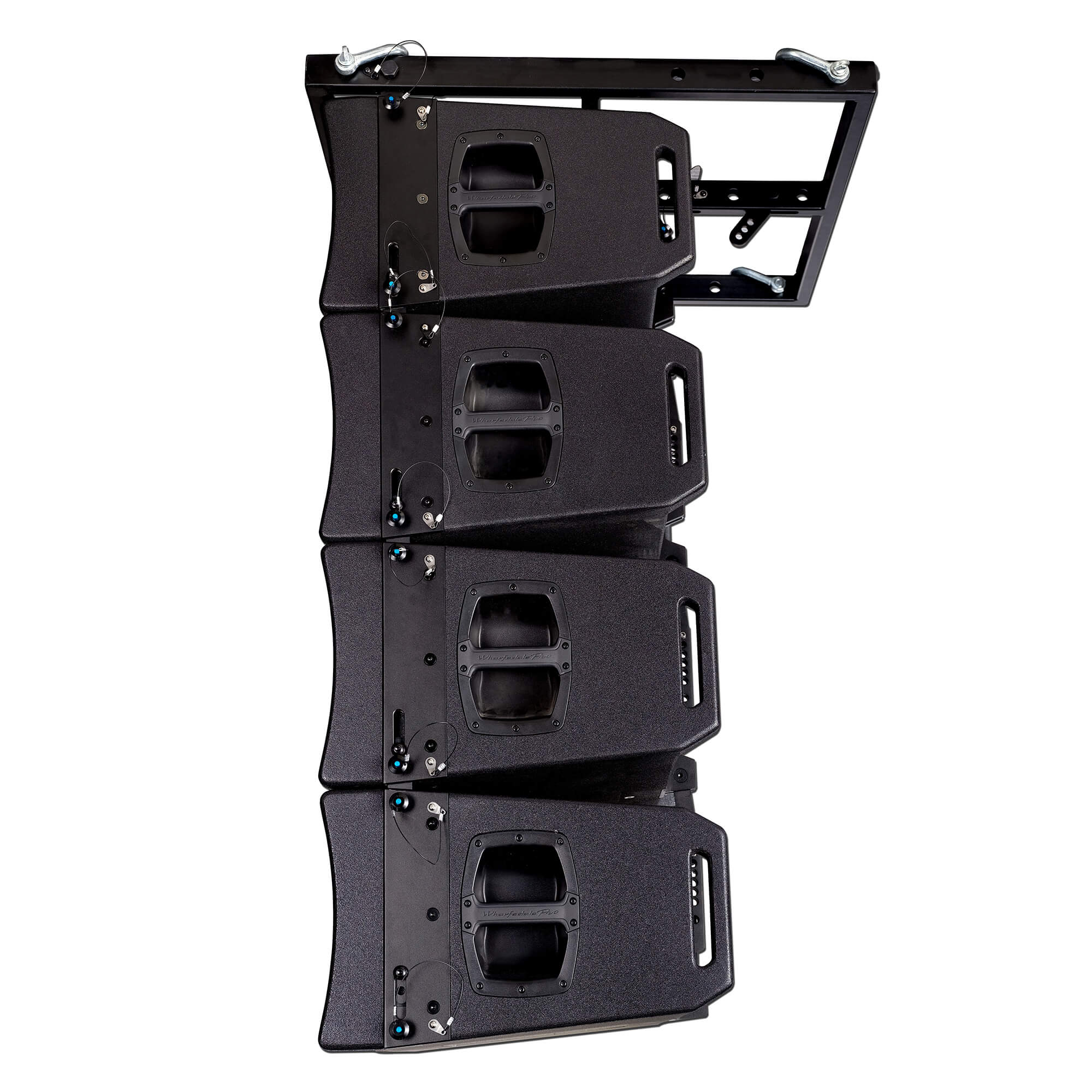

Optional COmmon FLY FRAME

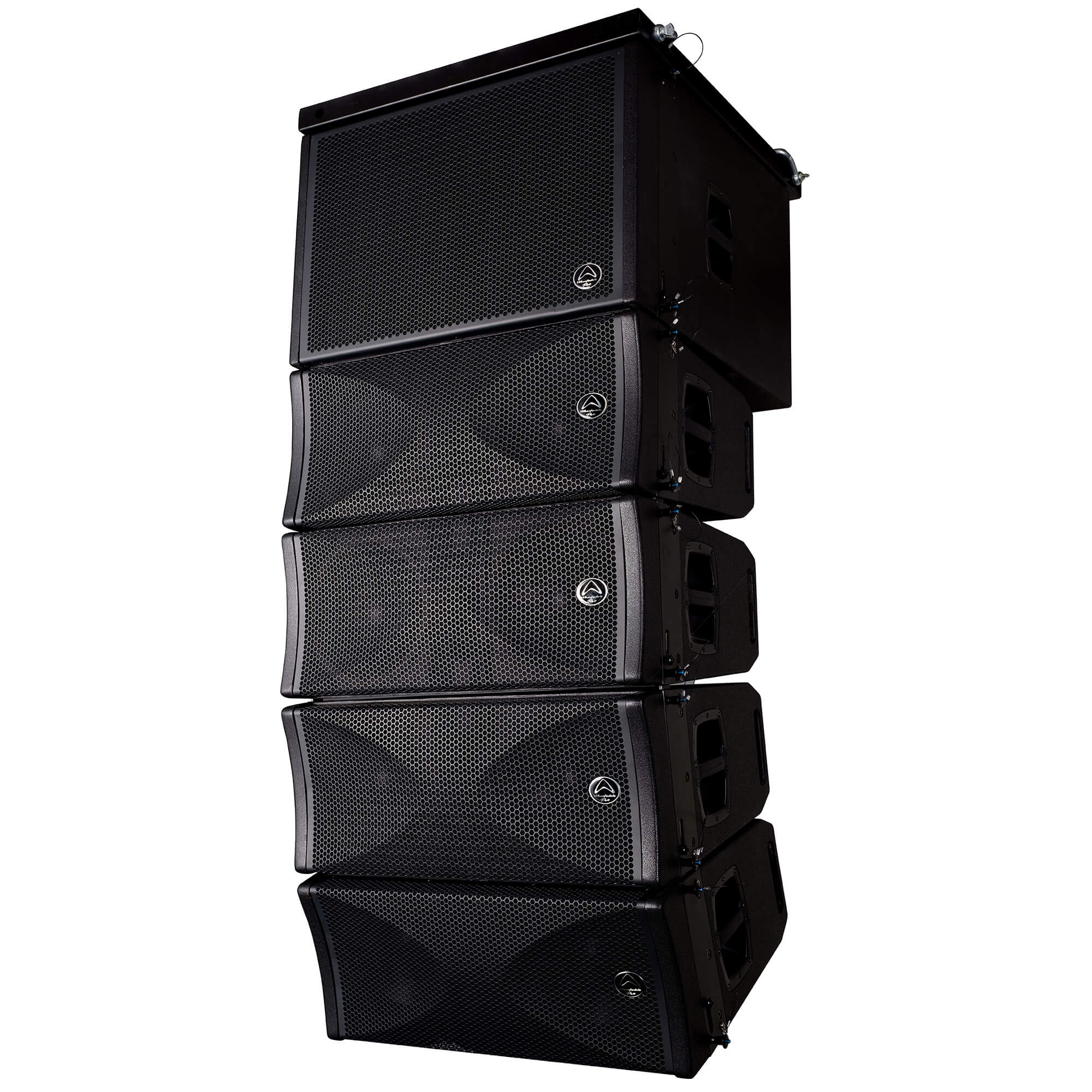

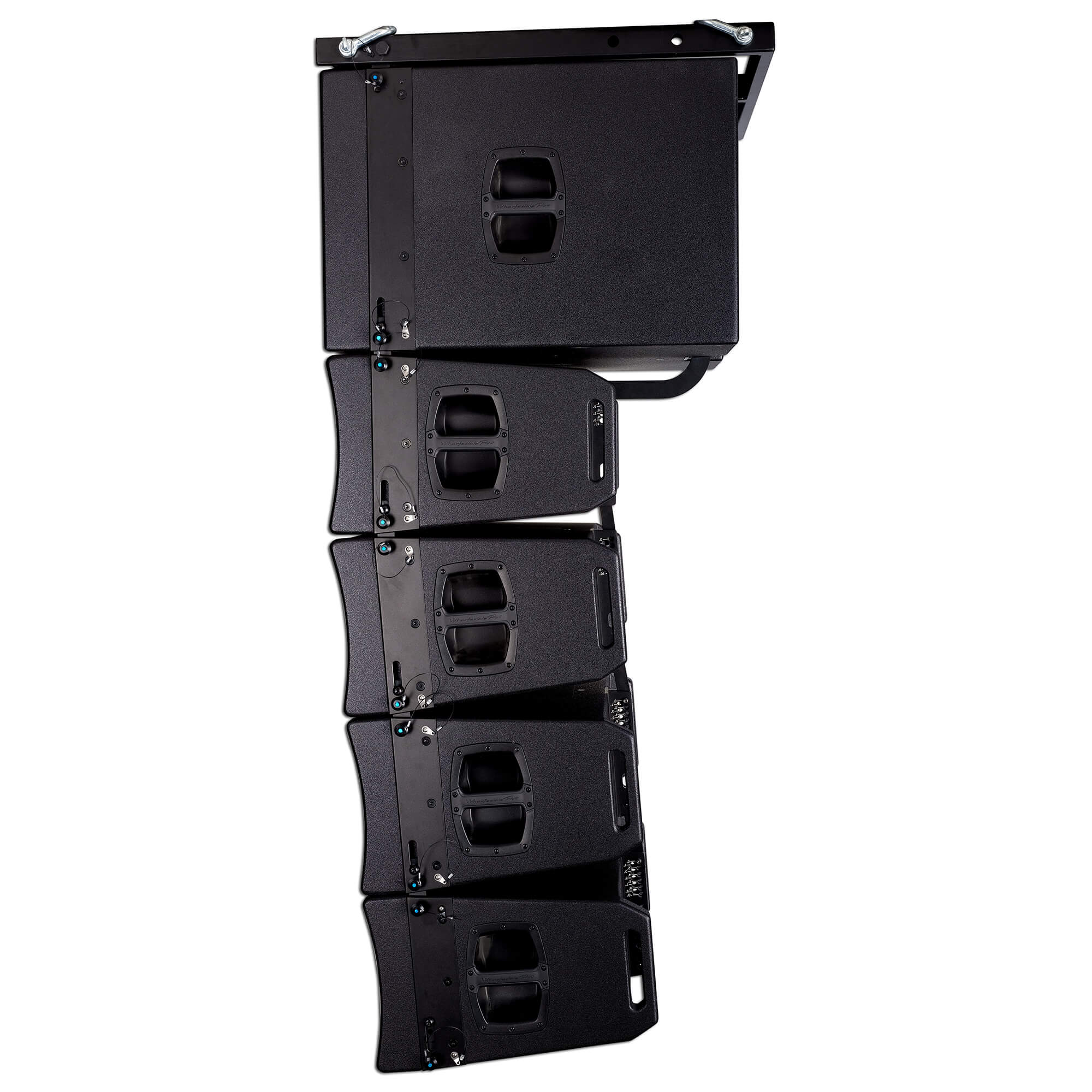

Arrays can be assembled using only WLA-210X line array elements or with WLA-210XSUB Subwoofers at the top of the array.

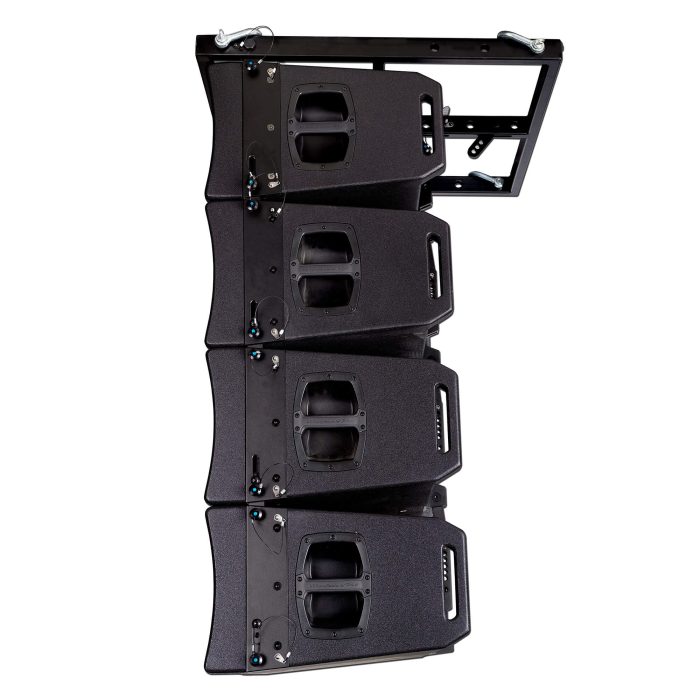

The WLA-210X Common Fly frame supports up to 10 x WLA-210X elements and 1 x WLA-210XSUB OR 12 x WLA-210X with a safety factor of 12.

Just imagine



Imagine your dream system!  You can configure a WLA series rig to suit your needs!

To help your design and system preparations, you can download some recommended system diagrams.  These range from small to large and use a selection of our different amplifier ranges.

Optimised Ground Stacking

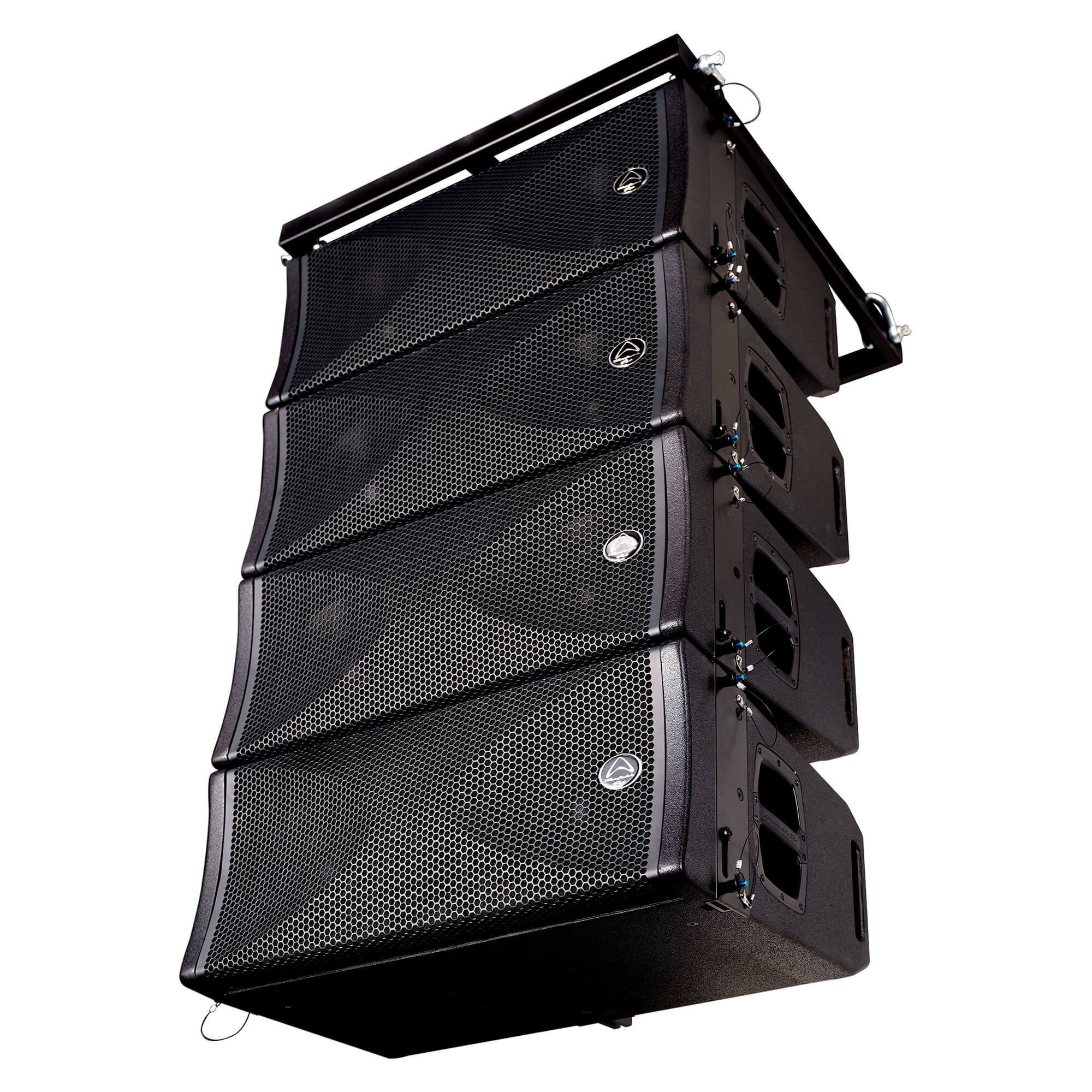

WLA-210X rigging doubles up as an optimised ground stacking system, using the WLA-210XSUB subwoofer as a base.

Arrays of WLA-210X line array elements can be aimed downwards by as much as 10° to cover audience areas close to a stage, as well as upward by as much as 10° in order to better cover distant balcony seating areas.

Bi-amp & passive modes

In BI-AMP mode, two power amplifier channels can be used, one for each section of the loudspeaker (HF compression driver and LF transducers). DSP (Digital signal processing) is used to separate the audio signal into specific frequency bands for each amplifier channel, powering only the corresponding driver section inside the loudspeaker. This gives you the advantage of being able to select the optimal power specifications and use independent limiter and EQ settings for each driver, resulting in more granular system control and a safer, more efficient, and protected system.

In PASSIVE mode, a single amplifier channel can be used to power all drivers inside the loudspeaker. The full frequency range is put into the loudspeaker and the loudspeakers’ internal passive crossover separates the frequencies, delivering the right frequencies to the right driver. In the example of a 2-way passive loudspeaker, this means that the single amplifier channel is powering both the HF compression driver and the LF transducers. The internal crossover takes care of both the frequency and power separation.

The Wharfedale Pro Preset Library includes factory presets for both BI-AMP and PASSIVE modes, these must be used for optimal loudspeaker performance and protection.

SPECIFICATIONS

Model Name	WLA-210X	WLA-210XSUB
System Type	Passive	Passive
Configuration	Two-way 2 x 10”	Dual 15” Subwoofer
Frequency Response (+/-3 dB)	65 Hz – 20 KHz	39 Hz – 900 Hz
Frequency Range (-10 dB)	60 Hz – 20 KHz	35 Hz -1.5 KHz
Sensitivity (2.83 v / 1 m)	102 dB	108 dB
Calculated Maximum SPL @1 m	LF:135 dB HF:138 dB	145 dB
System Rated Impedance	16 Ω	4 Ω
Low Frequency Transducer
Size	2 x 260 mm / 2 x 10”	2 x 381 mm / 2 x 15”
Voice Coil Size	65 mm / 2.5”	101.6 mm / 4”
Rated Impedance	8 Ω x 2	8 Ω x 2
LF Power (re:AES2-2012)	2 x 400 W	2 x 600 W
High Frequency Transducer
HF Driver Type	Compression Driver – Neo
Voice Coil Size	75 mm / 3.0”
Exit Size	35.56 mm / 1.4”
Diaphragm Material	Titanium
Rated Impedance	8 Ω
HF Power (re:AES2-2012)	80 W
Nominal Coverage (H x V)	100° x 10°
Power
System Continuous Power	LF:800 W HF:90 W	1200 W
System Programme Power	LF:1800 W HF:180 W	2400 W
System Peak Power	LF:3600 W HF:360 W	4800 W
Crossover frequency	1.5 KHz	No
Input Connector	2 x speakON compatible	2 x speakON compatible
Hardware	Integral side plate adjustable rigging 0°-10°	Integral side plate non adjustable
Enclosure
Enclosure Material	15 mm / 18 mm Plywood	18 mm Plywood
Finish	Rhino Black Paint	Rhino Black Paint
Grille Material & Finish	1.2 mm Black Steel	1.2 mm Black Steel
Dimensions – (Unpacked)
Height Front	314 mm / 12.4”	485 mm / 19.1″
Height Rear	240.2 mm / 9.46”	485 mm / 19.1″
Width	760 mm / 29.9”	760 mm / 29.9″
Depth	504 mm / 19.84”	716 mm / 28.2″
Dimensions – (Packed)
Height	404 mm / 15.9”	575 mm / 22.6″
Width Front	855 mm / 33.7”	850 mm / 33.5″
Width Rear	855 mm / 33.7”	850 mm / 33.5″
Depth	594 mm / 23.4”	806 mm / 31.7″
Weight
Net Weight (kg / lbs)	34.8 kg / 76.6 lbs	63.0 kg / 138.4 lbs
Gross Weight (kg / lbs)	38.5 kg / 84.7 lbs	68.0 kg / 149.6 lbs
