Experience the extreme.
Yamaha DSR Series takes portable loudspeakers to the extreme limits of their potential. Output levels pushed to the highest sound pressure levels possible, yet in cabinets that are lightweight and compact.Sound resolution remains superb, no matter how hard or for how long the speakers are driven. Designed by applying our leading-edge digital and acoustic technologies developed over decades, the DSR Series provides a listening experience that re-defines high definition sound reinforcement.
For loudspeakers you can count on to deliver the musicality and sound that will thrill audiences night after night, let the DSR Series power your performances to incredible new heights.
Xtreme D-Powered by Leading-Edge Digital Technology
The DSR development team took full advantage of a number of advanced digital technologies, both new and refined, based on Yamaha’s extensive experience accumulated over many long years of developing professional audio equipment. Leading-edge digital technological innovations incorporated into the DSR Series loudspeakers include Integral Digital Tuning, Intelligent Dynamic Control, Powerful Digital Drive and Extensive DSP Protection. These four “D” technologies combine to make possible the extreme performance capabilities of the DSR Series, hence the name: Xtreme D is born.
The digital crossover networks employ high-order FIR* filters that provide linear phase response. Yamaha’s proprietary FIR-X tuningT simultaneously optimizes frequency and phase response, while adjusting the time alignment between the HF and LF transducers.The end result is sound quality with much better clarity and imaging than is possible with typical crossovers.* Finite Impulse Response
High Performance Digital Signal Processor and 24-bit Discrete AD and DA Converters
All signals are precisely processed by a 48-bit internal processing (76-bit accumulator) high performance processor for optimum sound quality. The DSR Series employs high precision discrete AD and DA converters with superior S/N ratio and dynamic range. The analog signal is transmitted on dual channels, converted to digital and summed inside the processor. By using this algorithm, approximately 3dB of improvement in S/N ratio was realized.
D-CONTOUR is a multi-band dynamic processor featuring intelligent sensing. Normally a compressor is used to boost SPL, but this would effect the entire audio bandwidth resulting in a constricted feel to the sound. D-CONTOUR works by constantly monitoring the output of multiple frequency bands, feeding the data back into the intelligent sensing system. This system then calculates the optimum EQ adjustments for each frequency band, resulting in maximum SPL while maintaining musicality. These EQ adjustments are performed in a highly intelligent manner, linked directly to the auditory response of the human ear. Hence the DSR Series can continuously deliver sound that is natural, clear and powerful – regardless of volume. D-CONTOUR can be turned on or off depending on the acoustic environment and type of sound desired.
1500W (LF: 1020W, HF: 480W)* High Power, High Sound Quality Class-D Amplifiers
Yamaha’s next-generation Class-D amplifiers deliver as much as 1500W* of power with precision damping for tight and crisp sound from compact, lightweight modules. Through the ideal combination of amplifiers, transducers and DSP, the DSR Series loudspeakers provide the highest levels of power in their class and SPL up to 138dB, while maintaining precise dynamics and sound reproduction. Efficiency is such that convection cooling is all that is necessary, eliminating the need for fans.
*Full range model
High Efficiency Natural Convection Heat Sink and Internal Structure

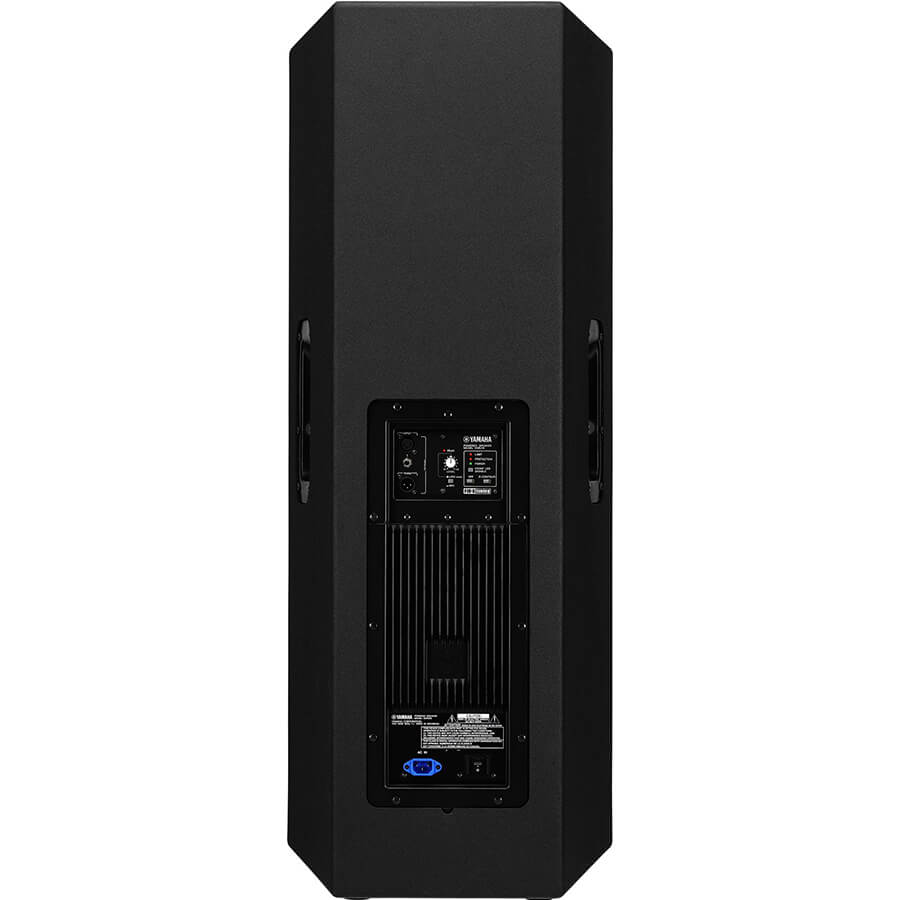

The heat sink uses super-efficient cooling fins and is integrated with the aluminum diecast rear panel. Circuit boards are installed on the back of the rear panel, with all parts including the DSP, amplifiers and power supply laid out to ensure maximum heat conductivity. With the entire structure dedicated to preventing heat buildup, the service lifetimes of all components are significantly increased. Furthermore, the internal structure is designed to achieve the highest sound quality. For example, the DSP unit is completely shielded to separate it from the amp and power supply, preventing noise interference.
Full-Resonance Switching-Mode Power Supply with PFC
The DSR Series employs a high efficiency switching-mode power supply with PFC. PFC harmonizes the phases of the load current and power supply voltage, maximizing power output and ensuring stable operation under severe conditions. The full resonance switching method uses both voltage resonance and current resonance, creating a clean power supply waveform with minimal high frequency noise. This clean, efficient power supply enables the entire speaker system to achieve its full performance potential.
3-Way Fail-Safe Protection
To ensure the highest possible reliability, the DSR Series employs many of the same protection functions used in our top-class TXn Series professional power amplifiers. These functions protect all aspects of the power supply, power amplifier modules and transducers so that they can operate to their full potential while ensuring reliable operation even under the most severe conditions.

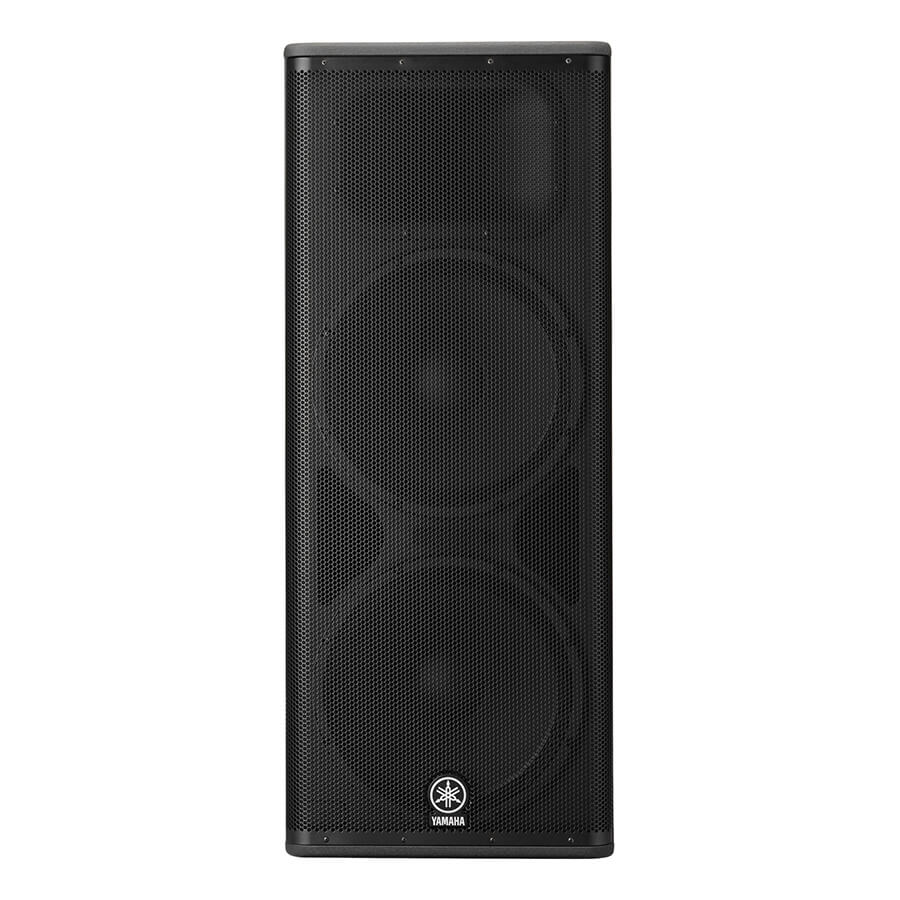

Switchable White Front LED
Each DSR Series loudspeaker has a white LED behind the front grille. When engaged, the LED illuminates while the power is on and also indicates the onset of system limiting. In addition, the brightness varies depending on the amount of limiting, so it is easy to monitor the status of the speaker from in front of the speaker system. This makes it easier to ensure that your mixer level is optimal, so you get the best sound from your DSR.

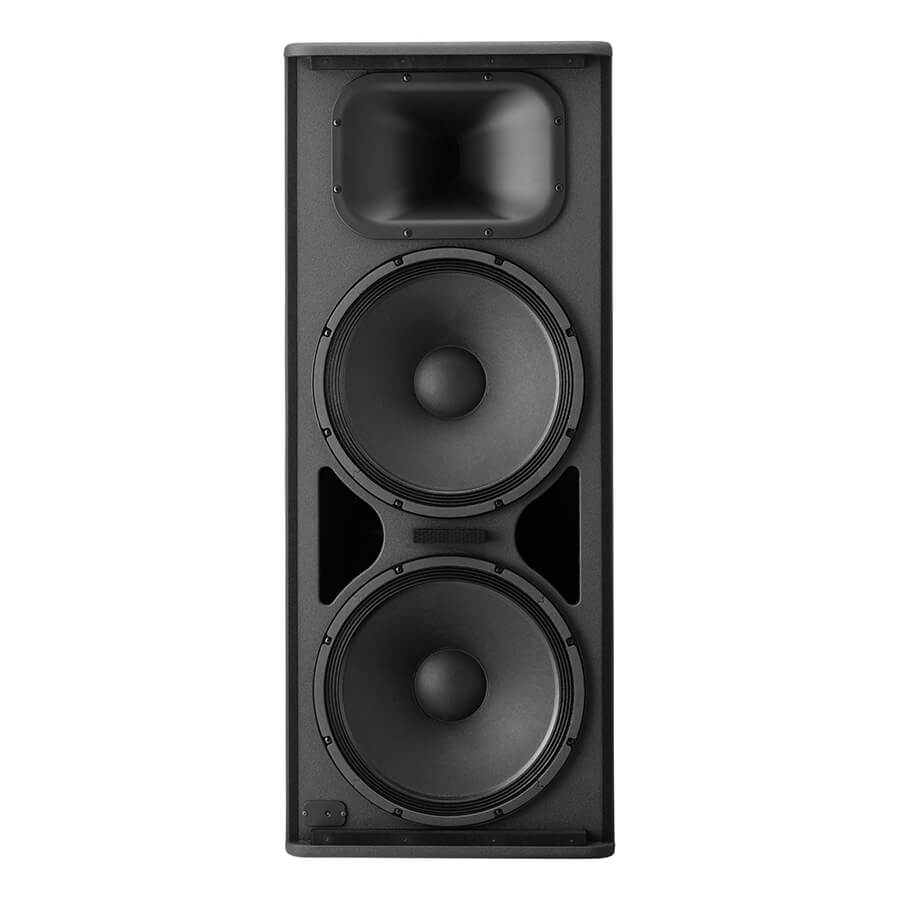

HF: The high frequencies of all full range models are handled by a 2″ titanium diaphragm neodymium compression driver capable of reproducing incredibly transparent, accurate high frequencies up to 20kHz. The 2″ voice coil is large for this class of speaker. It provides high power handling for powerful sound with low distortion even at high outputs. The HF transducers use lightweight, compact neodymium magnets, significantly contributing to the low weight of the loudspeaker system for easy portability. Thanks to these high performance components, the DSR Series exhibits superior dynamics even at high volumes and extremely clear vocals for superb performance in a wide range of environments, from small venues to large halls and outdoor PA.
LF: The DSR Series cast aluminum woofers boast a large 3″ voice coil*, and the DSR112 and DSR115, designed for easy portability, have light, strong neodymium magnets. This makes the speakers lightweight yet capable of delivering awesome power with warmth and deep bass response. The woofers’ superior bass range control and reproduction of mid-bass vocal presence produces fast, powerful bass that does not affect the contour, achieving sound with minimal distortion, even during high volume outputs.
