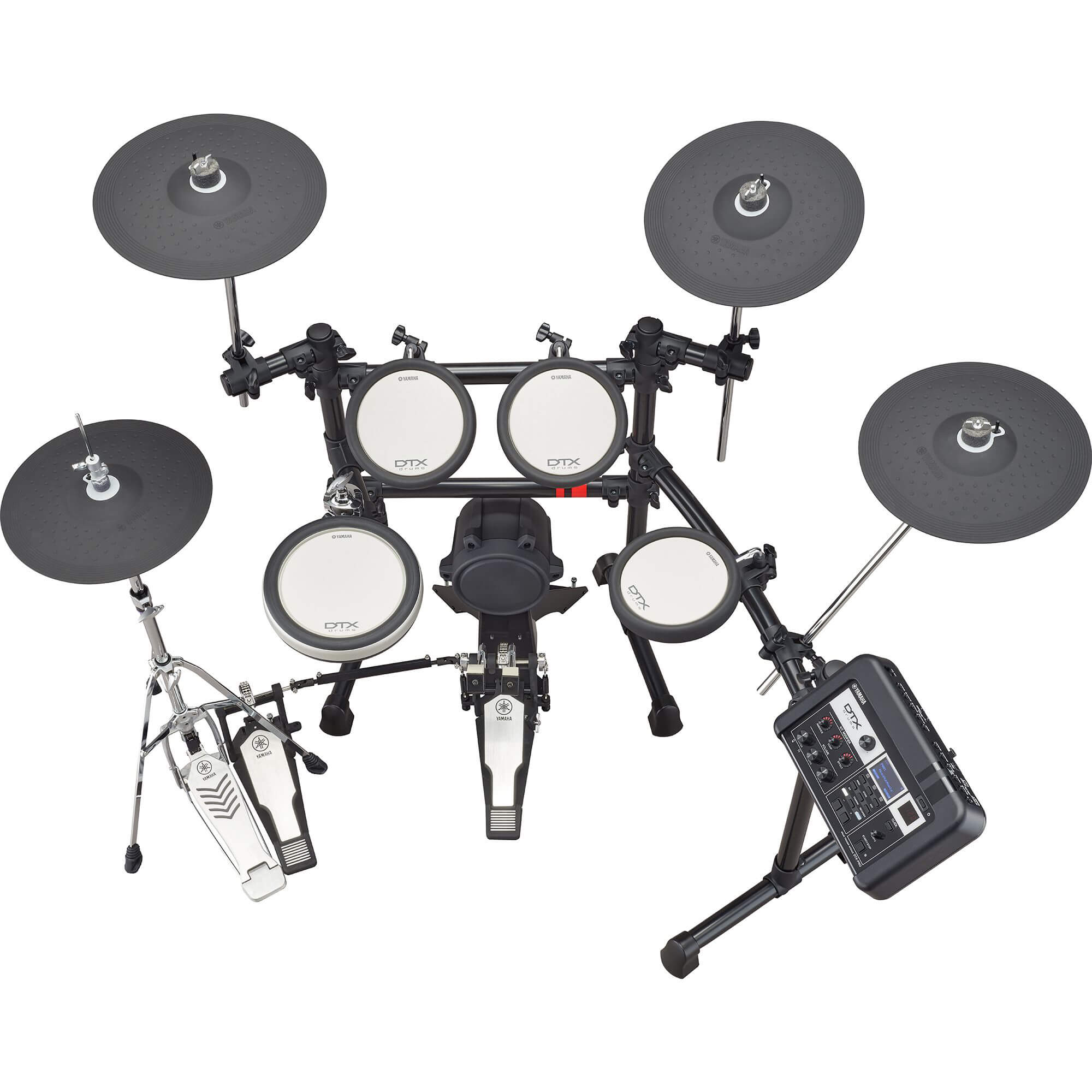

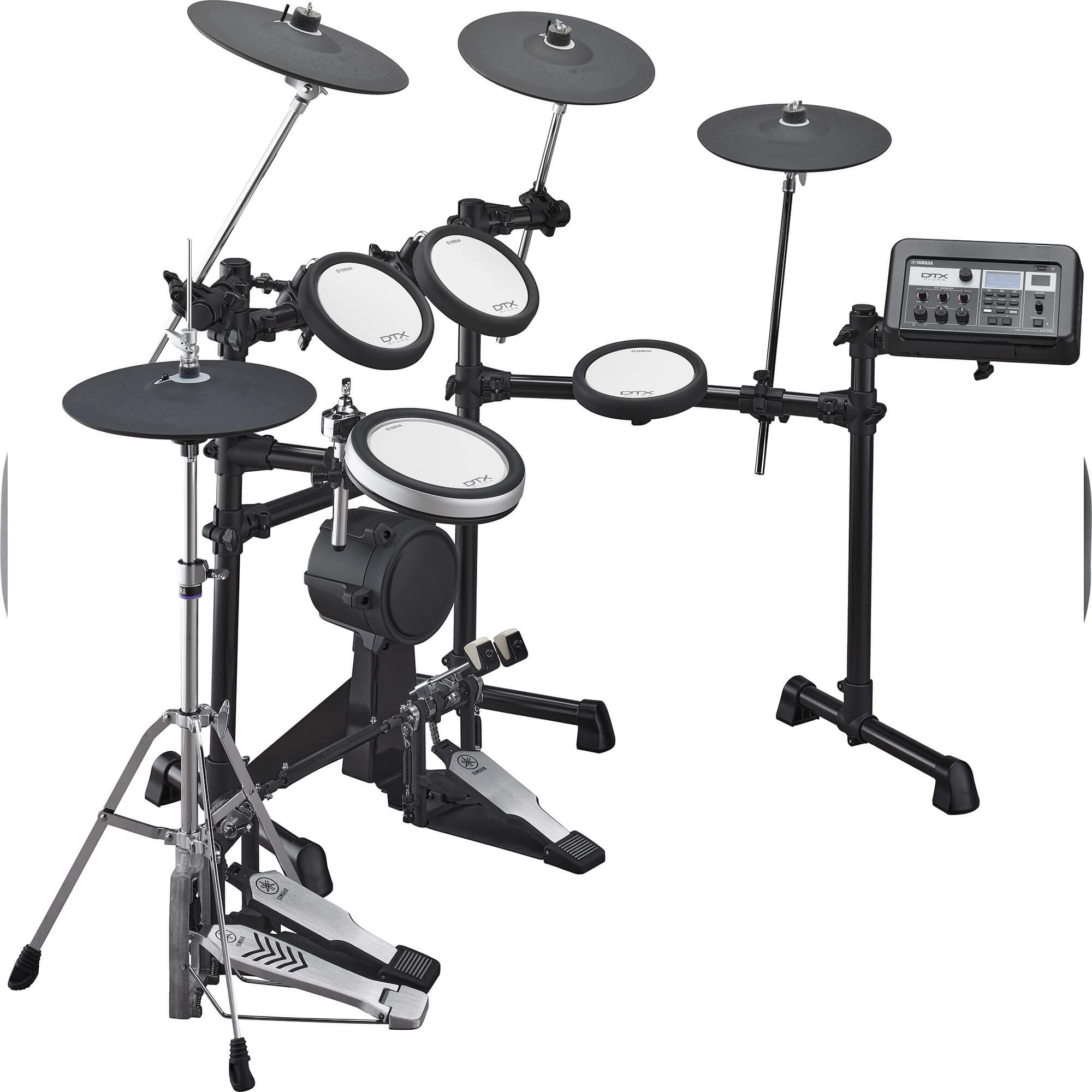

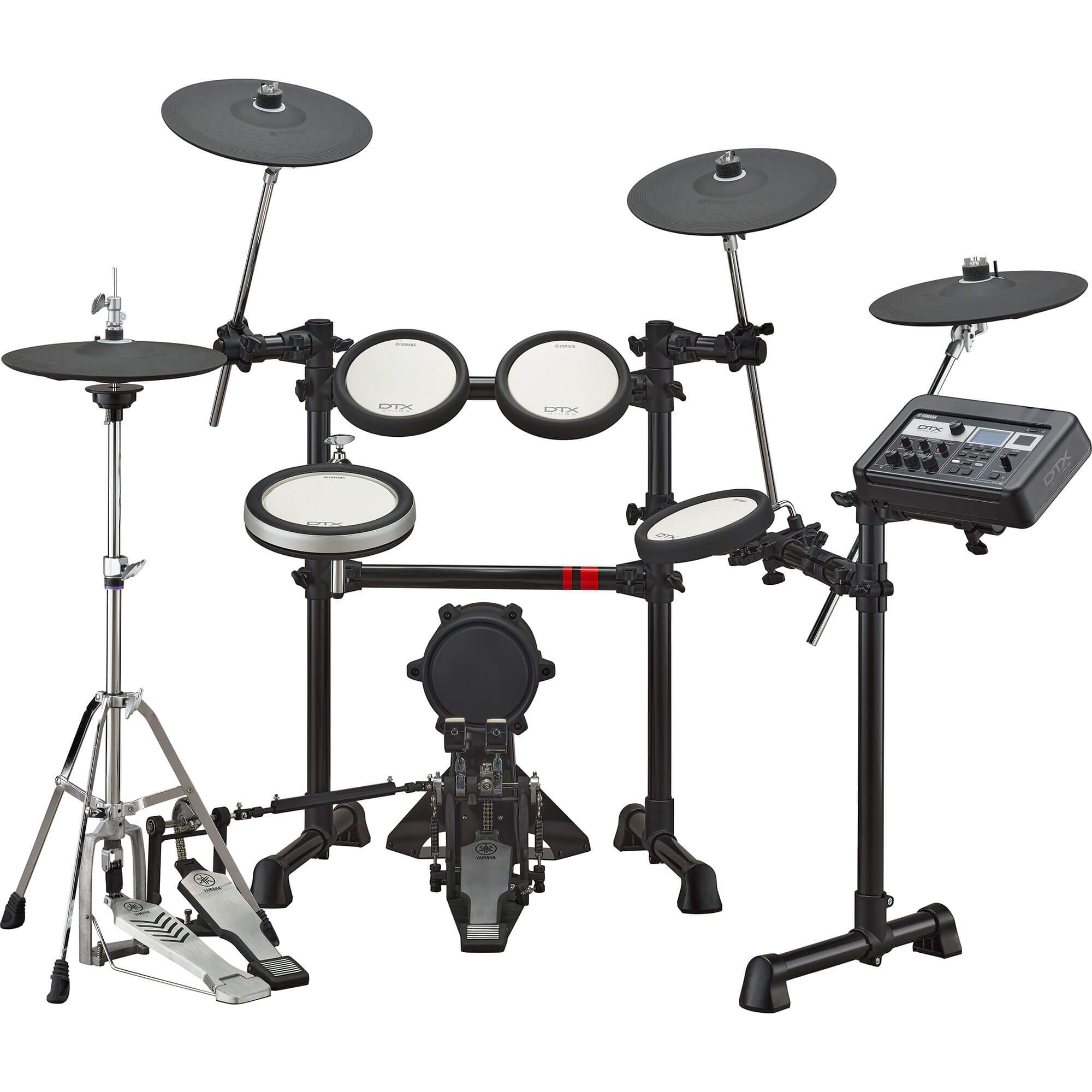

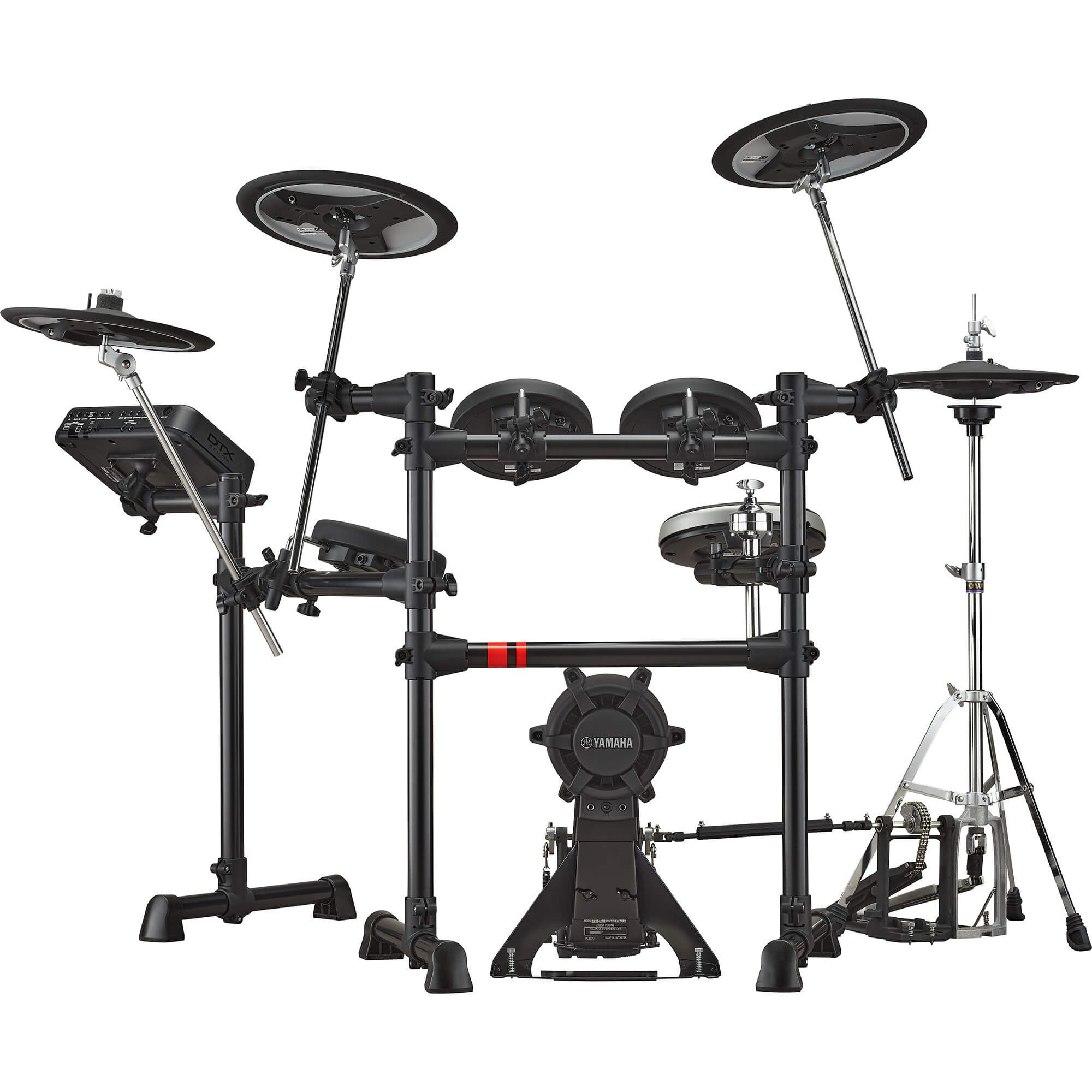

Yamaha DTX6K3-X Electronic Drum Kit
- Faithfully reproduces real drum kit sounds and ambience recorded in world renowned studios
- AMBIENCE, COMP, and EFFECT Kit Modifier knobs that allow you to create your own unique sounds
- Yamaha’s original TCS head is used for all pads achieving a realistic, natural feel and rebound that makes you want to keep playing
- 3-zone pads for the snare, crash, and ride. The cymbals can be choked and muted. The ride cymbal is equipped with a hit point detection function (positional sensing)
- Yamaha system hardware is used for the included hi-hat stand and snare arm.
-
1 x Yamaha DS550U Single-Braced Drum Stool
-
1 x Yamaha FP7210A Single Foot Pedal with Single Chain Drive
-
1 x Yamaha DMR6 Electronic Drum Module
-
1 x Yamaha DTP63-X Electronic Drum Pad Set for DTX6K3
-
1 x Yamaha PA-150B AC Power Adaptor (3 Pin)
DTX 6K SERIES
The DTX6 series features the DTX-PRO module, which has same sound engine of flagship sound module DTX-PROX, with it’s innovative KIT MODIFIERs, to spark creativity and deliver superb performance in a compact configuration.
Superbly Playable
Reproducing the way a drum behaves when struck is a key factor in the playability of electronic drums.
Yamaha has undertaken an exhaustive investigation of how drums respond when hit, leveraging this information to achieve a truly faithful representation of instrument behavior. Moreover, professional drummers from around the world have evaluated the performance of the DTX-PRO, allowing Yamaha to improve its expressive capabilities still more. Yamaha’s expertise as a manufacturer of music hardware has allowed them to offer combinations of expertly crafted modules and pads that deliver superb playability.
A high-performance sound engine that allows for total sound creation
The high-performance sound engine in the DTX-PRO module leverages the technologies that Yamaha has acquired over decades of making musical instruments of all kinds.
Every single channel of the DTX-PRO module has three band, sweepable EQ, channel compression (in addition to the overall kit compression), Transient Adjustment (where the Attack and Release of each sound are individually adjustable) and Insertion effects, to help let drummers recreate their favorite drum sounds.
As a complement to this, Yamaha drum pads feature pad sensing technologies that respond with precise accuracy to the actions of the player, delivering the ultimate in expressive capability that is reflected in the sound.
Reliable Yamaha Hardware
Yamaha’s HS650A hi-hat stand is included with the DTX6K2-X and DTX6K3-X. All of the DTX6 Series also uses Yamaha’s traditional ball clamps for snare pads, making fine adjustment of settings easy.
Yamaha is also one of the finest acoustic drum makers in the world, and its hardware is trusted by many professional drummers, for its strength, ease of use, and stability.
An extensive range of training functions to support drummers
The best practice functions featured in previous DTX models are also found in the DTX-PRO. As well as the sophisticated programmable metronome, the module offers a comprehensive recorder function, 10 training functions that are ideal for players of all standards, as well as 37 training songs that allow you to learn various genres. Beginners and professionals alike will find the DTX-PRO training functions a useful aid for daily practice.
Professional grade headphone amp
Yamaha realize that it is incredibly important that drummers can hear themselves clearly, so the DTX-PRO module comes equipped with a high precision, low distortion, low noise, and high-power headphone amplifier. This circuitry delivers high-fidelity sound directly to the player, has been developed exclusively for electronic drums, and it envelops the player in realistic drum sounds.
Cubase AI Included
The DTX-PRO comes with a download code for the latest version of “Cubase AI” the powerful music production software.
By connecting the DTX-PRO to your computer with a USB cable, all recording, editing, and mixing tasks, that are found in modern music production, can be handled by the one software program.
Real sounds that drive the drummer
No compromise has been made in recording the sound of the instruments themselves. The DTX PRO sounds have been fine-tuned to naturally follow the drummer’s performance and allow for maximum expression.
The acoustic drum sounds built into the DTX-PRO are all real sounds recorded in best recording studios in the world. As well as recording the direct drum sounds though, the unique natural room ambience of the studios where they were recorded, was also sampled.
Performances by leading Yamaha drums artists were recorded and mixed by a team of recording engineer to give the final instrument samples. The project sound director, an electronic musical instrument development professional, specified exacting recording techniques to capture the full detailed sound of each drum and cymbal, from the initial attack, until the very end of the natural sound.
The DTX pads, the drummer’s interface with their instrument, have been carefully matched to the DTX-PRO Module to offer excellent expressive capabilities.
Intuitive functionality that stirs creativity

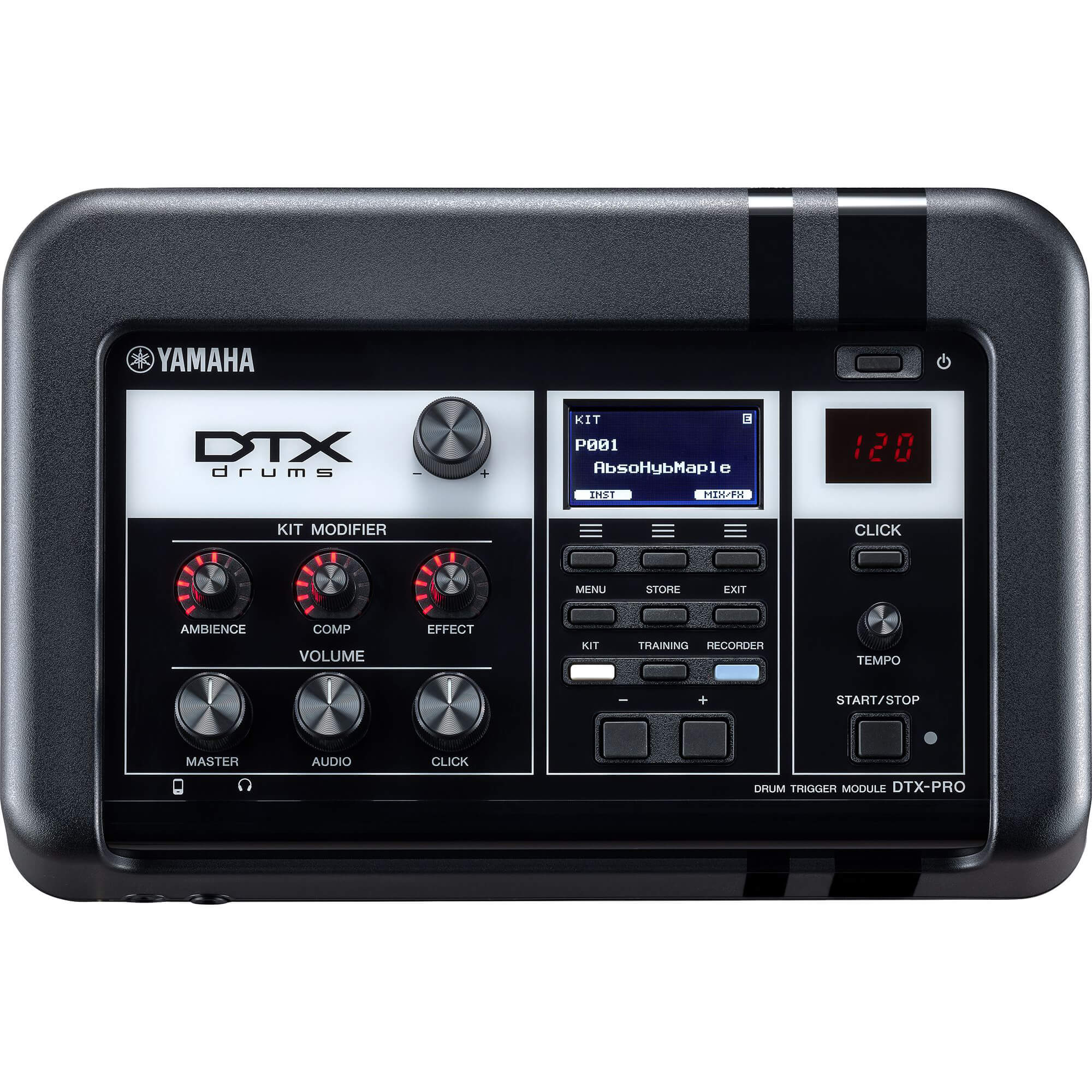

The KIT MODIFIER knobs featured on the DTX-PRO offers drummers limitless possibilities for their creativity.
The KIT MODIFIERs condense the sound creation know-how that Yamaha has accumulated over decades into three knobs: AMBIENCE, COMPRESSION, and EFFECT. A wide range of tonal possibilities are available thanks to Yamaha engineers — from the natural sound of acoustic drums, through to live performance sounds, to heavily effected sounds.
The AMBIENCE knob controls the natural ambience and reverb of the drum kit sound. On acoustic drum sounds, the AMBIENCE MODIFIER controls the real recorded natural ambience from 0-50%. When turned up higher than 50%, high quality digital reverb is also introduced to the sound.
The COMP and EFFECT knobs utilize the “1-knob” control technology featured in many Yamaha PA products.
The COMP adds one-knob compression to the whole kit sound, from subtle to very obvious, while EFFECT controls the mix of the two internal effects processors. The processors are fully adjustable and have a long list of available effects to choose from.
A playing experience in a class of its own

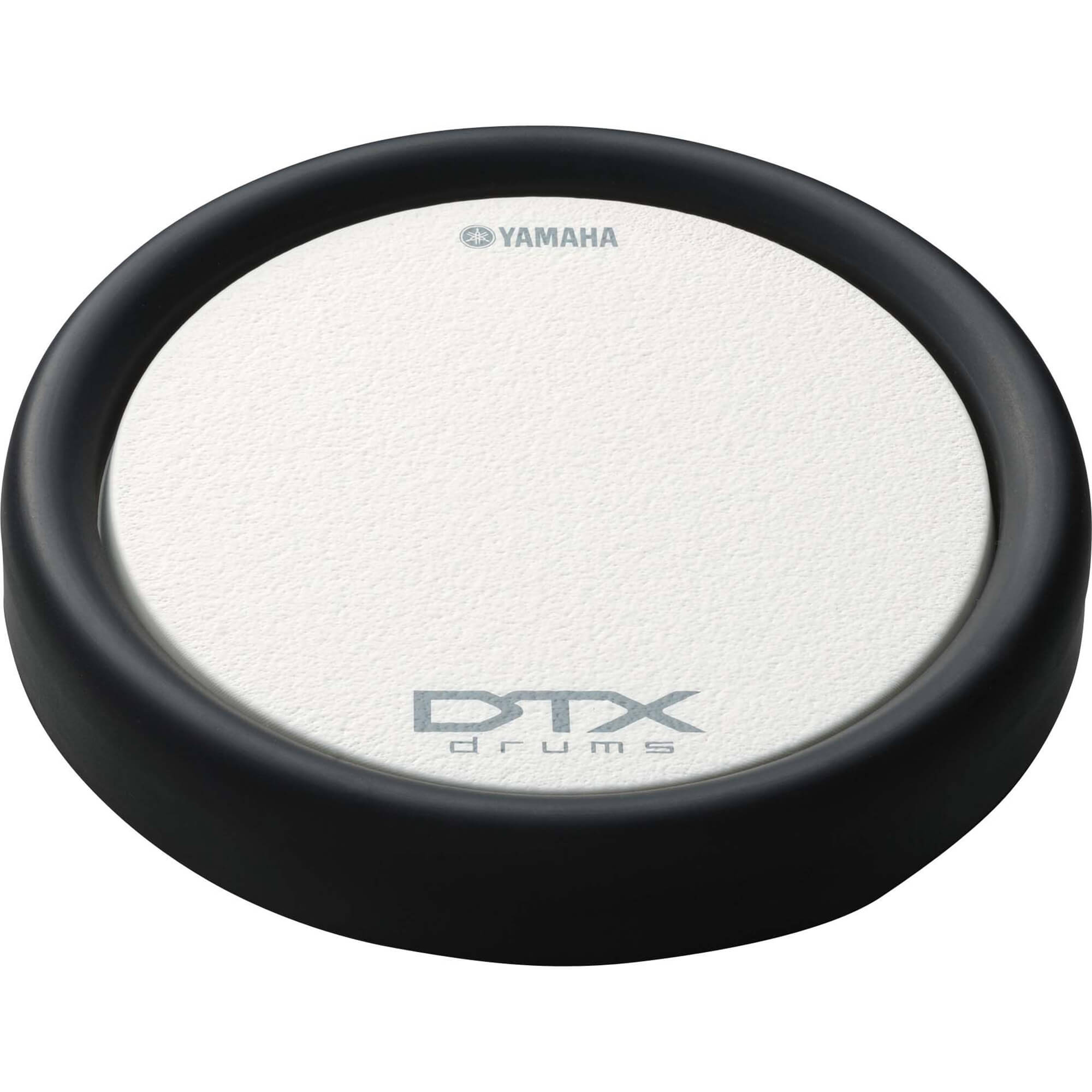

The DTX6 series is equipped with TCS (Textured Cellular Silicone) pads, providing unparalleled levels of realism, feel and quietness.
Yamaha’s original TCS head surface uses a foamed silicone material that contains thousands of air bubbles. With the perfect level of firmness and rebound that allows players to hit hard, TCS offers a realistic, natural feel that inspires you to want to keep playing, and because the surface never loosens, every strike feels perfect.
In addition, a unique floating structure, without any direct contact with the head and body parts, prevents vibration from being transmitted elsewhere, while also improving pad sensitivity. The air bubbles in the TCS head also serve as a cushion to soften the stick sound.
KEY FEATURES
Detailed reproduction of the drummer’s performance
A more musical ride
A kick that just makes you want to play more
Set it and forget it
Everything a drummer needs
An App that makes recording, editing, and sharing easy
DTX6K3-X SPECIFICATIONS
| Module | DTX-PRO | |
|---|---|---|

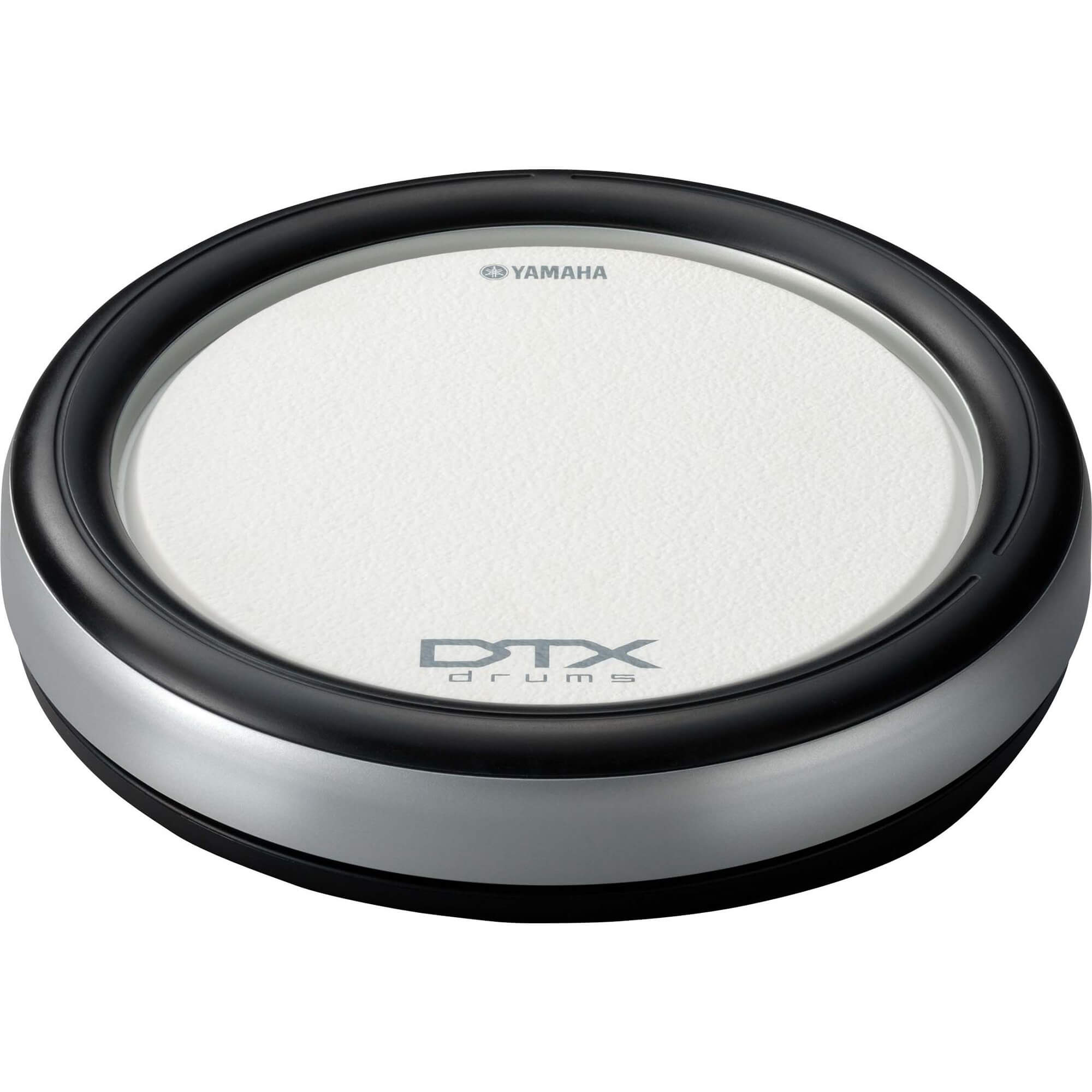

| Pad | Snare | XP80 (8-inch) TCS head 3-zone pad |
| Tom 1, 2 | XP70 (7-inch) TCS head 1-zone pad | |
| Floor Tom | XP70 (7-inch) TCS head 1-zone pad | |

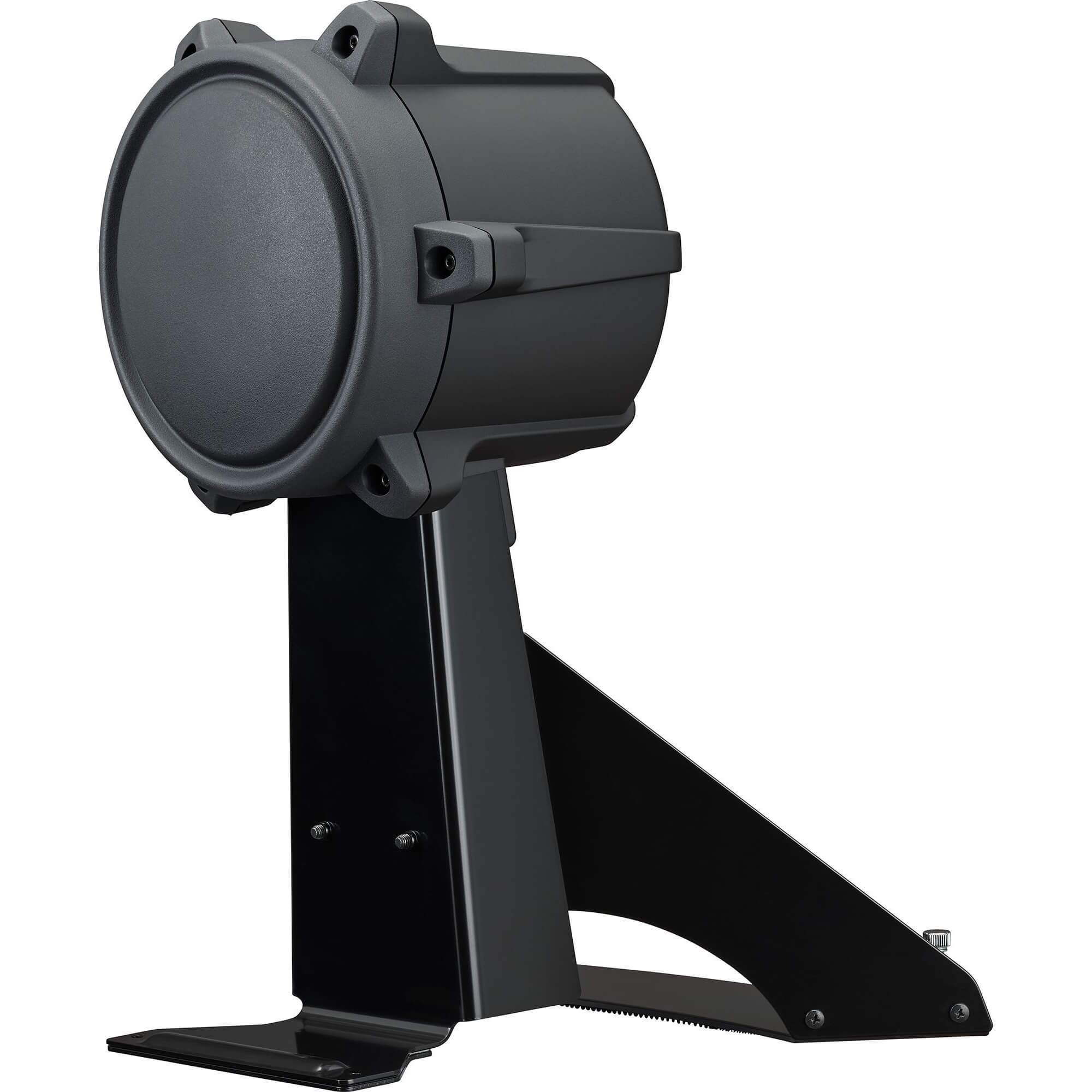

| Bass Drum | (7.5-inch) Rubber head with multi-layer cushion | |
| Hi-Hat | RHH135 (13-inch) 2-zone pad | |

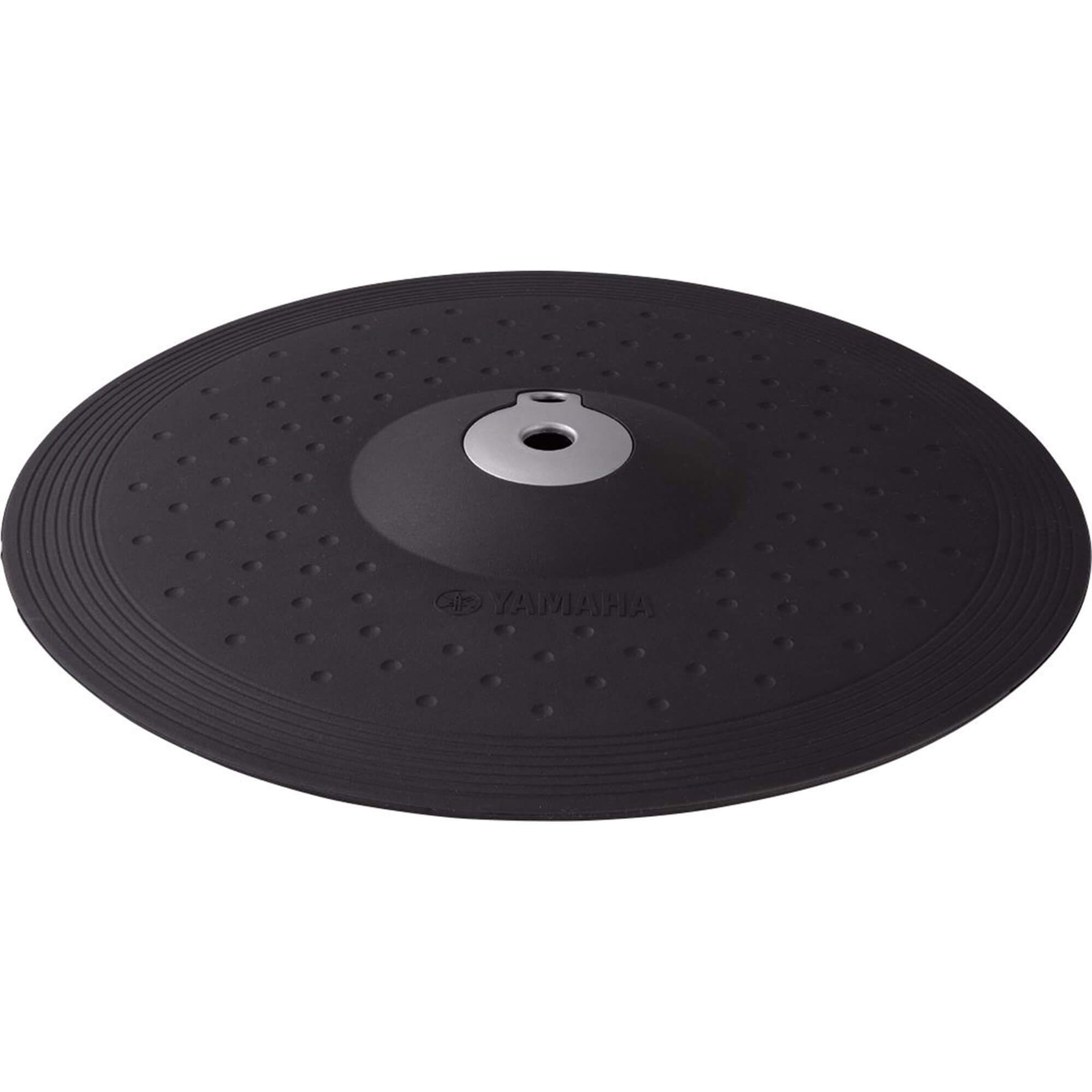

| Crash Cymbal 1 | PCY135 (13-inch) 3-zone pad | |
| Crash Cymbal 2 | PCY135 (13-inch) 3-zone pad | |
| Ride Cymbal | PCY135 (13-inch) 3-zone pad | |
| Hi-Hat Stand | HS650A | |

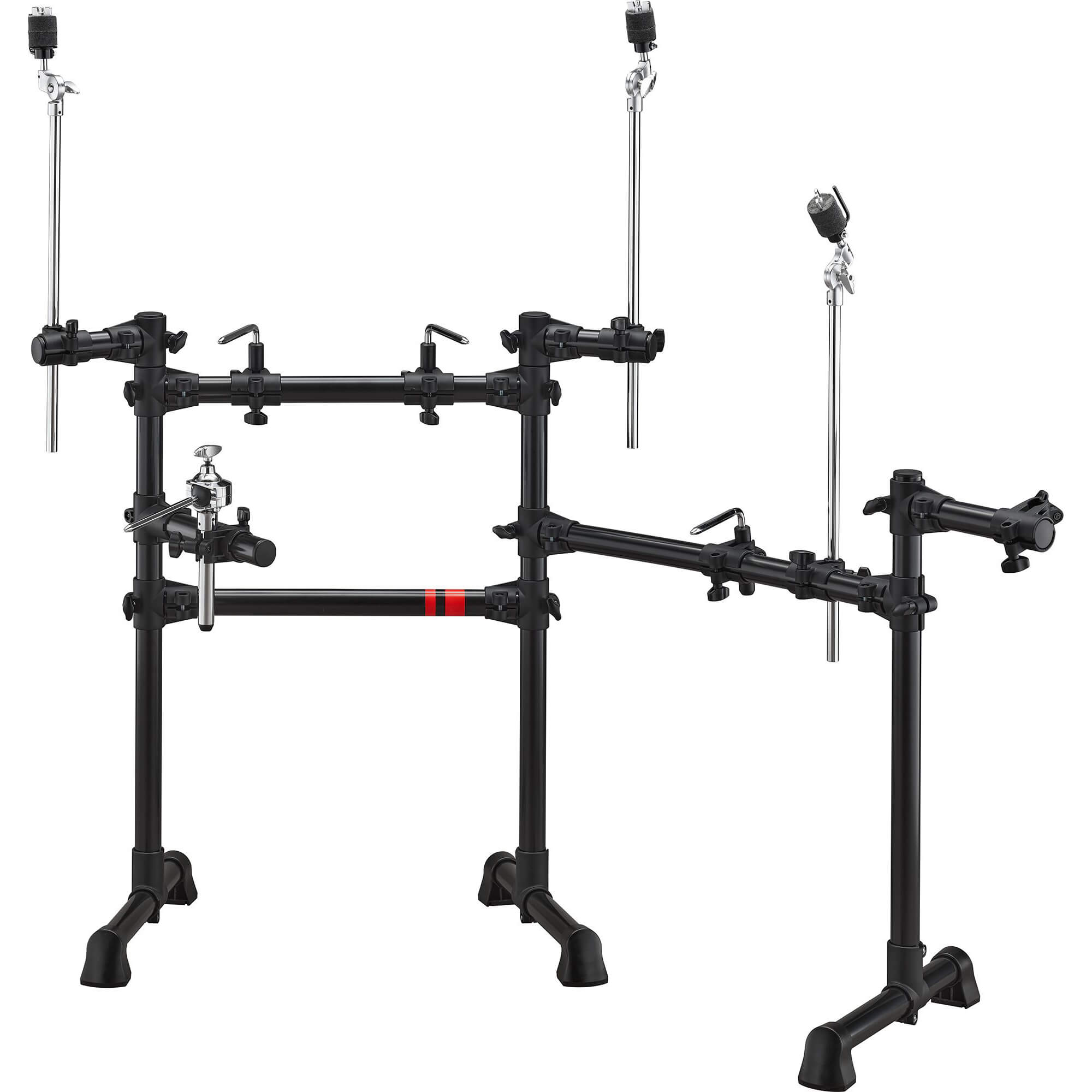

| Rack System | RS6 | |
| Tone Generator | ||
|---|---|---|
| Dimensions | Width | 303 mm (11-15/16 in) |
| Height | 196 mm (7-11/16 in) | |
| Depth | 66 mm(2-5/8 in) | |
| Weight | 1.5 kg (3 lb 5 oz) | |
| Maximum Polyphony | 256 notes | |
| Effects | For each Inst: EQ / Comp / Transient / Insertion (*1), For each Kit: Ambience / Effect 1 / Effect 2 and Master Comp / Master Effect, For overall: Master EQ / Phones EQ (*1) Insertion effects can be used only for specific Inst. | |
| Drum kits | Preset: 40 Kits, User: 200 Kits | |
| Voices | 712 | |
| Click Sets | 30 | |
| Tempo | 30 to 300 BPM, Tap Tempo supported. | |
| Time signatures | 1/4 to 16/4, 1/8 to 16/8, and 1/16 to 16/16 | |
| Subdivisions | Accents, quarter notes, eighth notes, sixteenth notes, and eight-note triplets | |
| Others | Individual click volume control, wav import, timer | |
| Types | 10 | |
| Songs | Preset: 37 songs, User: 1 song | |
| Import limit | 1,000 files | |
| Maximum loadable sample time | 760 seconds (44.1 kHz, 16 bit, mono), 380 seconds (44.1 kHz, 16 bit, stereo) | |
| sample format | WAV | |
| Recording time | Internal memory | Maximum of 90 seconds |
| USB flash drive | Maximum of 90 minutes per file | |
| Format | Record/playback: WAV (44.1 kHz, 16 bit, stereo) | |

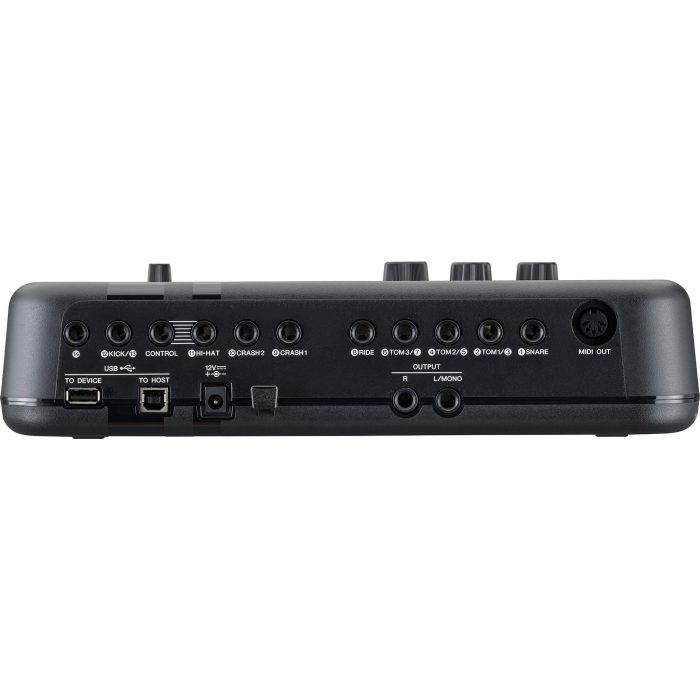

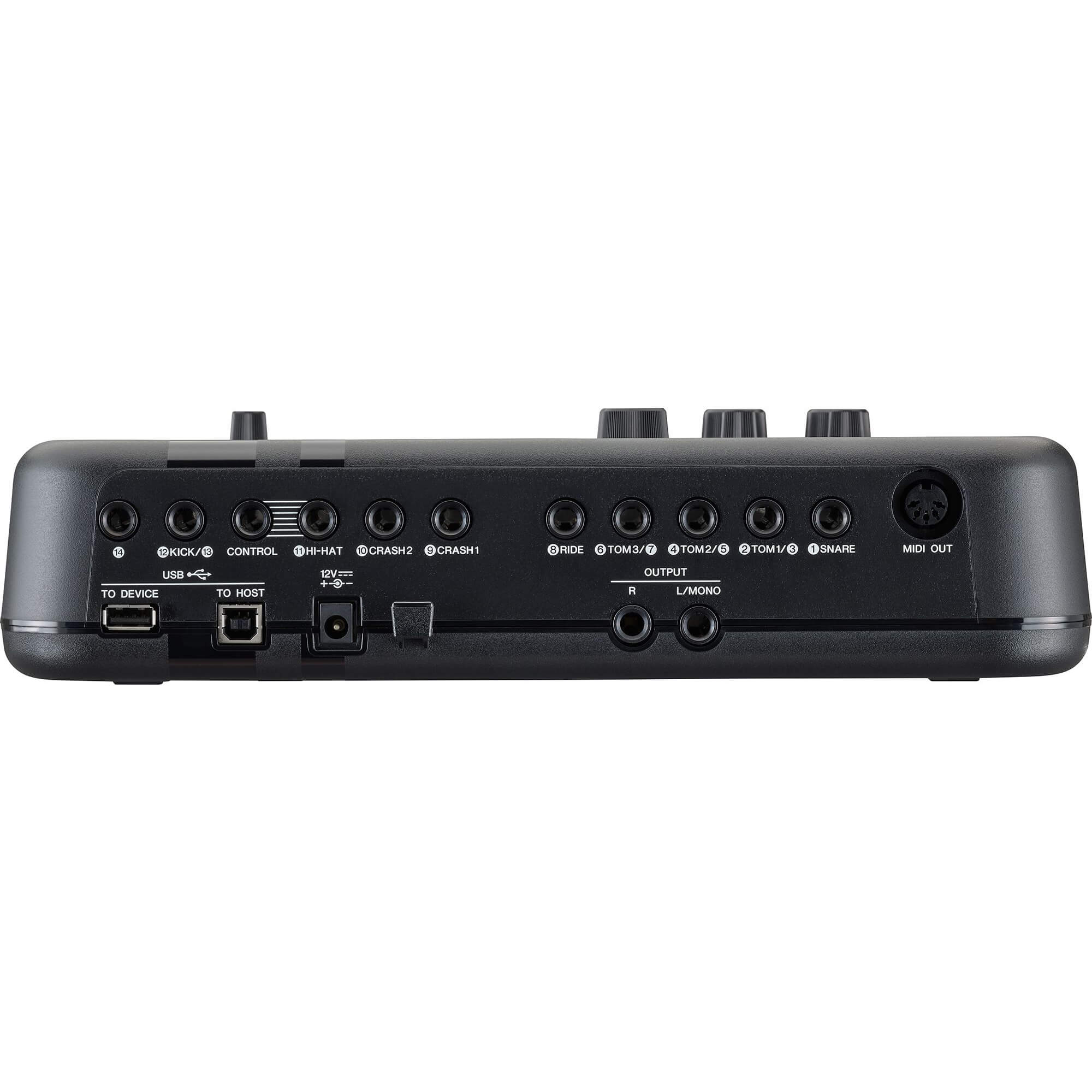

| Connectors | DC IN | DC IN (+12V) |

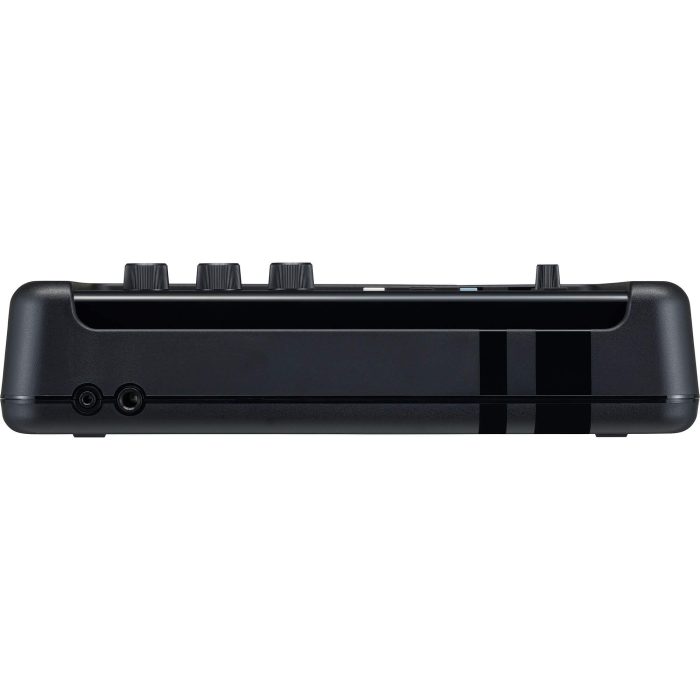

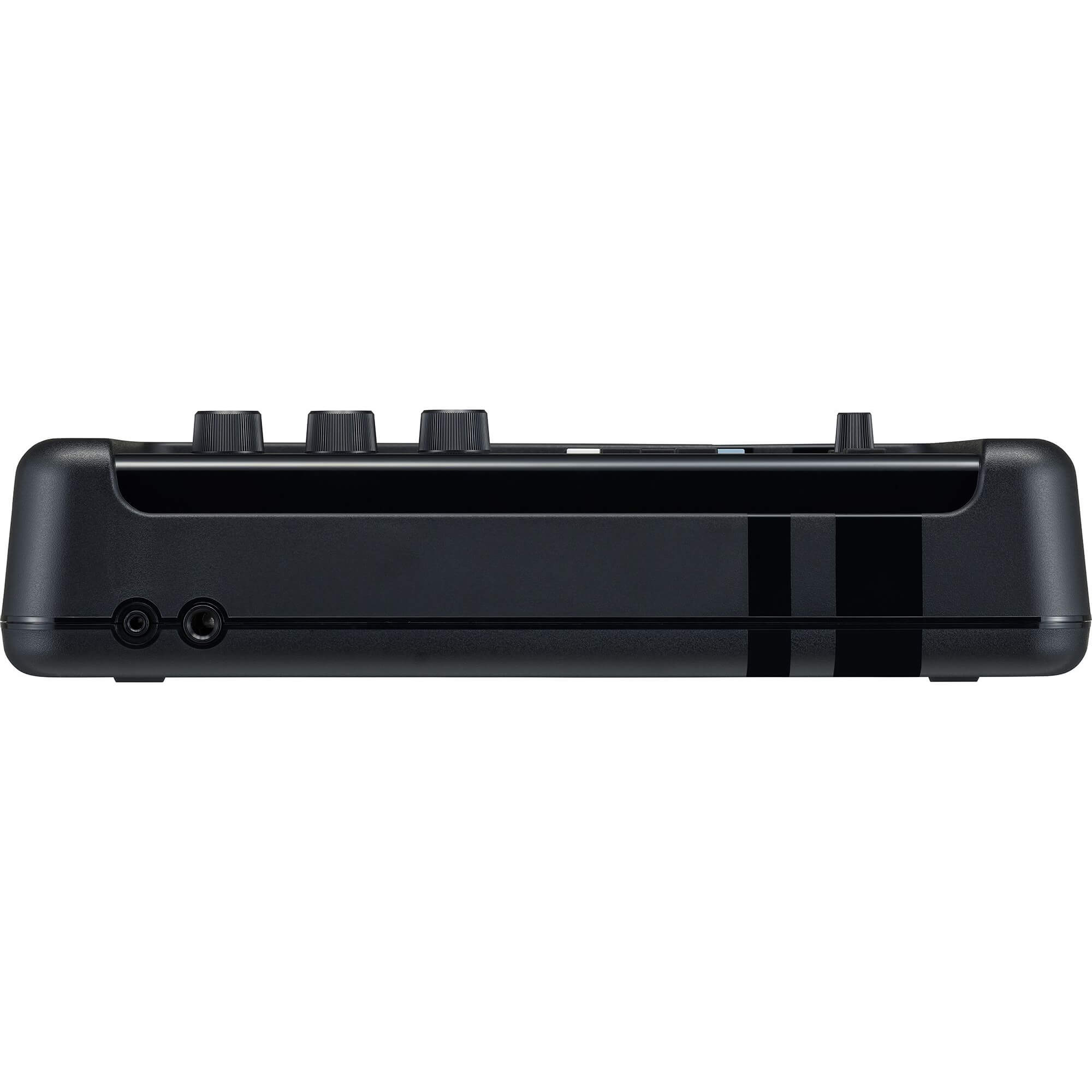

| Headphones | Headphones (standard stereo phone jack x 1) | |
| AUX IN | AUX IN (stereo mini jack x 1) | |
| Output | OUTPUT L/MONO, R (standard phone jack, one for each) | |
| USB | USB TO DEVICE, USB TO HOST | |
| MIDI | MIDI OUT | |
| Trigger Input | Trigger inputs 1, 14: (Standard stereo phone, L: Trigger, R: Rim switch / Trigger), 2/3, 4/5, 6/7, 12/13: (Standard stereo phone, L: Trigger, R: Trigger), 8, 9, 10, 11: (Standard stereo phone, L: Trigger, R: Rim switch) *Maximum 14 of pads to be connected (when Y-cable is used) | |
| Display | Full Dot LCD (128×64 dot) | |
| Accessories | AC adaptor (PA-150 or an equivalent recommended by Yamaha)*2, Owner’s Manual, module holder, module holder wing bolts (x 4), Cubase AI Download Information *2 May not be included depending on your area. Check with your Yamaha dealer. | |
