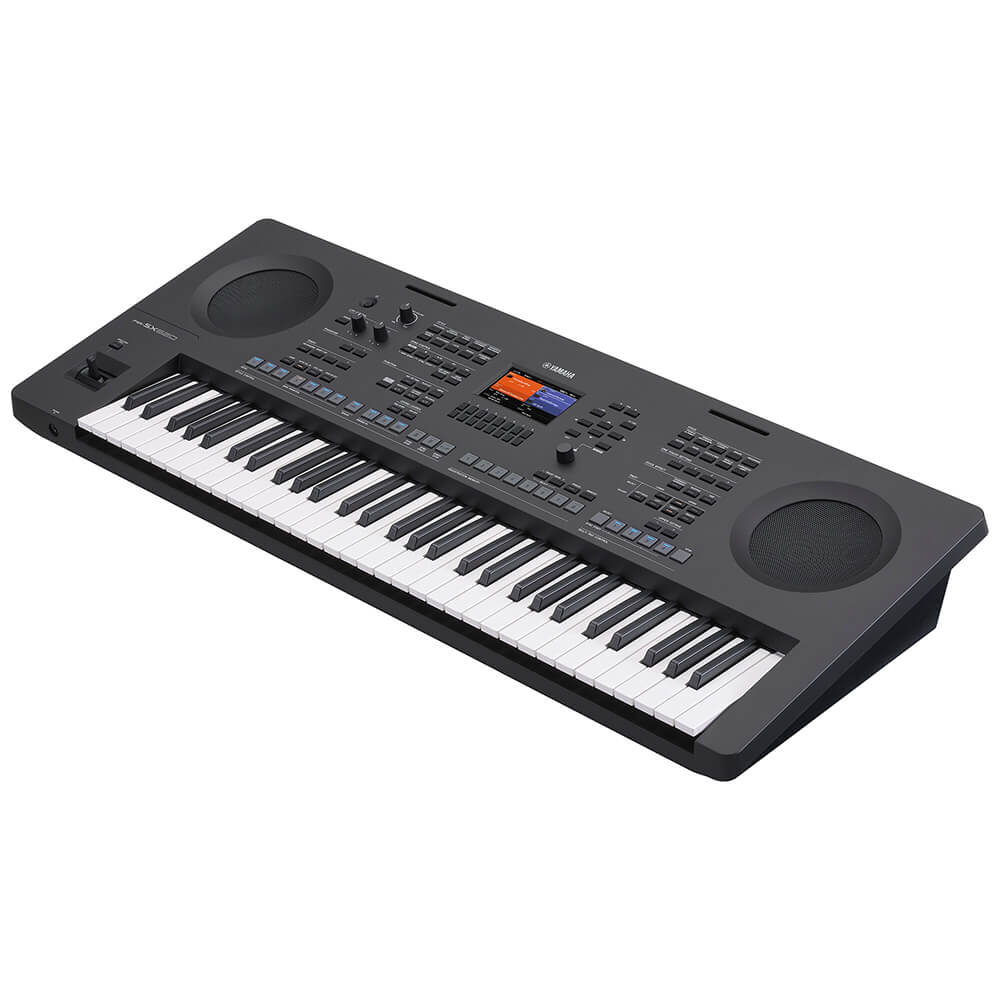

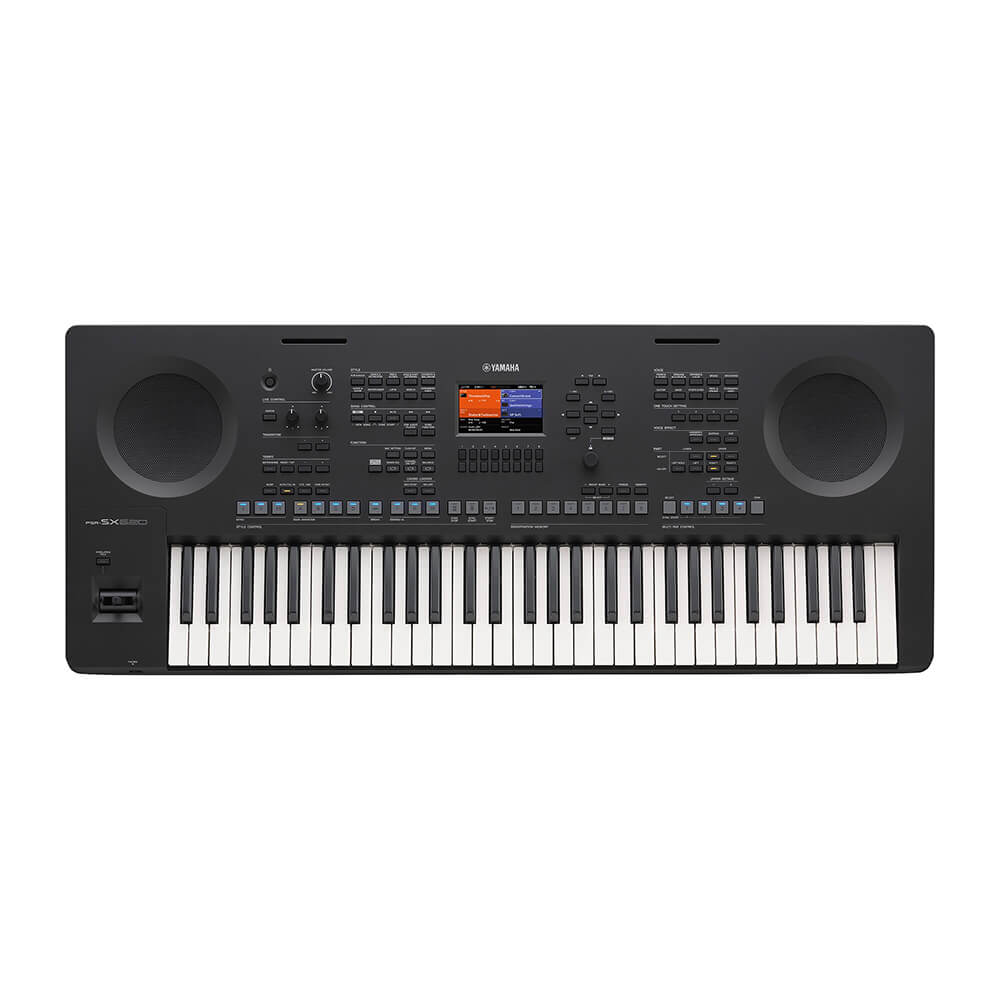

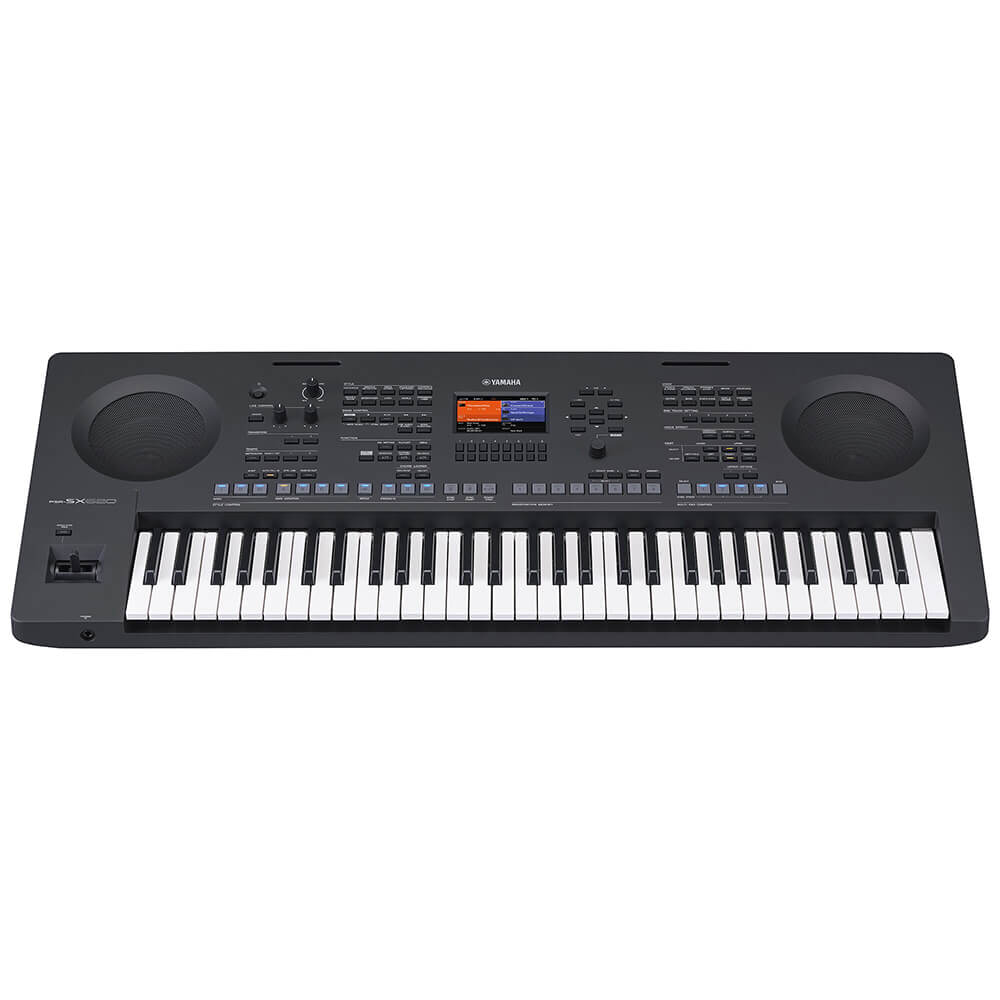

Yamaha PSR-SX620
New PSR-SX620 opens the door to the PSR-SX series, delivering expressive sound, intuitive control, and inspiring arranger performance. With rich Voices, dynamic Styles, and creative performance tools, PSR-SX620 brings your music to life. Discover a new PSR-SX Arranger Workstation – where creativity begins.
Overview
Where creativity begins
The PSR-SX620 is the new entry point to the PSR-SX series, designed to make expressive performance and creative exploration instantly accessible. With over 1,000 Voices and 450 Styles, it delivers rich accompaniment and authentic musical expression across a wide range of genres—helping you turn ideas into confident performances with ease.
A completely redesigned panel layout places essential controls exactly where you need them, including the Joystick Controller and Live Control knobs for intuitive, hands-on sound shaping. A newly developed speaker system delivers powerful, refined sound from a compact cabinet, while improved line output quality ensures clear audio when connected to external systems. Bluetooth® Audio enables wireless music playback, and Expansion Packs allow you to expand your instrument with new Voices and Styles from around the world.
Discover a new PSR-SX Arranger Workstation—designed to inspire, perform, and evolve with your music.
Main Features

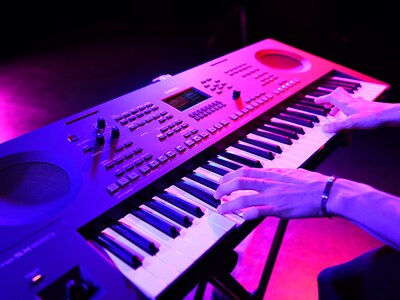

Expressive Sound Driven by Intuitive Control
Bring your music to life with the PSR-SX620, a powerful Arranger Workstation combining inspiring sound with intuitive performance control. Featuring over 1,000 Voices and 450 dynamic Styles, the PSR-SX620 delivers an expressive, authentic playing experience across a wide range of musical genres, making it easy to create polished, dynamic performances.
Enhancing realism and expression, the PSR-SX620 includes Super Articulation (S.Art!) Voices, capturing the subtle nuances and expressive details of real instruments with characteristic performance articulations, these Voices add depth and emotion to every note you play.
For hands-on creativity, the Joystick Controller provides intuitive pitch and modulation control, while two assignable Live Control knobs allow real-time adjustment of sound, effects and Style parameters. With the Chord Looper, you can instantly capture and loop chord progressions, freeing your hands to focus on melody, improvisation, or sound shaping.
The PSR-SX620 brings together expressive Voices, inspiring Styles, and intuitive control in a compact, performance-ready instrument—making it the perfect creative partner for musicians who want powerful arranger features with effortless playability.

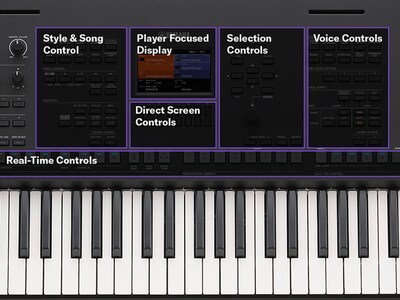

Where Modern Design Meets Musical Expression
The PSR-SX620 has been completely redesigned to feel more intuitive, inspiring, and enjoyable to play. A new panel layout puts the controls you use most within easy reach, so you can focus on making music rather than navigating menus. Everything feels clearer and more immediate, whether you’re shaping a sound, changing a Style, or performing live.
The clean, modern design gives the instrument a fresh, confident look, while subtle refinements improve sound projection and overall playability. From relaxed practice sessions to creative exploration and performance, the PSR-SX620 is designed to make playing music feel natural, engaging, and effortless.

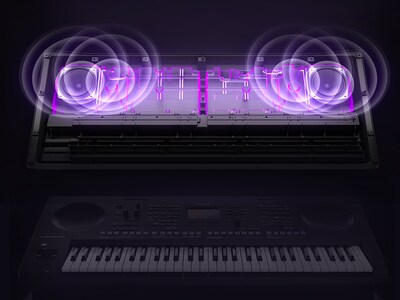

Powerful Sound, Seamlessly Integrated
The PSR-SX620’s refined design conceals a newly developed speaker system featuring an Internal BassPort, delivering a more powerful and balanced sound than its compact appearance suggests. An enlarged internal sound chamber enhances bass depth and resonance, while a front-facing bass reflex design improves low-frequency response. Structural refinements within the cabinet help produce a tighter, cleaner sound, ensuring clear and confident audio whether you’re practising at home or performing for others.

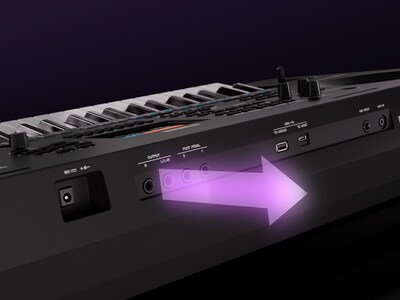

Punchy Line Out
The PSR-SX620 features upgraded audio output circuitry that delivers a clearer, more powerful signal when connected to external speakers or PA systems. Enhanced clarity and punch ensure your performances translate with greater impact and definition, whether playing live, rehearsing, or recording.
EXPANSION EXPLORER App
The new EXPANSION EXPLORER App is the ultimate tool for supercharging your Arranger Workstation experience. Quickly access, search, and preview your favorite Expansion content on iOS, Android, Windows and Mac. With tailored recommendations and effortless management, EXPANSION EXPLORER makes discovering and installing new content easier than ever before.
Features
Whether composing or performing, the PSR-SX elevates your music to new heights. Its powerful features are designed to be intuitive, making high-level musical expression easier and more enjoyable than ever.
-
Live Control Knobs & Joystick
Control your performance in real time with Live Control knobs and Joystick Controller.
Take hands-on control of your performance with two assignable Live Control knobs and the Joystick Controller. Shape your sound in real time by adjusting brightness, tone, effects, and more. The joystick adds expressive pitch and modulation control, making it easy to add nuance and movement to your playing.
-

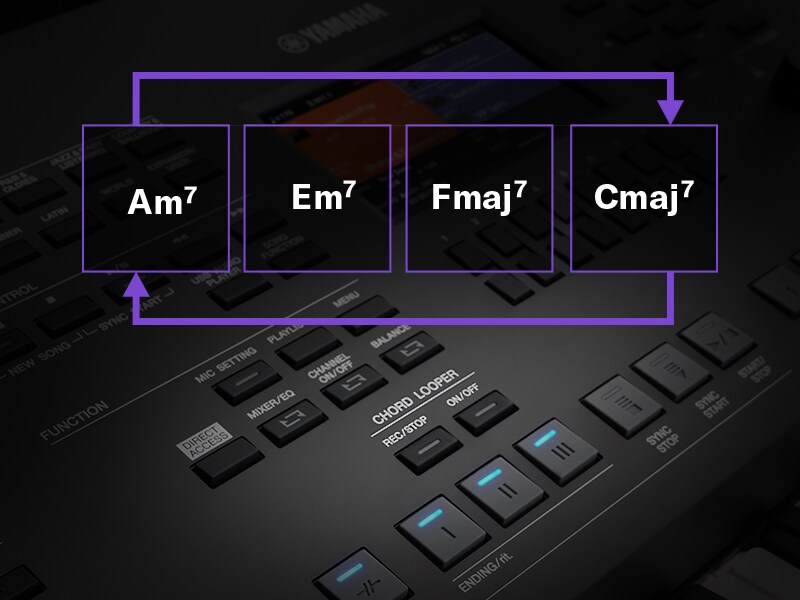

Chord Looper
The new panel buttons provide quick access to recording and playing back chord sequences in realtime. Whether you wish to free up your left hand to play full piano, build up sections of a song or practice a difficult piece of music, the Chord Looper enables you to store up to 8 chord sequences in each bank for easy access during your performance.
You can create an unlimited number of banks with your own chord progressions, or choose from a range of built-in presets.
-

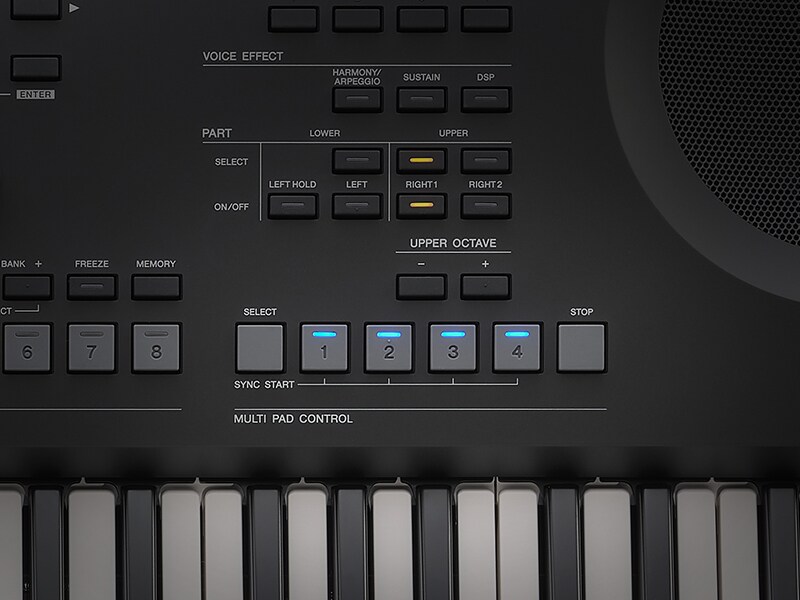

Multi-Pads
Multi Pads let you trigger rhythmic phrases, melodic patterns, and loops to add energy and variety to your performance. Alongside built-in MIDI phrases, Audio Link Multi Pads allow you to assign your own WAV audio, making it easy to launch custom sounds and samples on the fly. Whether accenting a groove or enhancing a song, Multi Pads bring extra creativity to every performance.
-
Bluetooth® Audio
Wirelessly stream music from your device to play along with your favorite songs. You can even capture your entire session using the built-in audio recorder.
-
Smart Chord
Turn a single note into a full chord. Easily perform with professional accompaniment by playing only the root note.
-
Expansion Packs
Sign up for a Yamaha Music ID to access a growing library of Expansion Content for the PSR-SX620.
-
Playlist
Playlist makes it easy to organize your songs and settings for instant recall. By grouping Registration Memory banks into custom Playlists, you can quickly call up the right Voices, Styles, and settings for each song with a single touch. Whether you’re performing live, rehearsing, or managing a large repertoire, Playlist helps you stay organized and focused on your music – not your setup.
-

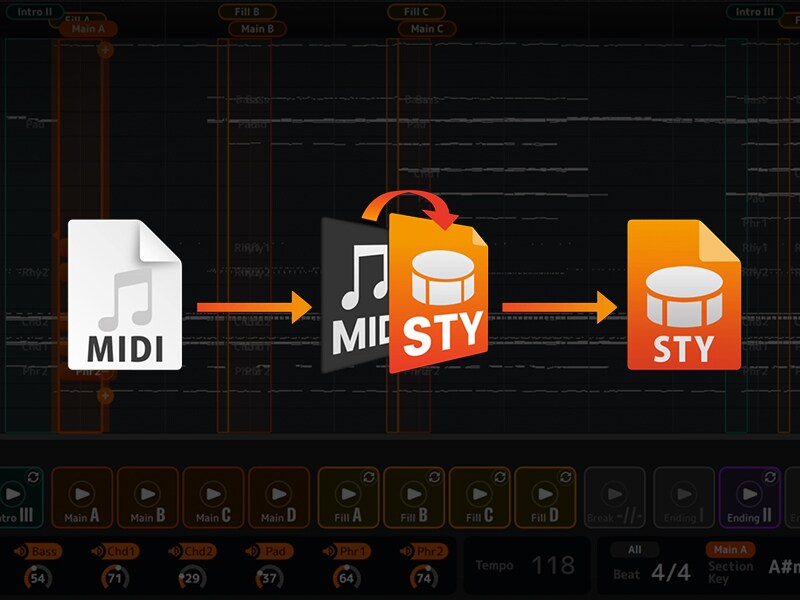

MIDI Song to Style
Convert any standard MIDI file to a ready-to-play Style, complete with intros, endings, main sections and fill-in’s.

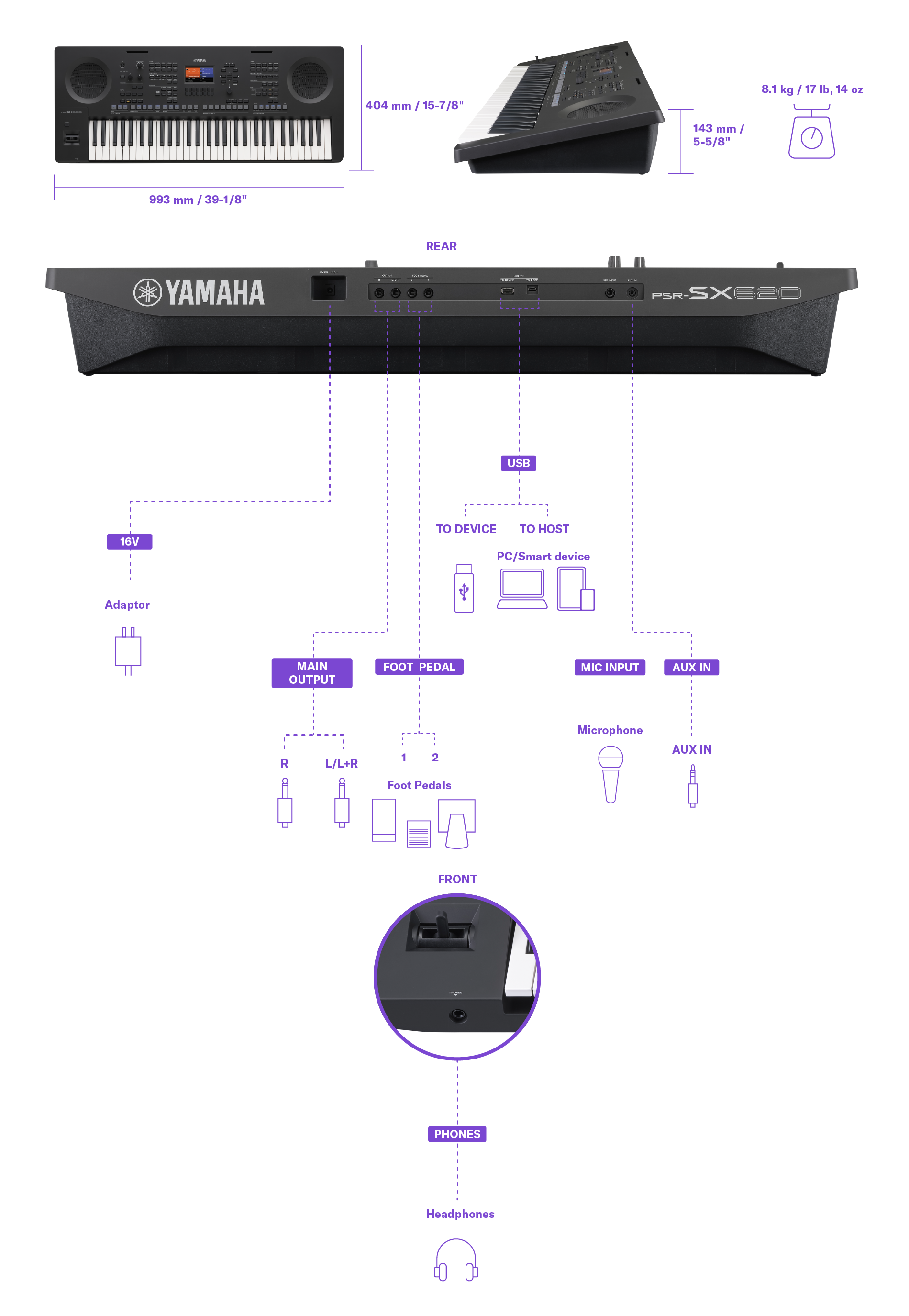

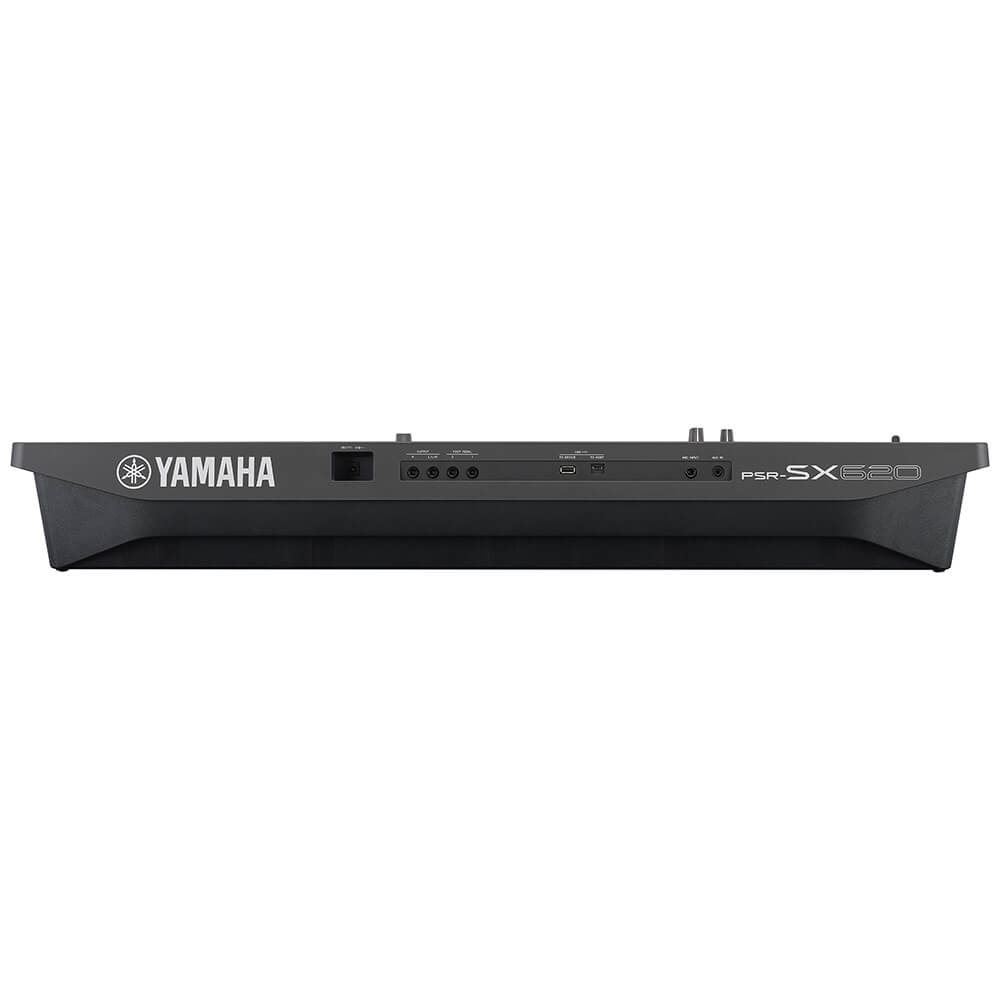

Dimension & Connectivity
| PSR-SX620 | |||
| Color/Finish | Body | Color | Black |
| Size/Weight | Dimensions | Width | 993 mm (39-1/8″) |
| Height | 143 mm (5-5/8″) | ||
| Depth | 404 mm (15-7/8″) | ||
| Weight | Weight | 8.1 kg (17 lb, 14 oz) | |
| Packing Box | Width | 1,054 mm (41-1/2″) | |
| Height | 221 mm (8-11/16″) | ||
| Depth | 500 mm (20-19-11/16″) | ||
| Control Interface | Keyboard | Number of Keys | 61 |
| Type | Organ, Initial Touch | ||
| Touch Response | Normal, Soft 1, Soft 2, Hard 1, Hard 2 | ||
| Other Controllers | Joystick | Yes | |
| Control Knobs | 2 (assignable) | ||
| Assignable Buttons | – | ||
| Pitch Bend | – | ||
| Modulation | – | ||
| Display | Type | TFT Color WQVGA LCD | |
| Size | 480 x 272 dots (4.3 inch) | ||
| Touch Screen | – | ||
| Color | Color | ||
| Language | English, German, French, Spanish, Italian, Chinese | ||
| Panel | Language | English, Chinese | |
| Voices | Tone Generation | Tone Generating Technology | AWM Stereo Sampling |
| Polyphony | Number of Polyphony (Max.) | 128 | |
| Preset | Number of Voices | 1,002 Voices + 51 Drum/SFX Kits + 480 XG Voices | |
| Featured Voices | 137 S.Articulation!, 34 MegaVoice, 31 Sweet!, 74 Cool!, 89 Live! | ||
| Expandability | Expansion Voice | Yes (approx. 380 MB) | |
| Editing | Voice Set | ||
| Compatibility | XG, GM, GM2 (for Song Playback) | ||
| Part | Right 1, Right 2, Left | ||
| Effects | Types | Reverb | 59 Preset + 30 User |
| Chorus | 106 Preset + 30 User | ||
| DSP | 322 Preset + 30 User | ||
| Insertion Effect | Block 1-9: 322 Preset + 30 User | ||
| Master Compressor | 5 Preset + 30 User | ||
| Master EQ | 5 Preset + 30 User | ||
| Part EQ | 27 Parts | ||
| Others | Mic effects: Noise Gate, Compressor, 3 Band EQ | ||
| Arpeggio | Yes | ||
| Vocal Harmony | Number of Presets | – | |
| Number of User Settings | – | ||
| Accompaniment Styles | Preset | Number of Preset Styles | 450 |
| Featured Styles | 416 Pro Styles, 33 Session Styles, 1 Free Play Style | ||
| Fingering | Single Finger, Fingered, Fingered On Bass, Multi Finger, AI Fingered, Full Keyboard, AI Full Keyboard, Smart Chord | ||
| Style Control | INTRO x 3, MAIN VARIATION x 4, FILL x 4, BREAK, ENDING x 3 | ||
| Compatibility | Style File Format (SFF), Style File Format GE (SFF GE) | ||
| Expandability | Expansion Style | Yes (Internal Memory) | |
| Expansion Audio Style | – | ||
| Other Features | Chord Looper | Yes | |
| Style Section Reset | Yes | ||
| Style Section Change Timing | – | ||
| Style Section Time Signature | – | ||
| Style Dynamics Control | – | ||
| One Touch Setting (OTS) | 4 for each Style | ||
| Songs | Preset | Number of Preset Songs | 1 Demo Song, 2 Preset Songs |
| Recording | Number of Songs | Unlimited (depends on the drive capacity) | |
| Number of Tracks | 16 | ||
| Data Capacity | Approx. 1 MB/Song | ||
| Recording Function | Quick Recording, Multi Track Recording | ||
| Compatible Data Format | Playback | SMF (Format 0 & 1), XF | |
| Recording | SMF (Format 0) | ||
| Multi Pads | Preset | Number of Multi Pad Banks | 226 Banks x 4 Pads |
| Audio | Audio Link | Yes | |
| Functions | Voices | Harmony/Echo | Yes (with Arpeggio) |
| Panel Sustain | Yes | ||
| Mono/Poly | Yes | ||
| Voice Information | Yes | ||
| Styles | Style Creator | Yes | |
| OTS Information | Yes | ||
| Songs | Song Creator | Yes | |
| Score Display Function | Yes | ||
| Lyrics Display Function | Yes | ||
| Multi Pads | Multi Pad Creator | Yes | |
| Registration | Number of Buttons | 8 | |
| Control | Registration Sequence, Freeze | ||
| Playlist | Number of Records | 500 (max.) Records per Playlist file | |
| Search | Registration Bank | ||
| Audio Recorder/Player | Recording Time (max.) | 80 minutes/Song | |
| Recording | *only on USB .wav (WAV format: 44.1 kHz sample rate, 16 bit resolution, stereo) | ||
| Playback | *only on USB .wav (WAV format: 44.1 kHz sample rate, 16 bit resolution, stereo) | ||
| Time Stretch | Yes | ||
| Pitch Shift | Yes | ||
| Vocal Cancel | Yes | ||
| Demo/Help | Demonstration | Yes | |
| Overall Controls | Metronome | Yes | |
| Tempo Range | 5 – 500, Tap Tempo | ||
| Transpose | -12 – 0 – +12 | ||
| Tuning | 414.8 – 440.0 – 466.8 Hz | ||
| Octave Button | Yes | ||
| Scale Type | 9 types | ||
| Sub Scale Setting | – | ||
| Miscellaneous | Direct Access | Yes | |
| Text Display Function | Yes | ||
| Wallpaper Customization | – | ||
| Display Out | – | ||
| Bluetooth | Yes | ||
| Lesson/Guide | Lesson/Guide | Follow Lights, Any Key, Karao-Key, Your Tempo | |
| Storage and Connectivity | Storage | Internal Memory | Yes (approx. 20 MB max.) |
| External Drives | USB flash drive | ||
| Connectivity | Headphones | Standard stereo phone jack | |
| Microphone | Microphone x 1 | ||
| MIDI | – | ||
| AUX IN | Stereo mini jack | ||
| LINE OUT | MAIN OUTPUT(L/L+R, R) | ||
| FOOT PEDAL | 1 (SUSTAIN), 2 (UNISON), Function Assignable | ||
| USB TO DEVICE | Yes | ||
| USB TO HOST | Yes | ||
| Amplifiers and Speakers | Amplifiers | 15 W x 2 | |
| Speakers | 12 cm x 2 | ||
| Power Supply | Power Supply | PA-300C or an equivalent recommended by Yamaha | |
| Power Consumption | 18 W | ||
| Auto Power Off Function | Yes | ||
| Accessories | Included Accessories | Owner’s Manual, Online Member Product Registration, Music Rest, AC Adaptor (may not be include depending on your area. Check with your Yamaha dealer.) | |
