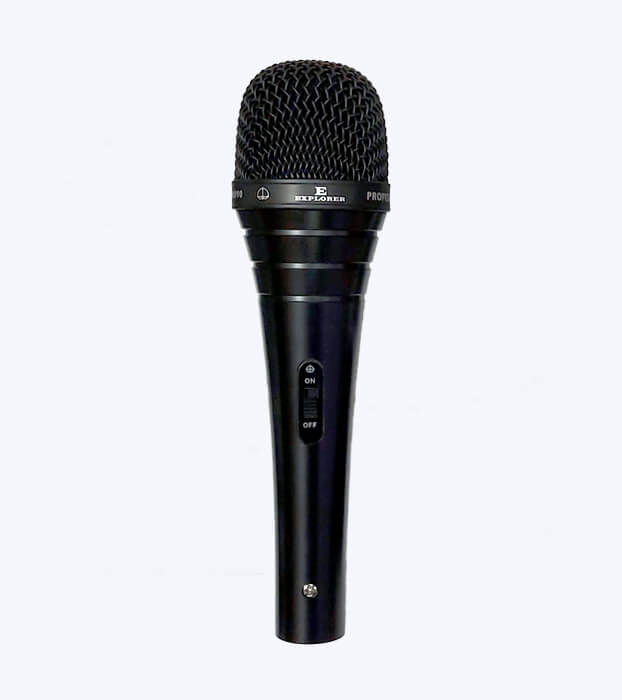

Explorer EXM 090 Cardioid Microphone

APPLICATIONS

• Live Stage, Club, House of Worship, Gospel, Corporate Presentation, Karaoke.
• Instruments: Electric Guitar, snare, toms, brass, congas, flute.
• Home Studio: Vocal and Instrument application.

Features

• Professional performance, affordable price
• Tailored to sound excellent
• Available with on/ off switch

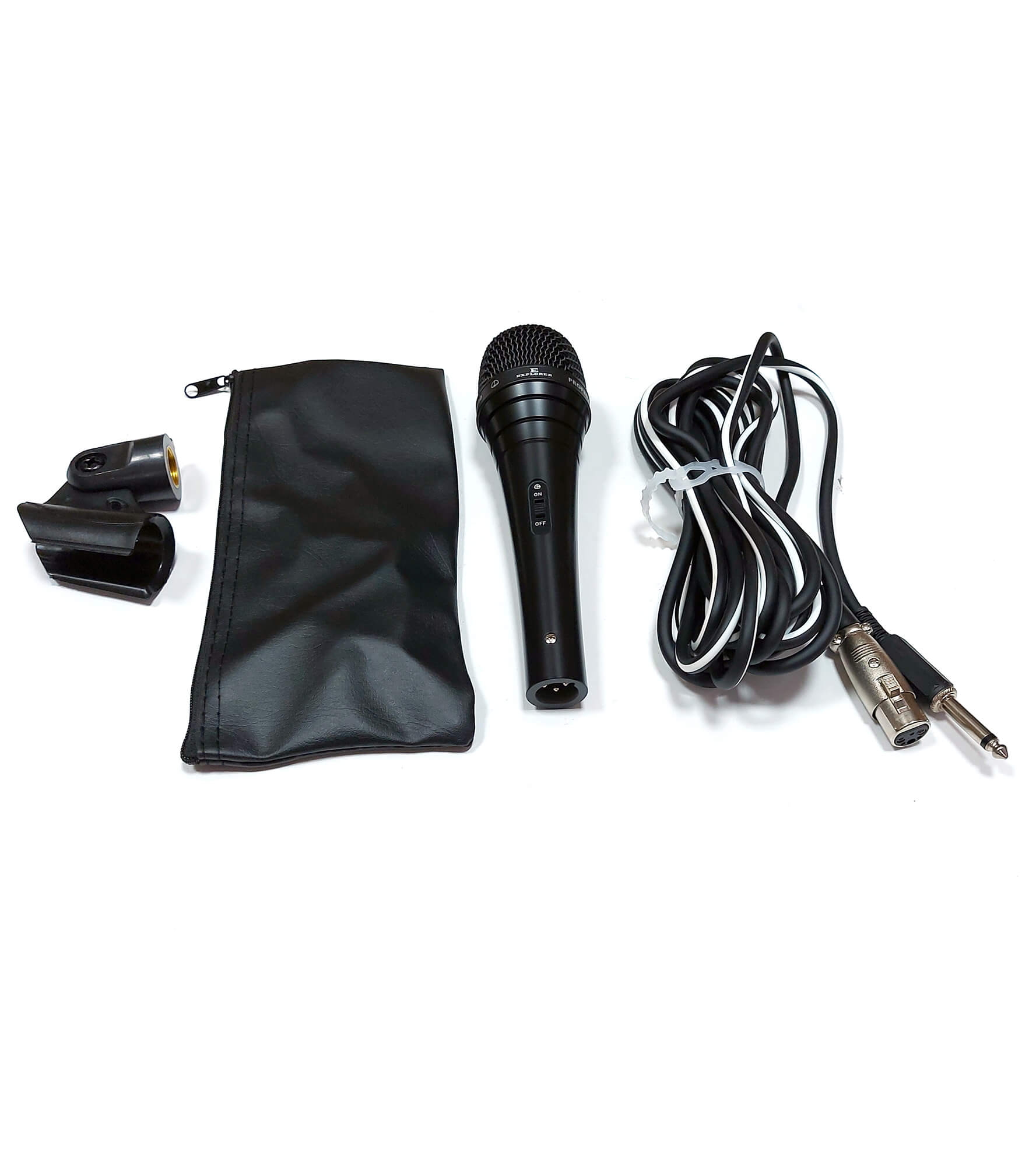

Accessories

• 3 m (10ft.) Cable (XLR-1-4 in Jack)
• Mic Holder
• Hard Case

Optional Accessories

• 6m (20ft.) Cable (XLR-1-4 in.)…………………………..C 20Hz
• 7.6 m (25ft.) Cable (XLR-XLR.)…………………………..C 25J
• Windscreen (7 colours available ……………………..A 58 WS Series

Technical Specifications

• Transducer Type: Dynamic
• Frequency Response: 50Hz – 12 KHz
• Polar Pattern: Unidirectional
• Output Impedance :600ohms
• Sensitivity: -51 db (0db=1V/Pa)
• Off axis rejection: >20db at 1800
• Maximum SPL: > 135 db
• Cable/ Connection: XLR to ¼ Inch Jack( 3pin gold Plated)
• Polarity: Position voltage in pin 2, relative to in 3 of output XLR connector
• Housing: Zinc alloy
• Weight: 300g

Impedance(z)

Low, rated 150hms (actual 180hms)

Output level (at 1 KHz), Open Circuit Voltage

76.0db (0.15mV)* *0db=1V/bar

Polarity

Positive pressure on diaphragm positive voltage on 2 pin with respect to in 3

Connector

Three-pin professional audio connector (male XLR)

Switch

Built-in-locking On/Off switch, with lockplate. To lock the switch On, loosen the screw, push the lockplate forward, then tighten the screw.
