Home Speakers Naked Speakers Fane Colossus 18XB Naked Speaker
Fane Colossus 15XB Naked Speaker
Back to products
Wharfedale Pro WLA-25 Stand Frame

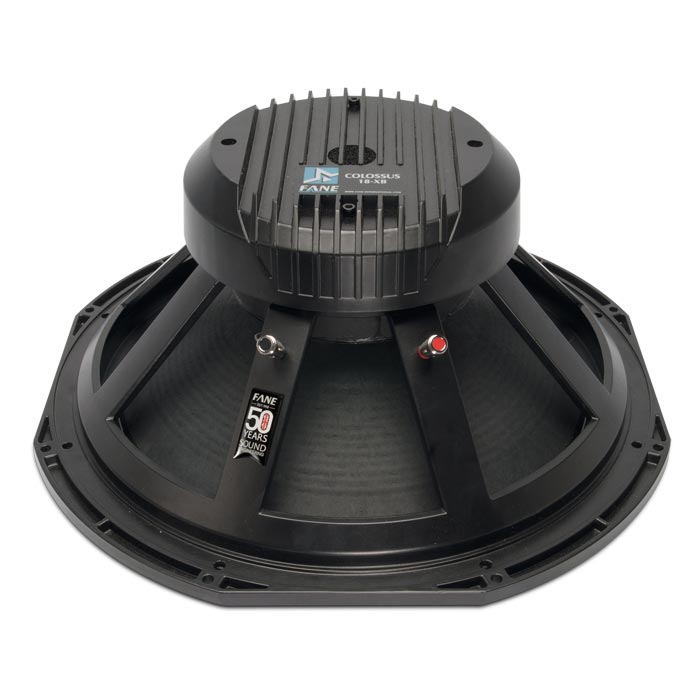

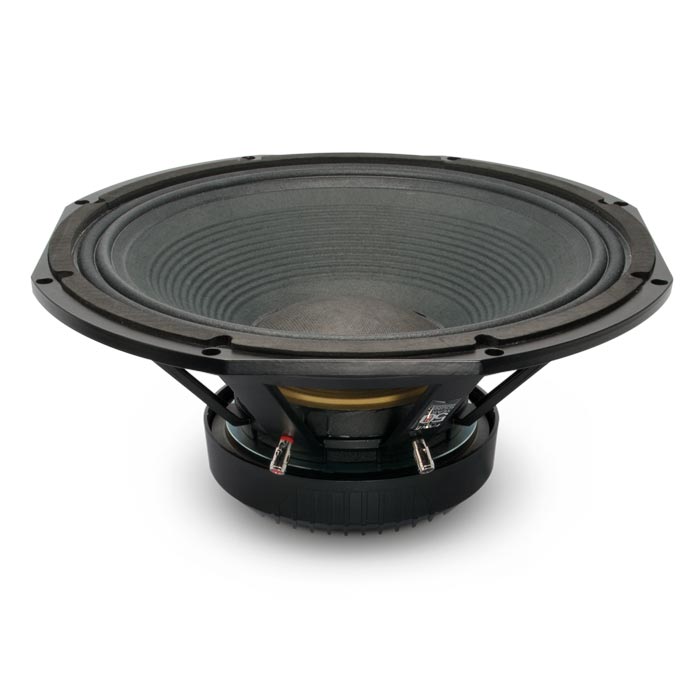

Fane Colossus 18XB Naked Speaker

SUB BASS DRIVER

The Colossus 18XB is intended for use as a high-output sub-bass driver either singly or in multi way systems. The unit features a 4 inch ‘sandwich’ inside and outside windings voice coil, immersed in a symmetric magnetic field and centralized by using two suspensions in a dual arrangement to maintain ultra linearity and stability at high excursions. The heavily ribbed straight-sided paper cone membrane is reinforced with high-strength composite fibres to resist deformation under extreme loads. The driver handles 1000 Watts (A.E.S.) continuous and can cope with peaks in excess of 4000 Watts. This is due to advanced thermal management in the form of a vented die-cast chassis and motor system using an internal heatsink coupled to a large vaned heatsink mounted on the rear of the unit. These measures effectively remove heat from the voice coil resulting in extremely low-power compression. The Colossus 18XB is designed for use in 100 to 250 Litre ported enclosures.

  • 2000 W Program Power.
  • 99 dB Sensitivity (1W/1m).
  • Great replacement driver for most bass reflex applications.
  • Vented chassis and motor design provides efficient thermal management and extremely low power compression.
  • High BL factor, 25.9 T/m.
  • Dual ‘spaced’ suspension system and advanced materials offers ultra-linearity, mechanical stability and superior acoustic performance at high levels of excursion.
  • Ribbed, fibre loaded, UK manufactured cone offers increased strength, durability and resistance to deformation under extreme loads.
  • Designed for optimum use in 100-250 Litre ported enclosure designs.
  • 4-inch Inside/ outside windings copper voice coil.
Order on WhatsApp
Call 0740418548
Inquire On Email

    Add to wishlist
    Categories: Naked Speakers, Speakers Tags: 18XB, Colossus, Colossus 18XB, Fane Colossus 18XB
    Share:
    • Description
    • Reviews (0)
    • About Delivery
    Description
    Electro Acoustic Specifications
    Nominal Chassis Diameter 18″ / 457.2 mm
    Impedance 4 /8 /16 Ω
    Power Handling 1000 W (A.E.S.)
    Peak Power (6dB Crest Factor) 4000 W (A.E.S.)
    Usable Frequency Range (-6dB) 35 Hz – 1 kHz
    Sensitivity (1W – 1m) Wideband 99 dB
    Moving Mass (inc. Air Load) 173 grams
    Minimum Impedance (Zmin) 6.5 Ω
    Effective Piston Diameter 15.03″ / 381.76 mm
    Magnet Weight 120 oz
    Magnetic Gap Depth 0.39″ / 10 mm
    Flux Density 1.2 Tesla
    Coil Winding Height 0.90″ / 23 mm
    Voice Coil Diameter 4.0″ / 101.6 mm
    Speaker Type Sub Bass Driver
    Speaker Series The Professional Series
    Program Power 2000 W (A.E.S.)
    Sensitivity (1W / 1m) Working band
    Thiele Small Parameters (TSPs)
    FS 33 Hz
    Re 6.5 Ω
    QMS 5.77
    QES 0.358
    QTS 0.337
    Vas 236 Litres
    Vd 0.803 Litres
    CMS 0.13 mm/N
    BL 25.9 T/m
    MMS 173 grams
    Xmax 7.5 mm
    Sd 1131 cm2
    Efficiency 2.3%
    Le 1.99 mH
    EBP 92.18 Hz
    Materials of Construction
    Coil Former Material Glass Fibre
    Voice Coil Material Copper – Inside / Outside Windings
    Magnet Material Ferrite
    Chassis Material Die-cast Aluminium
    Cone Material Straight Polycellulose Ribbed Cone
    Surround / Edge Termination Polyvinyl Damped Multi Roll. Poly Cotton
    Dust Dome Material Paper
    Connectors Push-button Spring Terminals
    Polarity Positive voltage at red terminal causes forward motion of cone
    Mounting / Shipping Information
    Overall Diameter 19.1″ / 485 mm
    Width Across Flats 18″ / 457 mm
    Flange Height 0.465″ / 11.8 mm
    Baffle Hole Diameter F/M 16.53″ / 419.86 mm
    Baffle Hole Diameter R/M 16.33″ / 414.78 mm
    Gasket Supplied Front & Rear
    Outer Fixing Holes 8x ø 0.275″ on 18.425″ PCD / 8x ø 7 mm on 468 mm PCD
    Inner Fixing Holes 8x ø 0.275″ on 17.25″ PCD / 8x ø 7 mm on 438.15 mm PCD
    Depth 8.05″ / 205 mm
    Weight 31.29 lb / 14.2 Kg
    Recommended Enclosure Volume 3.53 – 8.82 cu ft / 125 – 400 Litres
    Shipping Weight 35.26 lb / 16 Kg
    Packing Carton Dimensions (W) 512 (D) 512 (H) 244 mm
