Wharfedale Pro WLA-25 Stand Frame

DUAL 5″ ARRAY SYSTEM

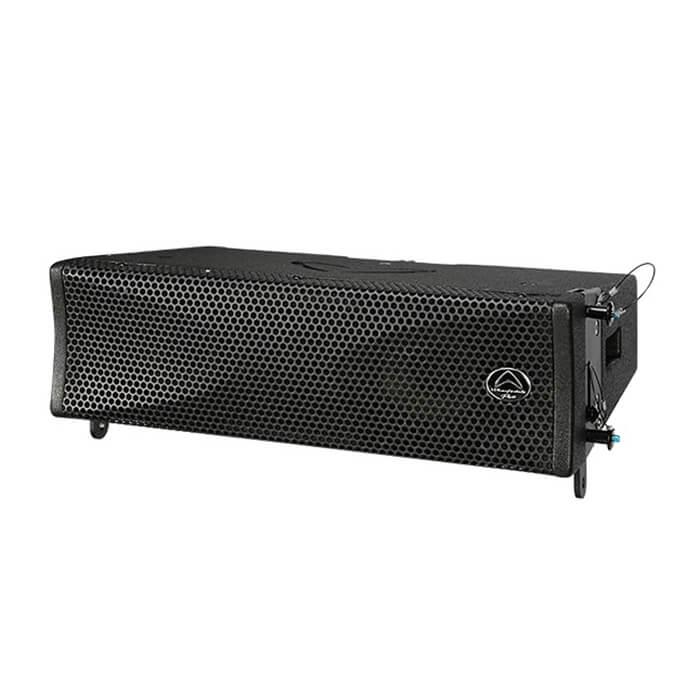

WLA-25

2 x 5″ LF drivers with 5″ LF voice coils
Neo HF compression driver
15 mm / 18mm Birch plywood construction
Integral, side plate adjustable rigging
100° x 10° dispersion
120 watts AES (RMS)
240 watts Programme
480 watts Peak

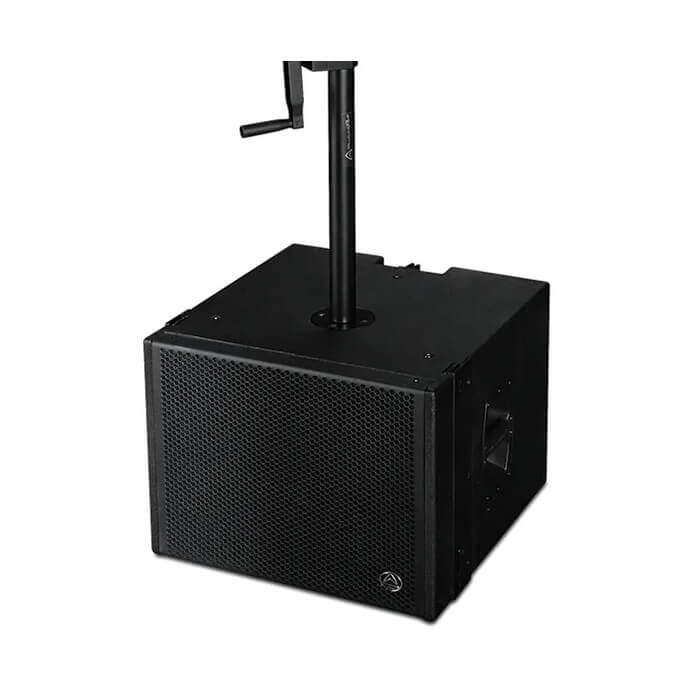

WLA-25 MKII Sub woofer

Dual 10″ LF driver with 2.5″ voice coils
141 dB Max SPL
15 mm / 18 mm Birch plywood construction
Integral M20 pole socket for use with WLA-25 Stand Frame
700 watts AES (RMS)
1400 watts Programme
2800 watts Peak

DUAL 5″

At the heart of the WLA-25 is 2 x 5″ custom Wharfedale Pro LF drivers.

These feature 2.5″ voice coils to ensure high efficiency and high power handling.

The HF Compression driver is also custom made by Wharfedale Pro. Using a Neodymium magnet and a 1.75″ voice coil, this compression driver is coupled to a 100° x 10° waveguide.

These custom designed transducers are what give a WLA-25 system its incredible sound and power handling capacity.

JUST IMAGINE

Imagine your dream system! You can configure a WLA series rig to suit your needs!

To help your design and system preparations, you can download some recommended system diagrams. These range from small to large and use a selection of our different amplifier ranges.

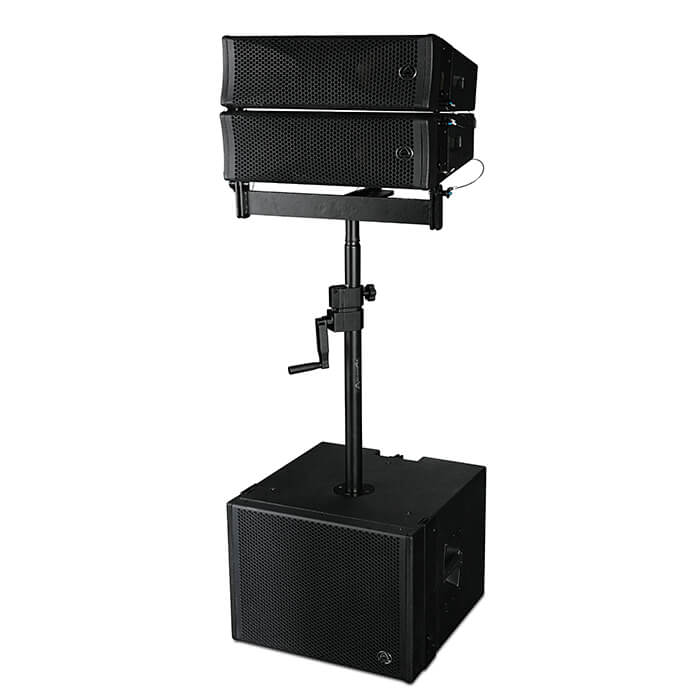

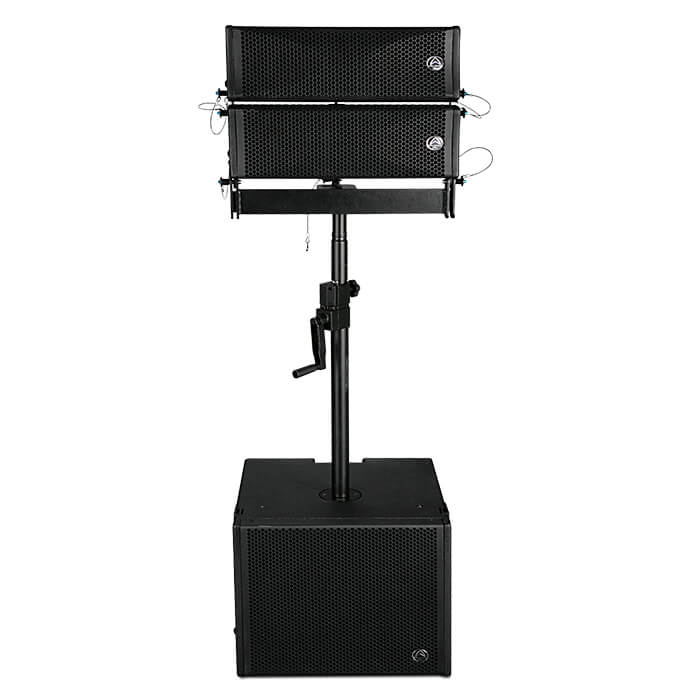

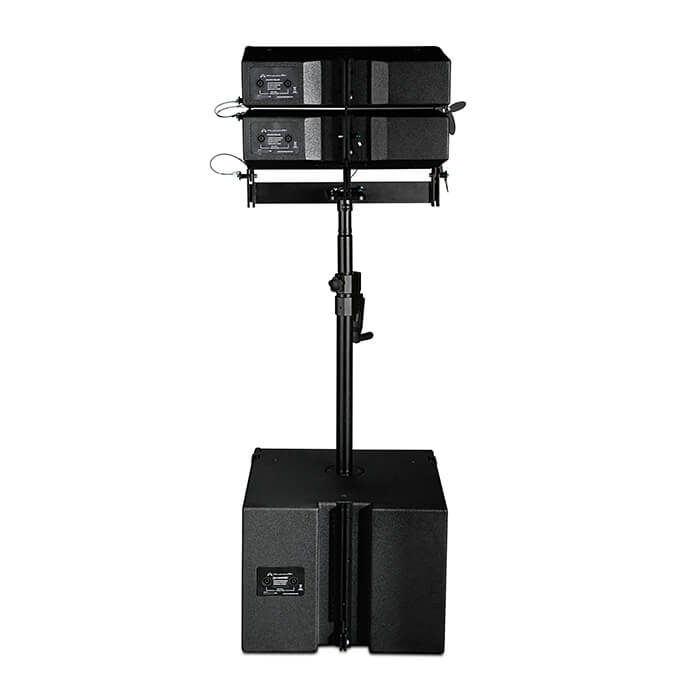

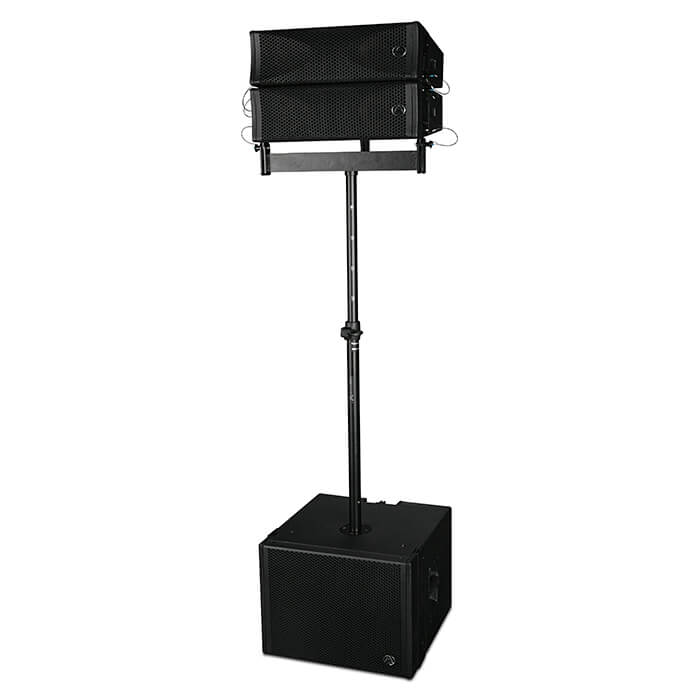

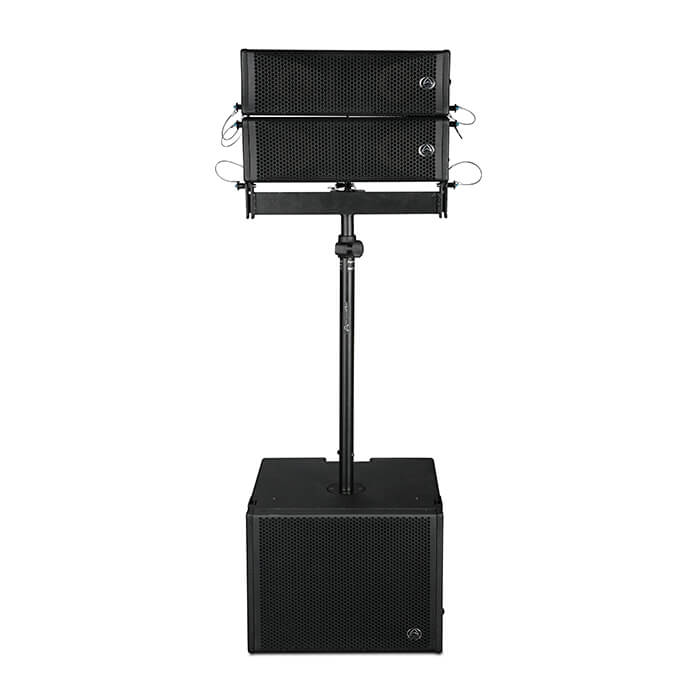

WLA-25 STAND FRAME

The optional WLA-25 Stand Frame makes a WLA-25 system even more portable and versatile. Use the WLA-25SUB MKII which features an M20 screw pole mount.

SPECIFICATIONS

Model Name	WLA-25	WLA-25SUB MKII
System Type	Passive	Passive
Configuration	Two-way	2 x 10” subwoofer
Frequency Response (+/-3 dB)	108 Hz-18 KHz	56 Hz-1.5 KHz
Frequency Range (-10 dB)	108 Hz-20 KHz	56 Hz-2.0 KHz
Sensitivity (2.83 v / 1 m)	HF:108 dB / LF:100 dB	107 dB
Calculated Maximum SPL @1 m	HF:135 dB / LF:127 dB	141 dB
System Rated Impedance	16 Ω	4 Ω
Low Frequency Transducer
Size	2 x 130 mm / 5”	2 x 254 mm / 10”
Voice Coil Size	35.0 mm / 1.4”	65.5 mm / 2.5”
Rated Impedance	16 Ω	8 Ω
LF Power (re:AES2-2012)	2 x 60 W	2 x 350 W
High Frequency Transducer
HF Driver Type	Compression Driver – Neo
Voice Coil Size	44 mm / 1.75”
Exit Size	1″
Diaphragm Material	Titanium
Rated Impedance	16 Ω
HF Power (re:AES2-2012)	40 W
Nominal Coverage (H x V)	100° x 10°
Power
System Continuous Power	120 W	700 W
System Programme Power	240 W	1400 W
System Peak Power	480 W	2800 W
Crossover frequency	3.7 KHz
Input Connector	2 x speakON compatible	2 x speakON compatible
Hardware	Integral side plate adjustable rigging 0°-10°	Integral, non adjustable
Enclosure
Enclosure Material	15 mm,18 mm Plywood	15 mm,18 mm Plywood
Finish	Rhino Black or white paint	Rhino Black or white paint
Grille Material & Finish	Steel	Steel
Dimensions – (Unpacked)
Height Front	164.5 mm / 6.47”	400 mm / 15.74”
Height Rear	112.5 mm / 4.4”	400 mm / 15.74”
Width	536 mm / 21.1”	536 mm / 21.10”
Depth	363 mm / 14.3”	550 mm / 21.65″
Dimensions – (Packed)
Height	606 mm / 23.85″	610 mm / 24.01″
Width Front	430 mm / 16.92″	470 mm / 18.50″
Width Rear	430 mm / 16.92″	470 mm / 18.50″
Depth	235 mm / 9.25″	596 mm / 23.46″
Weight
Net Weight (kg / lbs)	13.0 kg / 28.66 lbs	37.0 kg / 81.57 lbs
Gross Weight (kg / lbs)	15.0 kg / 33.06 lbs	39.5 kg / 87.08 lbs

Click to enlarge

Back to products

Order on WhatsApp

Call 0740418548

Add to wishlist

Categories: Line Array Systems, PA Equipment, Speakers Tag: WLA-25

Description

Model Name	WLA-25	WLA-25SUB MKII
System Type	Passive	Passive
Configuration	Two-way	2 x 10” subwoofer
Frequency Response (+/-3 dB)	108 Hz-18 KHz	56 Hz-1.5 KHz
Frequency Range (-10 dB)	108 Hz-20 KHz	56 Hz-2.0 KHz
Sensitivity (2.83 v / 1 m)	HF:108 dB / LF:100 dB	107 dB
Calculated Maximum SPL @1 m	HF:135 dB / LF:127 dB	141 dB
System Rated Impedance	16 Ω	4 Ω
Low Frequency Transducer
Size	2 x 130 mm / 5”	2 x 254 mm / 10”
Voice Coil Size	35.0 mm / 1.4”	65.5 mm / 2.5”
Rated Impedance	16 Ω	8 Ω
LF Power (re:AES2-2012)	2 x 60 W	2 x 350 W
High Frequency Transducer
HF Driver Type	Compression Driver – Neo
Voice Coil Size	44 mm / 1.75”
Exit Size	1″
Diaphragm Material	Titanium
Rated Impedance	16 Ω
HF Power (re:AES2-2012)	40 W
Nominal Coverage (H x V)	100° x 10°
Power
System Continuous Power	120 W	700 W
System Programme Power	240 W	1400 W
System Peak Power	480 W	2800 W
Crossover frequency	3.7 KHz
Input Connector	2 x speakON compatible	2 x speakON compatible
Hardware	Integral side plate adjustable rigging 0°-10°	Integral, non adjustable
Enclosure
Enclosure Material	15 mm,18 mm Plywood	15 mm,18 mm Plywood
Finish	Rhino Black or white paint	Rhino Black or white paint
Grille Material & Finish	Steel	Steel
Dimensions – (Unpacked)
Height Front	164.5 mm / 6.47”	400 mm / 15.74”
Height Rear	112.5 mm / 4.4”	400 mm / 15.74”
Width	536 mm / 21.1”	536 mm / 21.10”
Depth	363 mm / 14.3”	550 mm / 21.65″
Dimensions – (Packed)
Height	606 mm / 23.85″	610 mm / 24.01″
Width Front	430 mm / 16.92″	470 mm / 18.50″
Width Rear	430 mm / 16.92″	470 mm / 18.50″
Depth	235 mm / 9.25″	596 mm / 23.46″
Weight
Net Weight (kg / lbs)	13.0 kg / 28.66 lbs	37.0 kg / 81.57 lbs
Gross Weight (kg / lbs)	15.0 kg / 33.06 lbs	39.5 kg / 87.08 lbs
