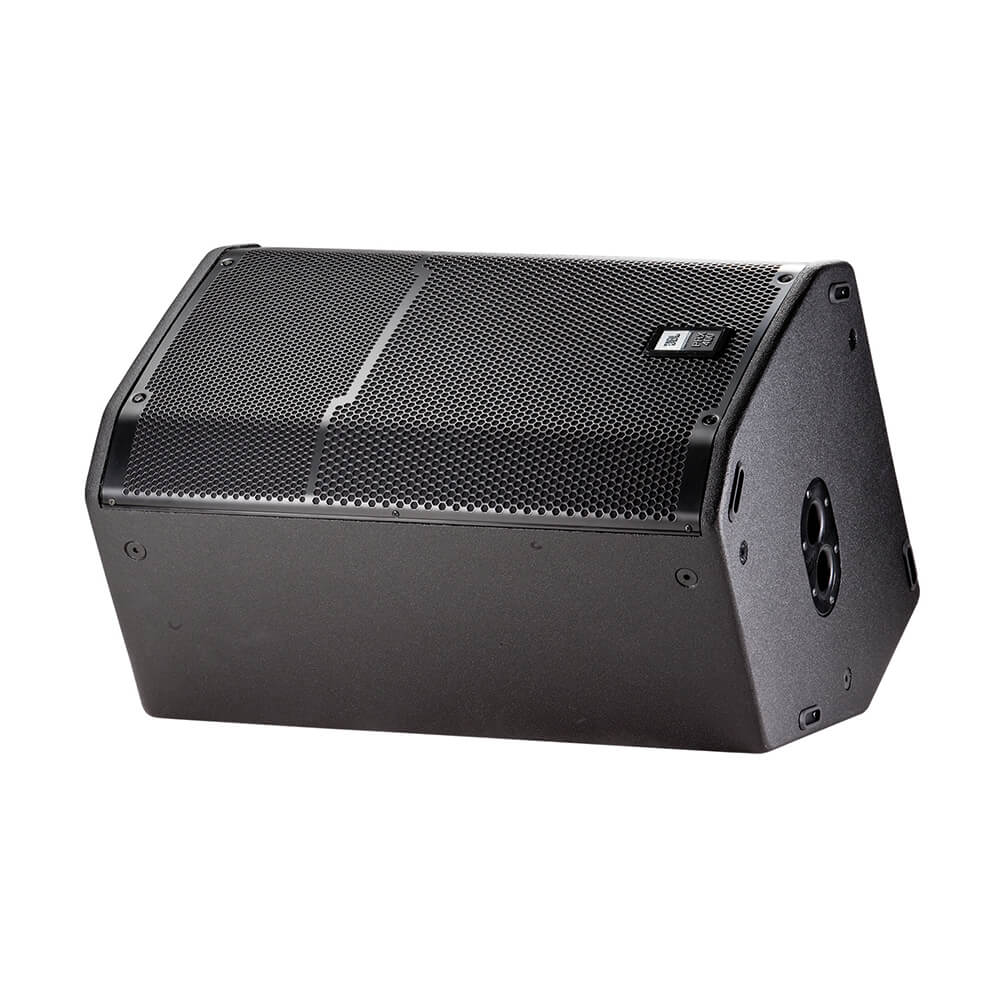

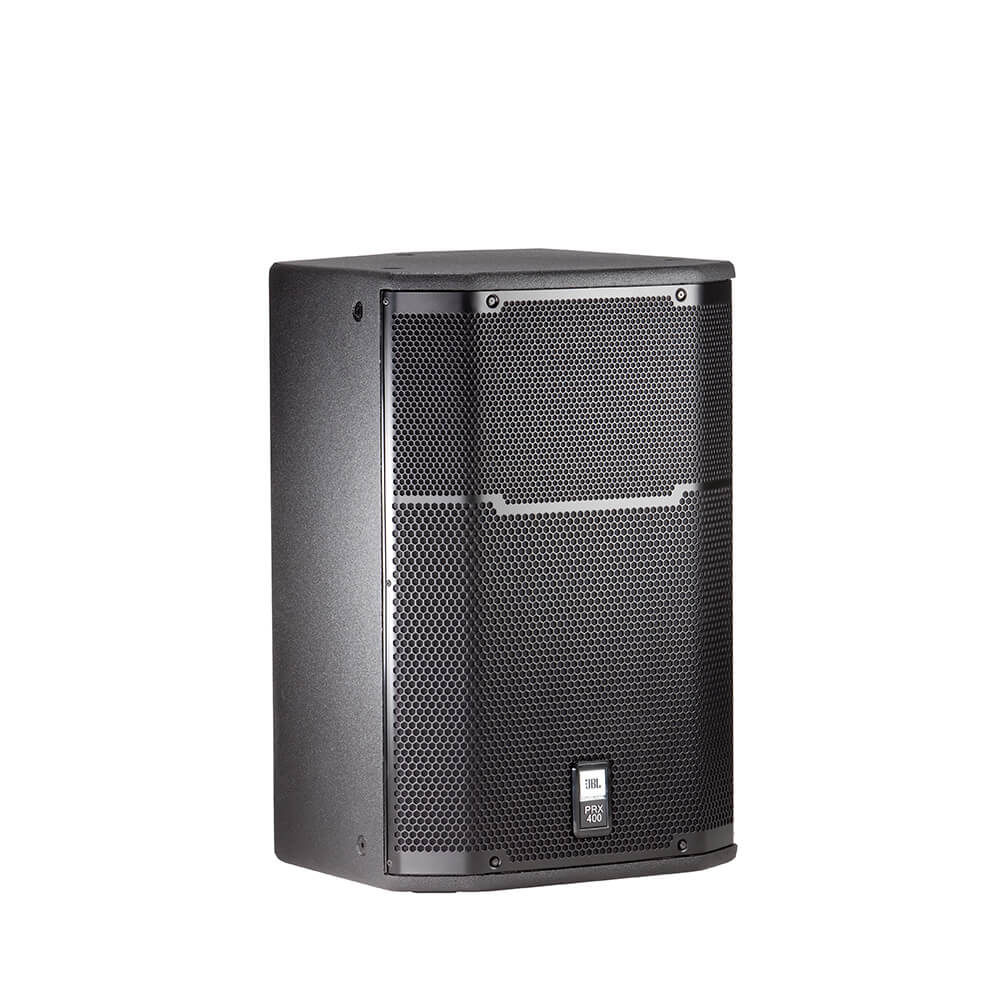

JBL PRX415M 15″ Two-Way Stage Monitor and Loudspeaker
PRX415M is a portable, fifteen-inch, two-way speaker system designed for either main sound reinforcement or monitoring applications.

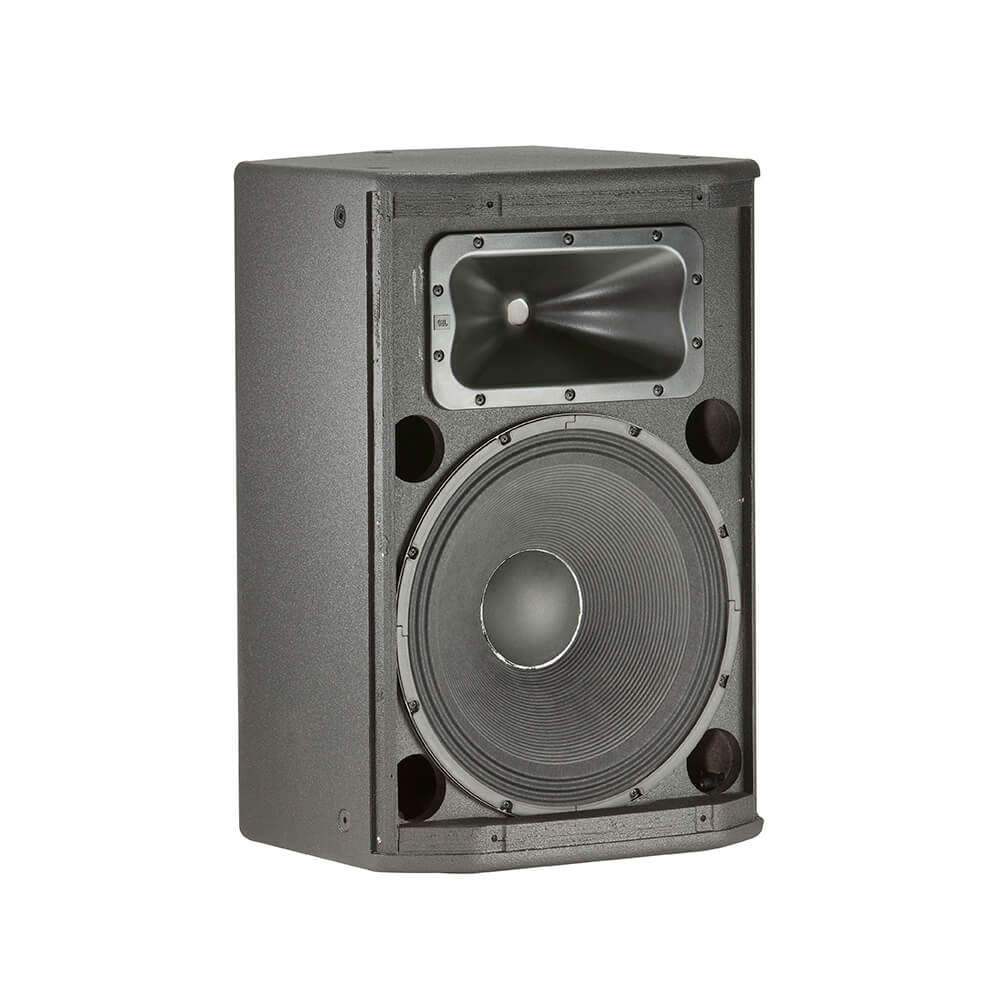

The PRX415M is high-power, light-weight two-way loudspeaker system offering a very high level of performance from a speaker that can be placed on a pole or standard speaker tripod stand. The PRX415M is comprised of a 380 mm (15 in) woofer which handles 300 watts (continuous) power. For the high frequencies, the 2414H-C 25 mm (1 in) polymer diaphragm compression driver is mounted to a 90° x 50° horn.
For use on a tripod or over a subwoofer, JBL’s dual angle pole mount is included. This feature allows the speaker to be mounted in a vertical position or with a 10° down tilt for optimum audience coverage.
The enclosure is constructed of birch/poplar multi-laminate hardwood and coated in JBL’s rugged DuraFlex™ finish. The distinctive 16 gauge steel grille is CNC-machined for precision. The grilles are internally lined with an acoustically transparent screen to provide additional driver protection and give a very professional appearance.
Features
- 90° x 50° coverage
- Dual-angle pole socket for applications requiring tripod mounting
- Heavy Duty 16 gauge protective screen backed steel grille
- Tough DuraFlex™ enclosure finish
- SonicGuard™ protects the high frequency driver from excess power without interrupting the performance.
Applications
- Reinforcement of music and speech in entertainment, live or pre-recorded applications
- High-performance satellite speaker for use with subwoofers
Specifications
| Frequency Range (-10dB) | 55 Hz – 19 kHz |
| Frequency Response (±3 dB) | 66 Hz – 16 kHz |
| Coverage Pattern | 90° x 50° nominal |
| System Sensitivity | 98 dB SPL (1w@1m) |
| Power Rating, Pink Noise | 300 W / 600 W / 1200 W(Continuous/Program/Peak) |
| Maximum SPL (1m) | 122 dB SPL cont. (129 dB SPL peak) |
| Nominal Impedance | 8 ohms |
| Dimensions (H x W x D) | 650 mm x 429 mm x 457 mm (25.6″ x 16.9″ x 18″) |
| Net Weight | 21 kg (46 lbs.) |

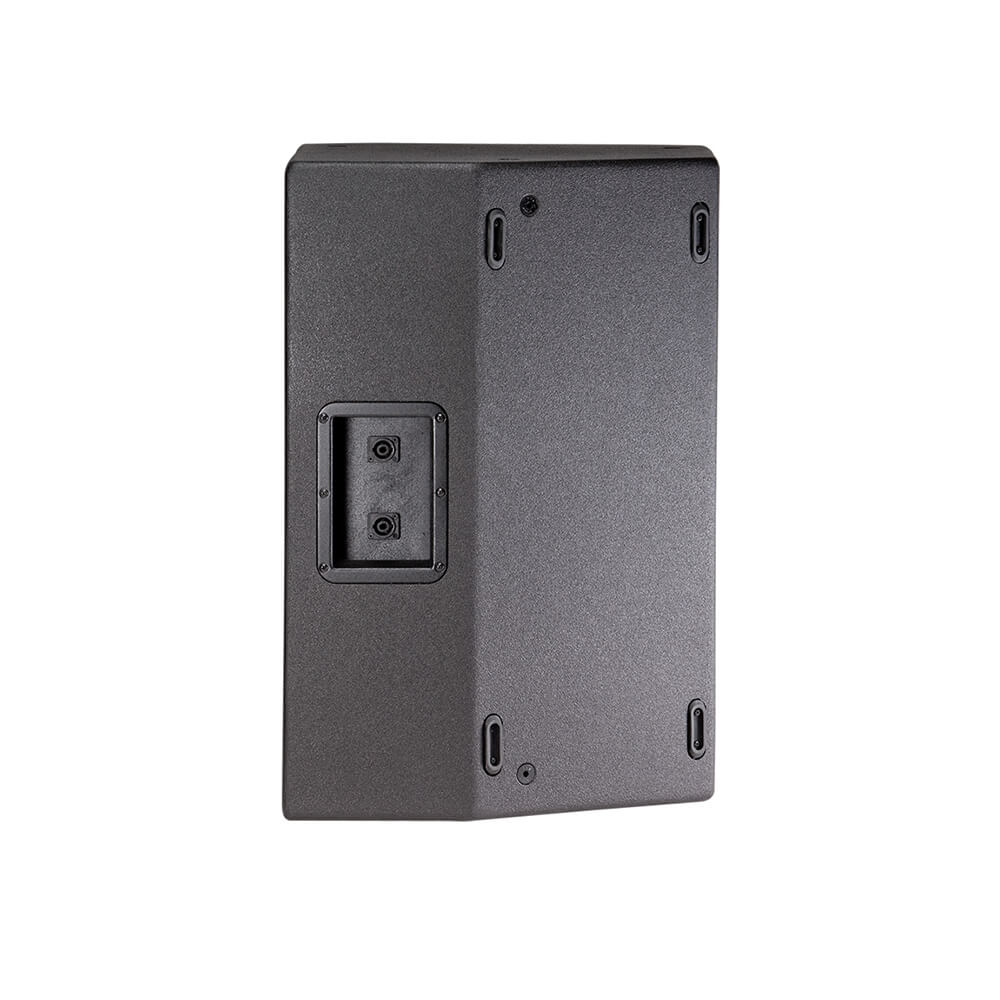

| Inputs | Parallel Neutrik® Speakon® NL-2 / ¼” phone combo jacks |
| Enclosure | Duraflex coated plywood |
