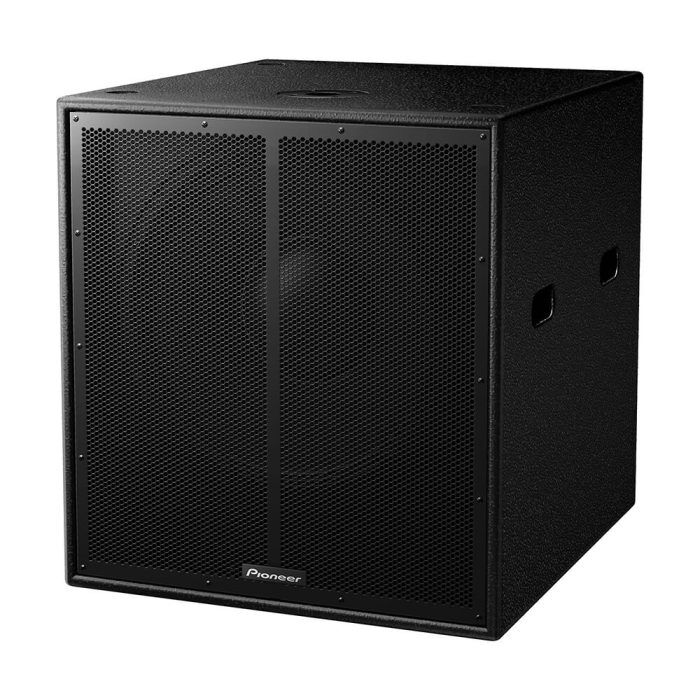

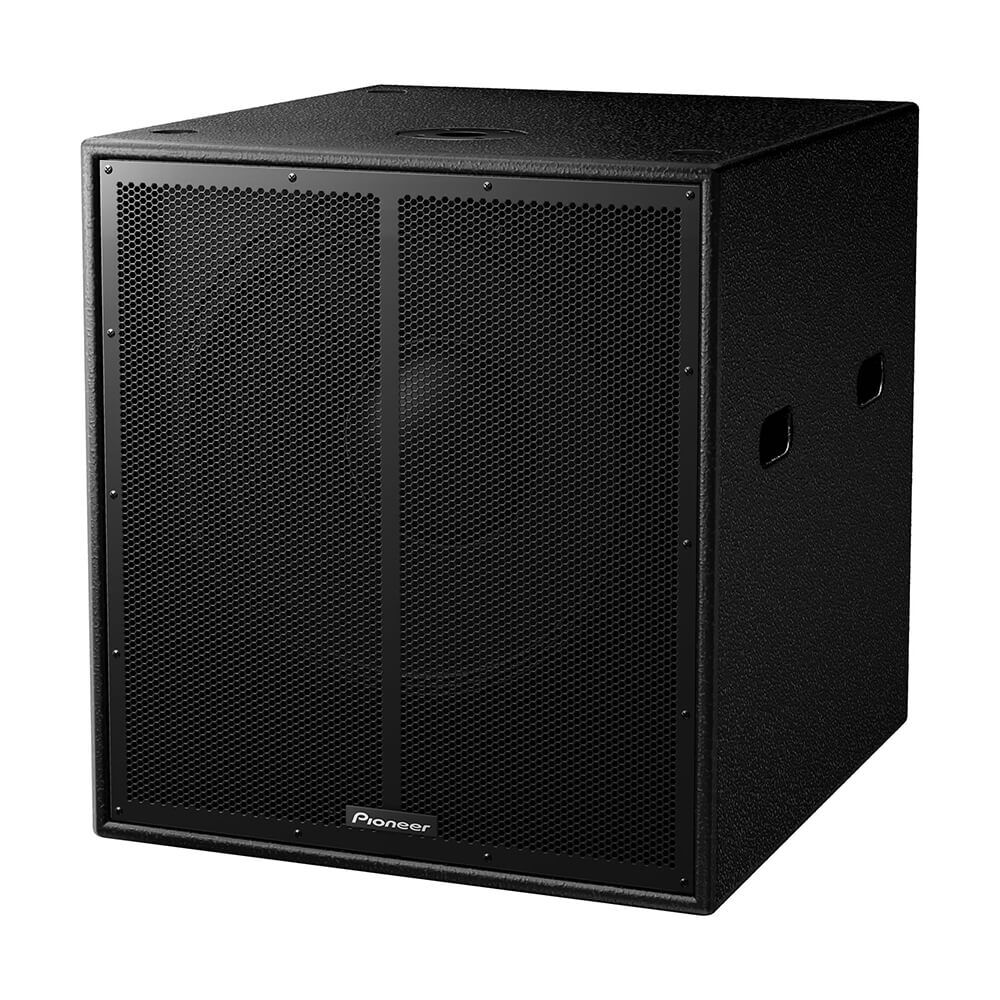

Pioneer XY-118S 18” Bass Reflex Subwoofer

The XY-118S is a compact, powerful subwoofer product designed for a wide variety of sound reinforcement applications where power and LF extension are required within a compact footprint. It features a high-power 18″ (457 mm) ferrite LF drive unit in an optimally tuned reflex enclosure, resulting in a response which has incredible depth for an enclosure this size, yet still retains speed and impact.

The XY-118S is suited to a wide variety of professional audio applications, from medium-scale front of house use through to nightclub use. The XY-118S is also inherently scalable — they will function as single units or in multiples.

    Description

    Features

    • High-power subwoofer with an 18-inch, low-frequency driver.
    • Capable of reproducing deep bass as low as 35 Hz without distortion.
    • Strong pillars installed in the cabinet ensure rigidity against the most powerful bass.
    • Requires an active crossover to set the necessary frequency range (presets can be provided from Pioneer for combinations using the Pioneer XY-152, XY-122, XY-101 and XY-81).
    • NL4 INPUT and LINK OUT connections as standard.
    • Pole mount for quick set-up with other Pioneer products.
    • Robust enclosure made from premium multi-laminate birch plywood.

    Product Specifications

    General

    • Loudspeaker Type:  Single driver, reflex-loaded subwoofer
    • Frequency Response:  35 Hz – 150 Hz
    • Sensitivity (1 W/1 m):  97 dB (half space)
    • Nominal Impedance:  8 W
    • Power Handling:  1000 W RMS, 2000 W Program
    • Maximum SPL:  127 dB cont., 133 dB peak (half space)

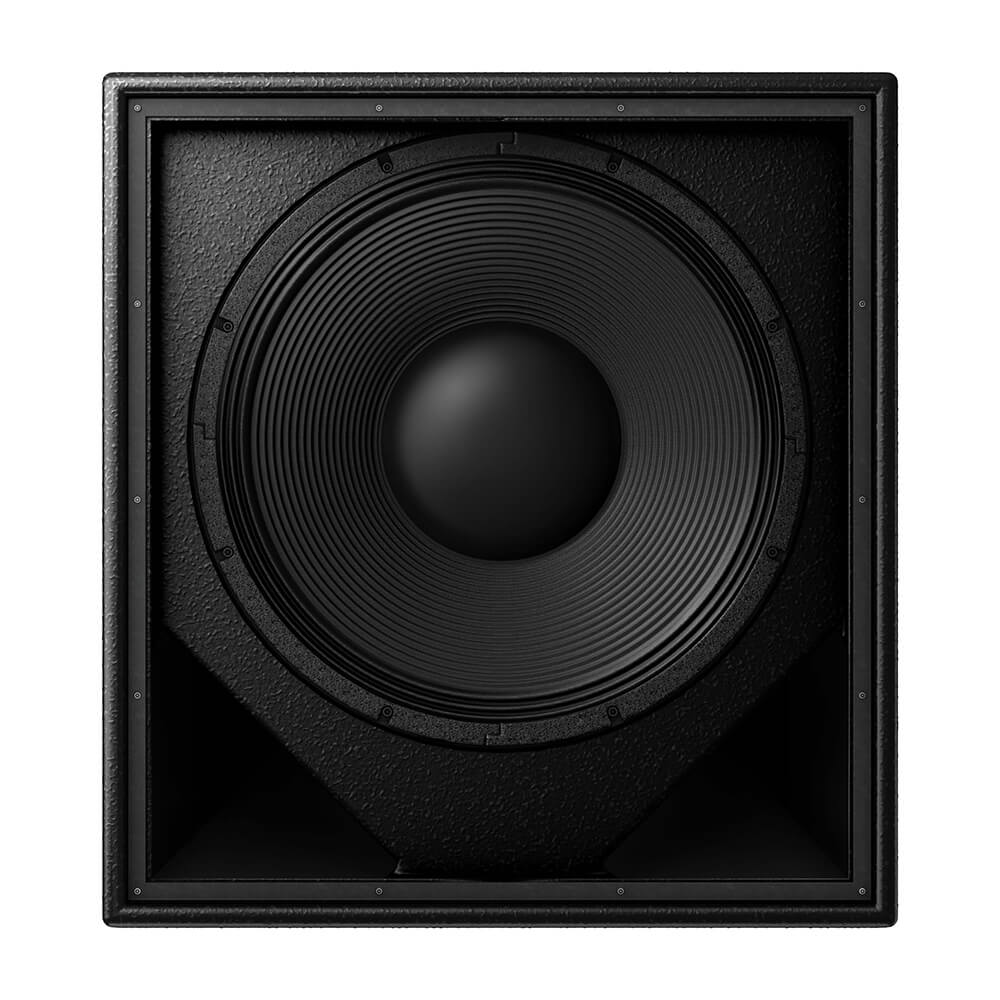

    • Driver Configuration:  18″ (457 mm) ferrite LF cone driver
    • Connectors:  2 × Neutrik SpeakON™ NL4

    Physical

    • Dimensions (W×H×D):  590 mm × 643 mm × 650 mm / 23.2″ × 25.3″ × 25.6″
    • Weight:  52.0 kg / 114.7 lbs.
    • Rigging and Hardware
      • 4 × flush handles (2 left/2 right), 1 × M20 polemount socket for mid/high enclosures, 4 × rubber feet (bottom) and 4 ×mating recesses (top),
      • 16 × M8 holes with pre-inserted bolts for 4 ×castors on rear

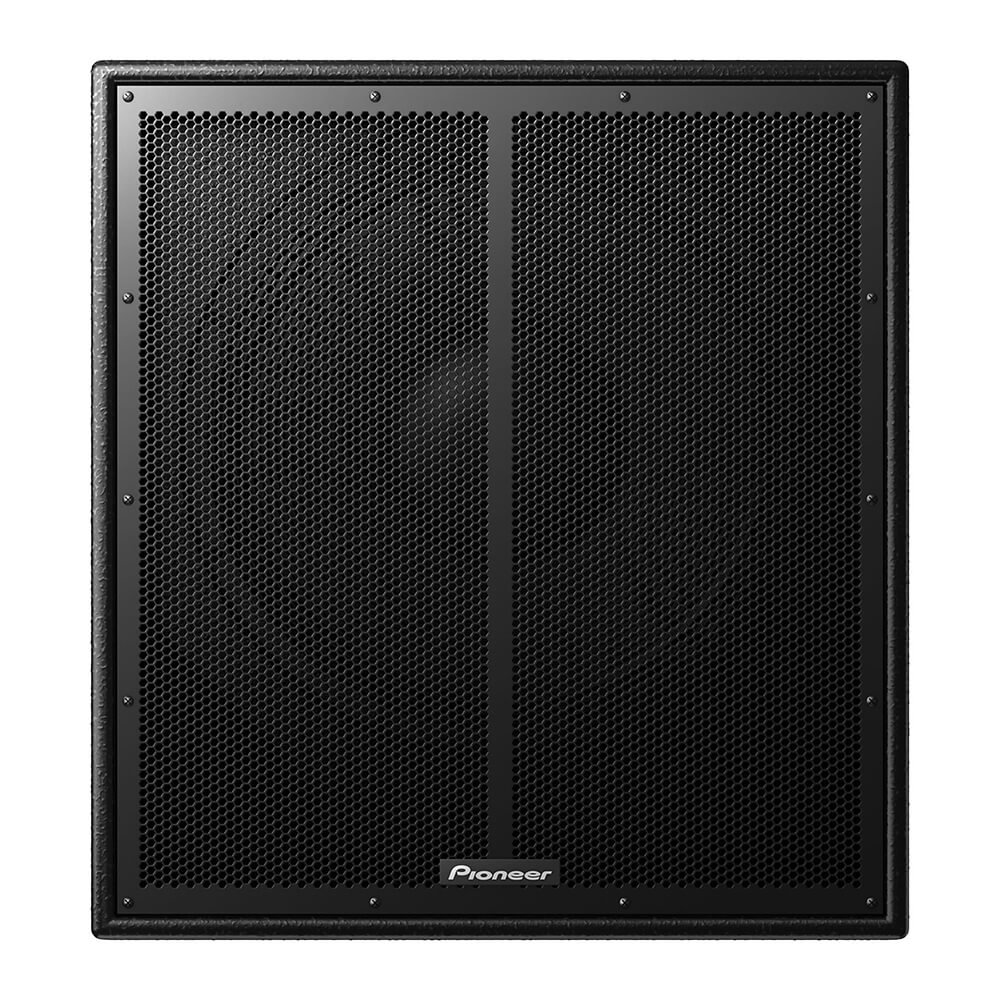

    • Grille:  Hex punched steel
    • Enclosure:  18 mm (0.7″) birch plywood
    • Finish:  Impact-resistant textured paint, XY-118S: Black
