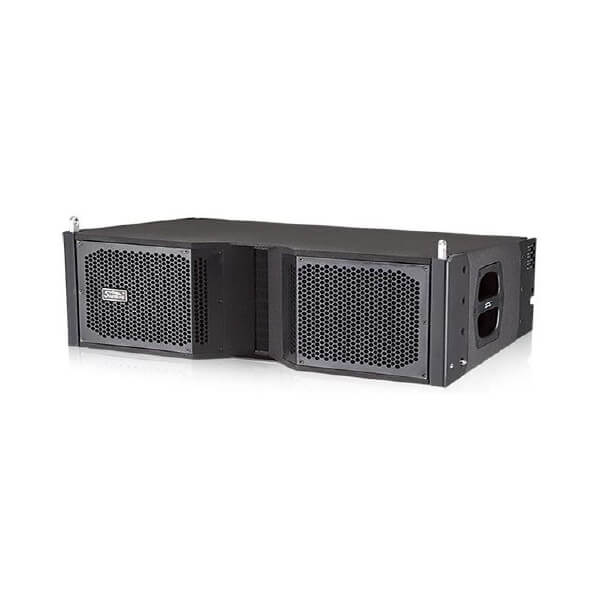

SoundKing G208 Passive Line Array System

Product Specifications

Type	Two-way line array cabinet
Frequency Response	65Hz~19kHz (-10dB) 80Hz~18kHz (±3dB)
Horizonal Coverage(-6dB)	90°
Vertical Coverage(-6dB)	6°
MF/LF	2×8＂(203mm)/2＂voice coil
HF	2×1.75＂(44mm) compression driver/NdFeB Magnet
Sensitivity(1W@1m)	LF：96 dB HF：108 dB
Rated Impedance	LF：16Ω HF：16Ω
Rated Power	LF：300 W (continuous)，1200W (peak)
Max.SPL(@1m )	HF：80 W (continuous)，320W (peak)
	LF：127 dB HF：133 dB
Crossover	250Hz，2kHz (external)
Dimension(WxHxD)	722×260.4×440 (mm)
Weight	30 kg
Vertical Dispersion	0°~6°each grade 1°

Description

Sound king G208SA Series Passive Line Array Speaker

The box is made from solid, high-quality and moisture-proof birch plywood; inside box, multiple reinforced structures are used to reduce the energy loss due to harmonic oscillation to make LF more firm and powerful under high power and high sound pressure; two handholds with safe human engineering structure are installed on both sides of box.

The speakers adopt patented intelligent suspension system, easy installation and disassembly; the surface of box is processed with scratch and wear-resisting black galaxy coating.
