BIRCH PLYWOOD

Delta-AX subwoofers use premium Baltic birch plywood construction.

Not only does this create a solid and durable cabinet, but it also contributes to the overall sound and character.

Delta-AX subs are also covered in our most durable and hard wearing Rhino Rock paint finish. This ensures that a Delta-AX will always look as good as the day you unboxed it.

ROUTED LOGO

Delta-AX subs feature a routed Wharfedale Pro logo.

This fresh design helps to distinguish between the original Delta-A models and the updated Delta-AX models.

It is also a logo to be proud of. A logo that lets your audience know that the sound of your even will be of the highest possible quality.

SUBWOOFERS

The 15″ and 18″ active subwoofers use a single Class D amplifier to drive the LF transducer.

Inside the Delta-AX subwoofers is a highly efficient Class D amplifier.

The amplifier has been perfectly matched to the custom low frequency driver. This perfect combination leads to maximum efficiency and supreme output SPL.

SPECIFICATIONS

Model Name	DELTA-AX15B
System Type	Active 15” Subwoofer
Frequency Response (+/-3 dB)	42 Hz – 200 Hz
Calculated Maximum SPL @1 m	130 dB
Low Frequency Transducer – Size (mm / inches)	404 mm / 15″
Coil Size (mm / inches)	101.6 mm / 4″
Impedance	8 Ω
Amplifiers
Low-Frequency Power Amplifier RMS	900 w (Class D)
High-Frequency Power Amplifier RMS	NA
Amplifier Protection	Yes
Power On Protection	Power switch on/off mute
Thermal Protection	Amplifier Shut Down. Auto Reset
Low Line Voltage Shut Down	80% Nominal Line Voltage
Driver Protection	Yes
DC and Short Protection	Yes
Clip Limiter	Turns on Appro x 900 w Output
Limiter Indicator	Red LED
Power Indicator	Green LED

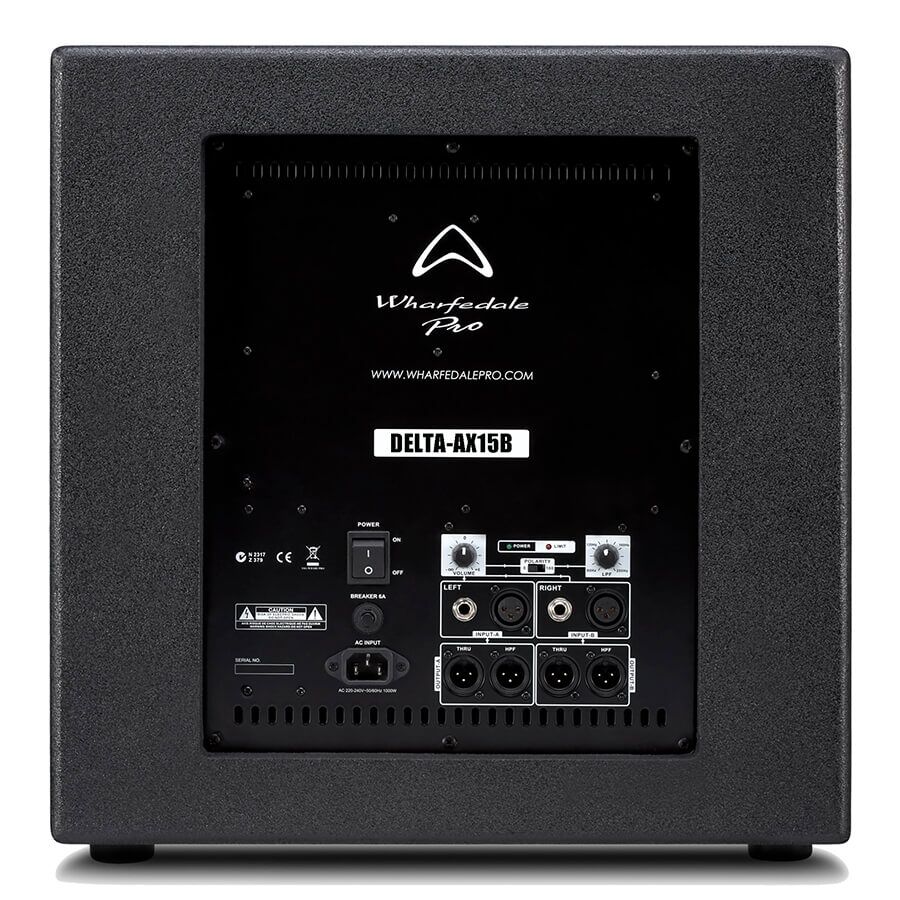

Connectors
Input A – type	Balanced
Input Sensitivity	Line:0 dBu
Maximum Input Level	22 dBu
Input Connector	TRS jack and socket XLR
Input Impedance	Balanced:20 KΩ Unbalanced:10 KΩ
Line Output Connector	pin XLR Connector
Impedance Balanced	Balanced: 200 Ω Unbalanced:100 Ω
Loop Gain	0 dB
AC Power details – Power Supply	High Efficiency SMPS
AC Power Options	AC100-120 V~ / 220-240 V~,50/60 HZ
Power On Indicator	Green LED
Hardware – Rigging
Enclosure Material and finish	15 mm Plywood
Colour Options	Black Rhino Paint
Grille Material & Finish
Unpacked dimensions – Height	471 mm / 18.54″
Width (Front)	471 mm / 18.54″
Width (Back)	471 mm / 18.54″
Depth	600 mm / 23.62″
Packed Dimensions – Height	556 mm / 21.89″
Width (Front)	672 mm / 26.46″
Width (Back)	672 mm / 26.46″
Depth	543 mm / 21.38″
Net Weight (kg / lbs)	33.1 kg / 72.82 lbs
Gross Weight (kg / lbs)	36.7 kg / 80.74 lbs
