POWER TO PLAY

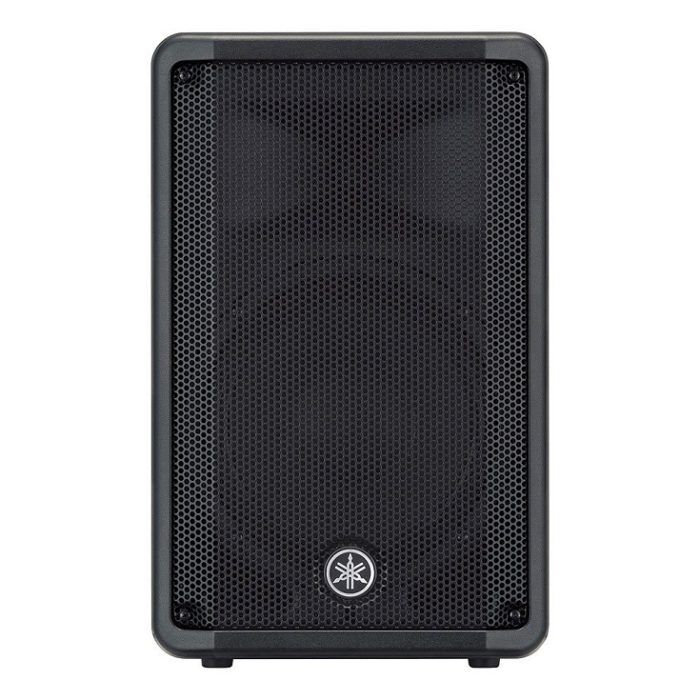

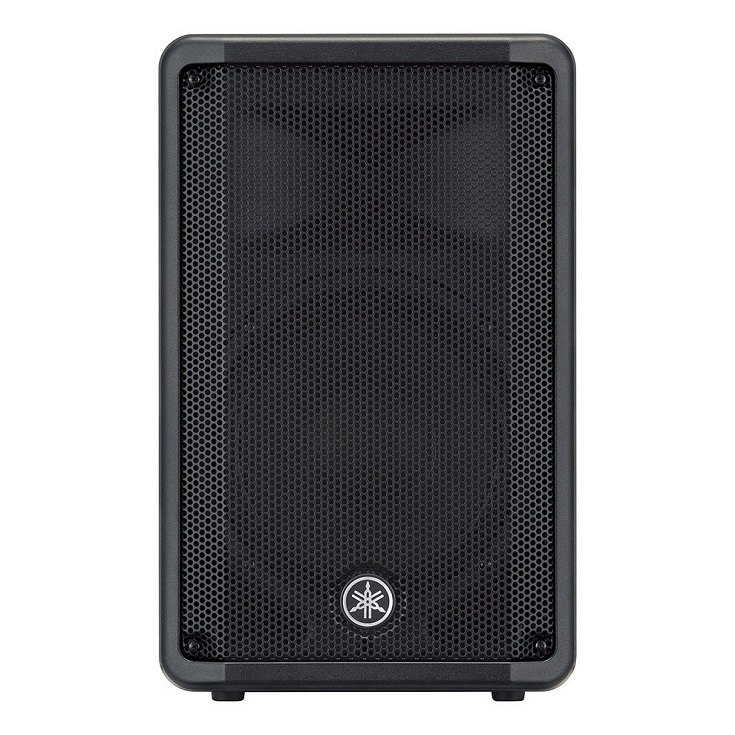

Wherever your music may take you, DBR Series loudspeakers are up to the task of delivering powerful, high-quality sound with an un-matched economy of transport and setup time. The most portable powered loudspeakers Yamaha has to offer, the versatile DBR Series harnesses the same state-of-the-art Yamaha DSP and amplifier and speaker technologies developed for the professional DSR Series and DXR Series lineups, ensuring high-resolution sound at any output level. Comprised of 10”, 12” and 15” models, each DBR loudseaker is housed in a newly designed, durable, lightweight cabinet optimized for FOH sound, floor-monitoring and even rigged applications. Whether you’re powering your band’s live performance, DJ-ing a party, or MC-ing an event, be prepared for DBR Series speakers to take your performance to the next level.
High-Efficiency 1000W Class-D Amplifiers
![](https://usa.yamaha.com/files/58E8451FC0654F6F816F05CE088A1FAA_12083_320x214_790667cbe4f8ba9919aca526e81f0eca.jpg)
The DBR’s lightweight, high performance Class-D amplifier is capable of producing up to 1000W* of power, achieving an SPL of 132dB, delivered with remarkable clarity and dynamic characteristics.
*DBR10 has an output level of 700W.
Custom Designed Transducer
![](https://usa.yamaha.com/files/E7F112939B6D4F0D810E994E9EFEB869_12083_320x277_e6c646ef3108f0e5a61d38f71641dadf.jpg)
The high power output woofers deliver well-defined, powerful bass with minimal distortion, while the 1.4″ precision compression driver* produces accurate mid-range and high frequencies.
*DBR10 features a 1″ compression driver.

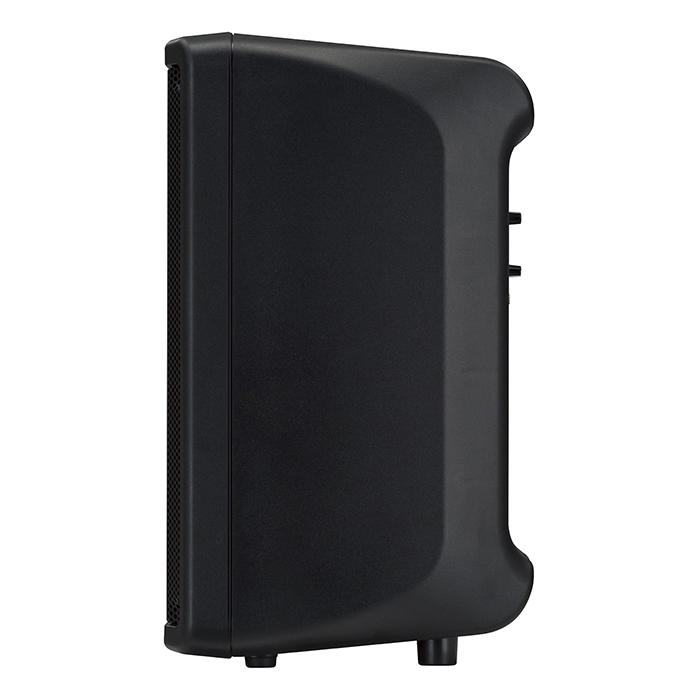

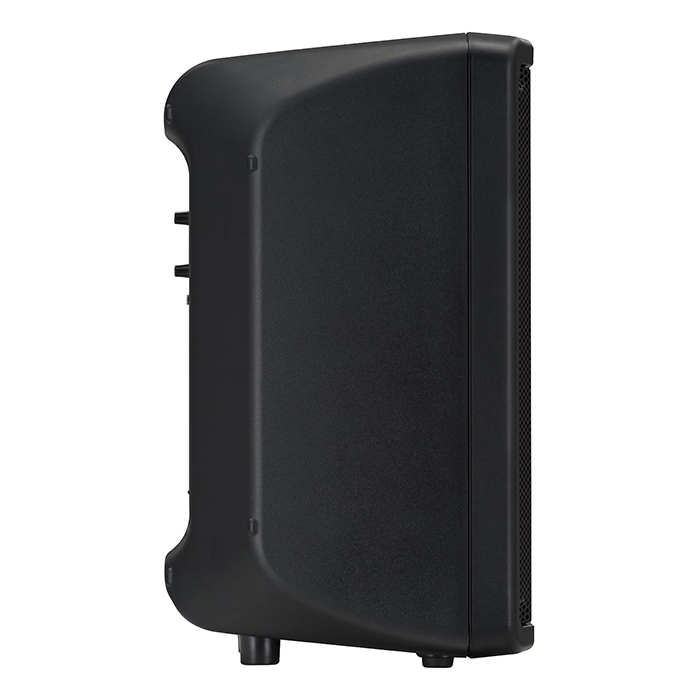

A Rugged, Highly Portable Cabinet
![](https://usa.yamaha.com/files/54388B8F070C4E3BB8E787DB0398307D_12083_320x239_36e097dbe0d277b1e561d02923f789b6.jpg)
DBR Series speakers feature a compact, lightweight, and durable plastic cabinet which offers the highest level of portability of all Yamaha powered speakers. The sleek steel grille bolsters cabinet durability and protects the internal components while a newly designed ergonomic handles provide effortless transportation and system setup.

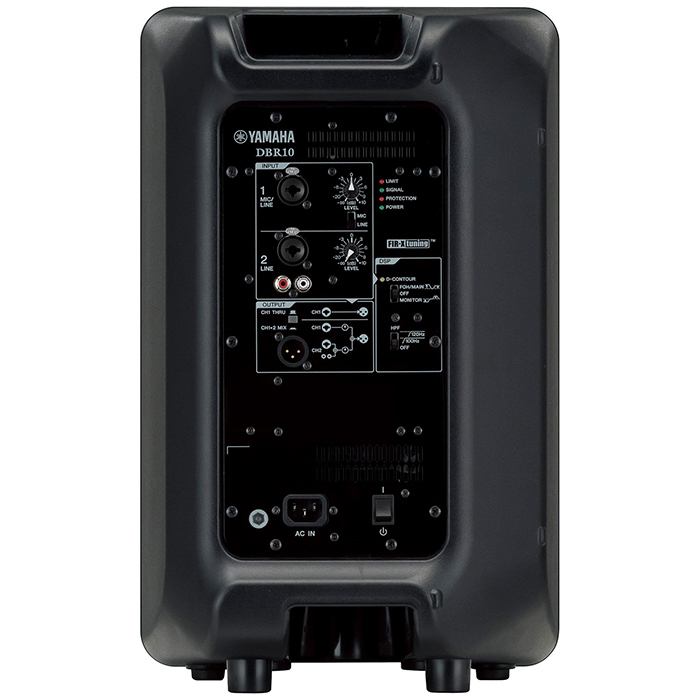

Easy-to-use Onboard 2-Channel Mixer
![](https://usa.yamaha.com/files/A76B3F4C9E364076B95656BC3F2F4AA9_12083_240x273_07a9f4123844d9b78176997be096962d.jpg)
DBR Series speakers have two input channels. CH1 has a combo jack which accepts both XLR and TRS Phone allowing for either Mic or Line level input signals. CH2 offers two input options; a combo jack that accepts XLR or TRS Phone, and an RCA pin jack for input from CD players or other stereo line-level sources. The onboard mixer allows you to select either CH1+2 MIX to mix the signal of CH1 and CH2, or CH1 THRU to pass the signal from CH1 only.

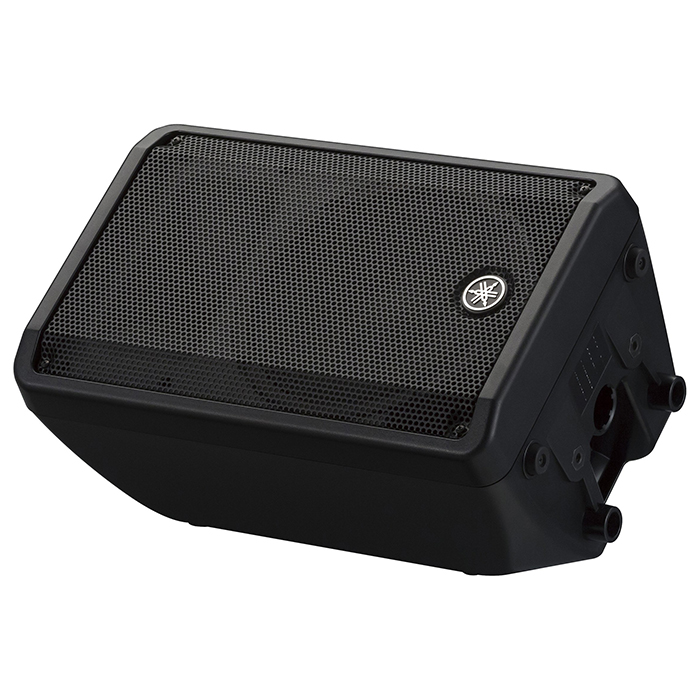

Smart Enclosure Design for Floor Monitoring
![](https://usa.yamaha.com/files/D13850B9522C489490242210B0E56FC1_12083_320x124_4632fe7174ff9f9dc555cb2fca824b36.jpg)
DBR Series speakers feature an optimized 50°wedge angle for floor monitoring. In addition the DBR12 and DBR15’s symmetrical shape allows for effortless configuration of a mirror-mode floor monitoring system in either symmetrical or stereo sound field setups.
Rigging Points for Installation Applications
![](https://usa.yamaha.com/files/E77C58E8990A40BBBA77745605F9FE3C_12083_320x245_9020e1c2bf51085992886157ba2ca3d6.jpg)
DBR loudspeakers come equipped with M8 rigging threads, allowing for rigged applications with optional speaker brackets or standardized eye-bolts.
*Speaker brackets and eye-bolts are not included.
