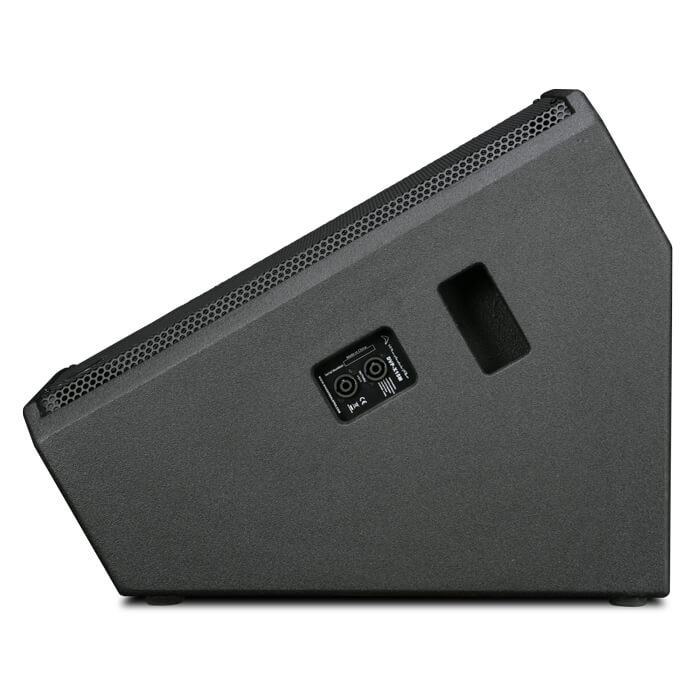

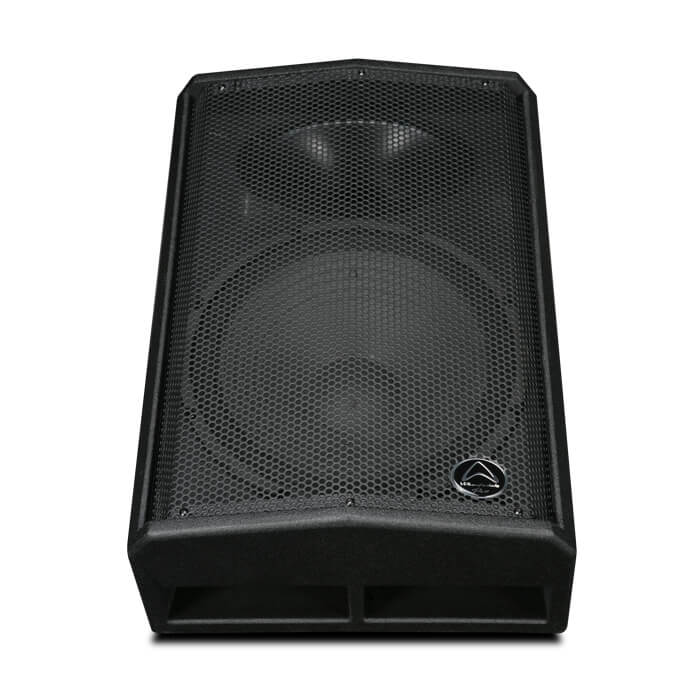

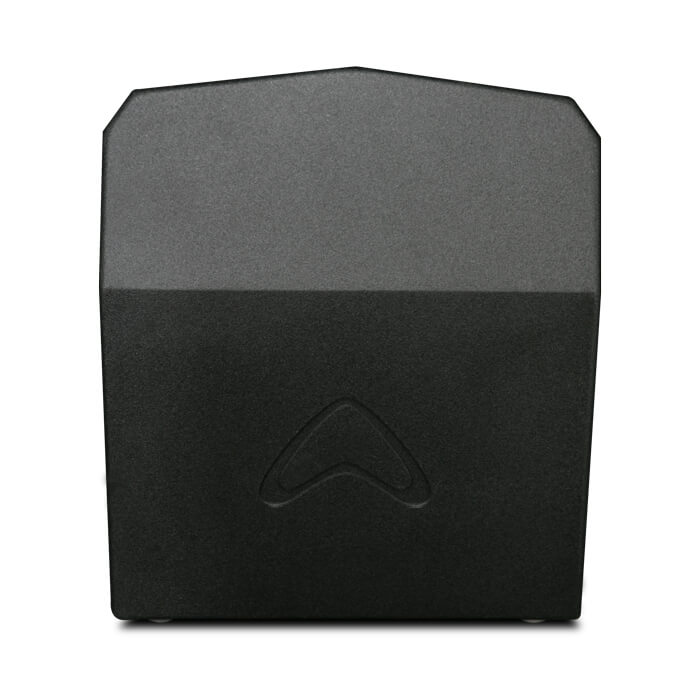

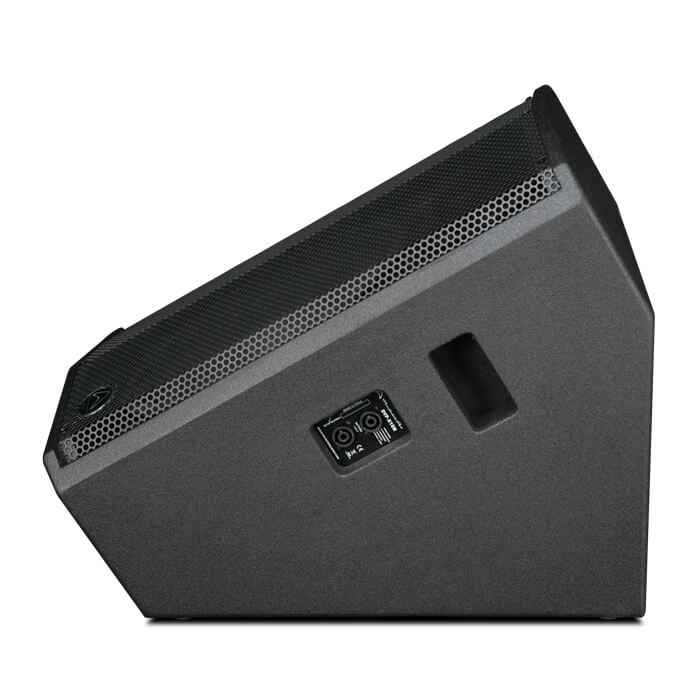

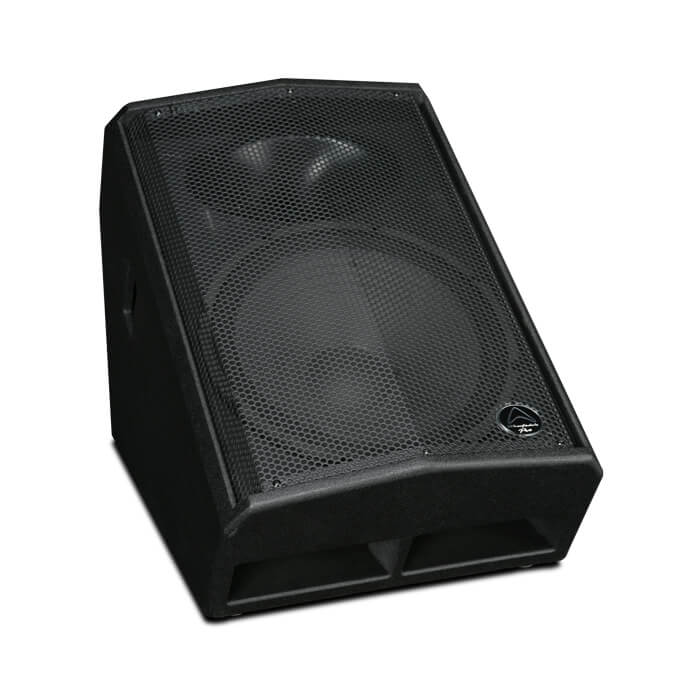

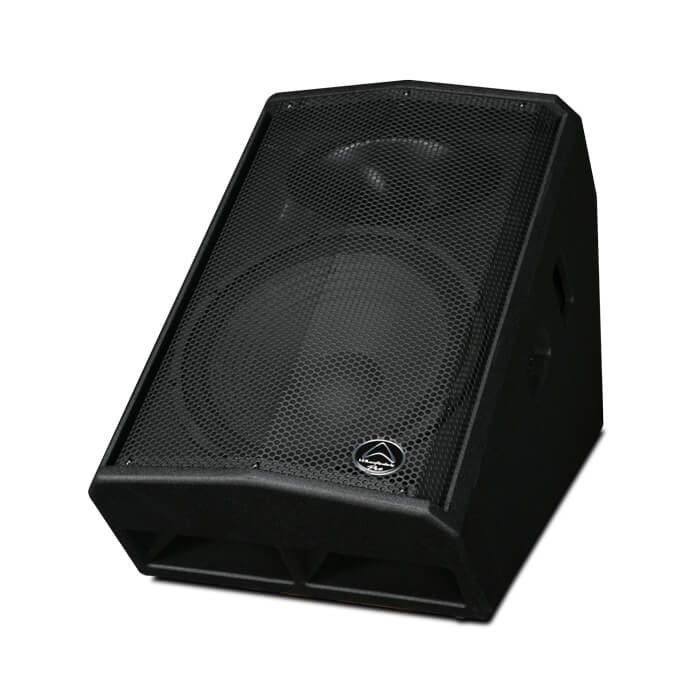

Wharfedale Pro DVP-X15M Passive Floor Monitor
Key Features
|
|
ROAD-READY LOUDSPEAKERS SPECIFICALLY DESIGNED FOR HARDWORKING PERFORMERS
DVP X15M is tough.
The cabinets are protected by proprietary enhanced Rhino Rock paint which means these loudspeakers will look as good as new even after many successful tours, parties and events.
Special attention has been paid to the port and port mouth to ensure a huge bass output with detail and minimised distortion. The port mouth on the DVP X15M is parallel to the ground. This creates a reflective boundary which results in low end punch from a smaller cabinet.
DOUBLE ROLL SURROUND & DRIVER TECHNOLOGY
ACOUSTICALLY MATCHED CABINET
FINE-TUNED CROSSOVER
IRIS X Compression drivers
The coil size and electrical sensitivity of a loudspeaker transducer is critical to its performance. Impact-X loudspeakers now include our proprietary IRIS X design which delivers Increased coil Radius and Increased electrical Sensitivity. The radius of the coil ensures smooth heat dissipation during prolonged high volume use, while the increased electrical sensitivity ensures that the transducer converts as much electrical power into sound output as the laws of physics allow.
A hot transducer wastes energy, risks damage and distorts. IRIS X reduces this through improved heat dissipation and improved efficiency.
In real-world terms, IRIS X transducers deliver higher SPL with less distortion. They lead the market with specifications and are designed and built entirely within Wharfedale Pro.
Increased Radius Increased Sensitivity
EASY CLEANING
Full range models feature a 90° x 60° Elliptical Waveguide
In real-world terms this means that the higher frequencies can be heard with definition at 90° in the horizontal plane, and 60° in the vertical.
All full range models in the DVP-X series use this same elliptical waveguide design which makes for controllable coverage when using multiple DVP-X series loudspeakers.
SPECIFICATIONS
| Model Name | DVP X15M |
| System Type | Passive |
| Configuration | Two-way |
| Frequency Response (+/- 3dB) | 55-18kHz |
| Frequency Range (-10dB) | 50-20kHz |
| Sensitivity (2.83v/1m) | 98dB |
| System Rated Impedance | 8Ω |
| Calculated Maximum SPL @1m | 130dB |
| Low Frequency Transducer | |
| Size | 381mm / 15″ |
| Voice Coil size | 65mm / 2.5” |
| Rated impedance | 8Ω |
| LF Power (re:AES-2012) | 350w |
| HF Transducer | |
| HF Driver Type | IRIS X Compression Driver |
| Voice Coil Size | 44mm / 1.75″ |
| Exit Size | 25mm / 1″ |
| Diaphragm Material | Titanium |
| Rated Impedance | 8Ω |
| HF Power (re:AES2-2012) | 40w |
| Nominal Coverage (H x V) | 90°x60° |
| Nominal Impedance | 8Ω |
| Power | |
| System Continuous Power | 350w |
| System Programme Power | 700w |
| System Peak Power | 1400w |
| Crossover Frequency | 2.2kHz |
| Hardware | |
| 2 x NL4 (speakON compatible) + 1/4″ Jack combo | |
| 2 carry handles | |
| Enclosure | |
| Enclosure Material and finish | MDF / Highest grade Rhino Rock |
| Colour Options | Black paint |
| Grille Material & Finish | Steel |
| Dimensions – Unpacked | |
| Height | 520mm / 20.5″ |
| Width Front | 449mm / 17.7″ |
| Width Rear | 449mm / 17.7″ |
| Depth | 640mm / 25.2″ |
| Dimensions – Packed | |
| Height | 485mm / 19.1″ |
| Width Front | 676mm / 26.6″ |
| Width Rear | 676mm / 26.6″ |
| Depth | 541mm / 21.3″ |
| Weight | |
| Net Weight | 21.5kg / 47.3lbs |
| Gross Weight | 24.5kg / 53.9lbs |
