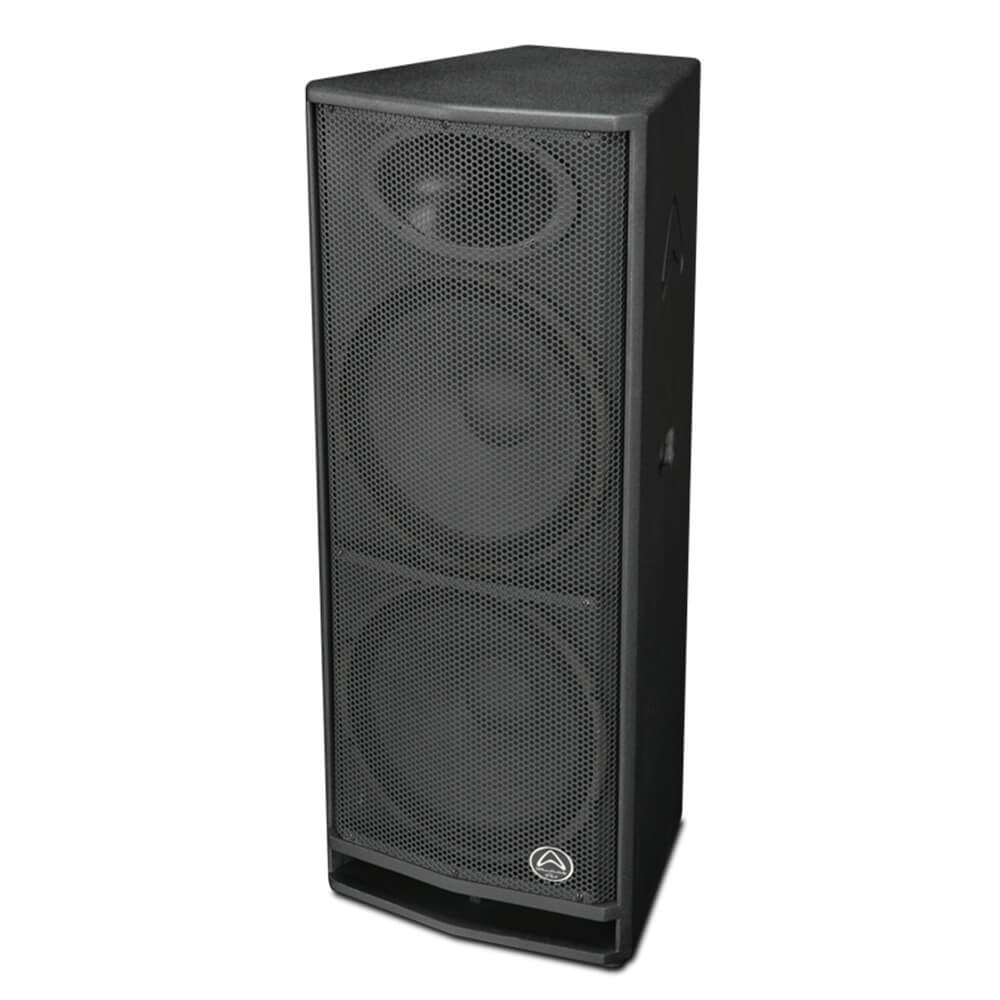

Wharfedale Pro DVP-X215 Passive Full Range Speaker

ROAD-READY LOUDSPEAKERS SPECIFICALLY DESIGNED FOR HARDWORKING PERFORMERS

DVP X215 is tough.

The cabinets are protected by proprietary enhanced Rhino Rock paint which means these loudspeakers will look as good as new even after many successful tours, parties and events.

Special attention has been paid to the port and port mouth to ensure a huge bass output with detail and minimised distortion.

Key Features

700W RMS / 1400W Programme / 2800W Peak
135dB Max SPL
40Hz – 20kHz frequency response
Proprietary enhanced Rhino Rock paint for a chip resistant finish
Parallel port mouth design creates reflective boundary, maximising low end punch.

Extended-range IRIS X Titanium dome compression driver
High powered LF driver using a double-roll surround
Fine-tuned crossovers, built in house for audio signal purity and optimised tuning
HF limiters are installed for thermal protection against extreme power input

DOUBLE ROLL SURROUND & DRIVER TECHNOLOGY

DVP X12 loudspeakers use the latest in Wharfedale Pro driver technology: For the LF driver, engineers have incorporated a curvilinear, double-roll surround for smooth mid-high transitions and stability for low through to mid range frequencies. Combined with 2.5” voice coils for improved thermal dissipation, you can expect consistent delivery at the highest of volumes throughout a performance. The 44mm IRIS X Diaphragm HF compression driver used on the X12 is equally robust in design – using a solid aluminum rear plate, the HF driver is strengthened for durability and heat is dissipated efficiently during prolonged time periods. Wharfedale Pro engineers have also selected a 90° x 60° elliptical waveguide optimised for wide coverage in multiple venues while touring.

ACOUSTICALLY MATCHED CABINET

The cabinet of the DVP X12 has been developed to work in perfect harmony with the advanced drive units within. Special attention has been paid to the acoustic properties of the port and port mouth to ensure a huge bass output with detail and minimised distortion. DVP X12 is coated in the latest generation chip-resistant, Rhino Rock paint.

FINE-TUNED CROSSOVER

The crossovers ensure perfect integration between the drive units and acoustic properties of the cabinet. Electronic components are carefully selected, while over-complex networks have been avoided to maintain a pure and strong audio signal. Engineers have fine tuned the crossover points for vocal intelligibility and tuned the high frequencies for long-throw to ensure clear coverage right to the back of your venue.

IRIS X COMPRESSION DRIVER

The coil size and electrical sensitivity of a loudspeaker transducer is critical to its performance. DVP-X loudspeakers now include our proprietary IRIS X design which delivers Increased coil Radius and Increased electrical Sensitivity. The radius of the coil ensures smooth heat dissipation during prolonged high volume use, while the increased electrical sensitivity ensures that the transducer converts as much electrical power into sound output as the laws of physics allow.

A hot transducer wastes energy, risks damage and distorts. IRIS X reduces this through improved heat dissipation and improved efficiency.

In real-world terms, IRIS X transducers deliver higher SPL with less distortion. They lead the market with specifications and are designed and built entirely within Wharfedale Pro.

Increased Radius Increased Sensitivity

SPECIFICATIONS

Model Name	DVP X215
System Type	Passive
Configuration	Two-way
Frequency Response (+/- 3dB)	45-18kHz
Frequency Range (-10dB)	40-20kHz
Sensitivity (2.83v/1m)	101dB
System Rated Impedance	4Ω
Calculated Maximum SPL @1m	135dB
Low Frequency Transducer
Size	2 x 381mm / 15″
Voice coil size	65mm / 2.5”
Rated impedance	8Ω
LF Power (re:AES-2012)	700w
HF Transducer
HF Driver Type	IRIS X compression driver
Voice Coil Size	44mm / 1.75″
Exit Size	25mm / 1″
Diaphragm Material	Titanium
Rated Impedance	8Ω
HF Power (re:AES2-2012)	40w
Nominal Coverage (H x V)	90°x60°
Nominal Impedance	8Ω
Power
System Continuous Power	700w
System Programme Power	1400w
System Peak Power	2800w
Crossover Frequency	2.2kHz
Hardware
	2 x NL4 (speakON compatible) + 1/4″ Jack combo
	2 carry handles
Enclosure
Enclosure Material and finish	MDF / Highest grade Rhino Rock
Colour Options	Black paint
Grille Material & Finish	Steel
Dimensions – Unpacked
Height	1058mm / 41.7″
Width Front	444.5mm / 17.5″
Width Rear	245.3mm / 9.7″
Depth	429.0mm / 16.9″
Dimensions – Packed
Height	1125mm / 44.3″
Width Front	520mm / 20.5″
Width Rear	290mm / 11.4″
Depth	290mm / 11.4″
Weight
Net Weight	34.5kg / 75.9lbs
Gross Weight	38.9kg / 85.6lbs

Click to enlarge

Back to products

Order on WhatsApp

Call 0740418548

Add to wishlist

Categories: PA Equipment, Passive speaker

Description

Model Name	DVP X215
System Type	Passive
Configuration	Two-way
Frequency Response (+/- 3dB)	45-18kHz
Frequency Range (-10dB)	40-20kHz
Sensitivity (2.83v/1m)	101dB
System Rated Impedance	4Ω
Calculated Maximum SPL @1m	135dB
Low Frequency Transducer
Size	2 x 381mm / 15″
Voice coil size	65mm / 2.5”
Rated impedance	8Ω
LF Power (re:AES-2012)	700w
HF Transducer
HF Driver Type	IRIS X compression driver
Voice Coil Size	44mm / 1.75″
Exit Size	25mm / 1″
Diaphragm Material	Titanium
Rated Impedance	8Ω
HF Power (re:AES2-2012)	40w
Nominal Coverage (H x V)	90°x60°
Nominal Impedance	8Ω
Power
System Continuous Power	700w
System Programme Power	1400w
System Peak Power	2800w
Crossover Frequency	2.2kHz
Hardware
	2 x NL4 (speakON compatible) + 1/4″ Jack combo
	2 carry handles
Enclosure
Enclosure Material and finish	MDF / Highest grade Rhino Rock
Colour Options	Black paint
Grille Material & Finish	Steel
Dimensions – Unpacked
Height	1058mm / 41.7″
Width Front	444.5mm / 17.5″
Width Rear	245.3mm / 9.7″
Depth	429.0mm / 16.9″
Dimensions – Packed
Height	1125mm / 44.3″
Width Front	520mm / 20.5″
Width Rear	290mm / 11.4″
Depth	290mm / 11.4″
Weight
Net Weight	34.5kg / 75.9lbs
Gross Weight	38.9kg / 85.6lbs
