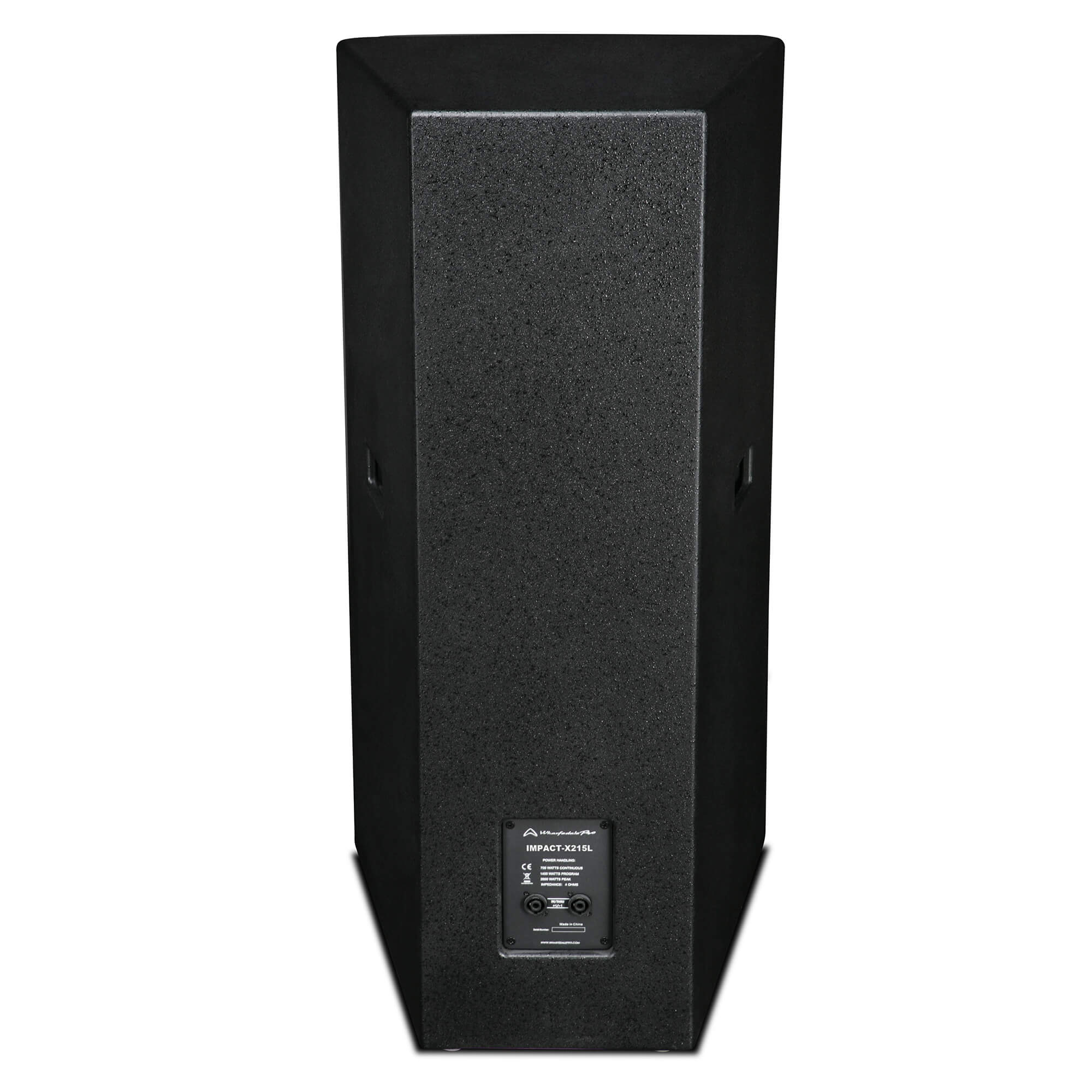

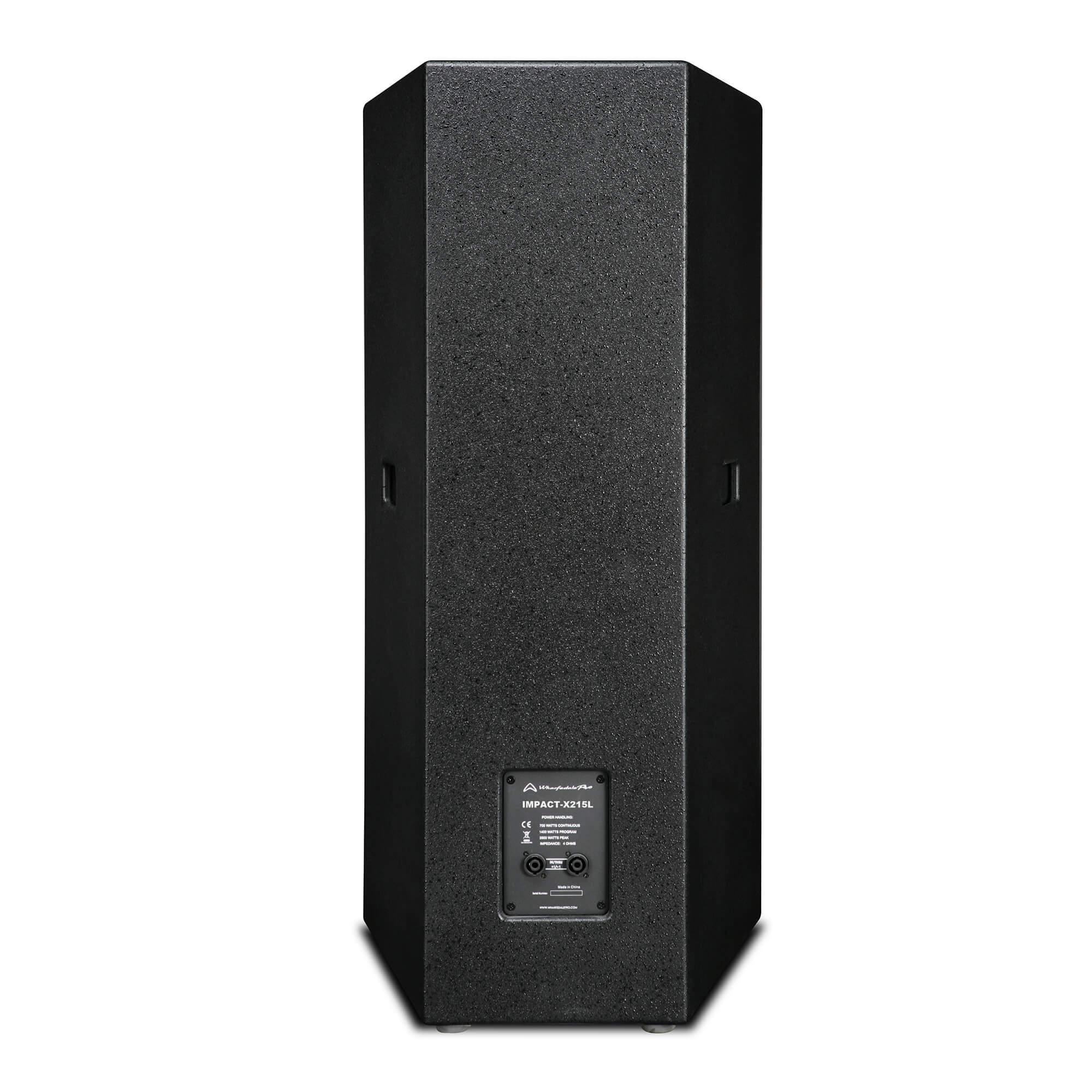

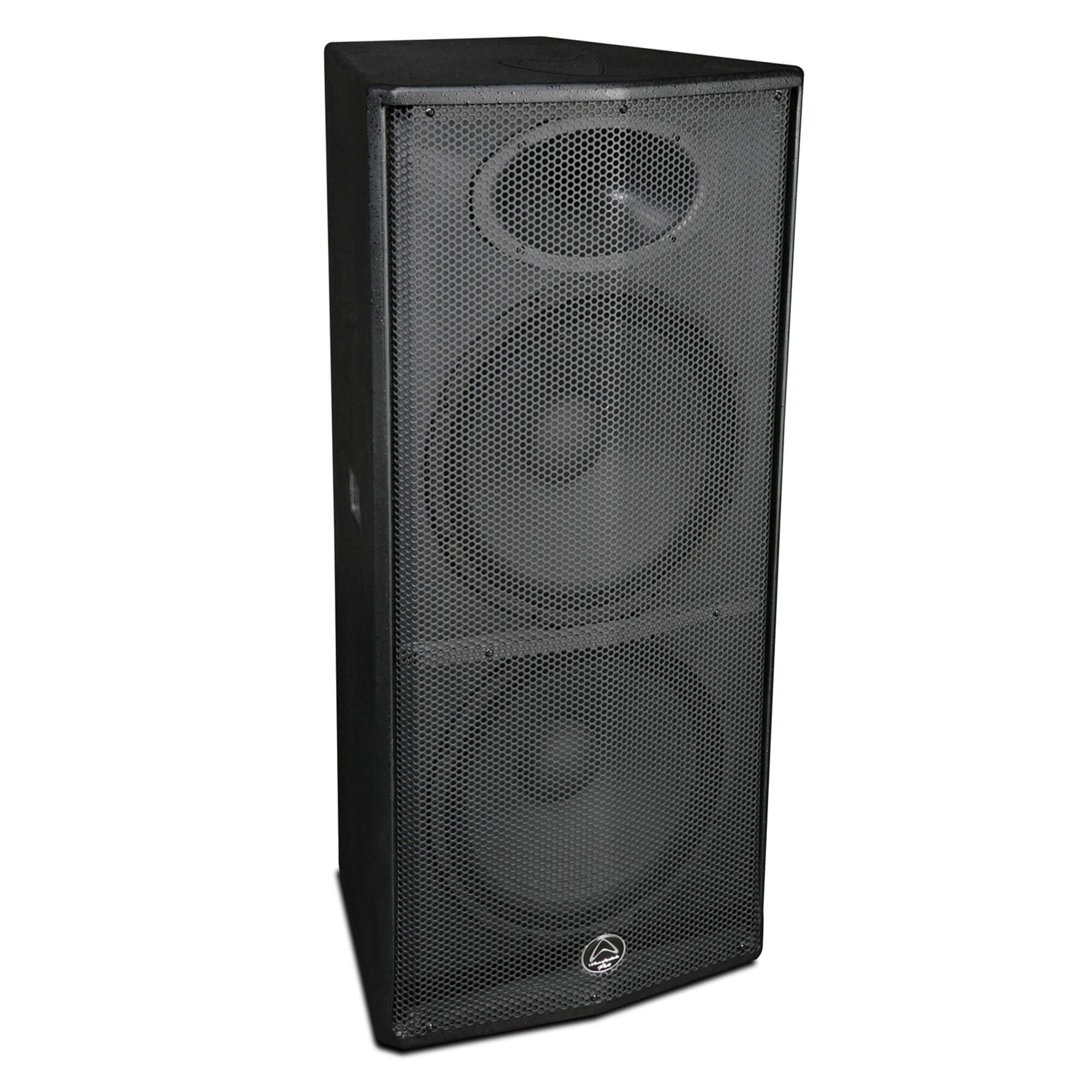

Wharfedale Pro IMPACT-X215L Passive Speaker

Key Features:

  • Dual 15″ (large cabinet)
  • 135 dB max SPL @ 1 meter
  • 1.75″ HF compression driver
  • 2.5″ LF voice coils
  • MDF construction (plywood cabinet)
  • Durable black paint finish
  • Combi connector inputs (2 x speakON compatible / Thru inputs)
  • 700 watts AES (RMS)
  • 1400 watts Programme
  • 2800 watts Peak
Description

The Wharfedale Pro IMPACT-X215L  is a Passive Speaker that delivers high power capacity and clarity, producing 700W RMS (2800W peak) of power with a low-end frequency of 45Hz. A 1.75″ titanium diaphragm compression driver offers a powerful yet neutral sounding high end for high frequency. Both the HF and LF drivers were designed specifically for this series of loudspeakers, and they were engineered and acoustically matched to a highly robust wooden cabinet.



ELIPTICAL WAVEGUIDES

Full range models feature a 90° x 60° Elliptical Waveguide

In real-world terms this means that the higher frequencies can be heard with definition at 90° in the horizontal plane, and 60° in the vertical.

All full range models in the Impact-X series use this same elliptical waveguide design which makes for controllable coverage when using multiple Impact series loudspeakers.

IRIS X COMPRESSION DRIVERS

The coil size and electrical sensitivity of a loudspeaker transducer is critical to its performance.  Impact-X loudspeakers now include our proprietary IRIS X design which delivers Increased coil Radius and Increased electrical Sensitivity.  The radius of the coil ensures smooth heat dissipation during prolonged high volume use, while the increased electrical sensitivity ensures that the transducer converts as much electrical power into sound output as the laws of physics allow.

A hot transducer wastes energy, risks damage and distorts.  IRIS X reduces this through improved heat dissipation and improved efficiency.

In real-world terms, IRIS X transducers deliver higher SPL with less distortion.  They lead the market with specifications and are designed and built entirely within Wharfedale Pro.

Increased Radius Increased Sensitivity

ROUTED LOGO

Impact-X features a routed Wharfedale Pro logo.

It is a logo to be proud of. A logo that lets your audience know that the sound of your even will be of the highest possible quality.

COMBI JACK INPUTS

A handy feature are the NL2 combi jack connectors which are used in all models of Impact-X.

These accept both speakON compatible cabling or 1/4″ jack speaker cables.  It means that you’ve usually got the right cables on hand!



SPECIFICATIONS

Model Name IMPACT-X215L
System Type Passive
Configuration Two-way
Frequency Response (+/-3 dB) 45-18 KHz
Frequency Range (-10 dB) 40-20 KHz
Sensitivity (2.83 v / 1 m) 101 dB
Calculated Maximum SPL @1 m 135 dB
System Rated Impedance 4 Ω
Low Frequency Transducer
Size 2 x 381 mm / 15″
Voice Coil Size 65 mm / 2.5”
Rated Impedance 2 x 8 Ω
LF Power (re:AES2-2012) 2 x 350 W
High Frequency Transducer
HF Driver Type Compression Driver
Voice Coil Size 44 mm / 1.75″
Exit Size 25 mm / 1″
Diaphragm Material Titanium
Rated Impedance 8 Ω
HF Power (re:AES2-2012) 40 W
Nominal Coverage (H x V) 90° x 60°
Nominal Impedance 8 Ω
Power
System Continuous Power 700 W
System Programme Power 1400 W
System Peak Power 2800 W
Crossover frequency 2.2 KHz
Input Connector 2 x NL2 combi jack
Hardware
2 carry handles
Enclosure
Enclosure Material and finish MDF
Colour Options black paint
Grille Material & Finish steel
Dimensions – Unpacked
Height 1058 mm / 41.7″
Width Front 502 mm / 19.8″
Width Rear 282.5 mm / 11.1″
Depth 467 mm / 18.4″
Dimensions – Packed
Height 1125 mm / 44.3″
Width Front 577 mm / 22.7″
Width Rear 327 mm / 12.9″
Depth 534 mm / 21.0″
Weight
Net Weight 37.1 kg / 81.6 lbs
Gross Weight 41.6 kg / 91.5 lbs
