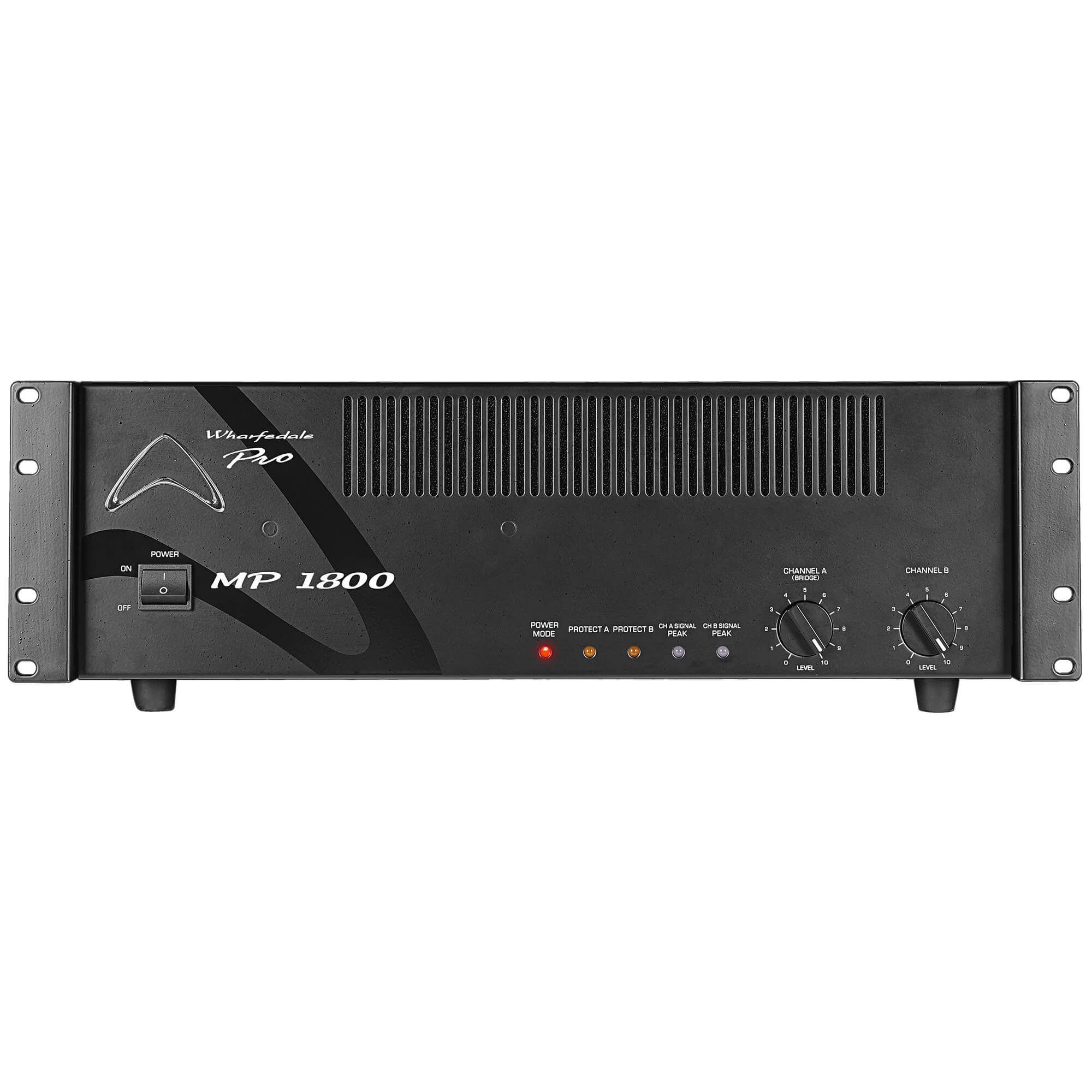

Wharfedale Pro MP 1800

Key Features

8 Ohms x 2: 330W RMS
4 Ohms x 2: 600W RMS
2 Ohms x 2: 1900W RMS
8 Ohms Bridged: 1200W RMS
4 Ohms Bridged: 1800W RMS
Class AB Technology
Suitable for touring, rental and installation

3 x Speakon and bare wire outputs
Peak and protect LEDs
Rear panel ground lift switch
All steel construction
Continuously variable speed fan
Stereo and Bridge modes
2 x XLR, 2 x 6.3mm jack inputs

Sonic accuracy and durability are the most important features of a professional power amplifier, which have been considered in all elements of the MP1800. Each model in the MP Series uses an all-steel chassis along with state of the art electronic components, all housed within a unique amplifier design that provides high power and clean signal reproduction in a variety of applications and loudspeaker configurations.

BUILT TO LAST

The steel casing and sturdy construction are only the beginning.

Internally MP amps uses extremely reliable components and comparatively simple amplification circuitry.

This means that should something happen, MP amp is simple to repair.

STABLE DOWN TO 2 OHMS

Over 1/3rd of the internal chassis is taken up with a massive toroidal transformer.

This gives an MP amp the power supply stability to function in the most extreme AC conditions.

MP amps are also stable down to 2 Ohms. This allows for multiple 8 Ω or 16 Ω speakers to be driven with extreme and constant power.

NEW FRT CIRCUITRY

With a high slew rate across the MP Series, each amp reacts quickly to drive your loudspeakers as clearly and accurately as possible. Newly developed FRT or ‘fast reaction technology’ in the ‘s’ models create an even faster low frequency response ensuring the MP1800 does not miss a beat during performance.

STEREO & BRIDGE EFFICIENCY

The MP1800s will work efficiently in stereo and bridge modes. The amplifiers also run down to 2 Ohms safely in stereo mode (900W per channel) which means that the amplifiers can be used for a multitude of setups. Use in bridge mode with an individual high-powered subwoofer or use a single MP1800s to power multiple speakers equally.

SPECIFICATIONS

Stereo Power Output
8 Ohms x 2	330W
4 Ohms x 2	600W
2 Ohms x 2	900W
Bridged Mono Output
8 Ohms	1200W
4 Ohms	1800W
Frequency Response	5Hz – 30kHz
Inputs	2 x XLR, 2 x 6.3mm Jack
Outputs	3 x Speakon, Binding Post
Topology	Class AB
Sensitivity	+0dBu (0.775 Vrms)
Balanced Input Impedance	20 kOhms
Max. Input Level	22dBu (9.7Vrms)
Protection	Thermal, over-current, output DC, output short, power on/off mute
Cooling	Variable Speed Fan
Display	Power, Protect, Bridge, Peak LEDs
Dimensions (H x W x D)	133mm x 483mm x 355mm
Net Weight	23.5kg / 51.7lbs
Gross Weight	25kg / 55lbs

Click to enlarge

Order on WhatsApp

Call 0740418548

Add to wishlist

Categories: Amplifiers, PA Equipment, Power Amplifiers

Description

Stereo Power Output
8 Ohms x 2	330W
4 Ohms x 2	600W
2 Ohms x 2	900W
Bridged Mono Output
8 Ohms	1200W
4 Ohms	1800W
Frequency Response	5Hz – 30kHz
Inputs	2 x XLR, 2 x 6.3mm Jack
Outputs	3 x Speakon, Binding Post
Topology	Class AB
Sensitivity	+0dBu (0.775 Vrms)
Balanced Input Impedance	20 kOhms
Max. Input Level	22dBu (9.7Vrms)
Protection	Thermal, over-current, output DC, output short, power on/off mute
Cooling	Variable Speed Fan
Display	Power, Protect, Bridge, Peak LEDs
Dimensions (H x W x D)	133mm x 483mm x 355mm
Net Weight	23.5kg / 51.7lbs
Gross Weight	25kg / 55lbs
