Wharfedale Pro WLA-28X Passive Line Array System

WLA-28X

ALL IS CLEAR

The newly updated WLA-28X now takes that power and performance to a new level. With an improved HF compression driver, new flat grille design and improved HF protection circuitry, the WLA-28X is ready to impress.

The new custom designed HF compression driver now delivers more control and more definition to the HF content.

The flat grille face also makes life easier for rental companies and improves long-term durability.

WLA-28X

  • Re-designed dual 8” Passive line array
  • Re-defined HF compression driver
  • Improved HF protection circuit
  • Bi-amp and Passive mode switching

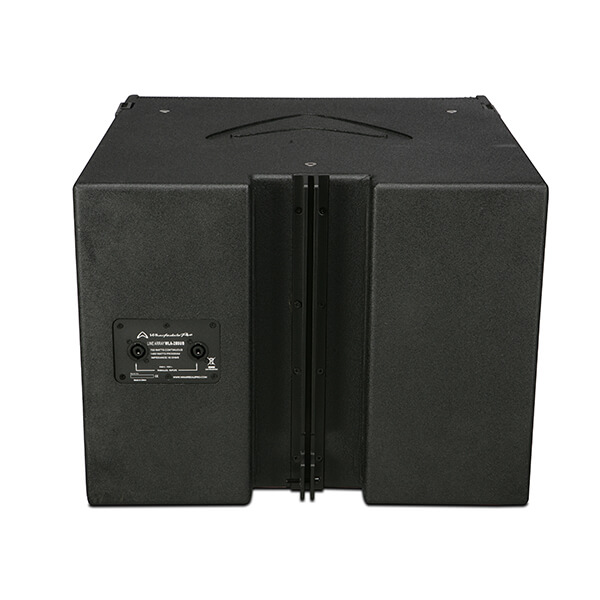

WLA-28SUB

  • Dual 15” high powered subwoofer
  • 1200 Watts AES (RMS) / 2400 Watts PRG / 4800 Watts Peak
  • 39 Hz – 1.5 KHz Frequency Response
  • 145 dB Max SPL
Description

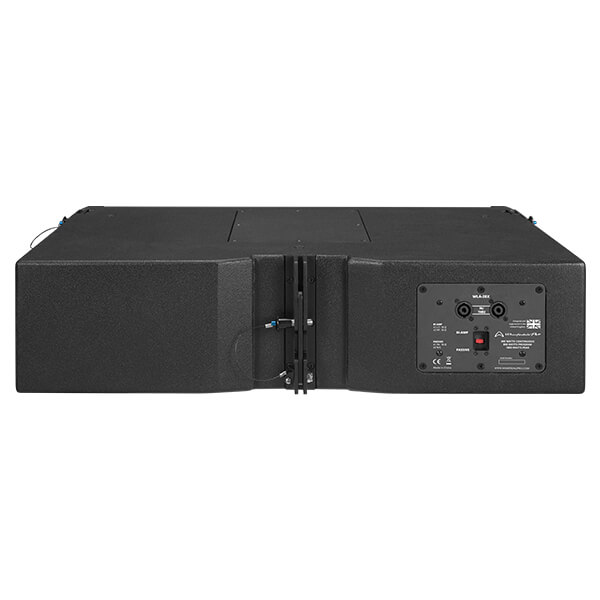

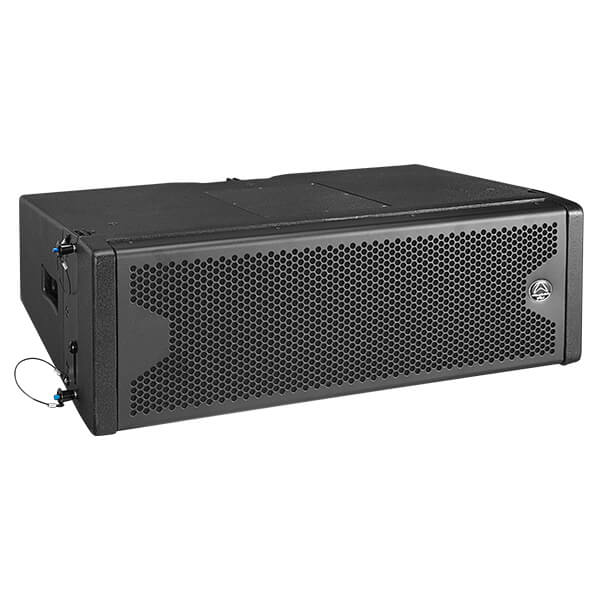

WLA-28X

400 watts
AES (RMS)

Re-designed dual 8” Passive line array

Re-defined HF compression driver

Improved HF protection circuit

Bi-amp and Passive mode switching

System AES LF: 400 W HF: 90 W

System Programme LF: 800 W HF: 180 W

System Peak Power LF: 1600 W HF: 360 W

15 mm / 18 mm Birch Plywood construction



WLA-28SUB

1200 watts
AES (RMS)
  • Dual 15″ LF drivers with 4.0″ voice coils
  • 145 dB Max SPL
  • 15 mm / 18 mm Birch plywood construction
  • Integral rigging system
  • 1200 watts AES (RMS)
  • 2400 watts Programme
  • 4800 watts Peak
  • 4 Ω impedance

About the clarity

The new neo HF compression driver delivers additional clarity and performance with enhanced definition.

It is custom made by Wharfedale Pro and is coupled to a 100° x 10° waveguide.

Dual 8″

At the heart of the WLA-28X are 2 x 8″ custom Wharfedale Pro LF drivers.

These feature 2.0″ voice coils to ensure high efficiency and high power handling.

These custom designed transducers are what give a WLA-28X system its incredible sound and power handling capacity.

Optional FLY FRAMES

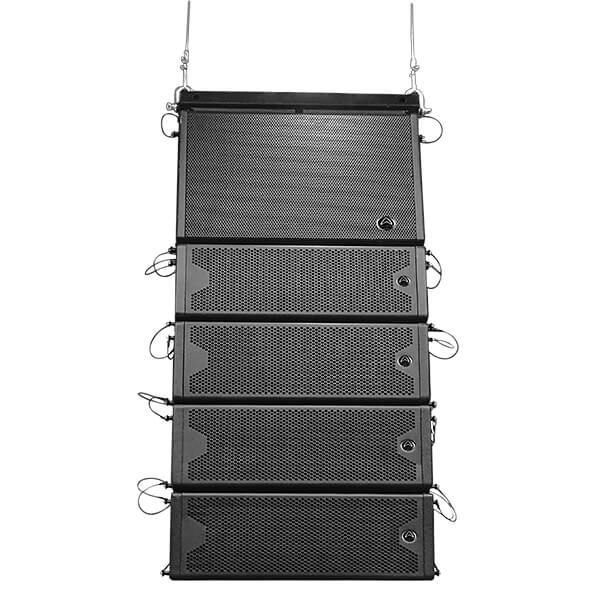

Arrays can be assembled using only WLA-28X line array elements or with WLA-15B / WLA-28SUB Subwoofers at the top of the array.

The WLA-28X Common Fly frame supports up to 450 kg.  Thats 12 x WLA-28X elements and a WLA-28SUB.



Just imagine



Imagine your dream system!  You can configure a WLA series rig to suit your needs!

To help your design and system preparations, you can download some recommended system diagrams.  These range from small to large and use a selection of our different amplifier ranges.

Optimised Ground Stacking

WLA-28X rigging doubles up as an optimised ground stacking system, using the WLA-15B or WLA-28SUB subwoofer as a base.

Arrays of WLA-28X line array elements can be aimed downwards by as much as 10° to cover audience areas close to a stage, as well as upward by as much as 10° in order to better cover distant balcony seating areas.

Bi-amp & passive

In BI-AMP mode, two power amplifiers can be used. This gives you the advantage of being able to select the best power amplifier specifications for each driver inside the loudspeaker. In a BI-AMP configuration, an external crossover is used to separate the frequencies and this splits the signal to the dedicated LF amplifier and the HF amplifier. This way, each amplifier is only working on the given frequency range and, in turn, is powering the corresponding driver inside the loudspeaker.

In PASSIVE mode, a single amplifier can be used to power all drivers inside the loudspeaker. The full frequency range is put into the loudspeaker and the loudspeakers’ internal crossover separates the frequencies, delivering the right frequencies to the right driver. In the example of a 2-way passive loudspeaker, this means that the single amplifier is powering both the HF compression driver and the LF transducer. The internal crossover takes care of both the frequency and power separation.

SPECIFICATIONS



Model Name WLA-28X
System Type 2 x 8” Two-way
Frequency Response (+/-3 dB) 65 Hz-20 KHz
Sensitivity (2.83 v / 1 m) 101 dB
Calculated Maximum SPL @1 m 133 dB
Nominal Coverage (H x V) 100°x10°
Power:
Continuous / Programme / Peak
Passive: 400 W / 800 W / 1600 W
Bi-amp LF: 400 W / 800 W / 1600 W
Bi-amp HF: 90 W / 180 W / 360 W
Rated Impedance ( Ω ) Passive: 16 Ω
Bi-amp LF: 16 Ω ; Bi-amp HF: 16 Ω
HF Diaphragm Material Titanium
HF Magnet Material NdFeB
LF Magnet Material Ferrite
LF Frame Material Aluminium
HF Coil Size (inches/mm) 3.0” (75 mm)
LF Coil Size (inches/mm) 2.0” (51.6 mm)
Crossover Frequency 1.7 KHz
Cabinet Type Trapezoid
Enclosure Material and finish 18 mm / 15 mm Plywood
Enclosure Colour Black paint
Grille Material & Finish 1.5 mm Steel
Connectors Neutrik NL4MP
Hardware Integral side plate adjustable
rigging 0°-10°
Cabinet Dimensions HxWxD(mm) 250 x 760 x 463.2 mm
Packed Dimensions HxWxD(mm) 320 x 830 x 534 mm
Net Weight (Kg) 29.5 Kg
Gross Weight (Kg) 32.0 Kg



Model Name WLA-28SUB
System Type Passive
Configuration 2 x 15″ subwoofer
Frequency Response (+/-3 dB) 39 Hz-900 Hz
Frequency Range (-10 dB) 39 Hz-1.5 KHz
Sensitivity (2.83 v / 1 meter) 108 dB
Calculated Maximum SPL @ 1 meter 145 dB
System Rated Impedance 4 Ω
Low Frequency Transducer
Size 2 x 381 mm / 15”
Voice Coil Size 100 mm / 4”
Rated Impedance 2 x 8 Ω
LF Power (re:AES2-2012) 2 x 600 W
Power
System Continuous Power 1200 W
System Programme Power 2400 W
System Peak Power 4800 W
Crossover frequency No
Input Connector 2 x speakON compatible
Hardware Integral side plate
non adjustable
Enclosure
Enclosure Material 15 mm,18 mm Plywood
Finish Rhino Black Paint
Grille Material & Finish 1.2 mm Black Steel
Dimensions – (Unpacked)
Height Front 485 mm / 19.1″
Height Rear 485 mm / 19.1″
Width 760 mm / 29.9”
Depth 716 mm / 28.2”
Dimensions – (Packed)
Height 850 mm / 33.5″
Width Front 575 mm / 22.6″
Width Rear 575 mm / 22.6″
Depth 806 mm / 31.7″
Weight
Net Weight (kg / lbs) 61.2 kg / 134.6 lbs
Gross Weight (kg / lbs) 66.0 kg / 145.2 lbs
