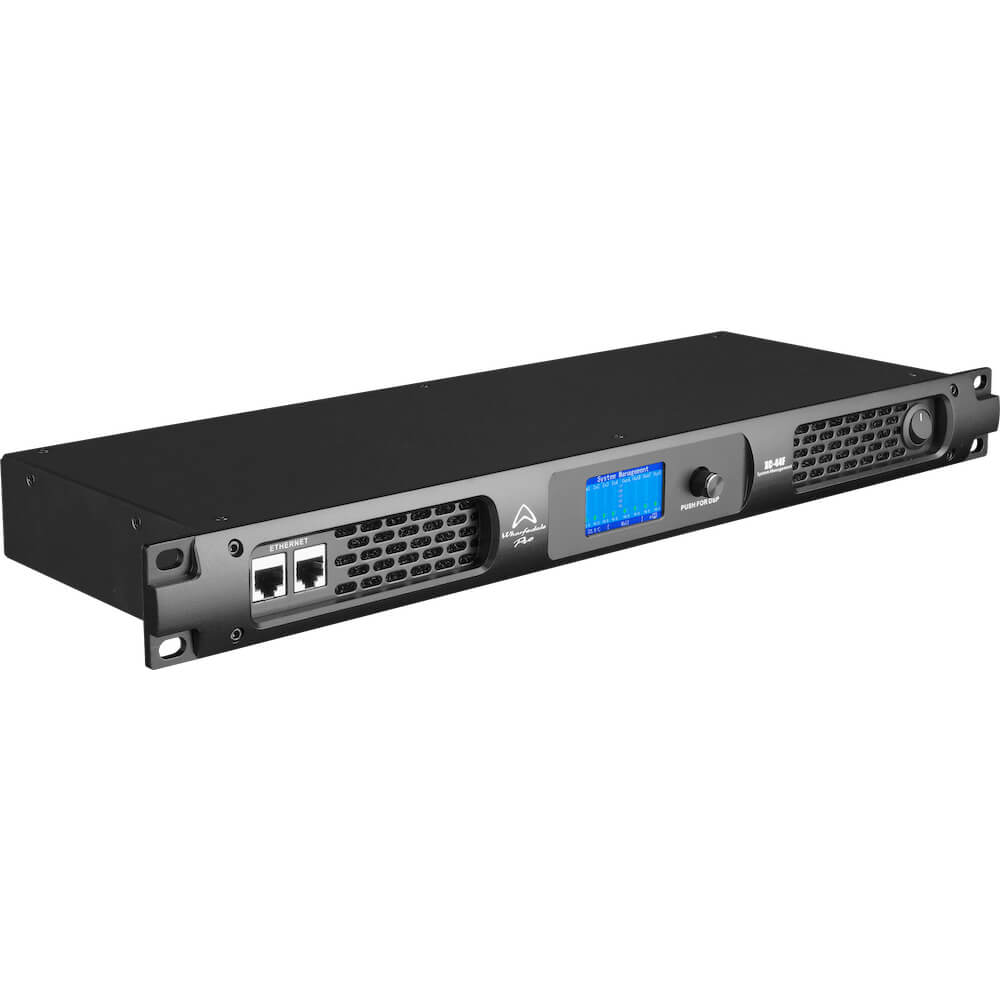

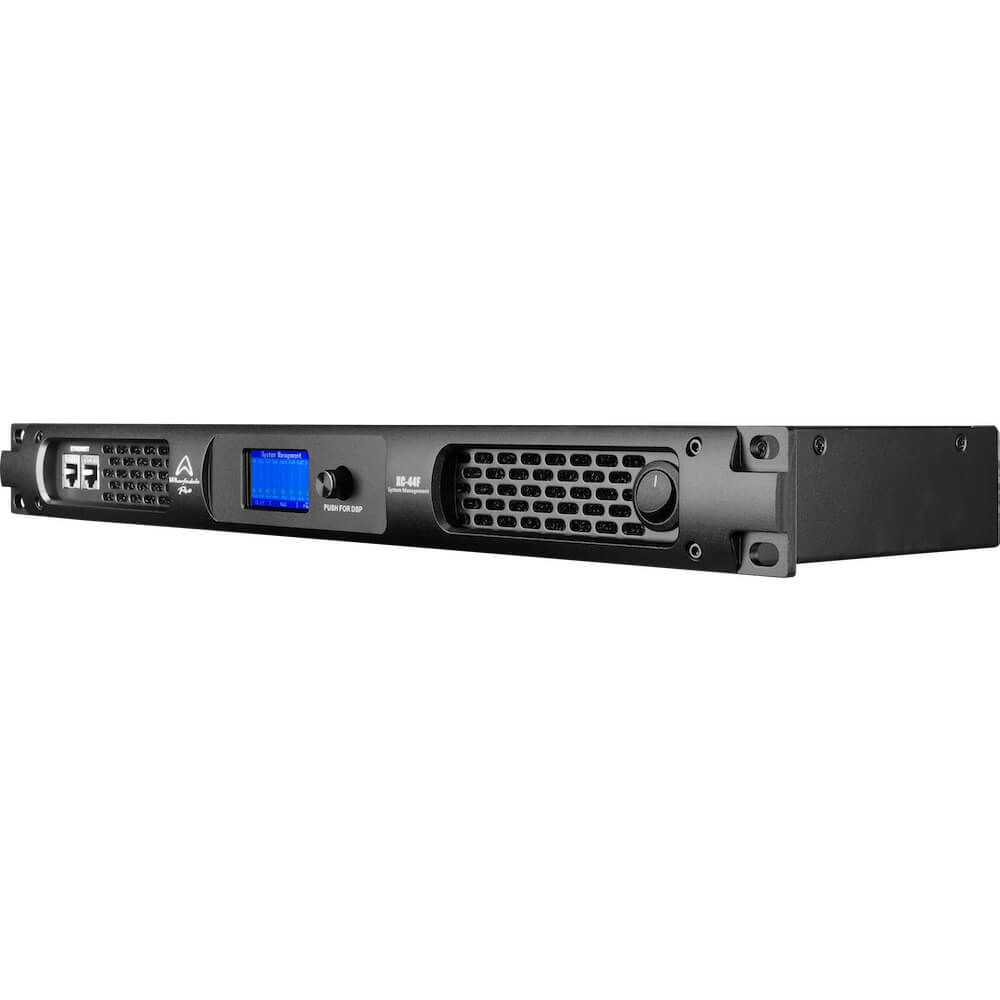

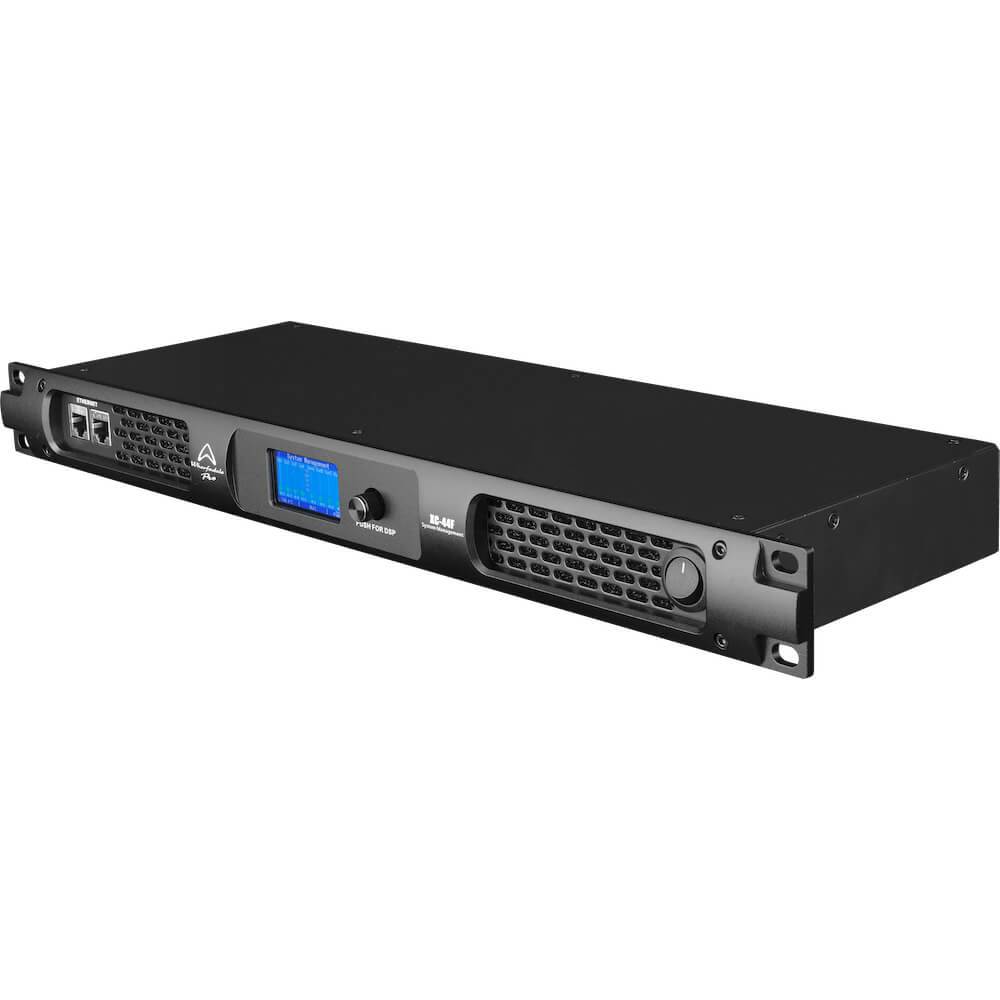

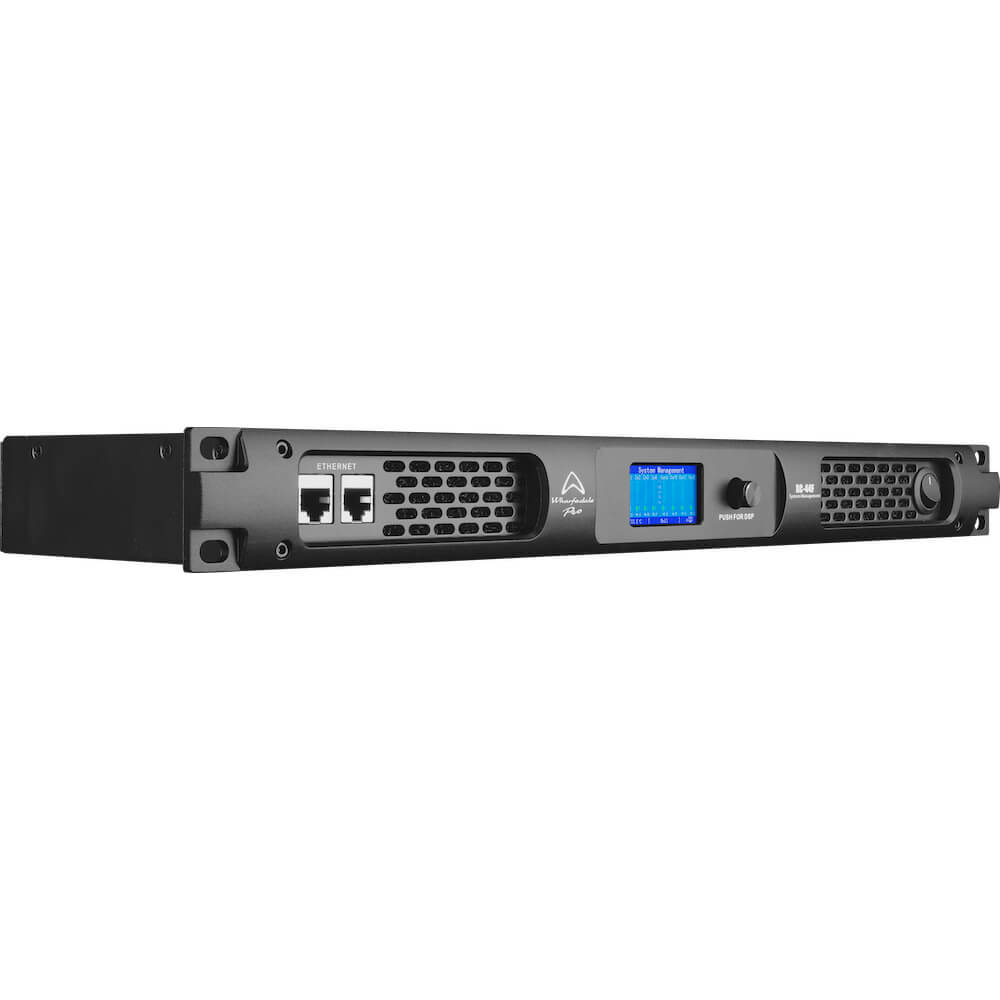

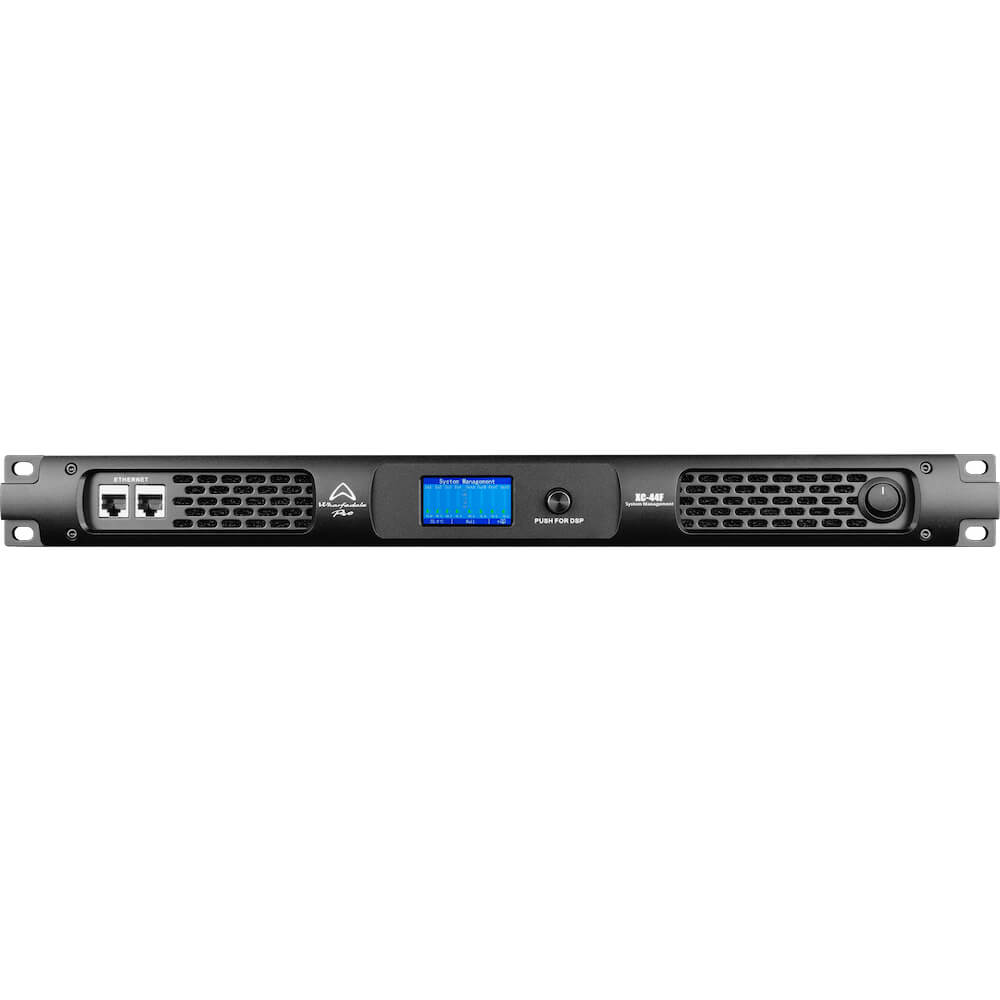

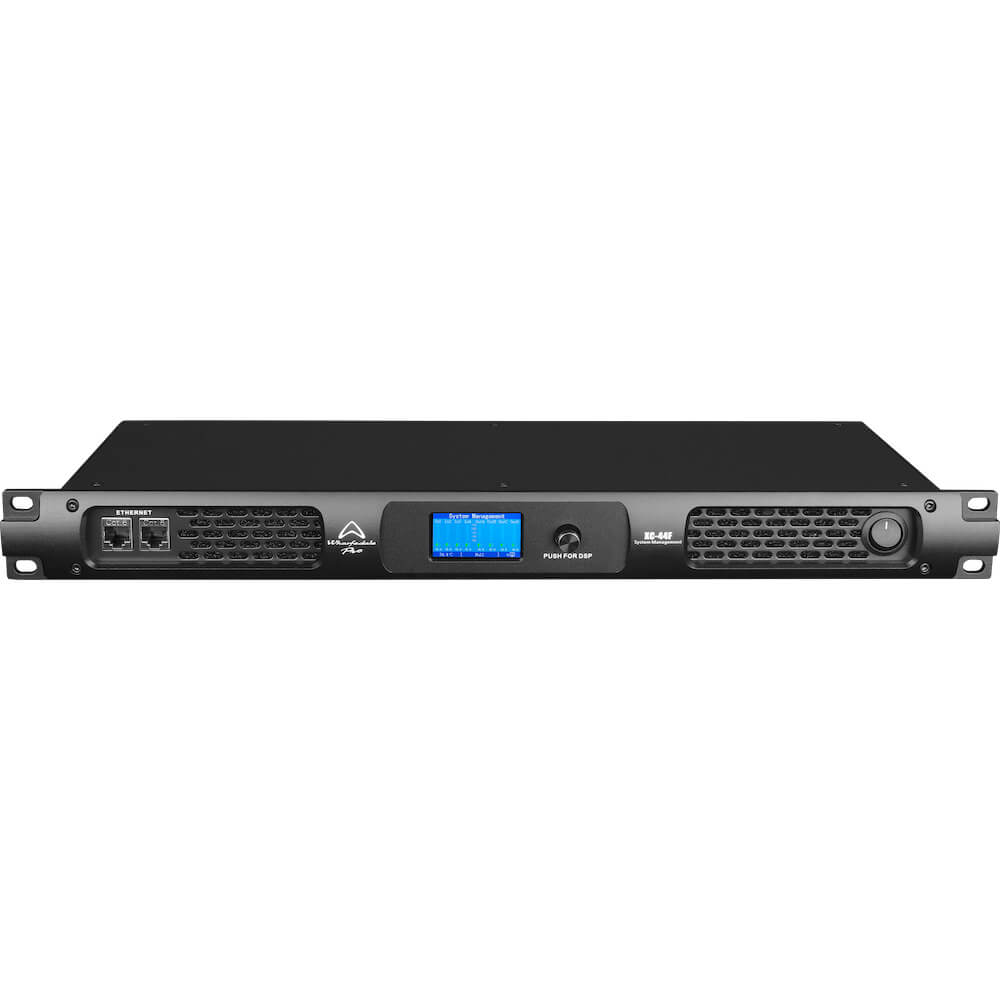

Wharfedale Pro XC44N Digital System Controller
FEATURES:
- 4 in – 4 out DSP control
- Compatibility with DP-F and DP-N amplifier platforms
- Comprehensive FIR preset library

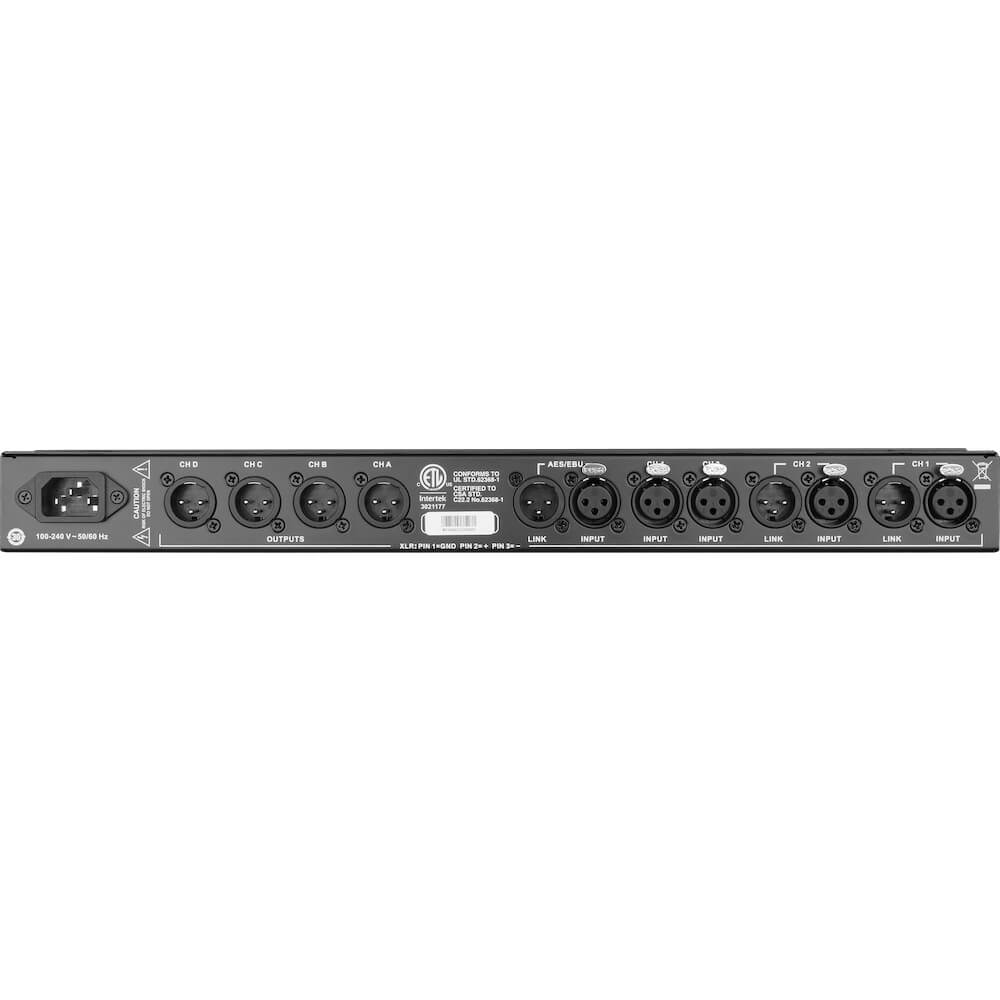

- AES / EBU digital inputs with Link outs.
- Locking XLR input connectors
The XC Series System Management controllers harvest the DSP engine capabilities of our successful DP-F and DP-N amplifiers to deliver both protection and enhanced definition to any system.
Equipped with an extensive loudspeaker preset library, FIR filters and advanced dynamics protection, the XC Series simply improves performance across all applications.
These 4 in – 4 out controllers are available with two interface options. XC-44F with Ethernet and XC-44N with Dante ™ connectivity. Both models are controlled with the Wharfedale Pro DSP Controller software where FIR presets for almost every Wharfedale Pro loudspeaker are available for free download. Both XC Series models feature AES / EBU input and analogue link outputs on Ch 1 and Ch 2.
The Wharfedale Pro ecosystem now allows for users to migrate between DP-F and DP-N amplification platforms to and from the XC platform. Familiar user interfaces and compatible file formats make life easy.
Take control
To maximise the performance of any PA system – but moreover to protect it – DSP is essential.
XC series deliver 4in – 4out DSP control with FIR filters to get the most from the system and to protect it.
Software control
All parameters of XC Series can be controlled via PC.
Not only is this extremely convenient, but a clear central graphical representation of your EQ and crossover points are displayed. This also makes light work of copying channel settings and organising your presets.
Using the PC software also allows for system backups to be made.
FIR PRESETS
With XC series you get the full Wharfedale Pro Preset Library. A massive collection of presets for all of our loudspeakers.
FIR FILTERS
FIR Filtering gives
- Independent control of magnitude and phase.
- More detailed equalisation.
- Optimization of frequency and power response.
DSP from DP-F / N series amps
XC Series harvest the power of our DP-F / N series amps. A trusted platform delivering amplification power for installations and live sound. With full file compatibility, XC series is part of our DSP eco-system.
SPECIFICATIONS:
| Model | XC-44F |
| Input / output | 4 x 4 |
| Input type | Analog, AES/EBU, Ethernet |
| Input impedance | 20 kΩ（Balanced，10 kΩ（Unbalanced) |
| Output impedance | 600 Ω |
| Max input level | +20 dBu |
| Max output level | +20 dBu |
| THD+N | <0.02% (1 KHz,0 dB) |
| Frequency response | typical: +0, -1 dB (0 dB, 20 Hz-20 KHz) |
| Cross-talk | <-95 dB（1KHz） |
| SNR | >105 dB（A weighted） |
| Delay | <1.8 ms（Analog input/output，48 KHz） |
| Main power | 100-240 VAC ±10%, 50/60 Hz |
| Size (W × H × D) | 483 x 45 x 160 mm |
| Net weight | 2.2 kg |
