High-Efficiency 1000W Class-D Amplifiers
![](https://asia-latinamerica-mea.yamaha.com/en/files/58E8451FC0654F6F816F05CE088A1FAA_12083_320x214_134aa5dac67db3edc1c1ea6aaf93bfc8.jpg)
The DBR’s lightweight, high performance Class-D amplifier is capable of producing up to 1000W* of power, achieving an SPL of 132dB, delivered with remarkable clarity and dynamic characteristics.
*DBR10 has an output level of 700W.
Custom Designed Transducer
![](https://asia-latinamerica-mea.yamaha.com/en/files/E7F112939B6D4F0D810E994E9EFEB869_12083_320x277_29edc0e636a6c3d67066af43f12ee336.jpg)
The high power output woofers deliver well-defined, powerful bass with minimal distortion, while the 1.4″ precision compression driver* produces accurate mid-range and high frequencies.
*DBR10 features a 1″ compression driver.

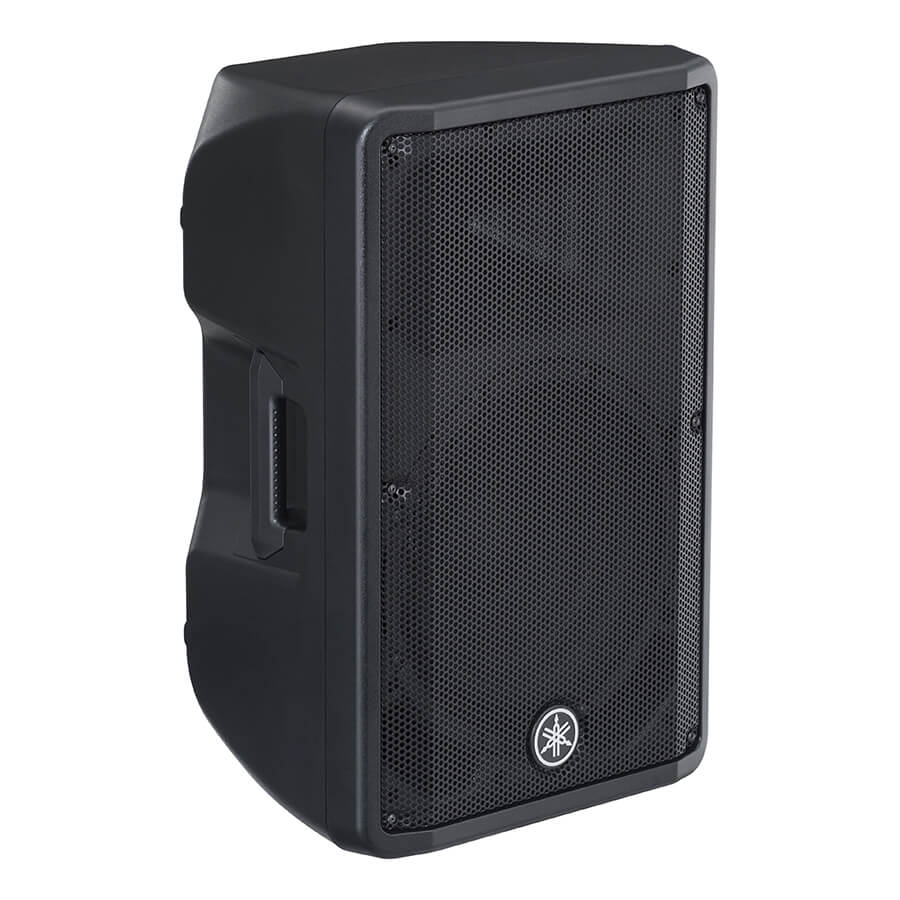

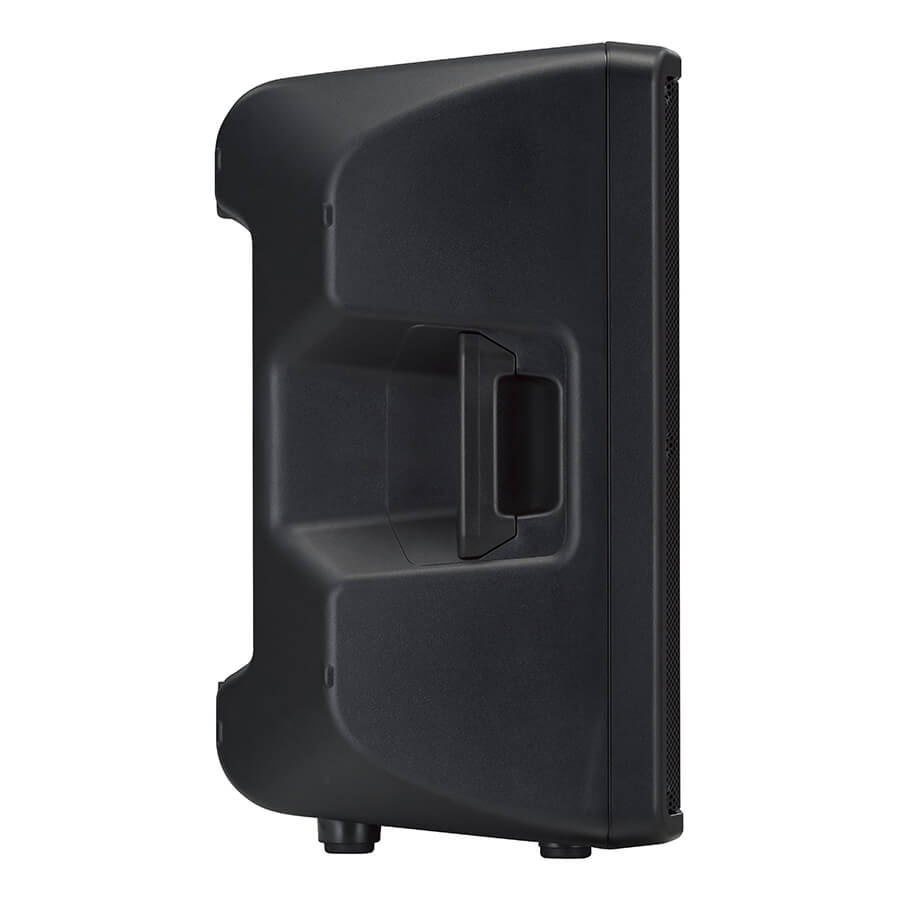

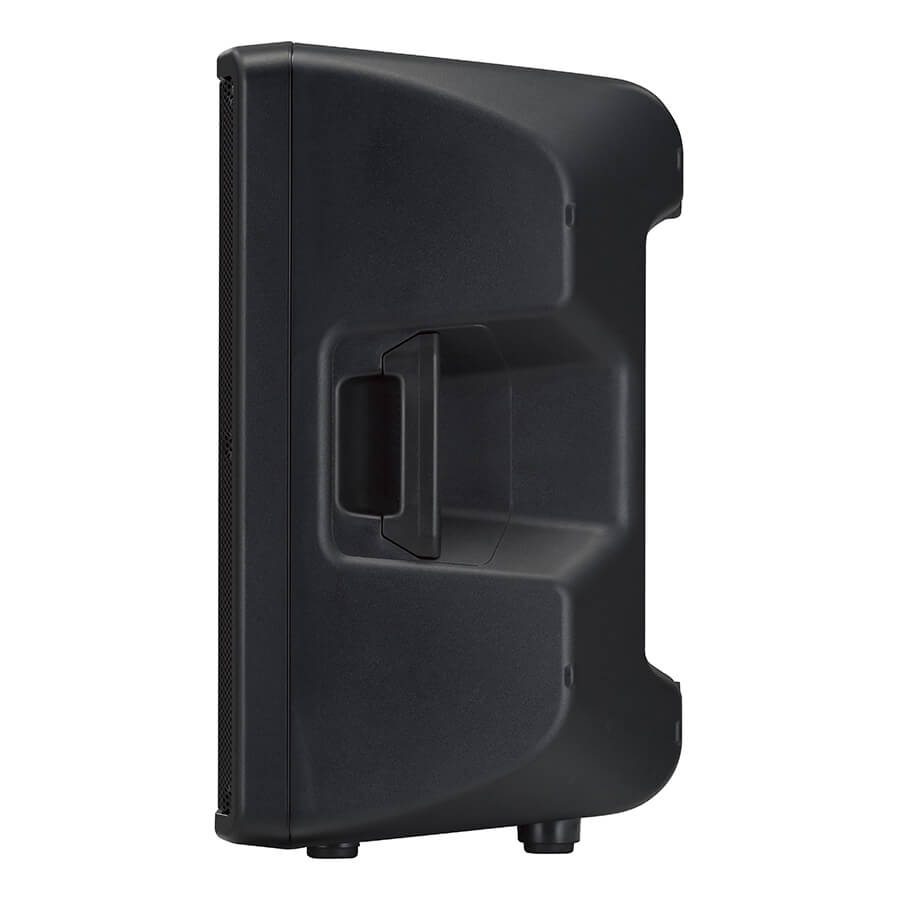

A Rugged, Highly Portable Cabinet
![](https://asia-latinamerica-mea.yamaha.com/en/files/54388B8F070C4E3BB8E787DB0398307D_12083_320x239_d96d810754877a56eb3f15f1f3a97efc.jpg)
DBR Series speakers feature a compact, lightweight, and durable plastic cabinet which offers the highest level of portability of all Yamaha powered speakers. The sleek steel grille bolsters cabinet durability and protects the internal components while a newly designed ergonomic handles provide effortless transportation and system setup.

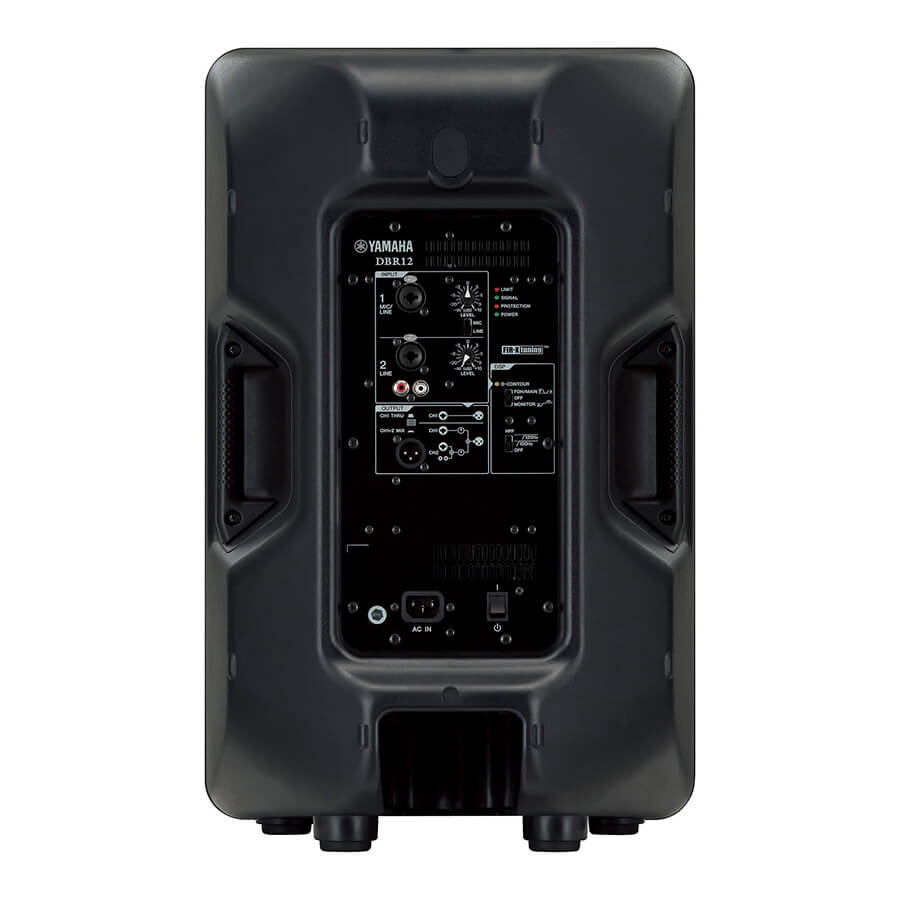

Easy-to-use Onboard 2-Channel Mixer
![](https://asia-latinamerica-mea.yamaha.com/en/files/A76B3F4C9E364076B95656BC3F2F4AA9_12083_240x273_b4a2610c7790d804181f723316347982.jpg)
DBR Series speakers have two input channels. CH1 has a combo jack which accepts both XLR and TRS Phone allowing for either Mic or Line level input signals. CH2 offers two input options; a combo jack that accepts XLR or TRS Phone, and an RCA pin jack for input from CD players or other stereo line-level sources. The onboard mixer allows you to select either CH1+2 MIX to mix the signal of CH1 and CH2, or CH1 THRU to pass the signal from CH1 only.

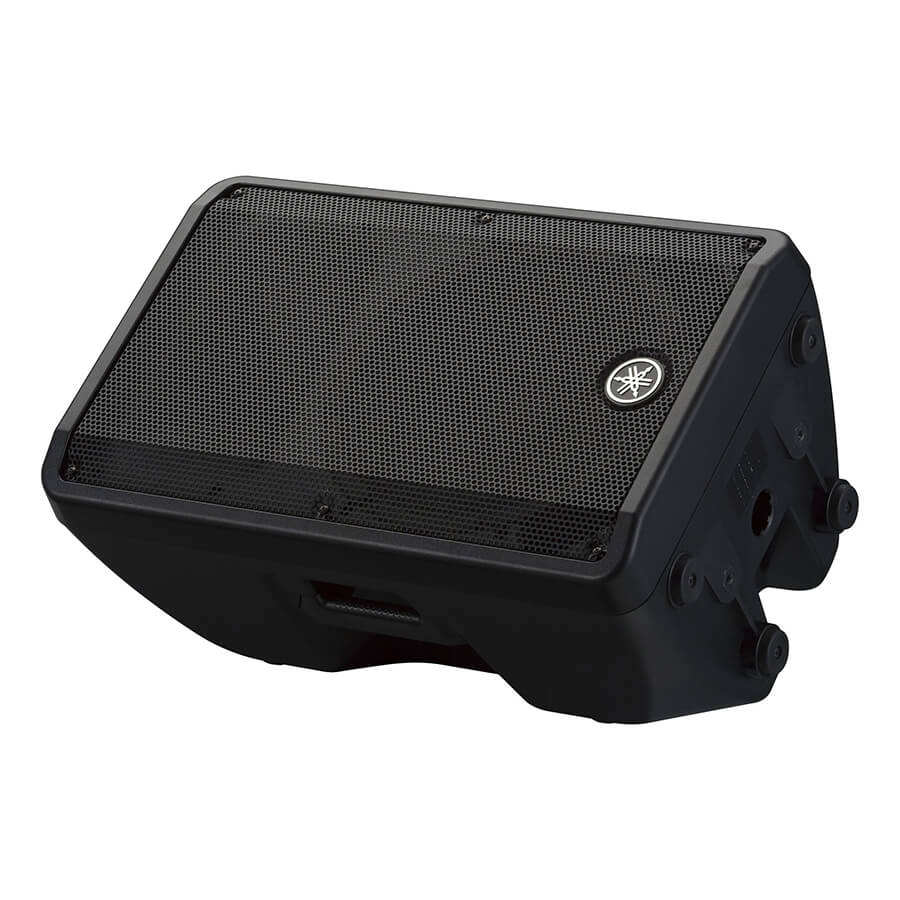

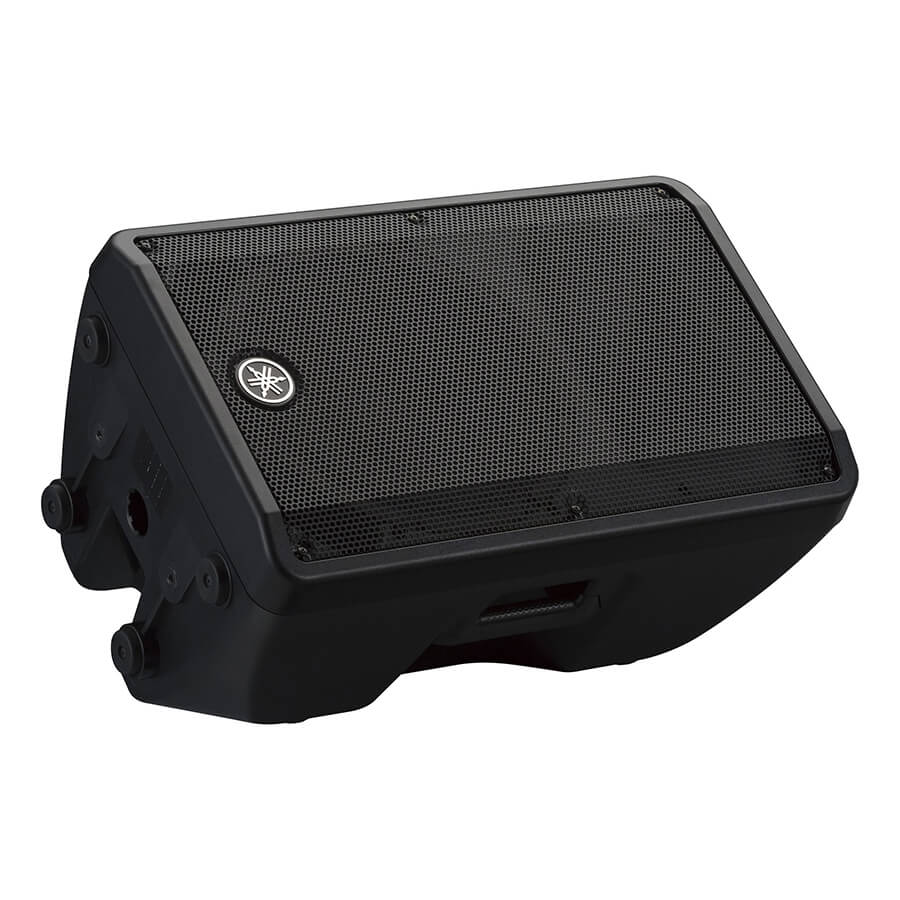

Smart Enclosure Design for Floor Monitoring
![](https://asia-latinamerica-mea.yamaha.com/en/files/D13850B9522C489490242210B0E56FC1_12083_320x124_ee305c4bf76478d8718165ff0b405cca.jpg)
DBR Series speakers feature an optimized 50°wedge angle for floor monitoring. In addition the DBR12 and DBR15’s symmetrical shape allows for effortless configuration of a mirror-mode floor monitoring system in either symmetrical or stereo sound field setups.
Rigging Points for Installation Applications
![](https://asia-latinamerica-mea.yamaha.com/en/files/E77C58E8990A40BBBA77745605F9FE3C_12083_320x245_8c35f05fdee2f477aacc76e72abe0615.jpg)
DBR loudspeakers come equipped with M8 rigging threads, allowing for rigged applications with optional speaker brackets or standardized eye-bolts.
*Speaker brackets and eye-bolts are not included.
DBR12 | ||||
General specifications | ||||
Speaker type | 2-way, Bi-amp powered speaker, Bass-reflex type | |||
Frequency range (-10dB) | 52Hz – 20kHz | |||
Nominal coverage | H | 90° | ||
V | 60° | |||
Components | LF | Diameter:12″ cone, Voice Coil:2″, Magnet:Ferrite | ||
HF | Diaphragm:1.4″, Type: 1″ throat compression driver, Magnet:Ferrite | |||
Crossover | 2.1kHz: FIR-X tuning™ (linear phase FIR filter) | |||
Output power | Dynamic:1000 W (LF: 800 W, HF: 200 W) / Continuous: 465 W (LF: 400 W, HF: 65 W) | |||
Maximum output level (1m; on axis) | 131dB SPL | |||
I/O connectors | INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix) | |||
Processors | D-CONTOUR: FOH/MAIN, MONITOR, OFF | |||
Heat dissipation | Fan cooling, 4 speeds | |||
Power requirements | 100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz | |||
Power consumption | 74W(1/8 Power Consumption), 18W(Idle) | |||
Cabinet material | Plastic | |||
Finish | Black | |||
Handle | Side x 2 | |||
Flying and mounting hardware | Bottom x 2, Rear x 1 (Fit for M8 x 15 mm eyebolts) | |||
Pole socket | 35mm (Bottom x 1) | |||
Dimensions | W | 376mm (14.8″) | ||
H | 601mm (23.7″) | |||
D | 348mm (13.7″) | |||
Net weight | 15.8 kg (34.8 lbs) | |||
Accessories | BBS251, BCS251, BWS251-300, BWS251-400 (Optional Speaker bracket) |
