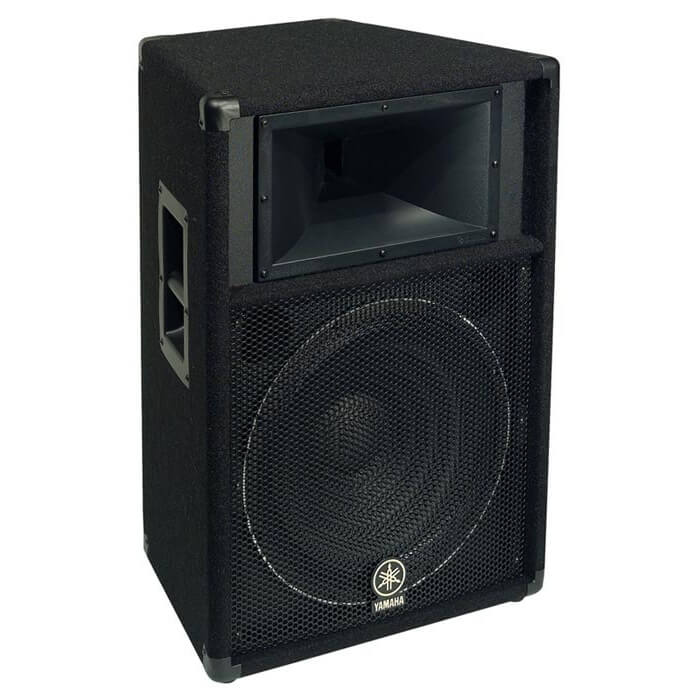

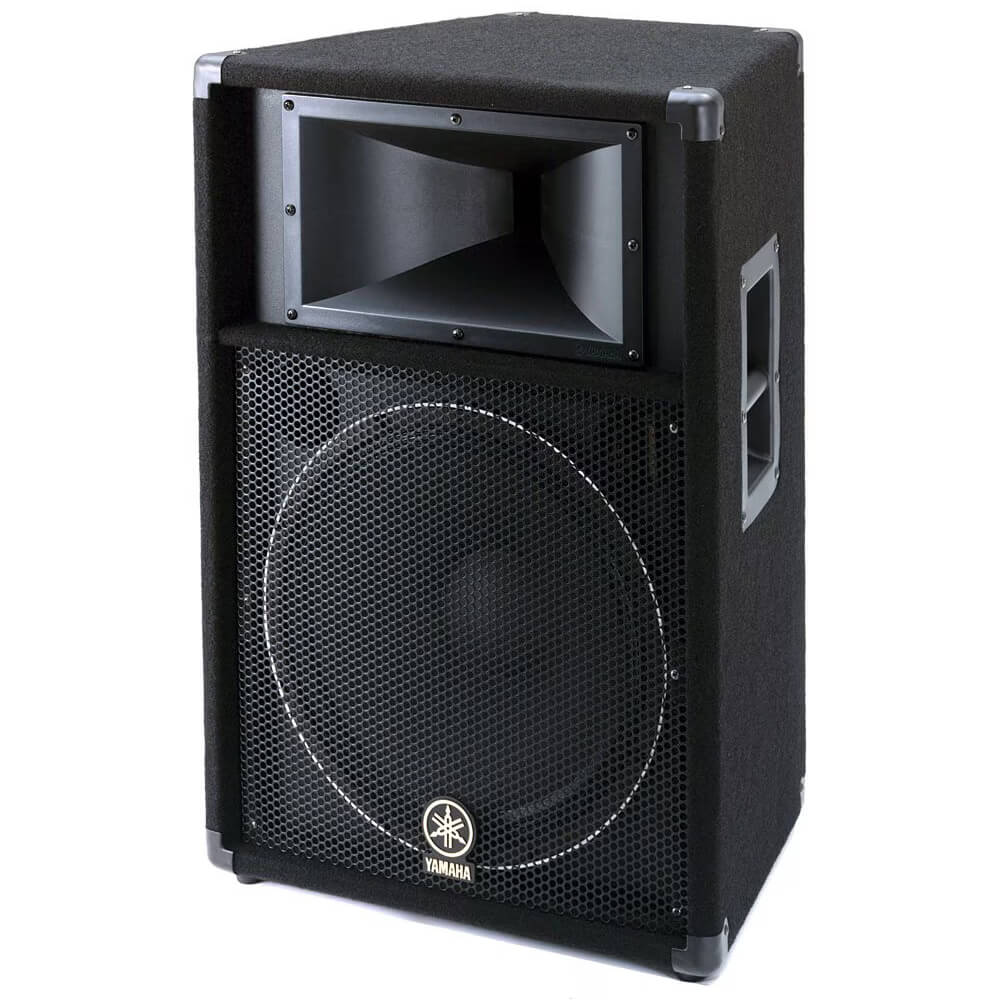

Yamaha S115V

The fifth generation of the best-selling Concert Club series, with more models and higher power capacity.

  • 15″ cast frame woofer
  • 2″ pure titanium diaphragm
  • 90 x 45 degree CD horn
  • Integral pole socket for stand mounting
  • Excellent for high-level music and vocals

    Description

    The Acclaimed Concert Club Series Advances to Mark V

    Developed and manufactured in the United States, the Concert Club series speakers have earned acclaim around the world. The new Mark V series represents a complete redesign of the previous Concert Club IV lineup, introducing three front-of-house models, three subwoofers, and three monitor models. While maintaining the superb portability and ease of placement that characterized previous generations, as well as the same design concept and stunning sound, the Mark V series represents a new level of performance overall.

    Comprehensive Lineup for a Variety of Applications

    This comprehensive speaker lineup includes three models for front-of-house use, three models for monitoring, and three sub-woofers. The front-of-house speakers are available with 12 inch, 15 inch, or dual 15 inch woofers, giving you a range of choices to suit your needs. For monitor speakers you have a choice of 10 inch, 12 inch, or 15 inch models. The subwoofer lineup has also been expanded and enhanced: in addition to a new 15 inch model, the previous twin-driver model (15 inch x 2) has been upgraded to an 18 inch x 2 configuration for even more commanding lows.

    An Ideal Match for EMX Series Powered Mixers or P Series Power Amplifiers

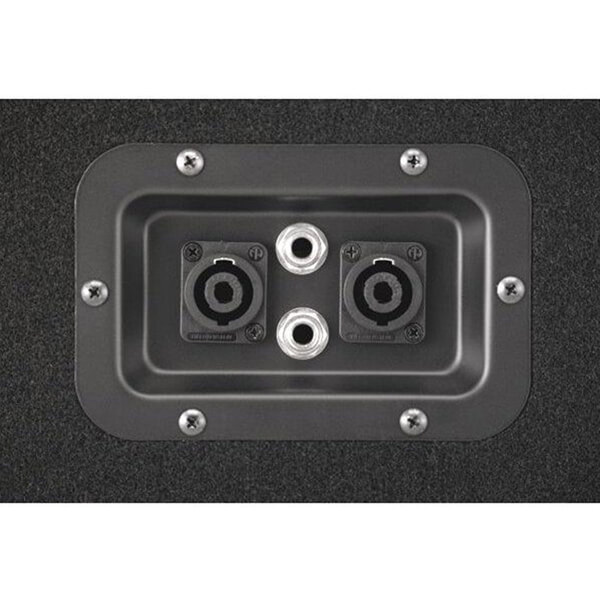

    The Concert Club V series and Concert Club VC series speakers provide dual phone jacks as well as dual Speakon™ connectors for input and parallel connection. A high-performance PA system can conveniently be created simply by connecting a pair of speakers to an EMX series powered mixer using the phone jack outputs on a box-type model, or the Speakon™ connectors on a console model. When used in conjunction with P series power amplifiers and an MG series mixing console, you have the flexibility to add monitor speakers and a subwoofer to create a versatile live sound system. The YSProcessing (Yamaha Speaker Processing) switch provided on the EMX series powered mixers and P series amplifiers enhances performance with single-woofer models (S112V, S115V, C112V(A), C115V(A), and monitor models) for even greater sonic impact.

    Top-class Parts and Optimized Wood Enclosures

    The Concert Club series has achieved worldwide acclaim for its superior sound and durability, becoming a standard for audio quality and reliability. Painstaking selection of parts and components, optimized wood enclosures, and a thorough reevaluation of speaker capacity have given the new Concert Club series a robust sonic presence that takes their performance to a new level. Even as your system changes and expands years down the road, you can expect the Concert Club series to deliver consistently excellent audio quality.

    Classic Design Combines Strength and Sophistication



    A classic, unpretentious design makes these speakers virtually timeless. The slightly rounded front grille enhances both style and durability. The Concert Club V series features a durable exterior with a carpeted surface, and large metal handles for improved portability. They’re designed to endure the rigors of a sound reinforcement system that will be set up and taken down night after night. The Concert Club VC series features a stylish new appearance with a front grille that hides the speaker and a spray-finish exterior that can be repainted to blend in with any decor.

    Built-in Protection

    As a much-requested solution to the problem of tweeter destruction that is a regrettably common occurrence in the equipment and studio rental business, the Concert Club series is provided with a protection circuit that prevents excessive tweeter input due to acoustic feedback or other causes.

    1-3/8 inch speaker pole sockets

    Except for the floor-type S215V/C215V models, all front-of-house and monitor models are equipped with a pole socket for use with speaker stands. You can place these speakers on a standard 1-3/8 inch diameter speaker stand for a variety of applications.

    A-type Models for Flying or Bracket Installation

    The Concert Club VC series C112VA and C115VA models are specifically designed for installations rather than portable applications: metal handles and pole sockets have been eliminated, while barrier-strips are provided for secure, lasting connections. 3/8-inch eye bolt screw holes are provided on all sides – 3 each on the top and bottom, and 2 each on the sides and back – for convenient vertical or horizontal suspension (4 3/8-inch eye bolts are provided with each speaker). The C112VA additionally features screw holes on the top, bottom, and sides for bracket mounting. Optional brackets are available for easy baton, ceiling, or wall mounting.

    Specifications

    PA Speaker
    Configuration
    Passive 2-Way
    Total Power Capacity
    500 W RMS
    System Impedance
    8 Ohms
    Drivers
    HF Driver
    1 x 2″ / 50.1 mm Titanium Tweeter
    LF Driver
    1x 15″ / 38.1 cm Woofer
    Performance
    Frequency Response
    55 Hz to 15 kHz
    Maximum SPL
    129 dB
    Connectivity
    Audio I/O
    2x speakON NL4
    2x 1/4″ TS
    Signal Processing
    Crossover
    2 kHz
    Physical
    Construction Material
    Particle Board
    Dimensions
    19 x 28 x 15″ / 483 x 711 x 381 mm
    Weight
    60 lb / 27 kg
    Packaging Info
    Package Weight
    69.2 lb
    Box Dimensions (LxWxH)
    31 x 21.5 x 17″
